Toyota COROLLA vacuum tube — Figure 1708

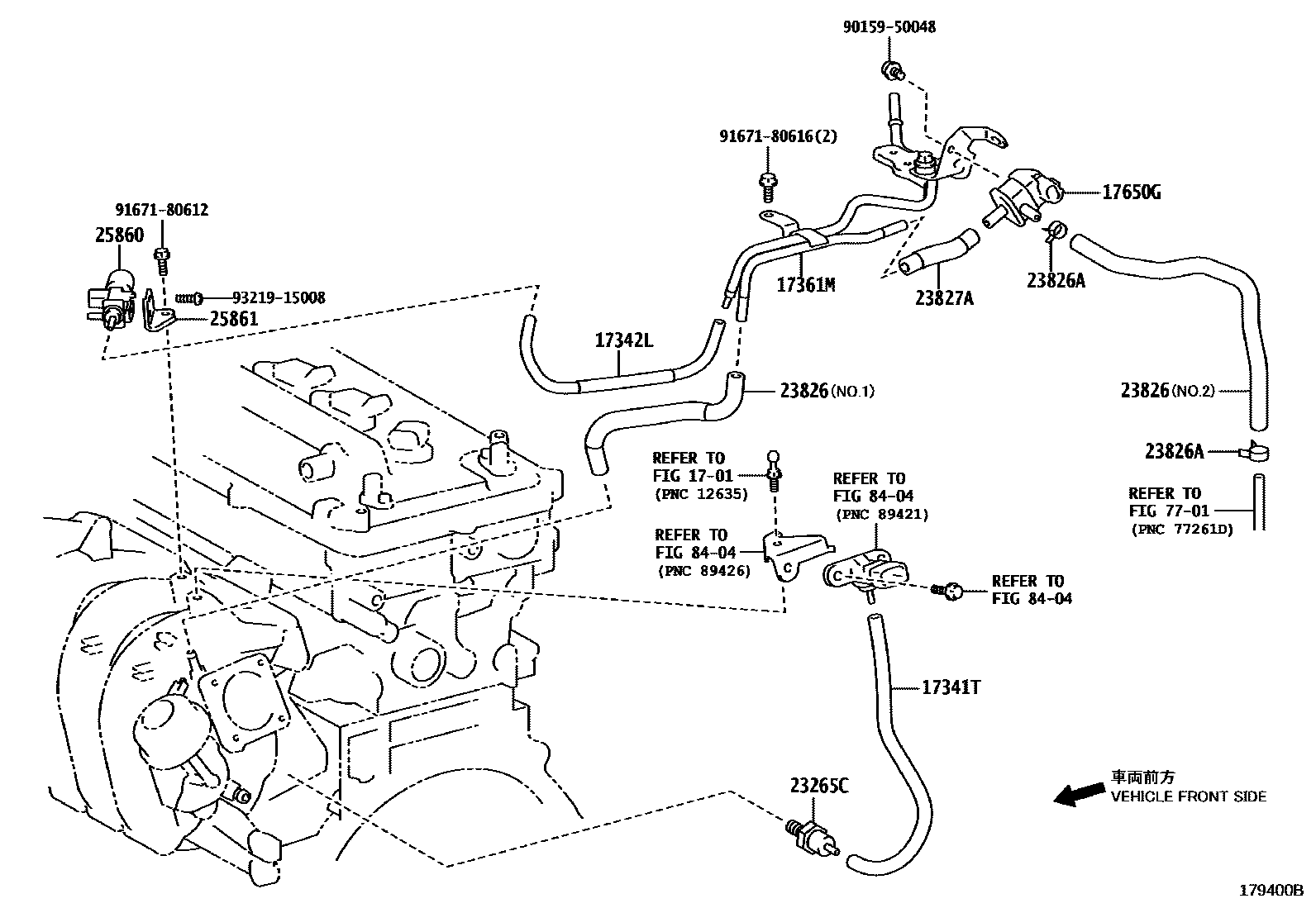

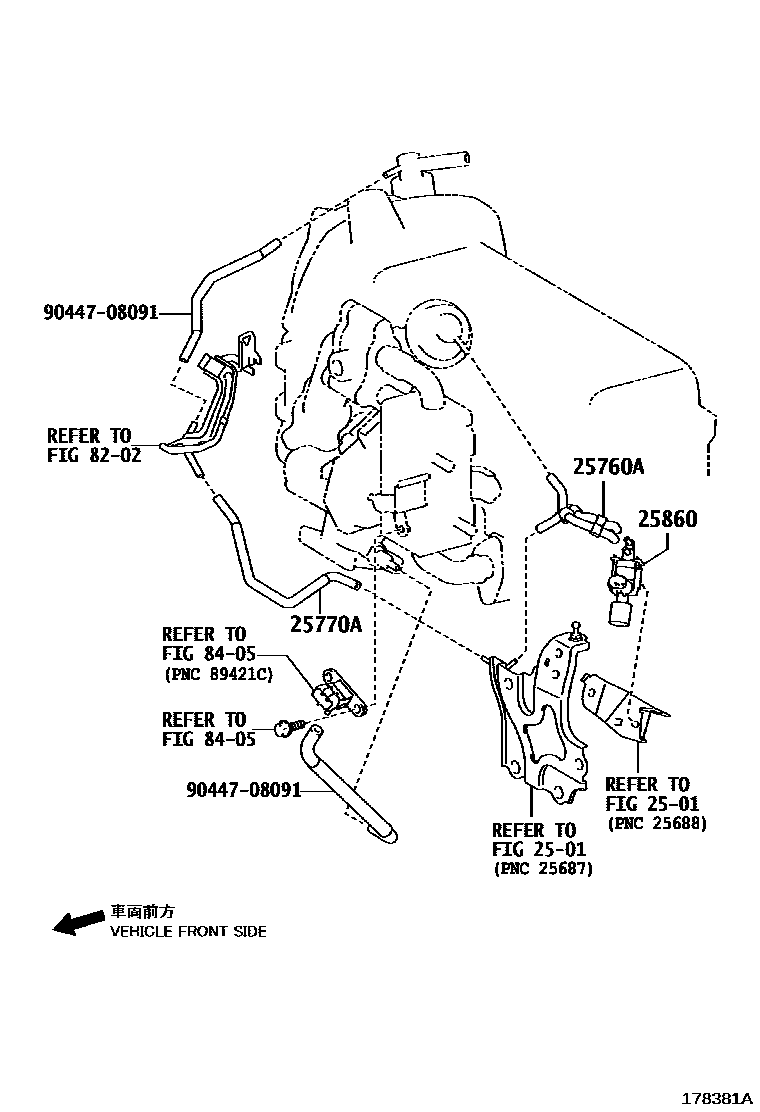

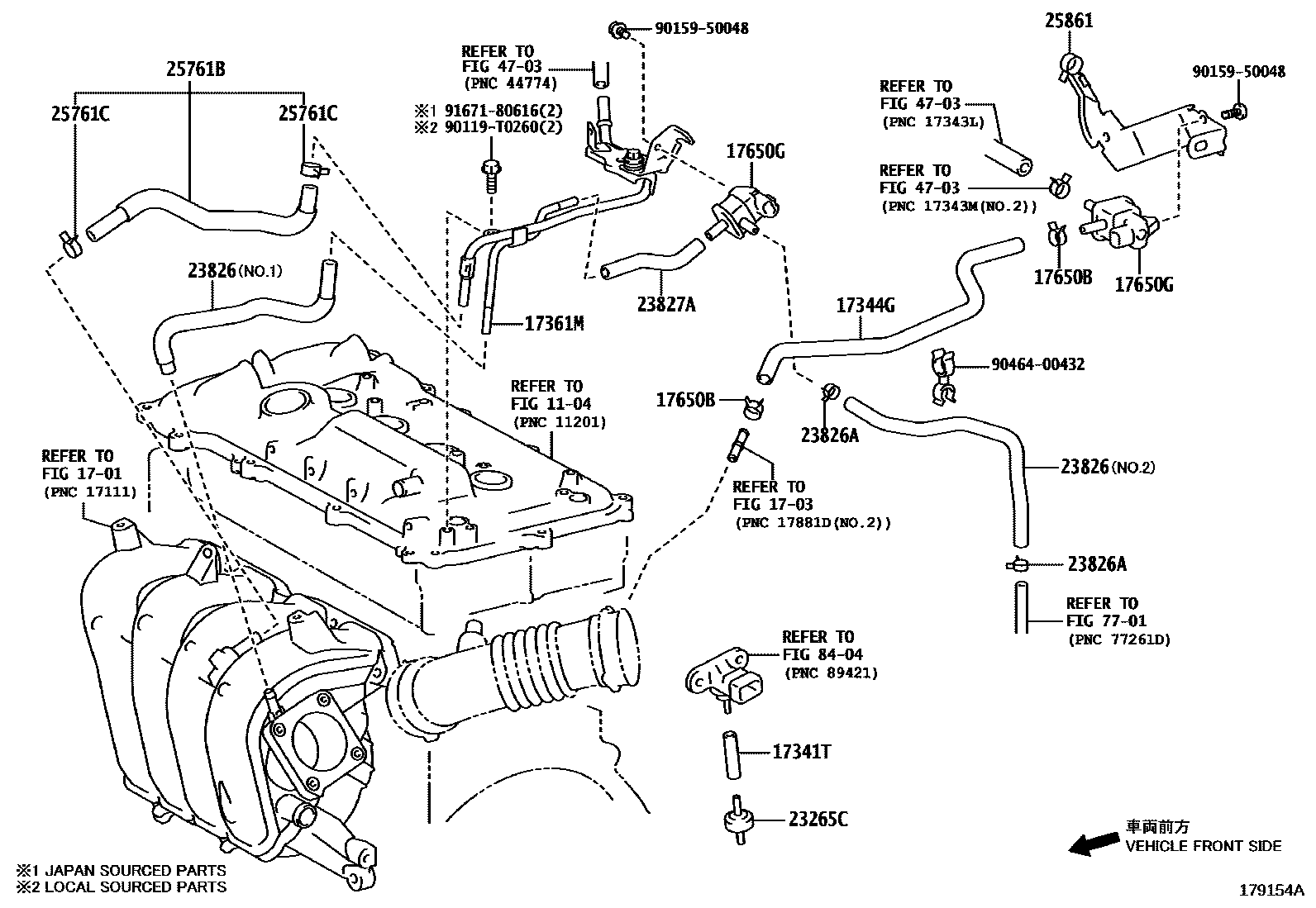

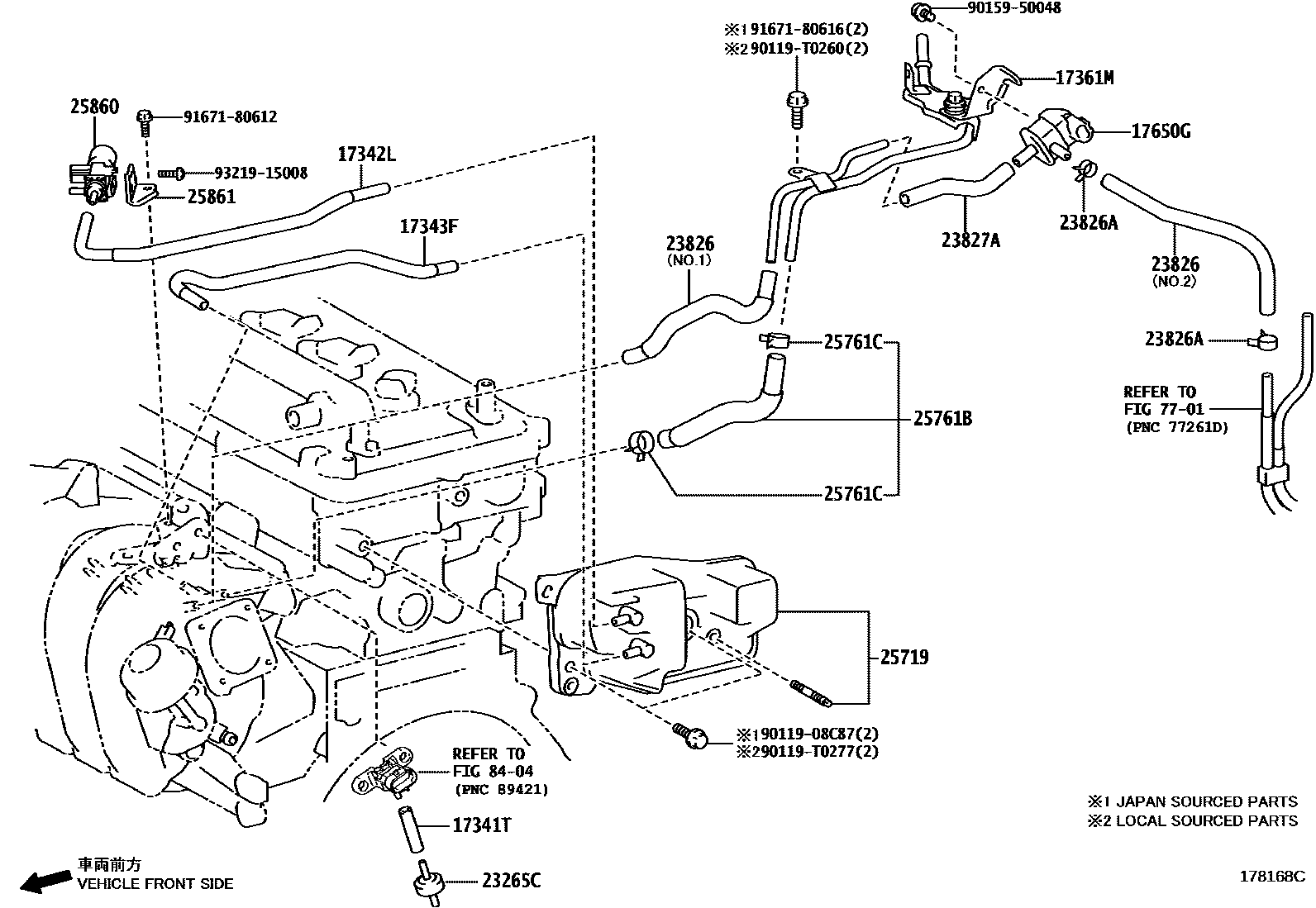

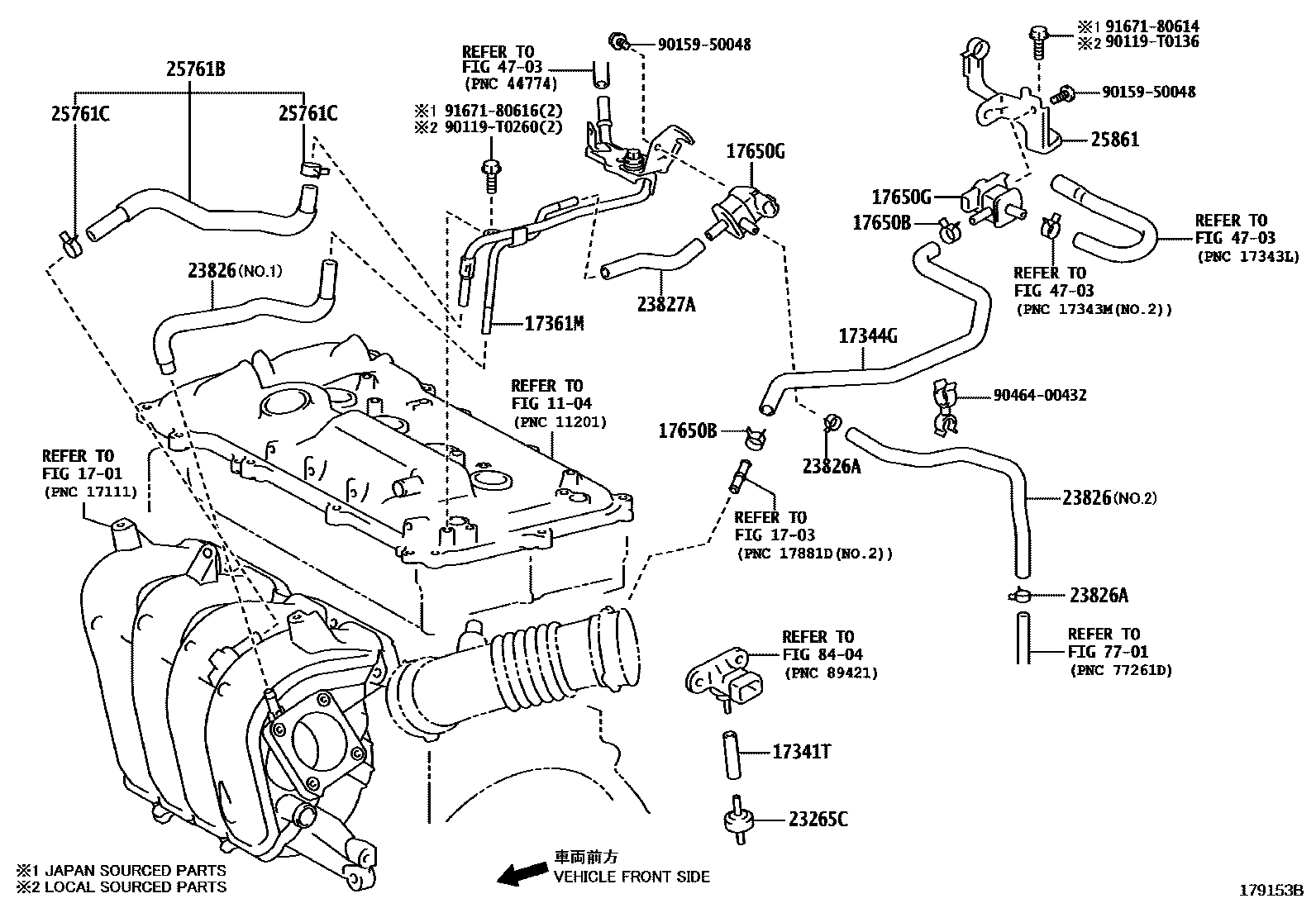

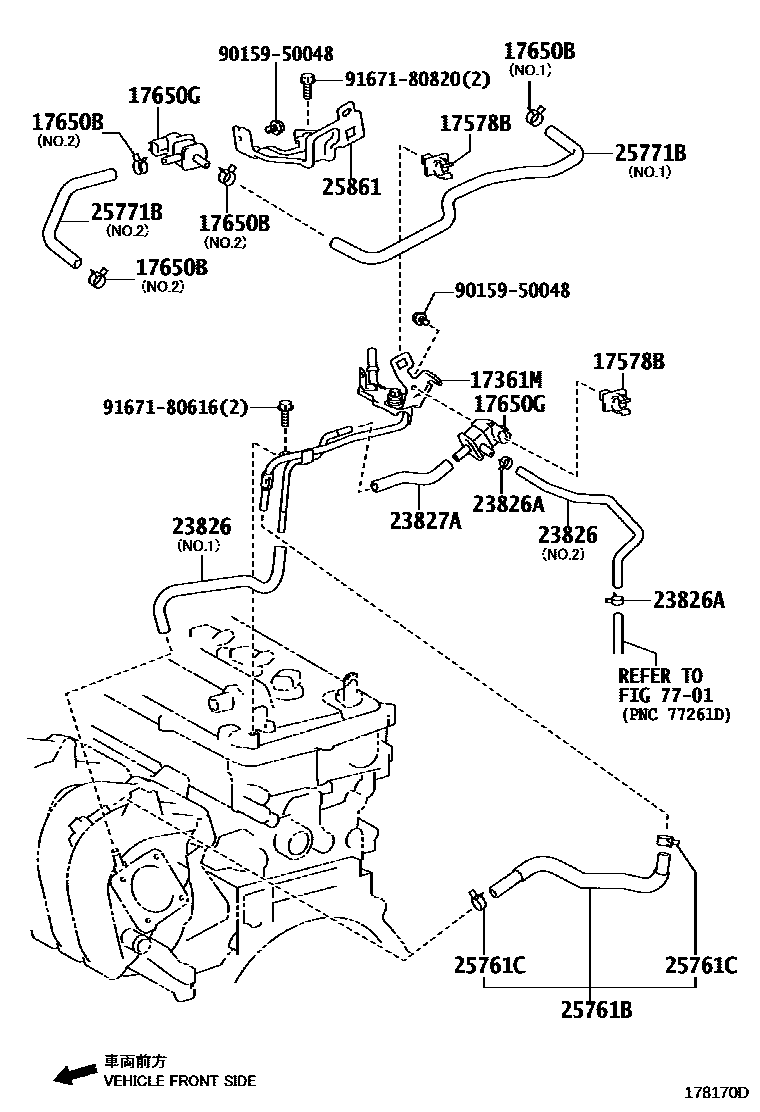

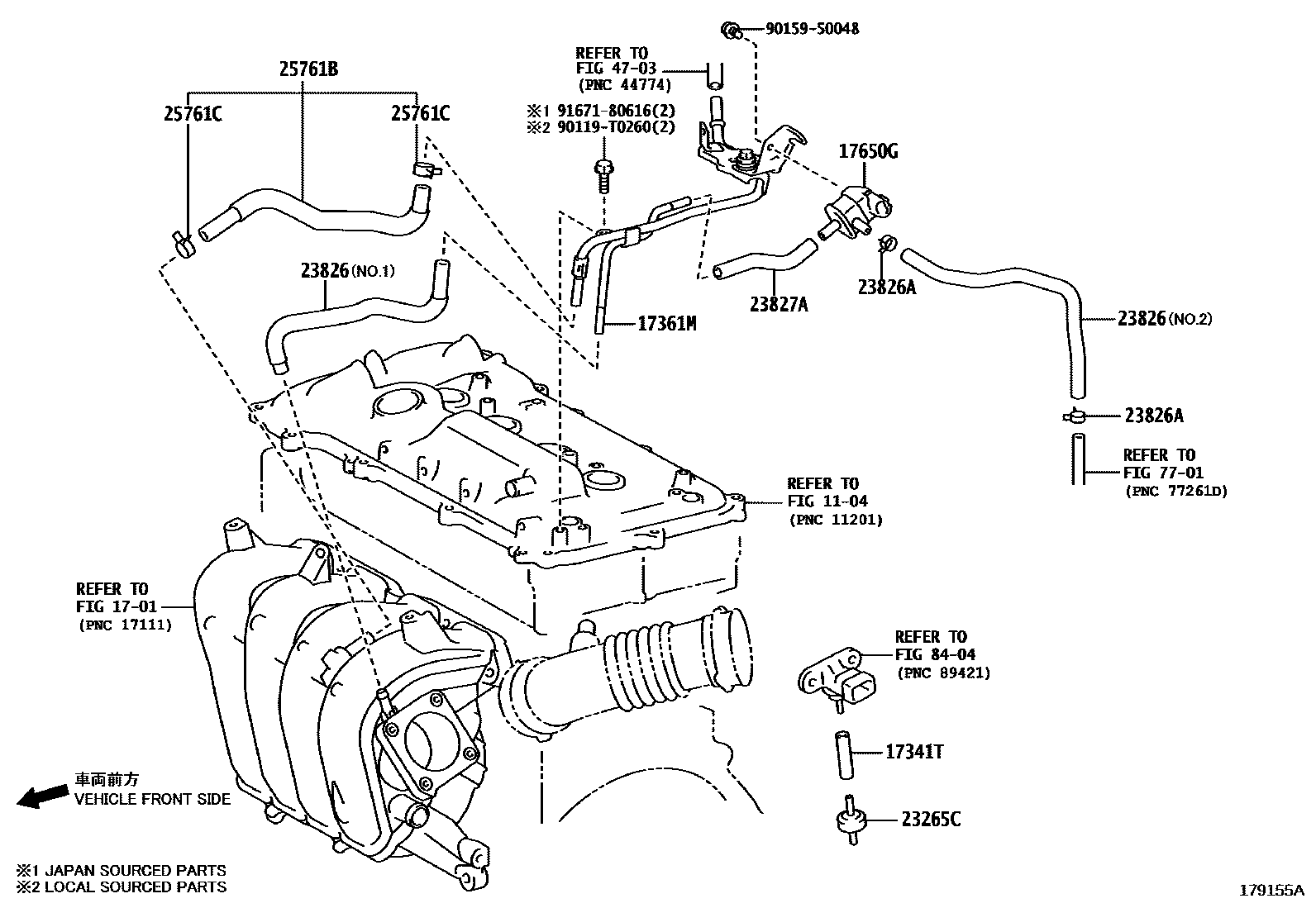

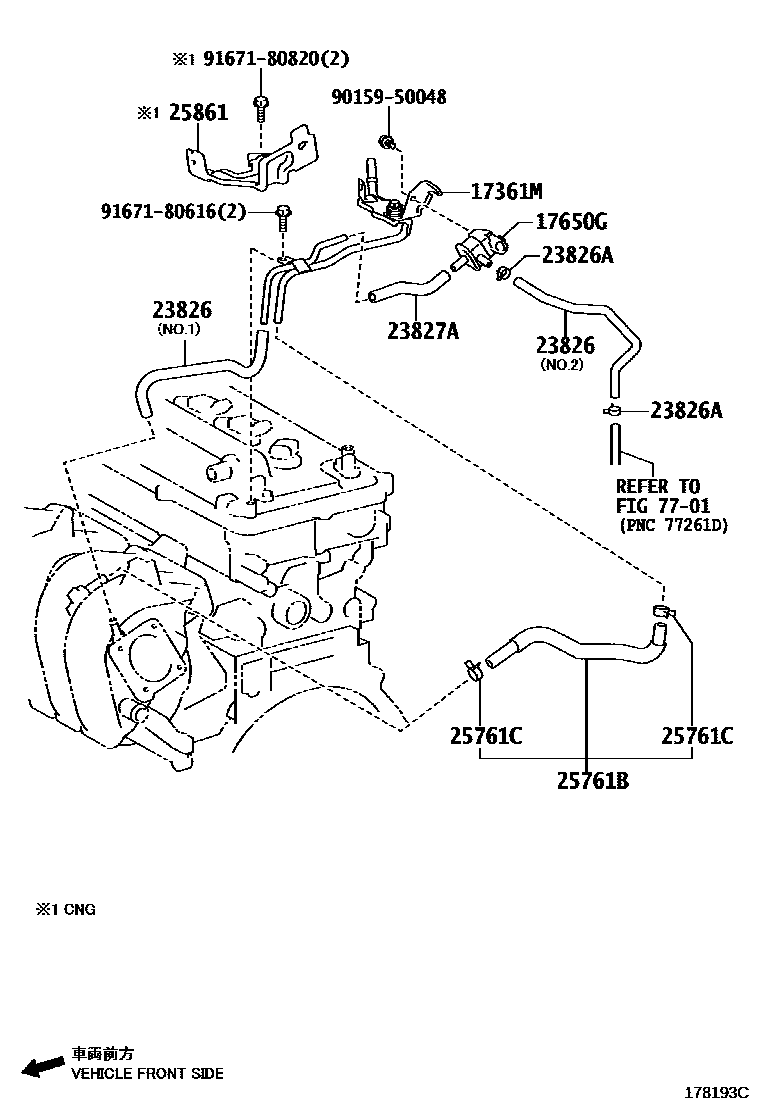

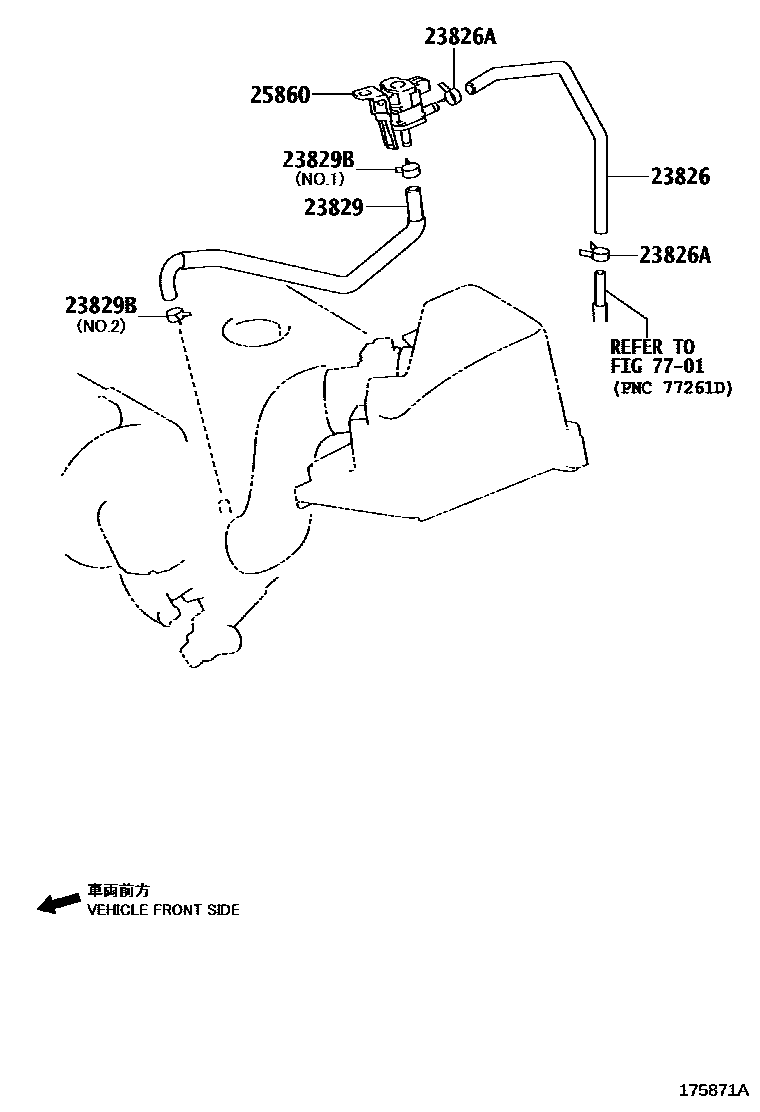

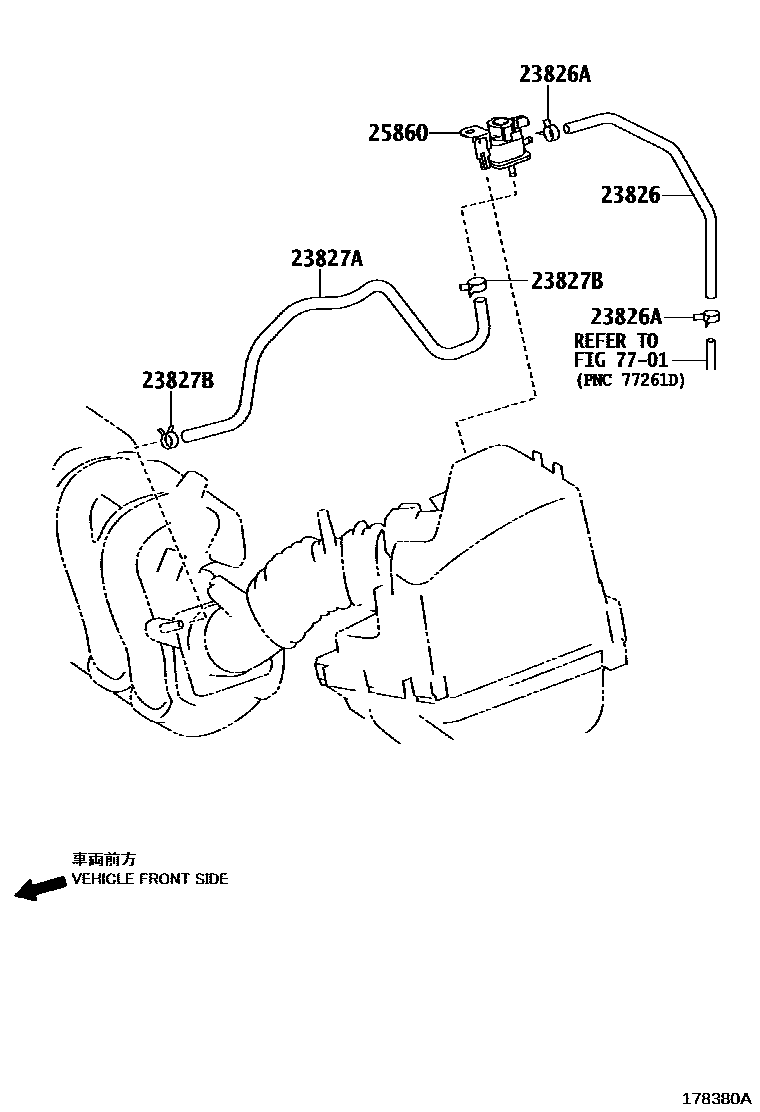

Toyota COROLLA EPC diagram 1708, vacuum tube, with 10 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341T | Air hose No. 1 | 17341-0T080 · 17341-37060 · 17341-37080 |
| 17342L | Air hose No. 2 | 17342-0T060 · 17342-37050 · 17342-37060 |
| 17343F | No. 3 air hose | 17343-0T010 · 17343-37040 |
| 17344G | No. 4 air hose | 17344-0T010 · 17344-0T020 · 17344-0T030 |
| 17361M | air tube | 17361-0T040 · 17361-0T050 · 17361-37011 · 17361-37020 · 17361-37070 · 17361-37090 |
| 17578B | Pipe clamp | 17578-36010 |
| 17650B | Clamp (for vacuum switching valve hose) | 96132-41500 · 96136-41801 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 · 90910-TC001 |
| 23265C | gas filter | 90917-11022 · 90917-11030 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0D110 · 23826-0D120 · 23826-0T100 · 23826-0T120 · 23826-0T130 · 23826-37021 · 23826-37050 · 23826-37190 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 · 96132-51100 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0M060 · 23827-0T060 · 23827-37020 · 23827-37030 · 23827-37060 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96132-51300 |
| 23829 | No. 3 fuel vapor supply hose | 23829-22130 |
| 23829B | Clamp (for fuel vapor supply hose) | 96132-51300 |
| 25719 | Vacuum pressure tank | 25719-37010 · 25719-37011 |
| 25760A | Vacuum transfer hose assembly | 25760-33110 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-0T080 · 25761-37011 · 25761-37080 |
| 25761C | Clamp (No. 1 vacuum transfer hose) | 96133-41500 |
| 25770A | No. 2 vacuum transmission hose assembly | 25760-33130 |
| 25771B | No. 2 vacuum transfer hose | 25761-0T030 · 25771-0T010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0D100 · 25860-21120 · 25860-30070 · 90910-12281 |
| 25861 | Vacuum switch valve bracket | 25861-37010 · 25861-37060 · 25861-37080 · 25861-37090 · 25861-37100 |
