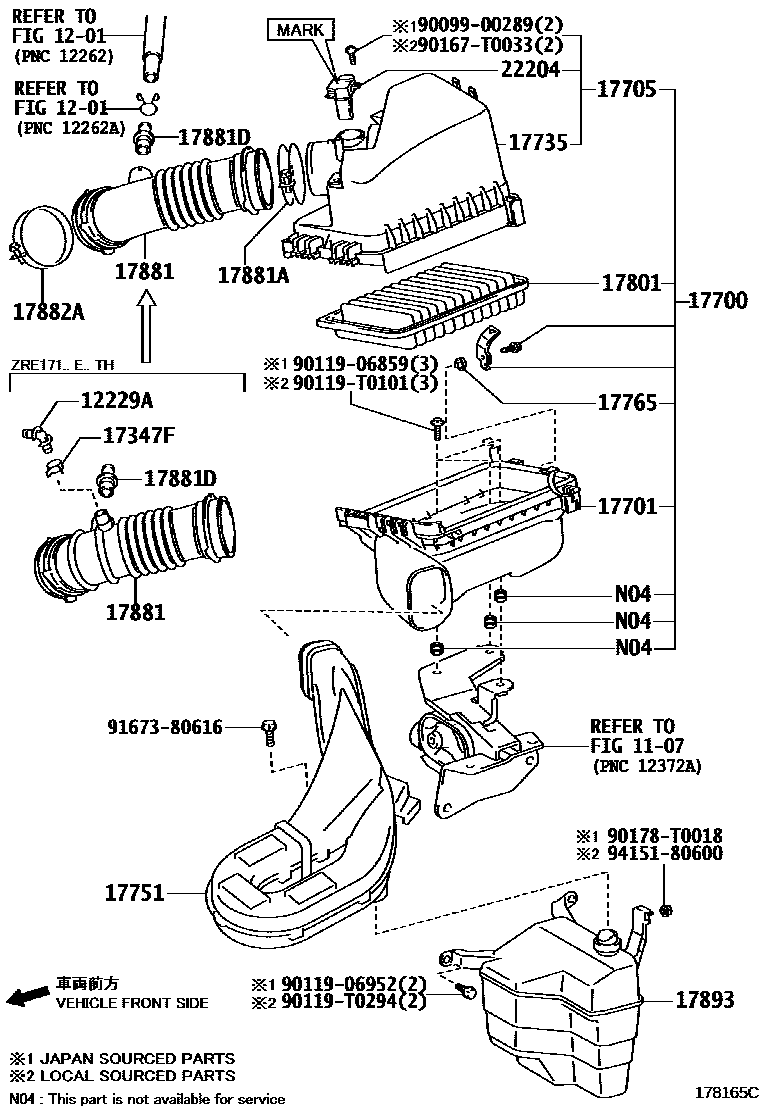

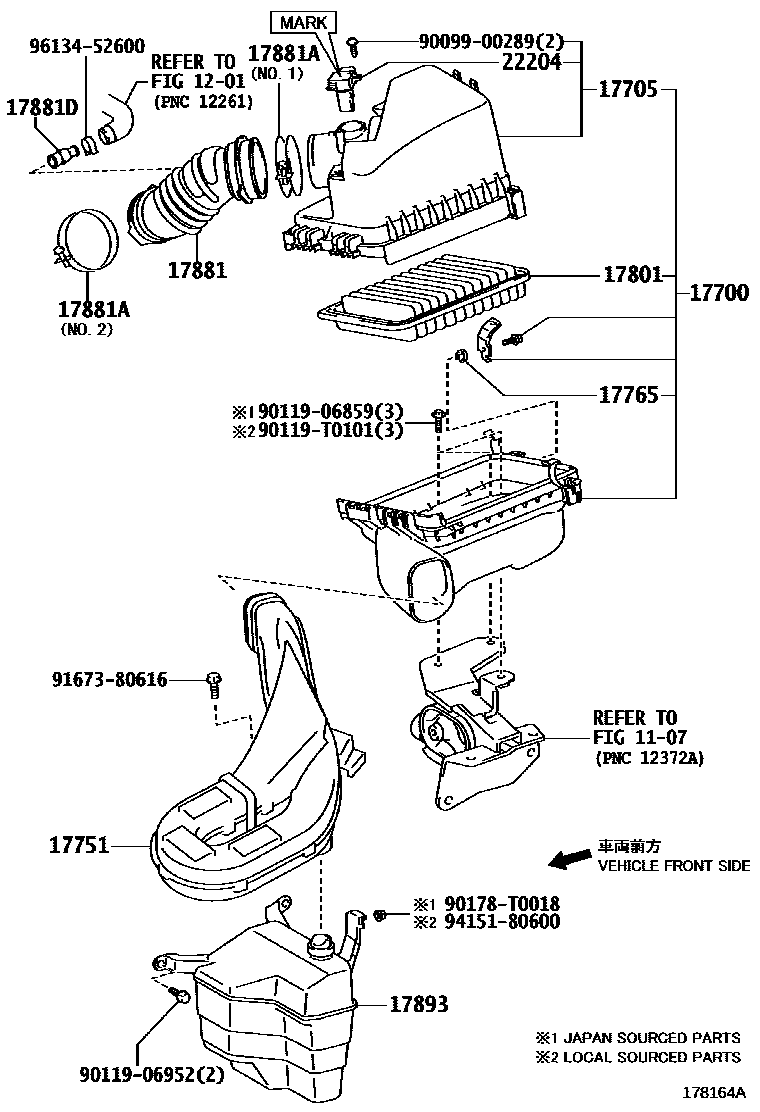

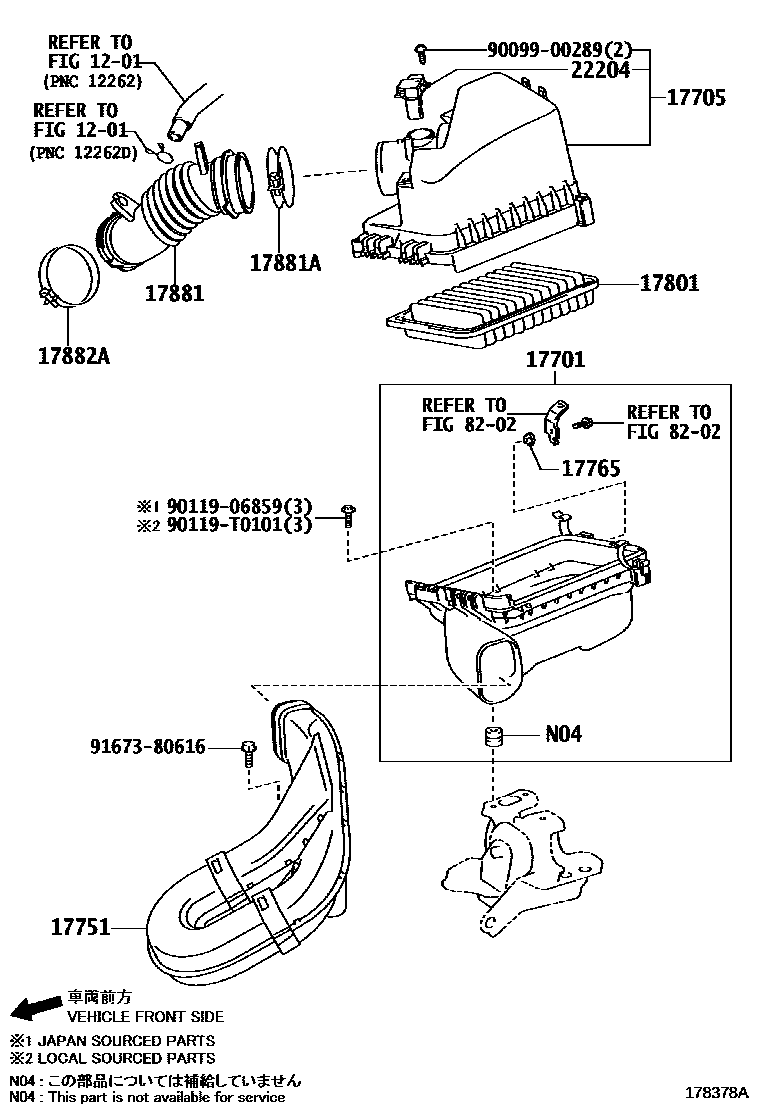

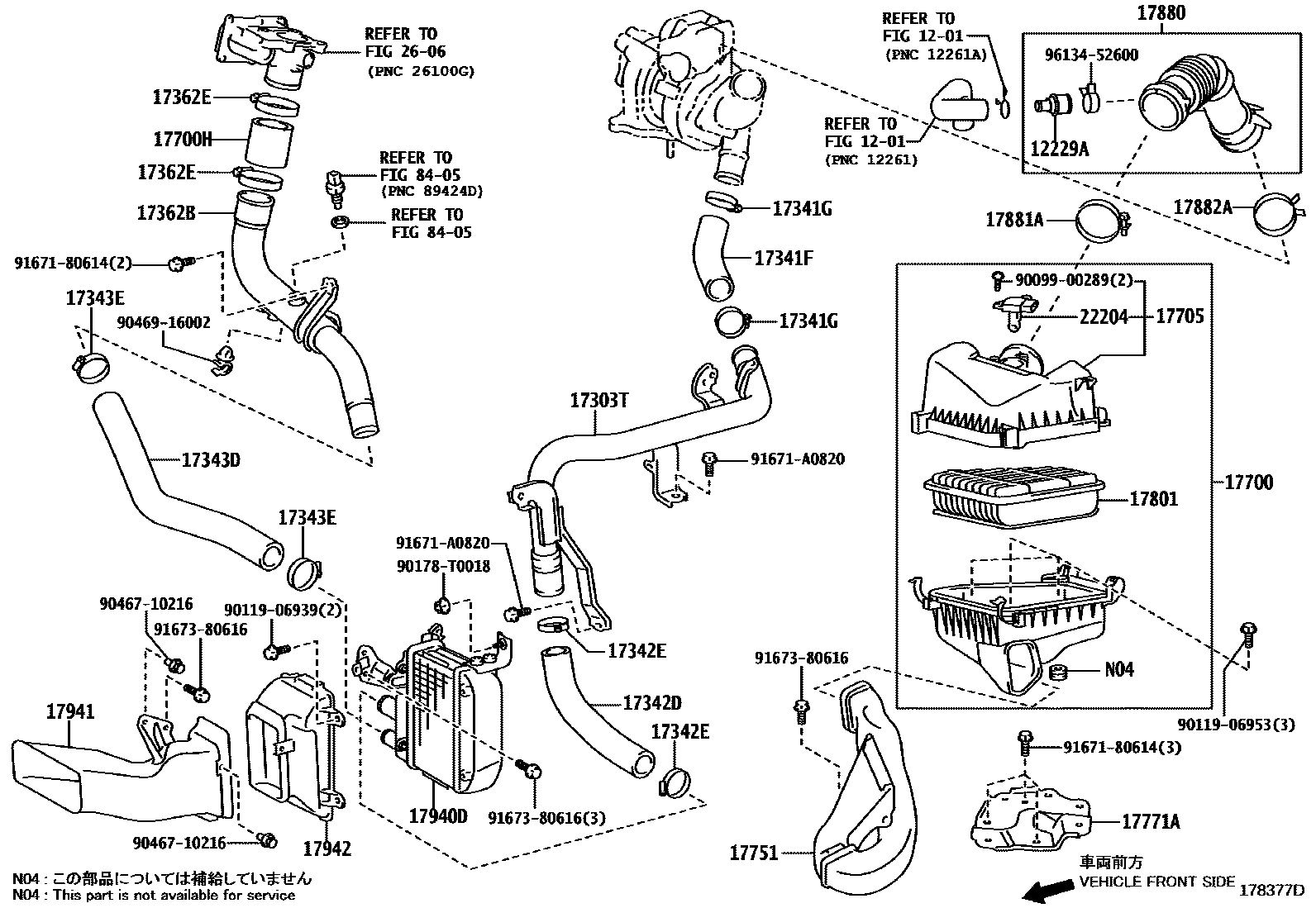

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-0Y050 · 12229-21010 |
| 17303T | Air pipe subassembly | 17303-33050 |
| 17341F | Air hose No. 1 | 17341-33070 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-50005 |
| 17342D | Air hose No. 2 | 17342-33140 |
| 17342E | Clip or clip (for No. 2 air hose) | 90460-60006 |
| 17343D | No. 3 air hose | 17343-33130 |
| 17343E | Hose clamp (for size 3 air hose) | 90460-50005 |
| 17347F | Clamps or clips (for air hoses) | 96136-41901 |
| 17362B | No. 2 air pipe | 17362-33061 |
| 17362E | Clamp No. 2 (for No. 2 air tube) | 90460-63011 |
| 17700 | air filter assembly | 17700-0D230 · 17700-0T101 · 17700-0T110 · 17700-33210 |
| 17700H | air hose | 17341-33080 |
| 17701 | Air filter housing sub-assembly | 17701-0M100 · 17701-0T070 · 17701-0T110 |
| 17705 | Air filter cover sub-assembly | 17705-0D241 · 17705-0M120 · 17705-0T101 · 17705-0T141 · 17705-33080 |
| 17735 | air filter cover | 17735-0T090 |
| 17751 | No. 1 air filter air inlet | 17751-0N070 · 17751-0T150 · 17751-0T160 · 17751-21240 |
| 17765 | No. 1 air filter stay | 17706-21010 |
| 17771A | air filter bracket | 17771-0N040 |
| 17801 | Air filter element sub-assembly | 17801-0M020 · 17801-0M050 · 17801-26020 |
| 17880 | Air cleaner hose assembly | 17880-33090 |
| 17881 | No. 1 air cleaner hose | 17880-21150 · 17881-0D300 · 17881-0T150 · 17881-0T170 · 17881-0T190 · 17881-0T200 · 17881-0T220 · 17881-0T300 · 17881-0T310 · 17881-0T460 · 17881-0T470 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-T0010 · 96111-10750 · 96111-10780 · 96111-10830 |
| 17881D | Connector tube (for air cleaner hose) | 12229-0T040 · 12229-0T070 · 12229-0Y030 · 12229-21010 · 90406-08020 · 90406-28001 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-T0004 · 90466-54002 · 96111-10780 |
| 17893 | Intake resonator | 17893-0T080 · 17893-0T090 |
| 17940D | Intercooler assembly | 17940-33060 |
| 17941 | No. 1 intercooler baffle | 17941-0N010 · 17941-0N020 |
| 17942 | No. 2 intercooler baffle | 17942-33010 |
| 22204 | Intake air flow meter assembly | 22204-0P010 · 22204-0V020 · 22204-26010 · 22204-28010 · 22204-31020 |
