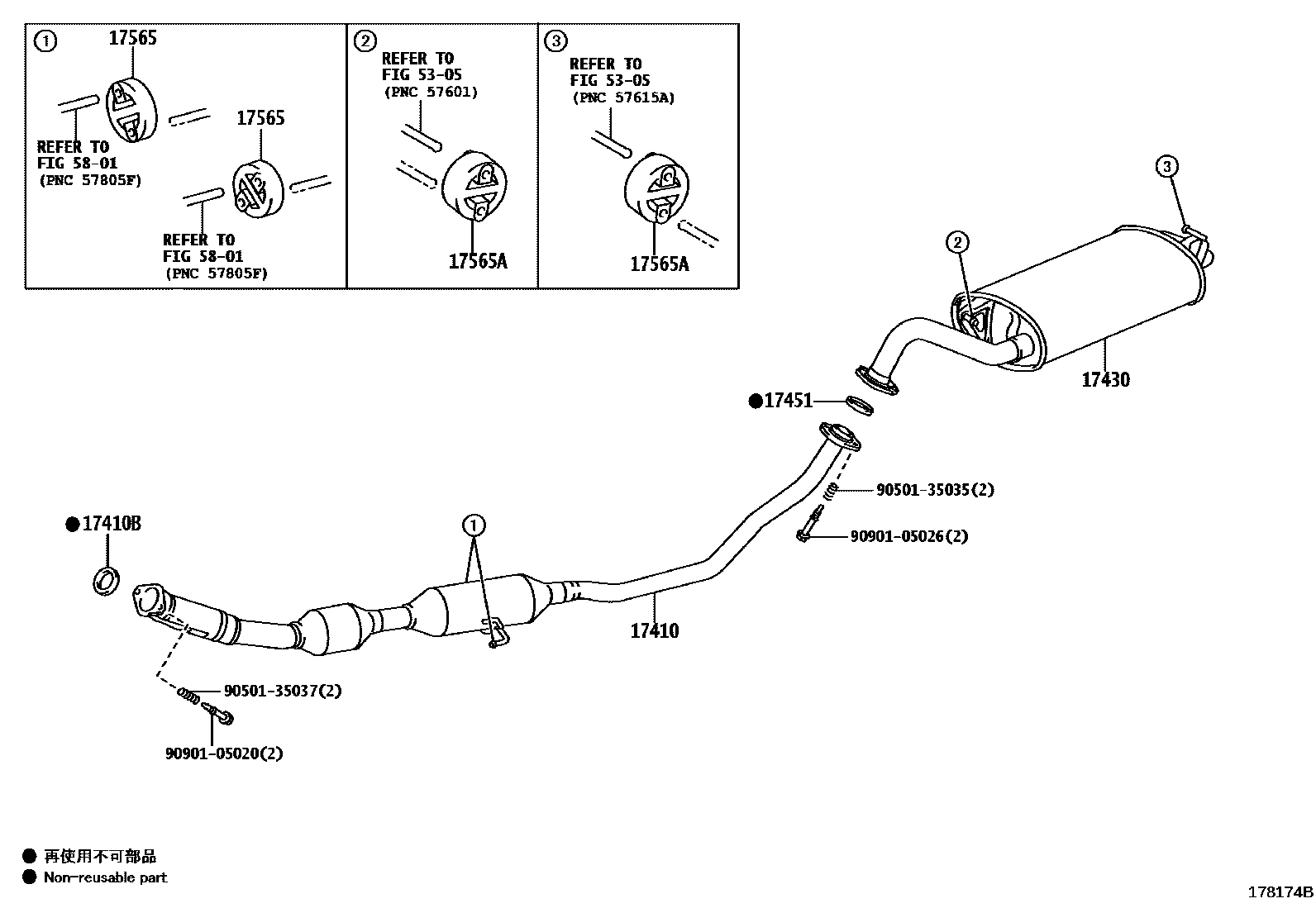

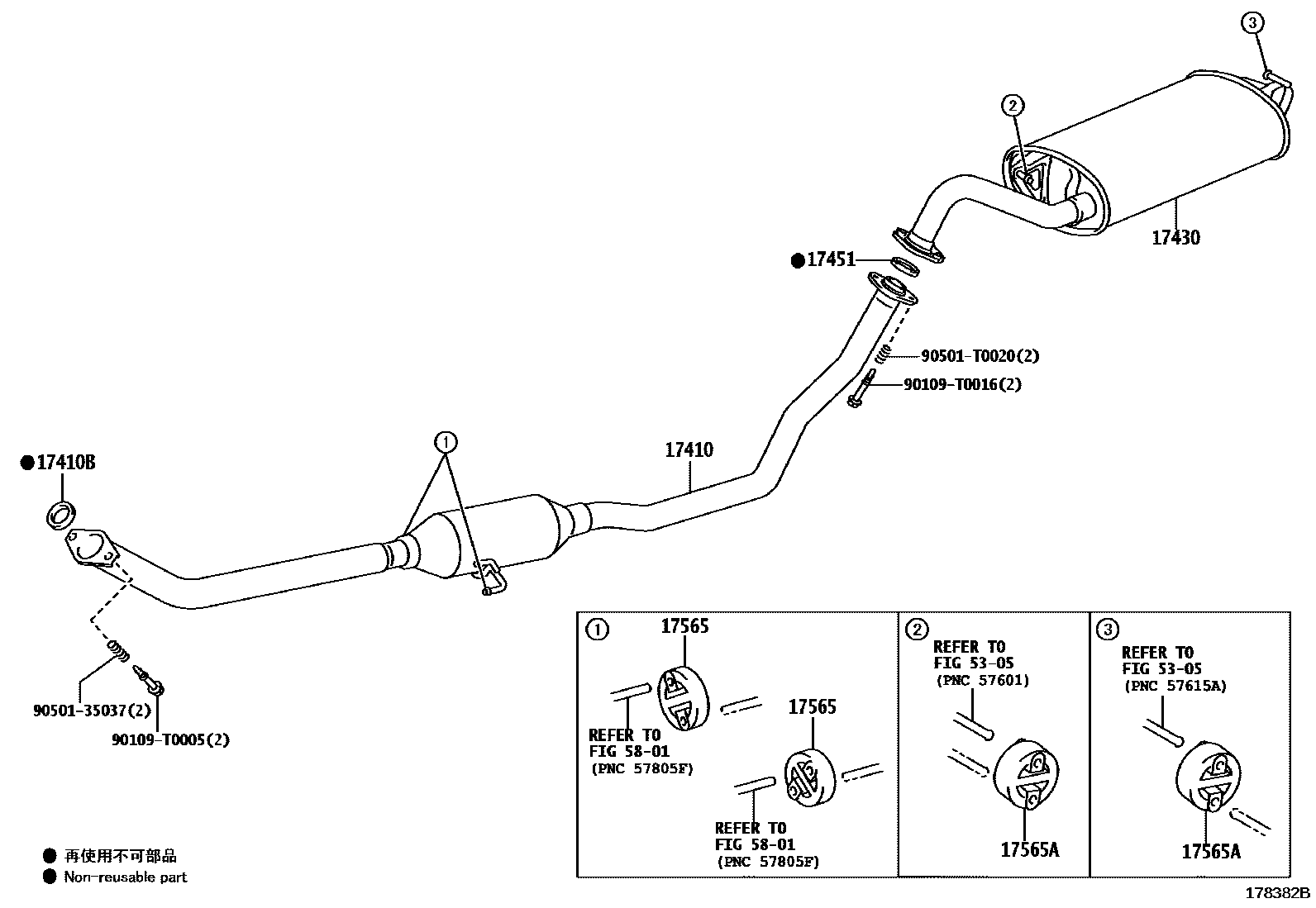

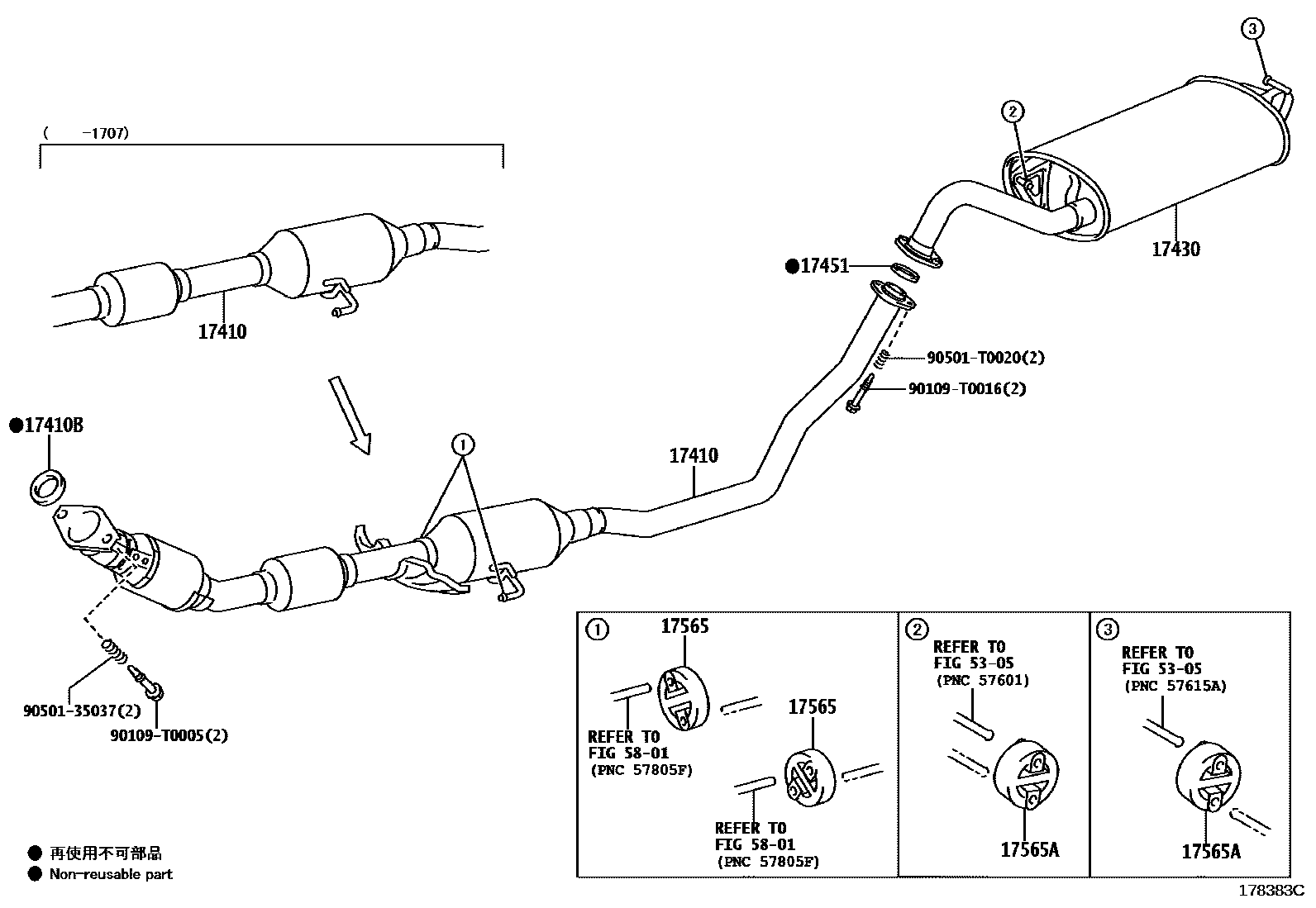

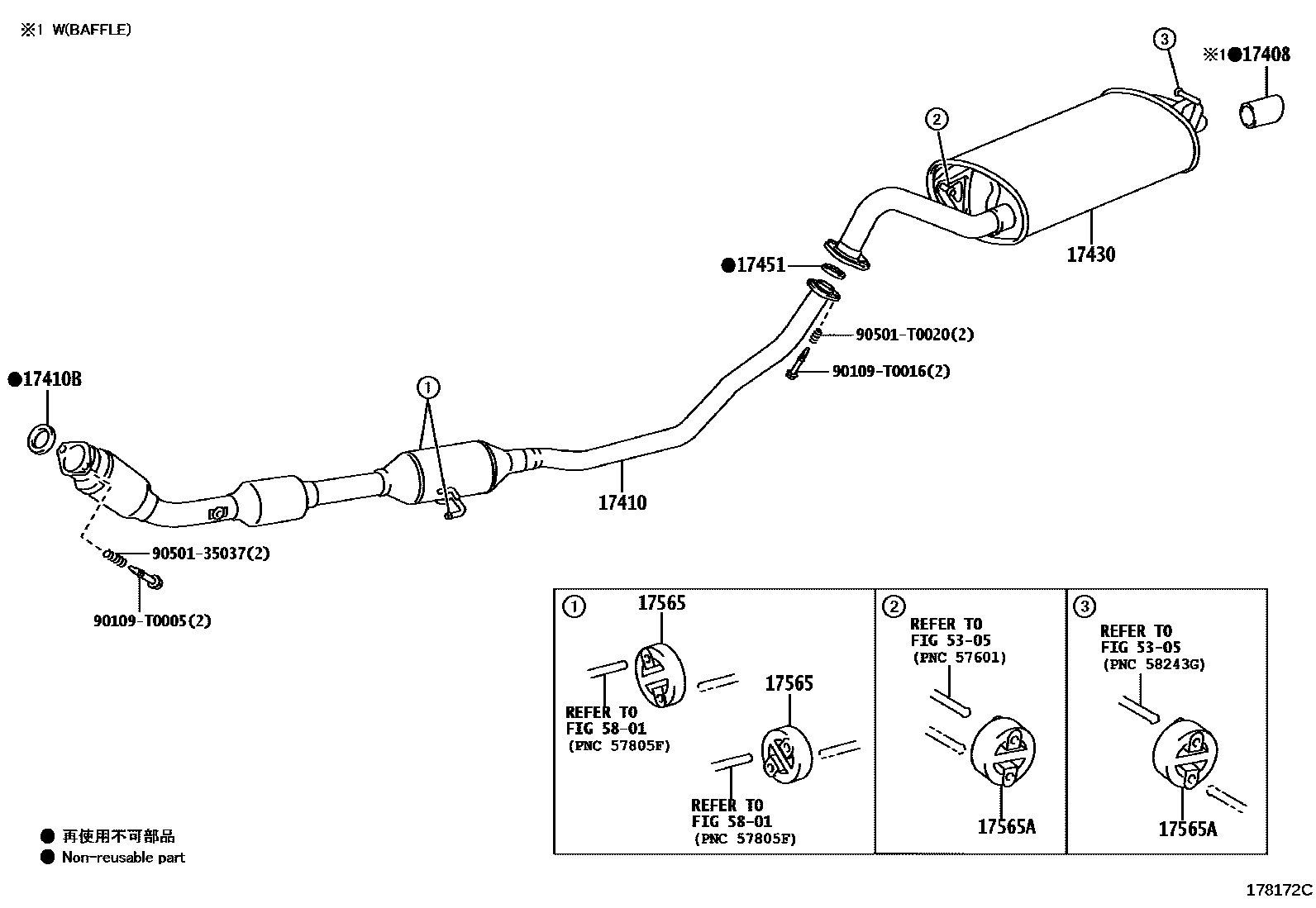

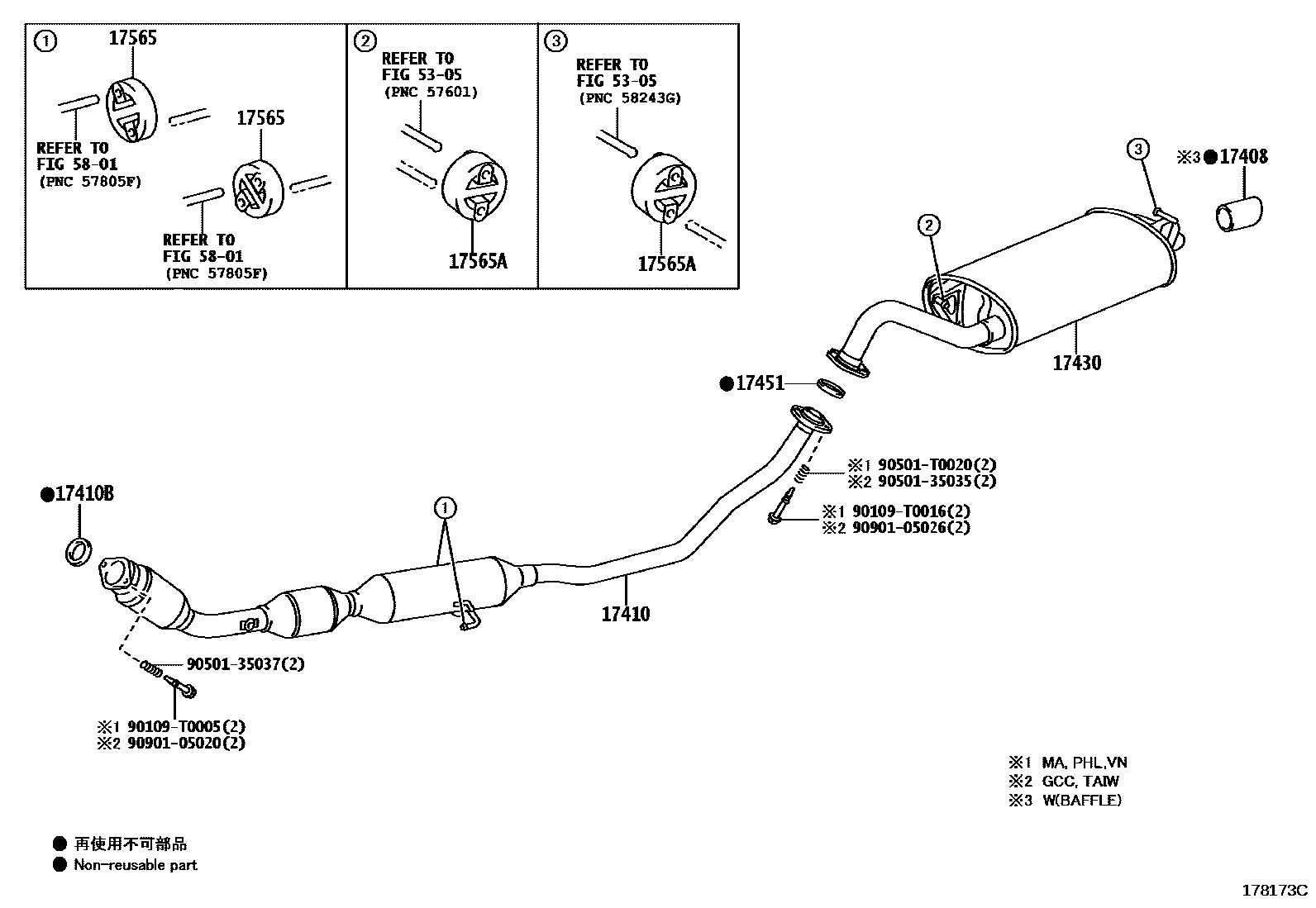

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 5 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-37031 |
| 17410 | Front exhaust pipe assembly | 17410-0D540 · 17410-0M250 · 17410-0M271 · 17410-0N140 · 17410-0T470 · 17410-0T471 · 17410-0T650 · 17410-0T660 · 17410-0T670 · 17410-0T690 · 17410-0T700 · 17410-0T710 · 17410-0T730 · 17410-0T740 · 17410-0T750 · 17410-0T760 · 17410-0T770 · 17410-0T850 · 17410-0TB30 · 17410-0TB40 · 17410-0TB50 · 17410-0TB60 · 17410-0TB70 · 17410-0TB80 · 17410-0TB90 · 17410-0TC00 · 17410-0TC10 · 17410-0TC20 · 17410-0TC30 · 17410-0TC41 · 17410-0TC90 · 17410-0TD00 · 17410-0TJ50 |
| 17410B | Exhaust pipe gasket | 17451-0M020 · 17451-22070 · 17451-28040 · 17451-28041 |
| 17430 | Exhaust tailpipe assembly | 17430-0N140 · 17430-0T340 · 17430-0T350 · 17430-0T360 · 17430-0T370 · 17430-0T380 · 17430-0T390 · 17430-0T410 · 17430-0T460 |
| 17451 | Exhaust pipe gasket | 17451-0M032 · 17451-23042 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0D110 · 17565-0P100 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0D120 · 17565-0P110 |
