Toyota COROLLA Engine Oil Cooler — Figure 1503

Toyota COROLLA EPC diagram 1503, Engine Oil Cooler, with 2 images and 6 PNC and OE references.

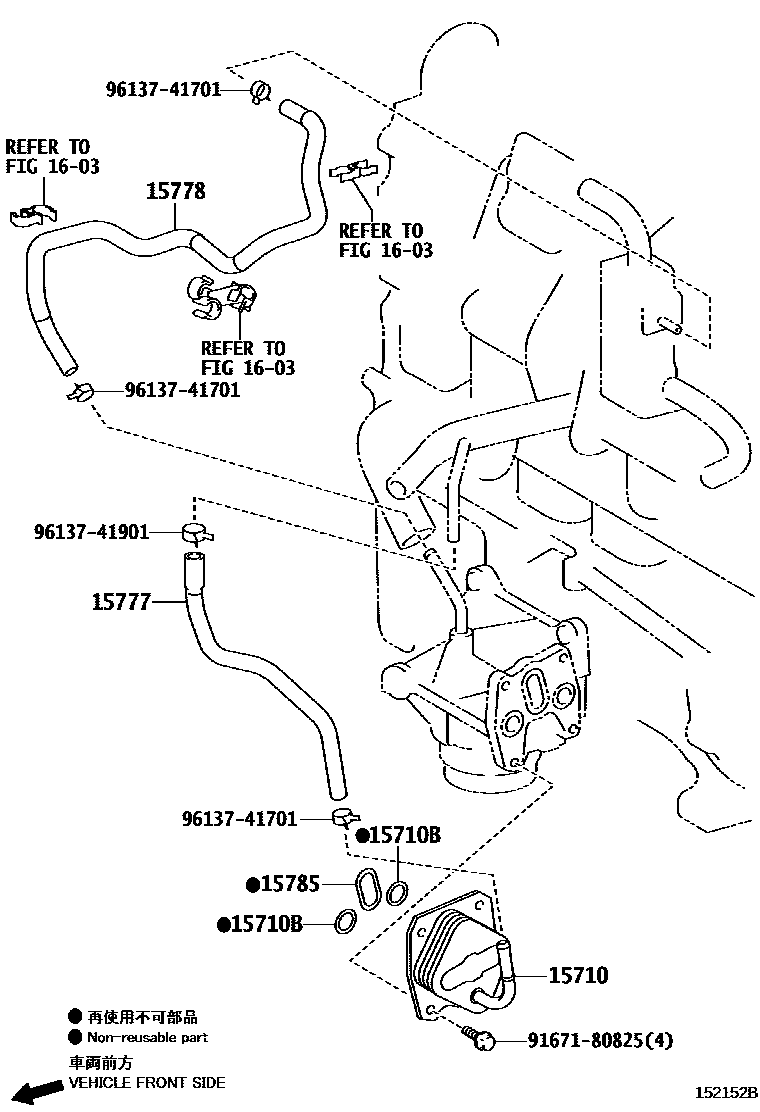

Toyota COROLLA Engine Oil Cooler EPC diagram — 152152B
Engine Oil Cooler — 152152B (201405 – 999999)

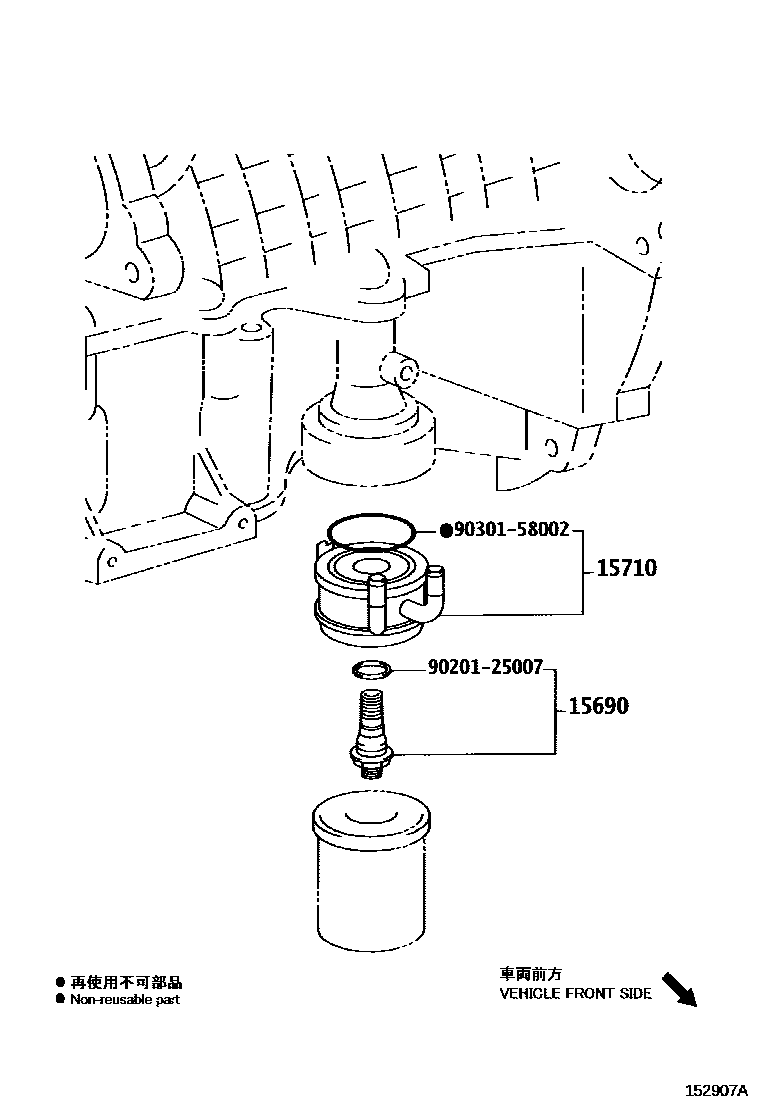

Toyota COROLLA Engine Oil Cooler EPC diagram — 152907A
Engine Oil Cooler — 152907A (201310 – 999999)

PNC and OE references

PNCPart nameOE numbers
15690Oil cooler pressure reducing valve assembly15695-22010
15710Oil cooler assembly15710-22010 · 15710-33070
15710BO-ring (for transmission oil cooler)96723-35024
15777oil cooler hose15777-33040
15778No. 2 oil cooler hose15778-33060
15785oil cooler gasket15785-33010
