Toyota COROLLA Engine Oil Pump — Figure 1501

Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 5 images and 15 PNC and OE references.

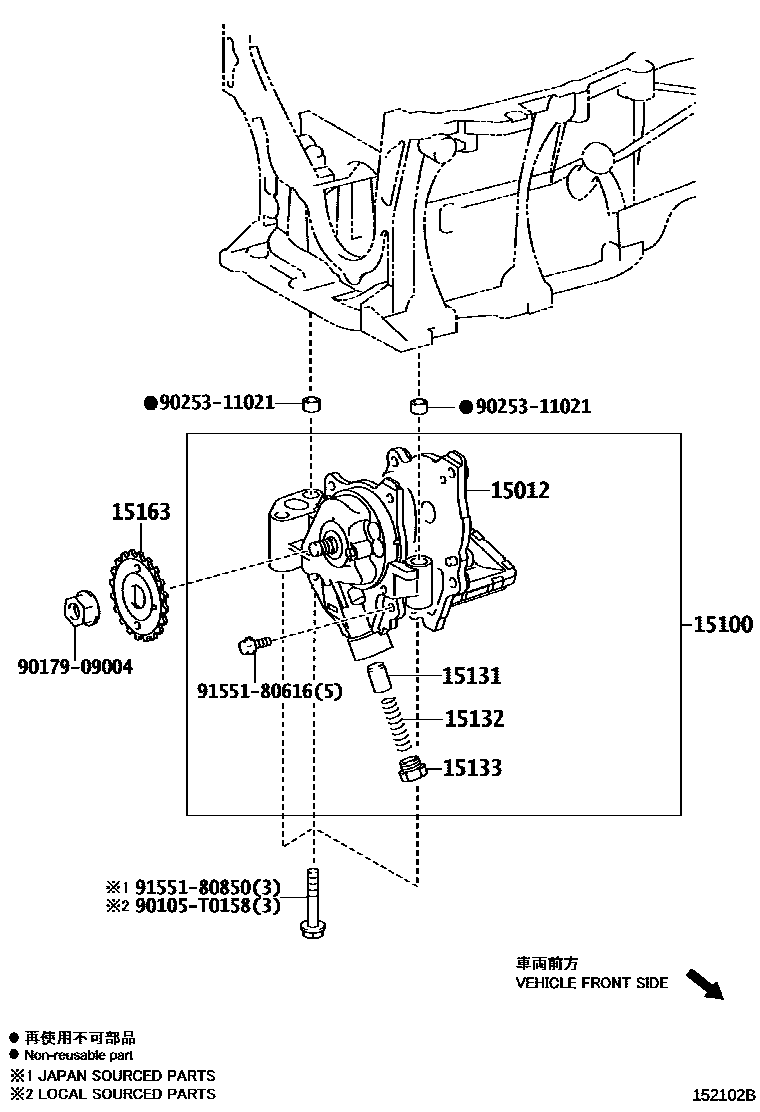

Toyota COROLLA Engine Oil Pump EPC diagram — 152102B
Engine Oil Pump — 152102B (201310 – 999999)

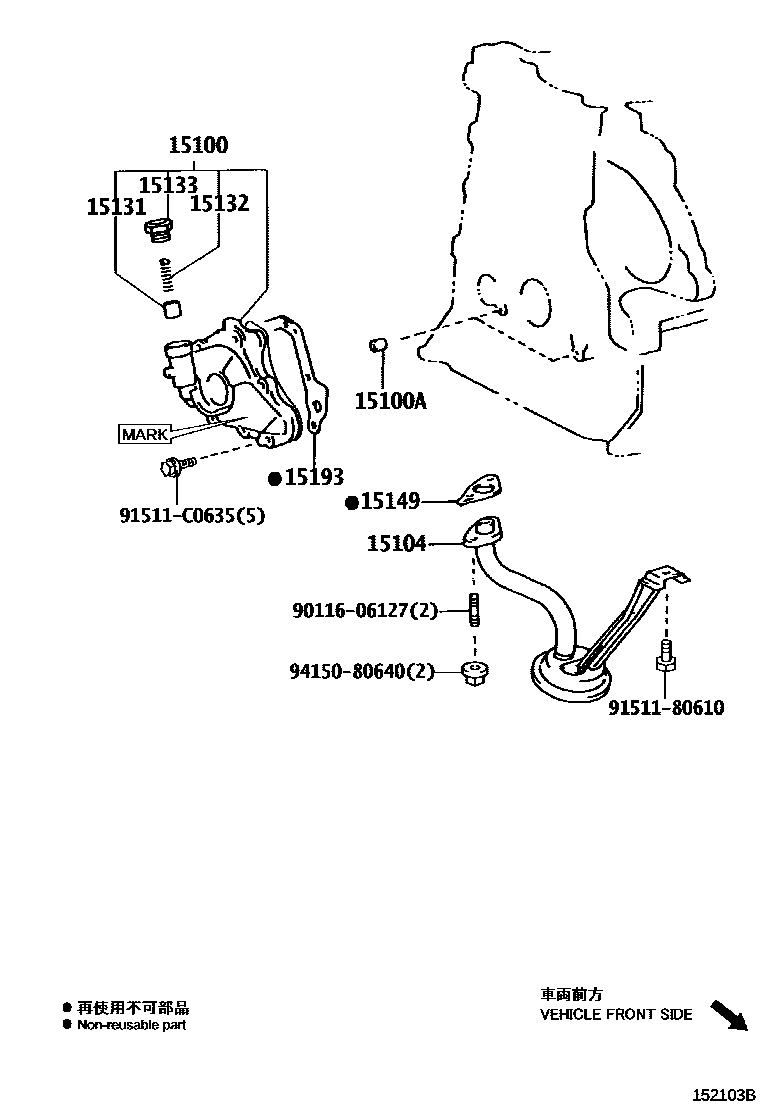

Toyota COROLLA Engine Oil Pump EPC diagram — 152103B
Engine Oil Pump — 152103B (201310 – 201409)

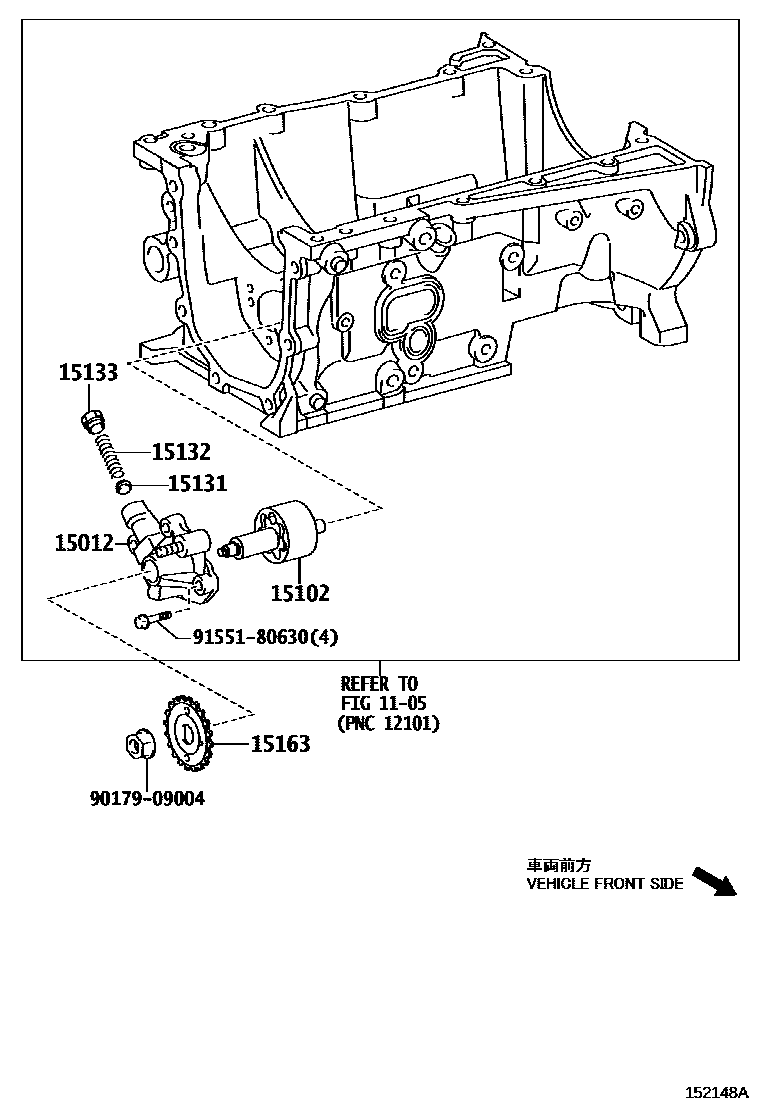

Toyota COROLLA Engine Oil Pump EPC diagram — 152148A
Engine Oil Pump — 152148A (201405 – 999999)

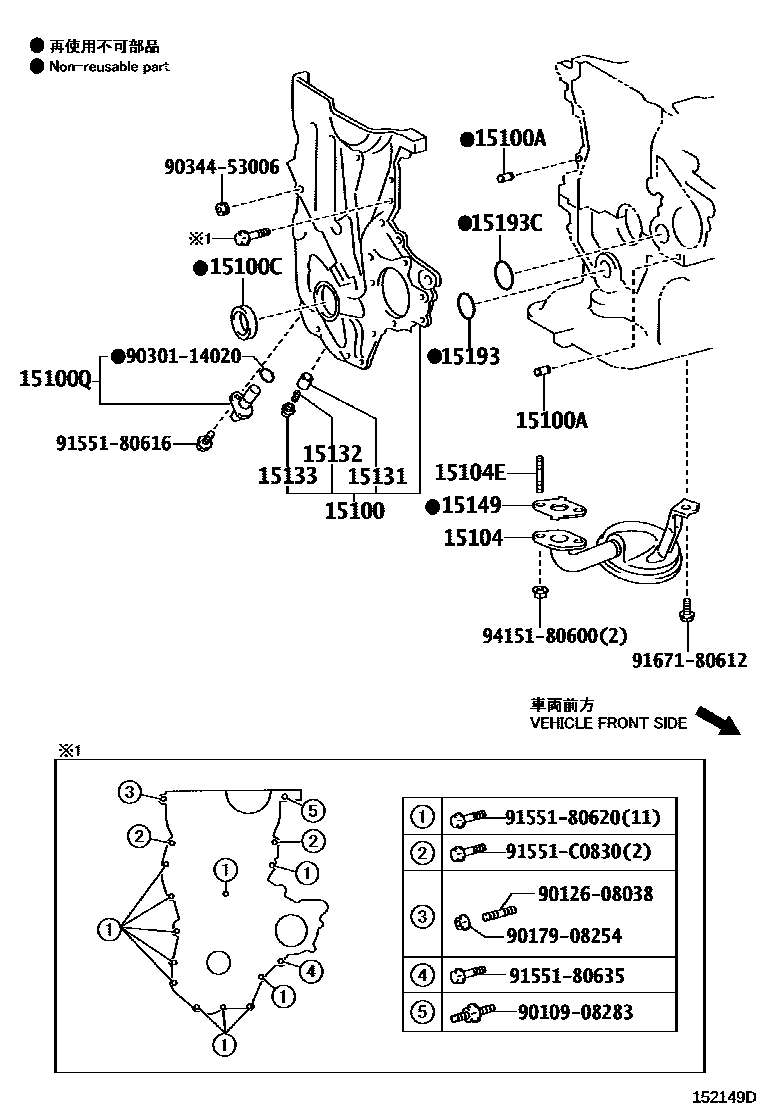

Toyota COROLLA Engine Oil Pump EPC diagram — 152149D
Engine Oil Pump — 152149D (201407 – 999999)

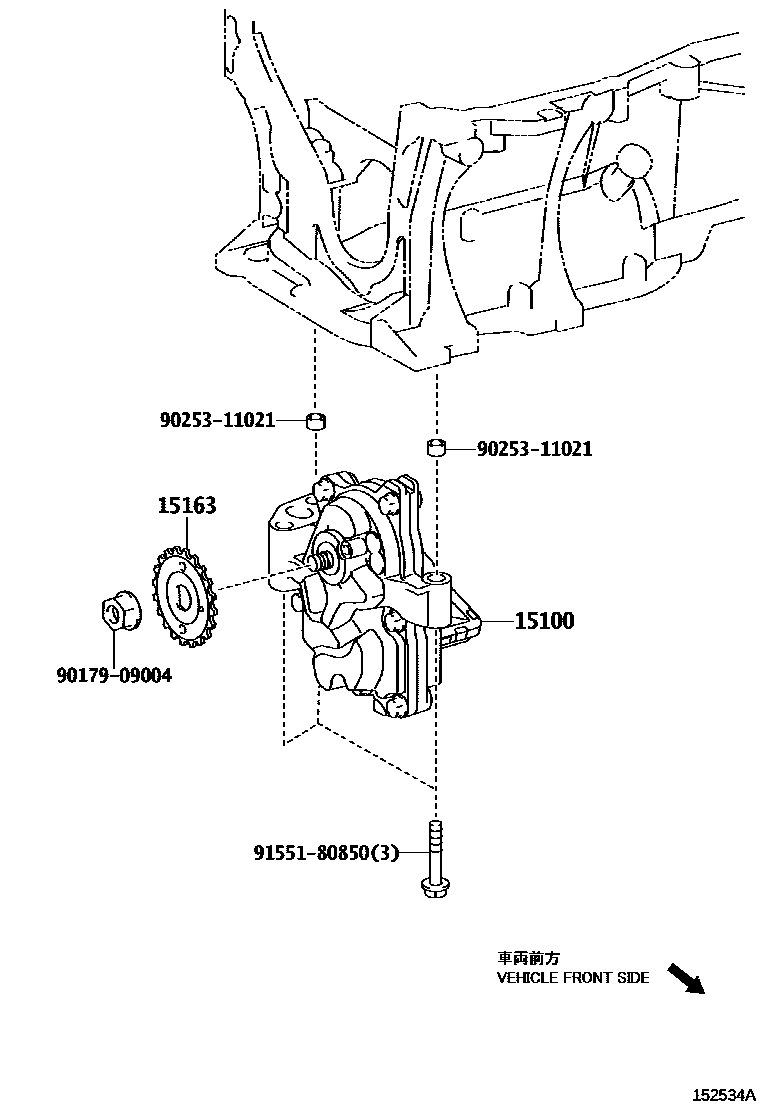

Toyota COROLLA Engine Oil Pump EPC diagram — 152534A
Engine Oil Pump — 152534A (201611 – 999999)

PNC and OE references

PNCPart nameOE numbers
15012Oil pump cover sub-assembly15012-0T070 · 15012-33060 · 15012-37010
15100Oil pump assembly15100-0T070 · 15100-21032 · 15100-22041 · 15100-37021 · 15100-37030
15100ARing pin (for oil pump assembly)90253-08003 · 90253-09003
15100CSeals (for oil pump)90311-25034
15100Qcrankshaft position sensor90919-05087
15102Oil pump rotor assembly15102-33060
15104Oil filter sub-assembly15104-21022 · 15104-22023
15104EStud bolts (for oil filter)90126-06021
15131Oil pump pressure reducing valve15131-0A040 · 15131-21020 · 15131-24010 · 15131-38010
15132Oil pump pressure reducing valve spring15132-21020 · 15132-22040 · 15132-33020 · 15132-46060
15133PLUG, OIL PUMP RELIEF VALVE15133-0T070 · 15133-20010 · 15133-21030 · 15133-28020
15149Oil filter flange gasket15149-22010 · 16258-21030
15163Oil pump drive shaft gear15163-0H031 · 15163-28010 · 15163-33010
15193oil pump gasket12151-21010 · 15197-22010
15193CNo. 2 oil pump gasket11497-21010
