Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 4 images and 8 PNC and OE references.

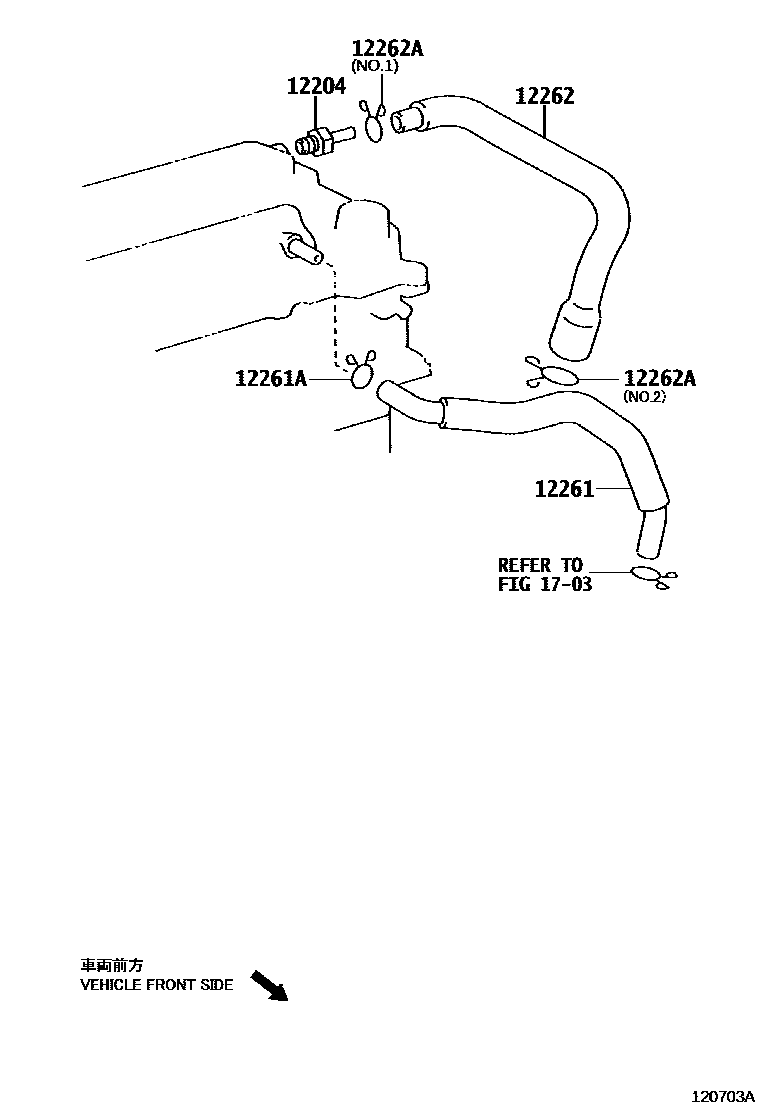

Toyota COROLLA Ventilation Hose EPC diagram — 120703A
Ventilation Hose — 120703A (201310 – 201409)

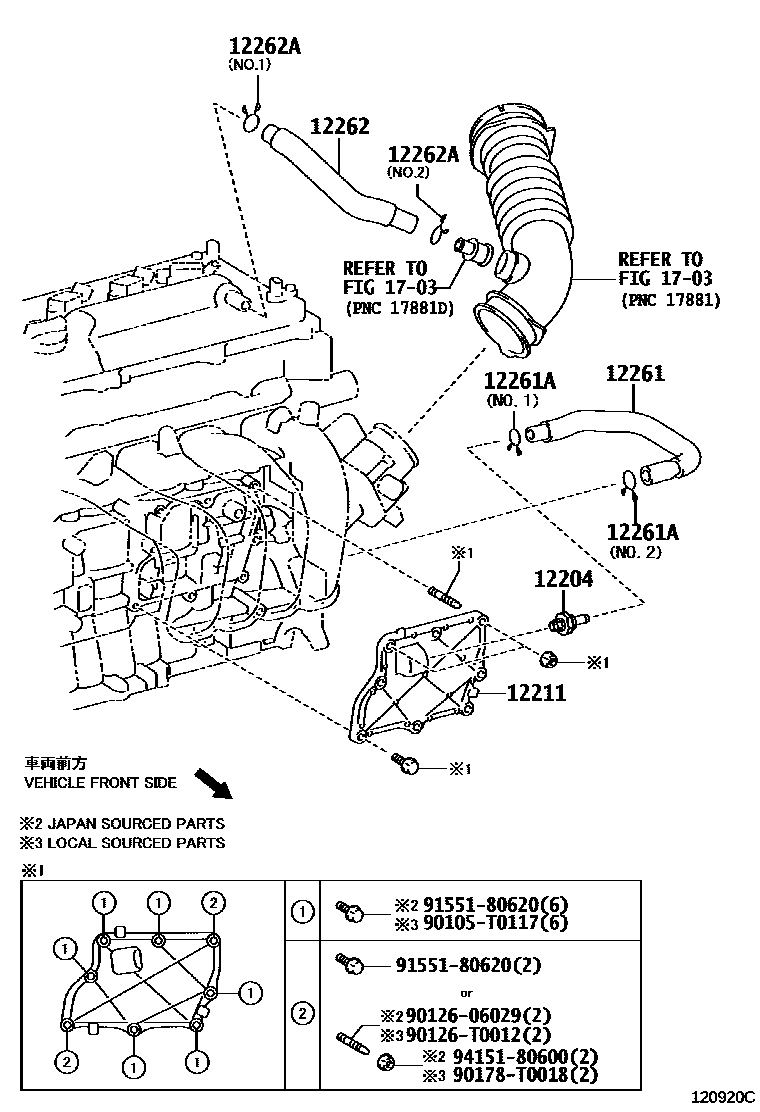

Toyota COROLLA Ventilation Hose EPC diagram — 120920C
Ventilation Hose — 120920C (201310 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — 120943B
Ventilation Hose — 120943B (201405 – 999999)

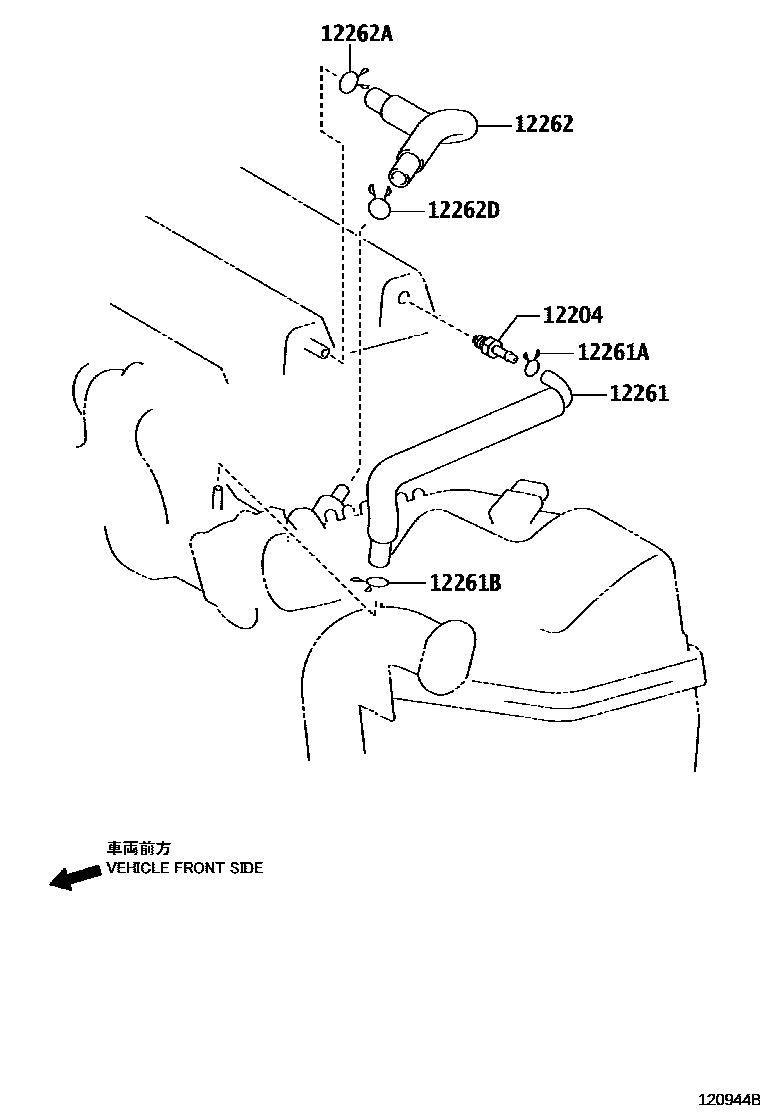

Toyota COROLLA Ventilation Hose EPC diagram — 120944B
Ventilation Hose — 120944B (201407 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-21013 · 12204-22051 · 12204-37010 · 12204-37040
12211Ventilation box No. 112211-0T040 · 12211-37010
12261Ventilation Hose12261-0D120 · 12261-0T050 · 12261-0T060 · 12261-21030 · 12261-33120 · 12261-37040 · 12261-37050
12261AClip or clip (for vent hose)90466-22005 · 90466-T0032 · 90467-15120 · 90467-21004 · 90467-21152 · 90467-23002
12261BClip or clip (for vent hose)90466-23003
12262Ventilation hose No. 212262-0T040 · 12262-0T050 · 12262-21100 · 12262-22130 · 12262-37020 · 12262-37030
12262AClamp (for vent hose No. 2)16581-21050 · 90466-18002 · 90466-T0027 · 90467-13103 · 90467-21004
12262DClamp (for vent hose No. 2)90467-21004
