Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 10 PNC and OE references.

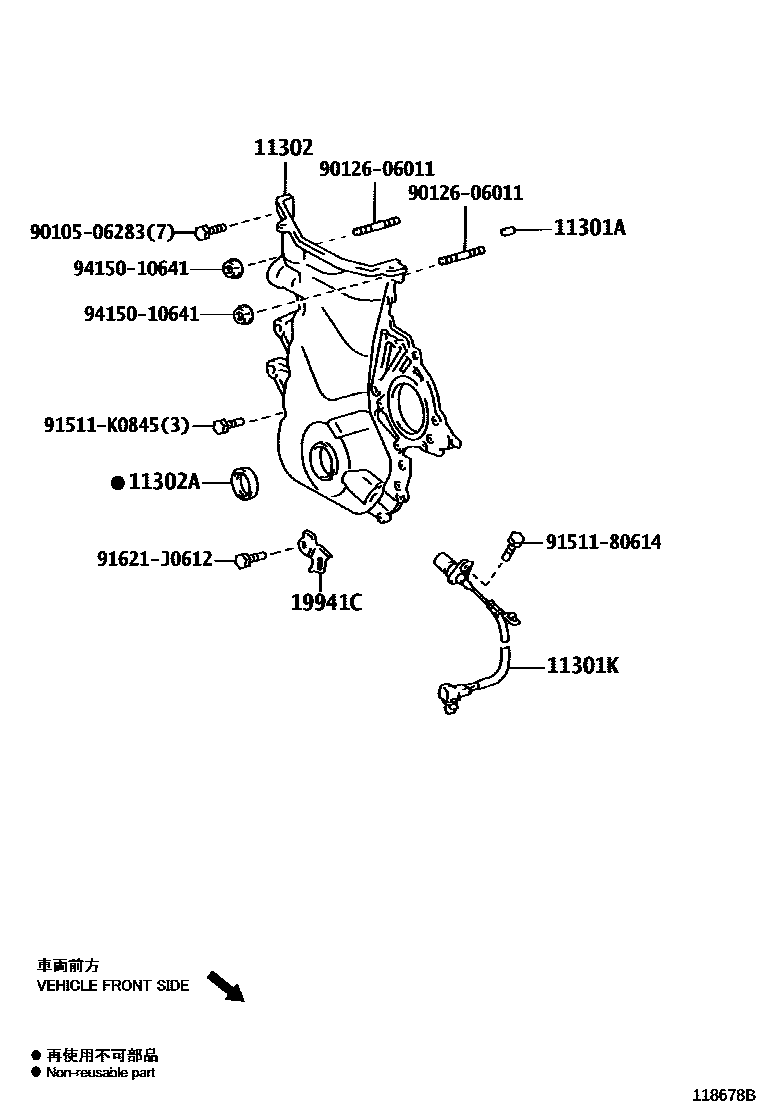

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 118678B
Timing Gear Cover & Rear End Plate — 118678B (201310 – 201409)

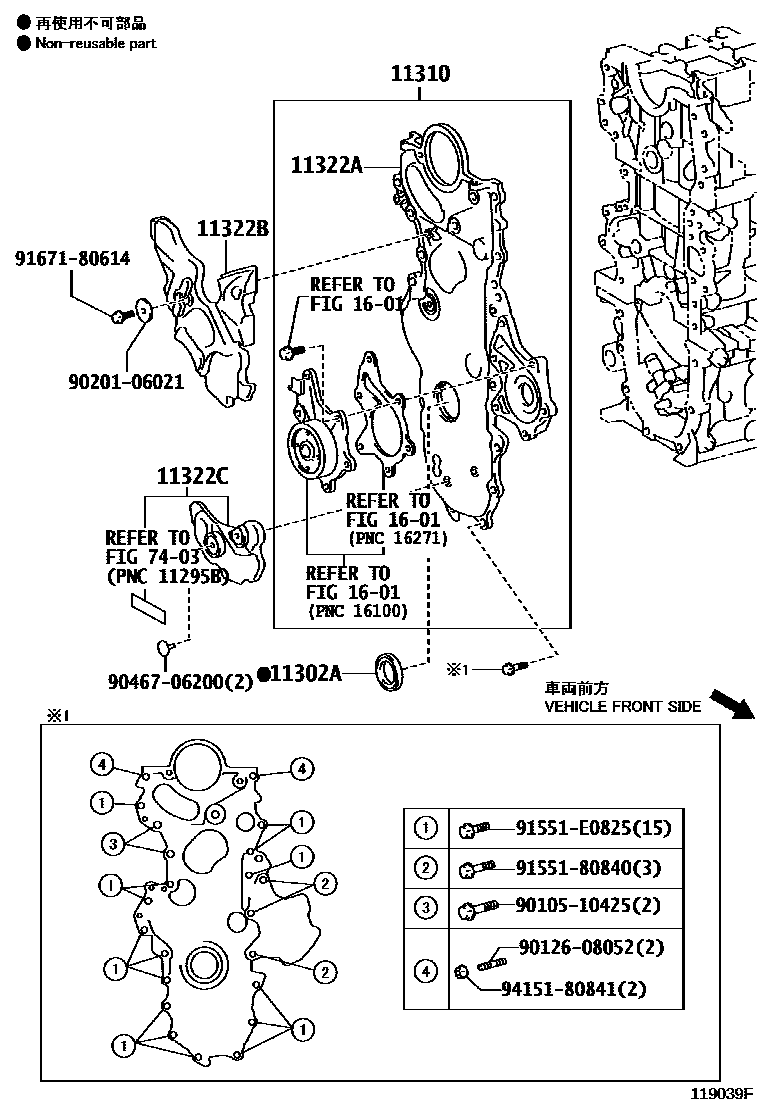

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 119039F
Timing Gear Cover & Rear End Plate — 119039F (201405 – 999999)

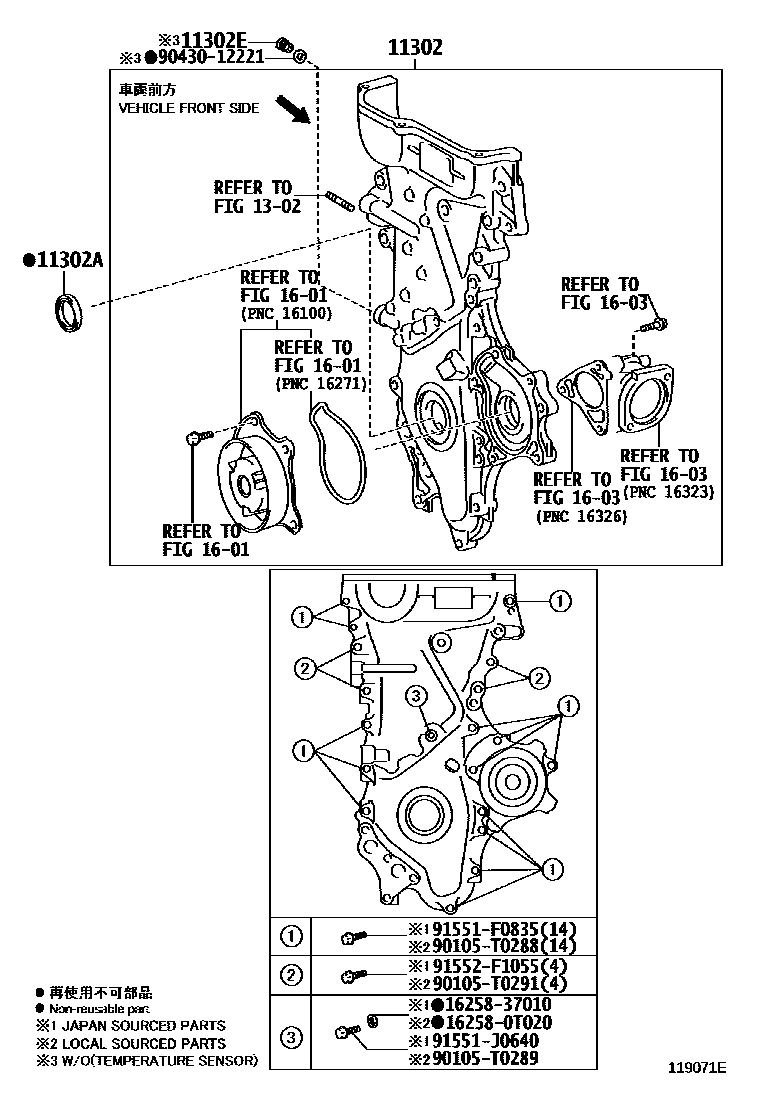

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 119071E
Timing Gear Cover & Rear End Plate — 119071E (201310 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301ADirect sales (for timing gearbox)90250-08074
11301Kcrankshaft position sensor90919-05030
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-0T020 · 11310-0T140 · 11310-0T150 · 11310-37011 · 11310-37032 · 11310-37040 · 11310-37070 · 11321-0D030 · 11321-22021
11302AOil seal (for timing chain or timing belt cover)90311-38089 · 90311-38096 · 90311-40040 · 90311-T0048
11302EStraight screw plug (for timing gear cover)90341-12012
11310Timing chain cover assembly11310-33011 · 11310-33012 · 11310-33013
11322ANo. 1 timing belt cover11321-33020 · 11321-33021
11322BNo. 2 timing belt cover11322-33020
11322CNo. 3 timing belt cover11323-33010
19941CWire clamp (for crankshaft position sensor)19941-22010
