Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 12 images and 2 PNC and OE references.

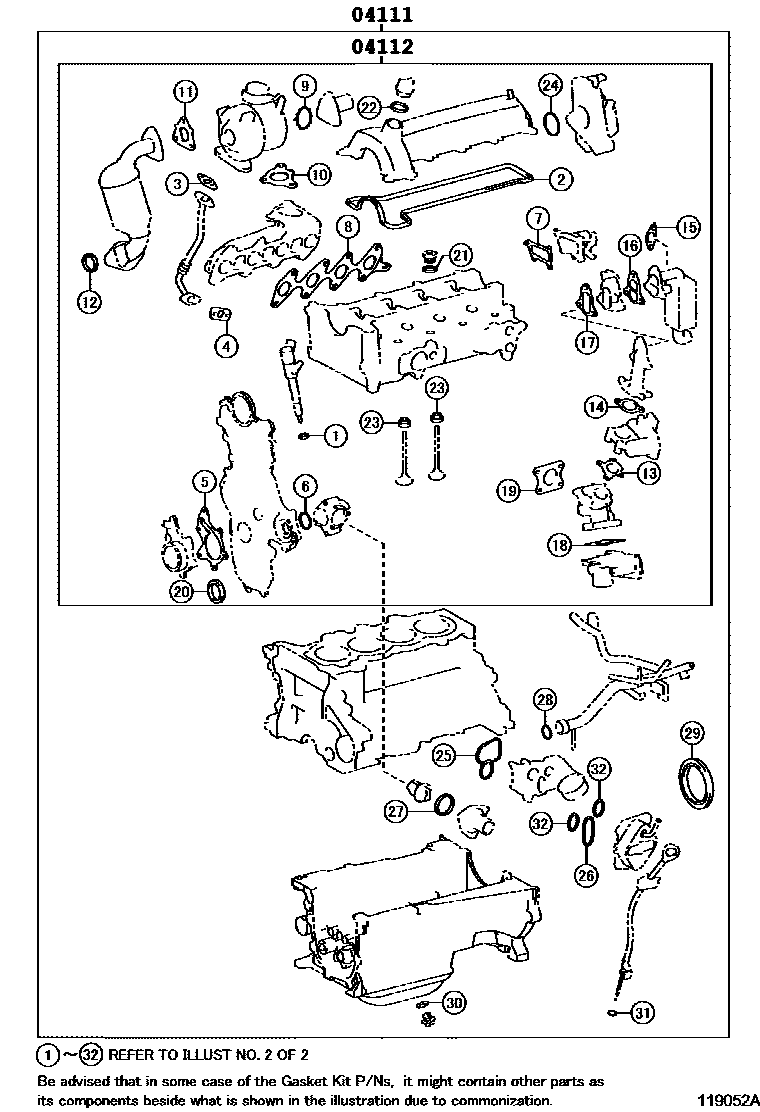

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119052A
Engine Overhaul Gasket Kit — 119052A (201405 – 999999)

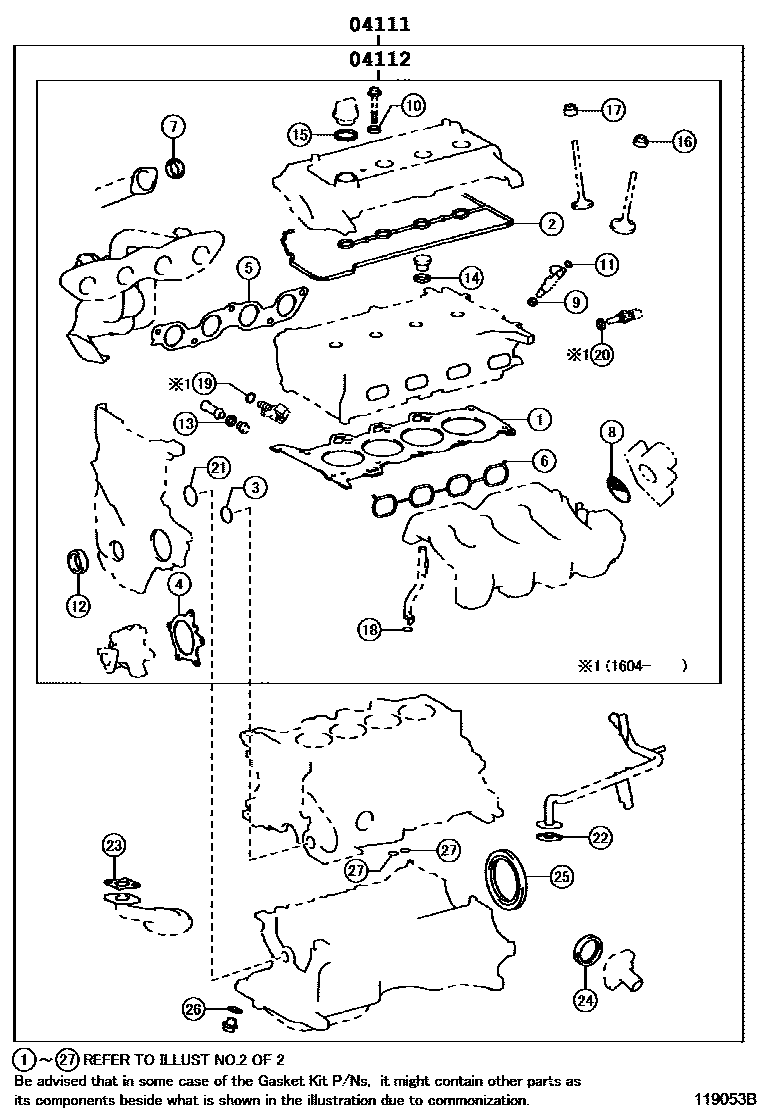

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119053B
Engine Overhaul Gasket Kit — 119053B (201407 – 999999)

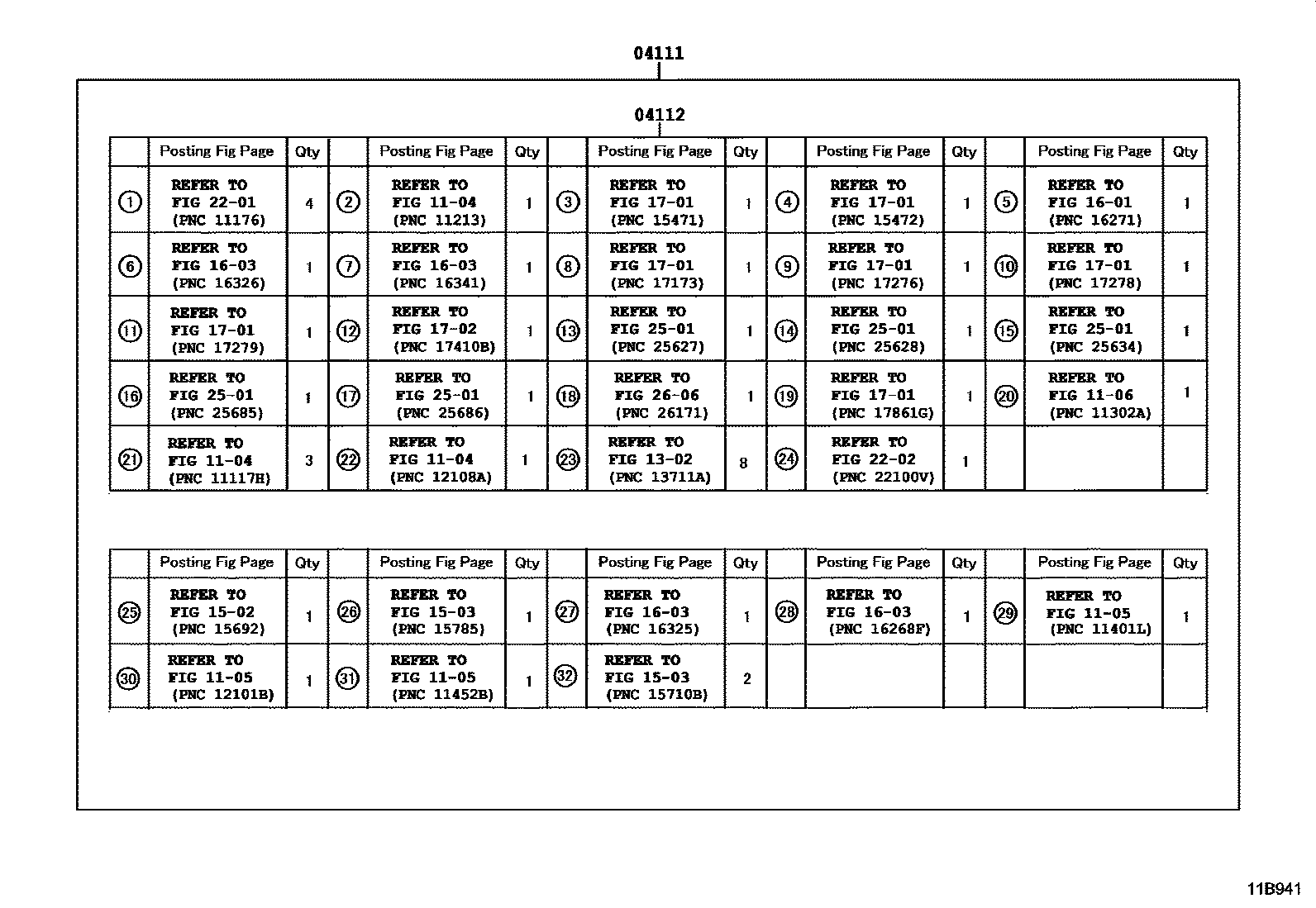

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B941
Engine Overhaul Gasket Kit — 11B941 (201405 – 999999)

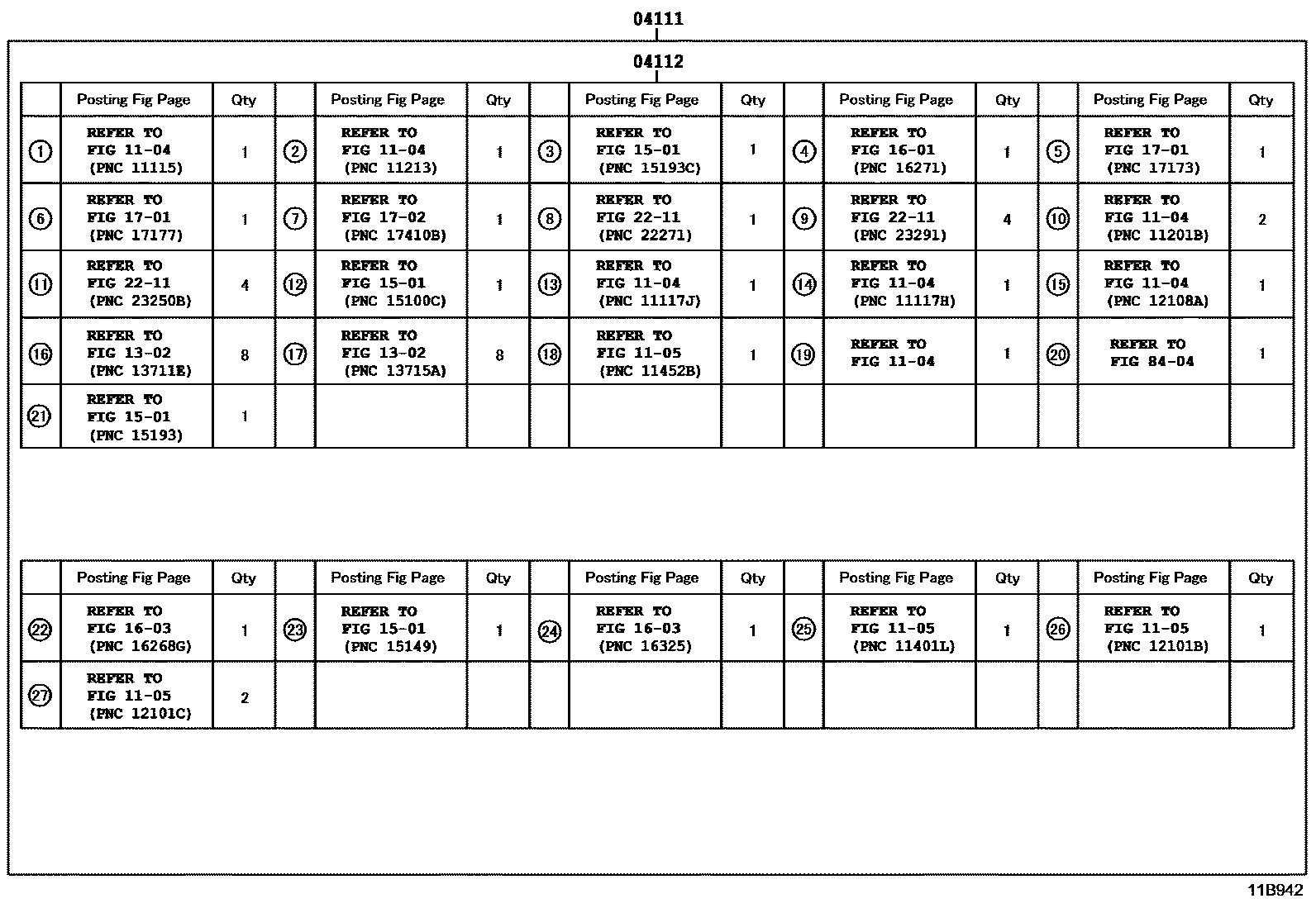

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B942
Engine Overhaul Gasket Kit — 11B942 (201407 – 999999)

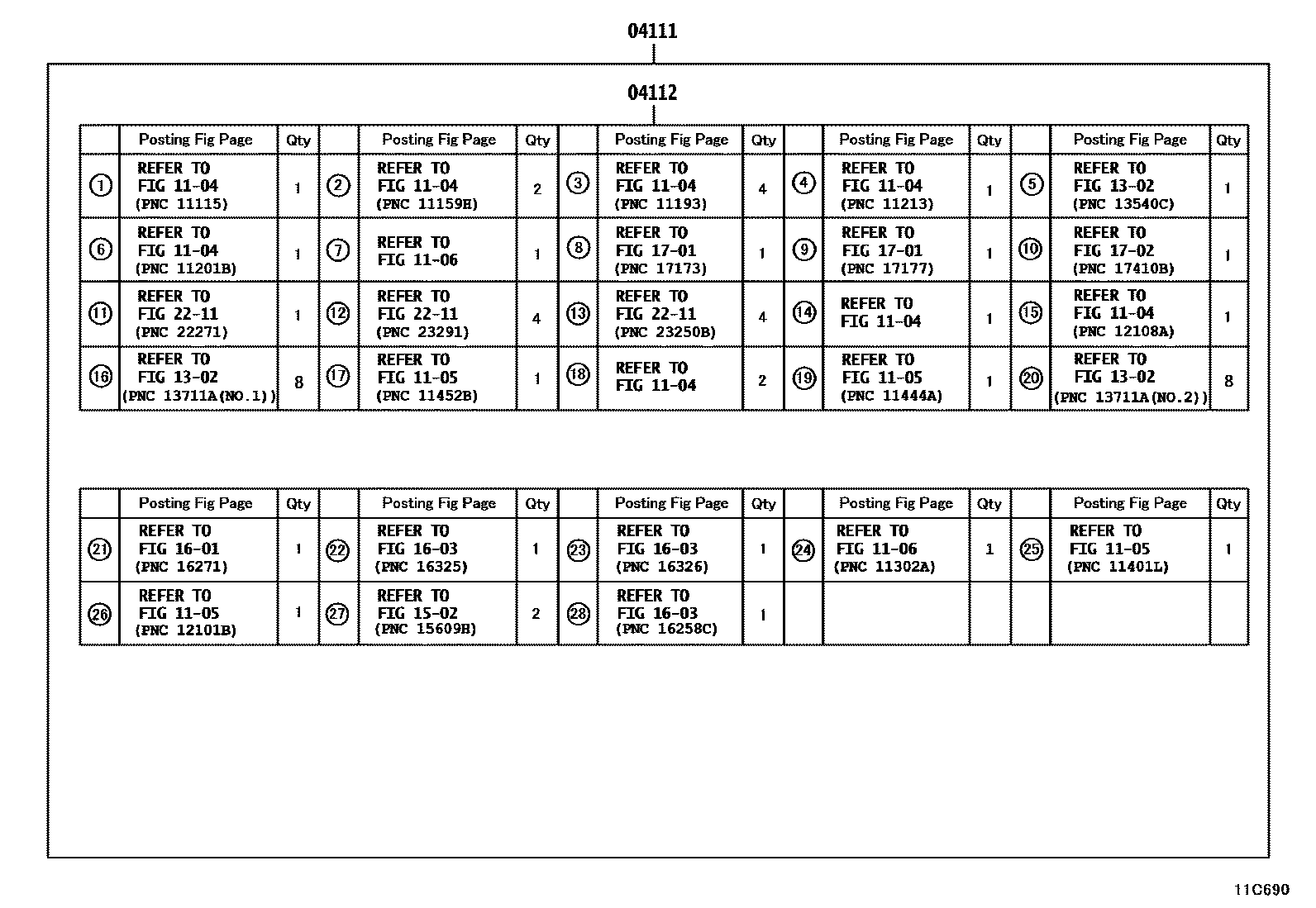

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C690
Engine Overhaul Gasket Kit — 11C690 (201310 – 999999)

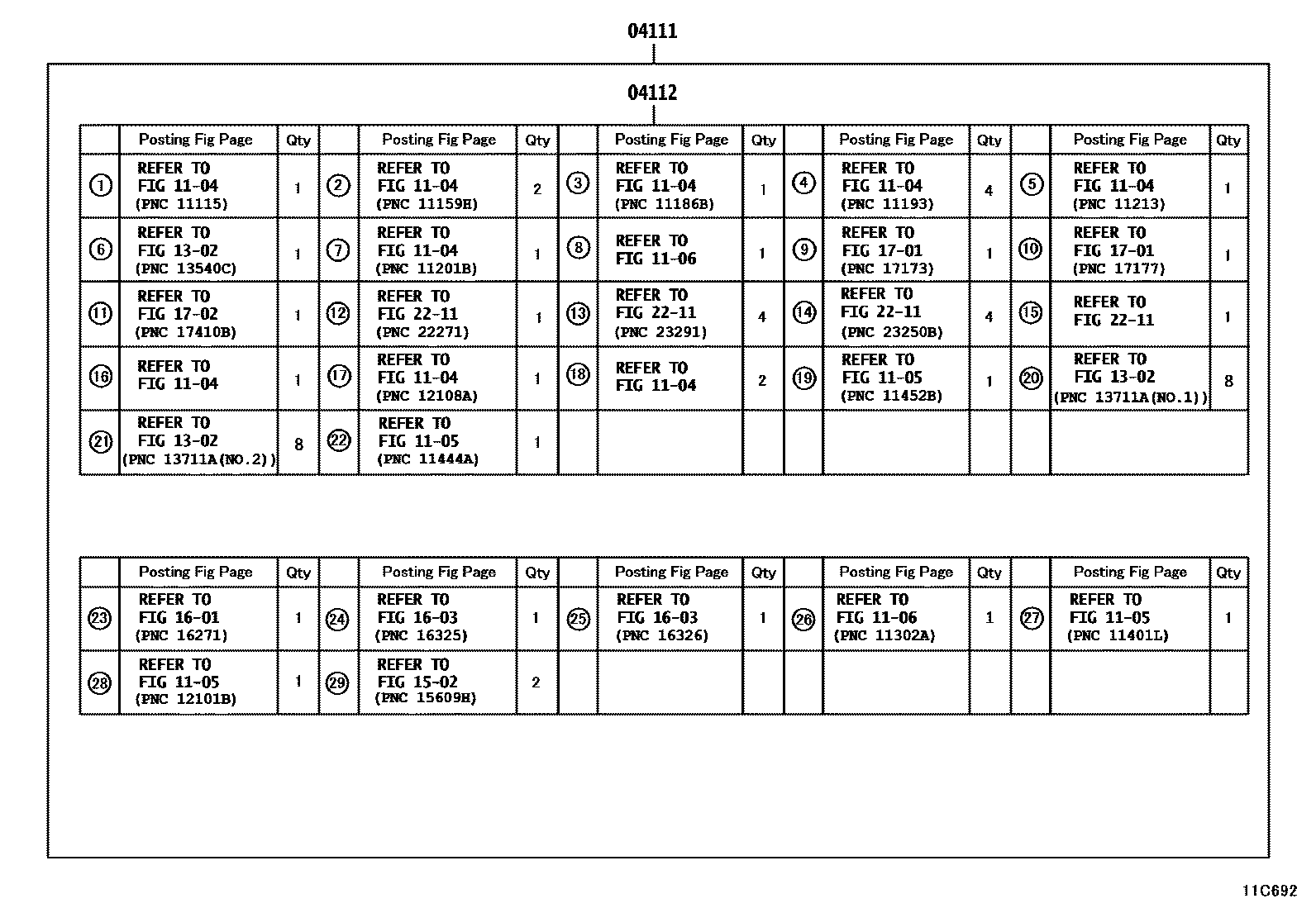

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C692
Engine Overhaul Gasket Kit — 11C692 (201611 – 999999)

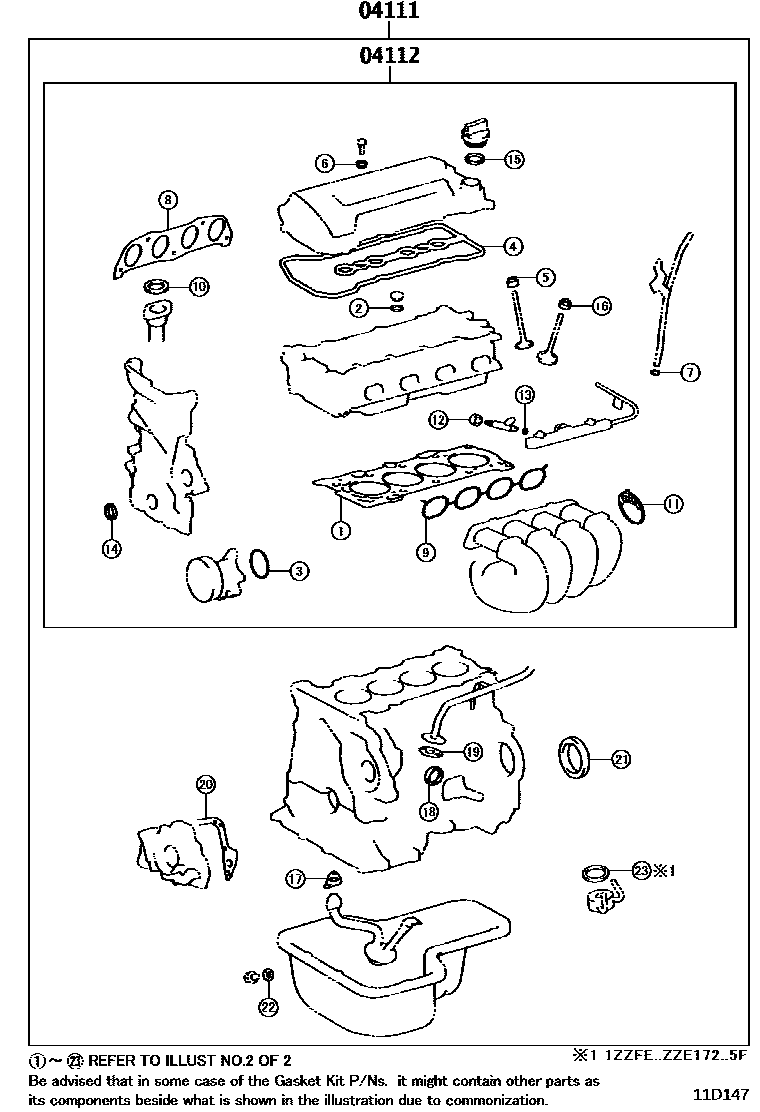

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D147
Engine Overhaul Gasket Kit — 11D147 (201310 – 201409)

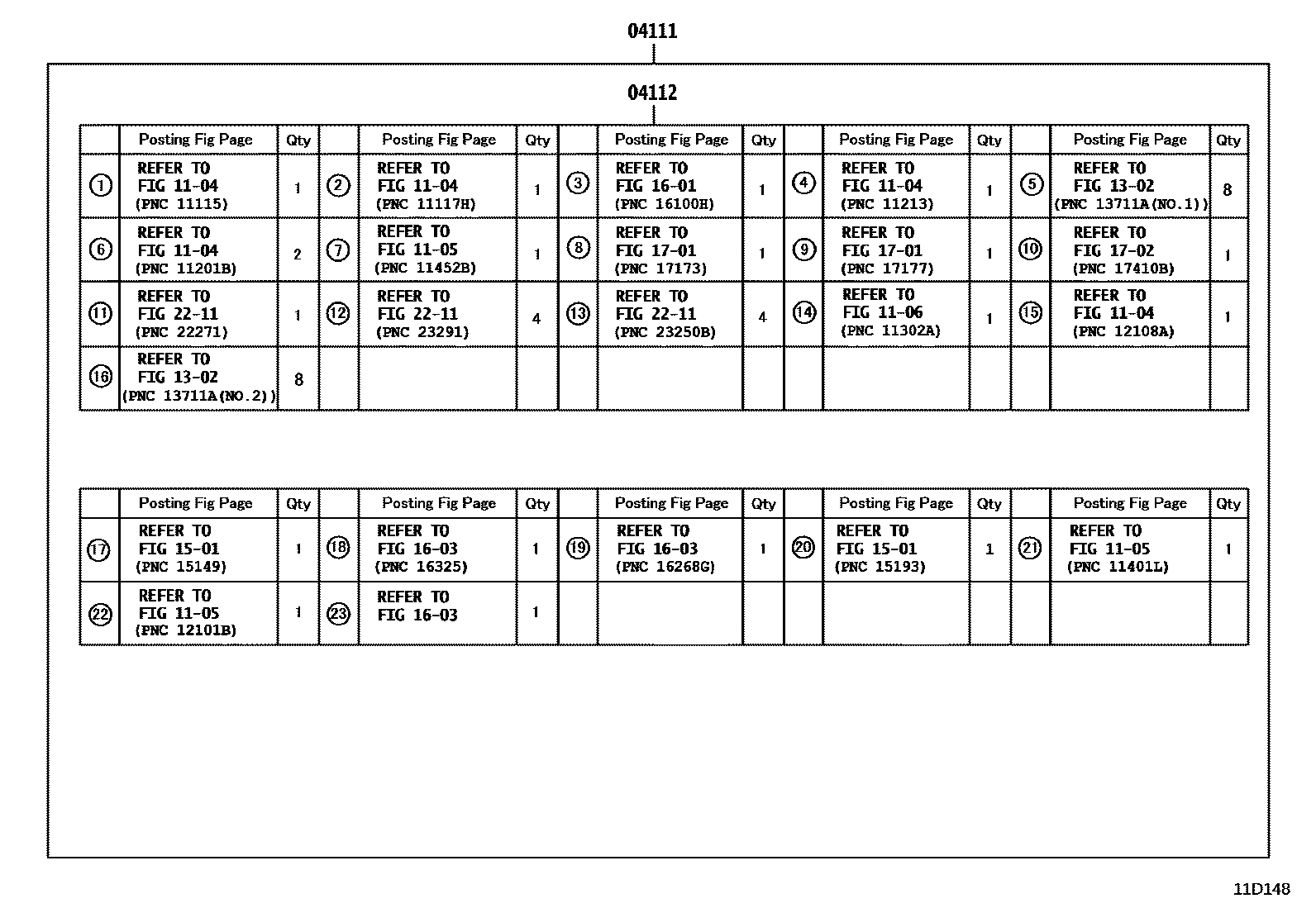

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D148
Engine Overhaul Gasket Kit — 11D148 (201310 – 201409)

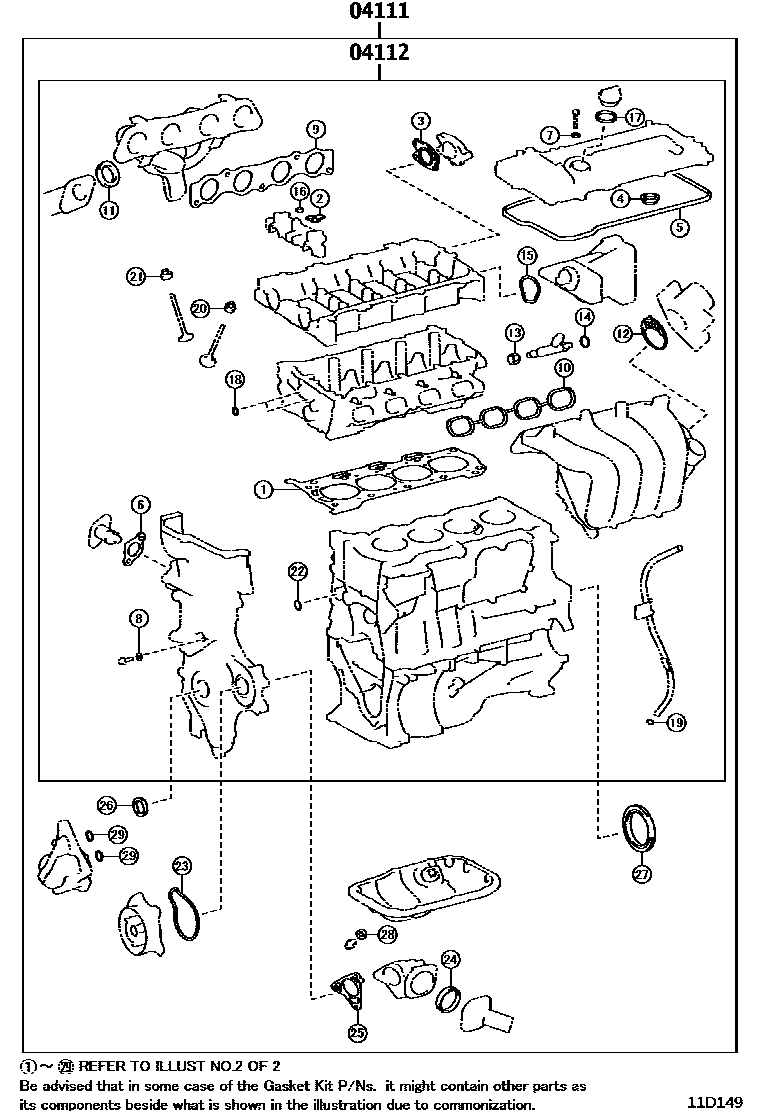

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D149
Engine Overhaul Gasket Kit — 11D149 (201611 – 999999)

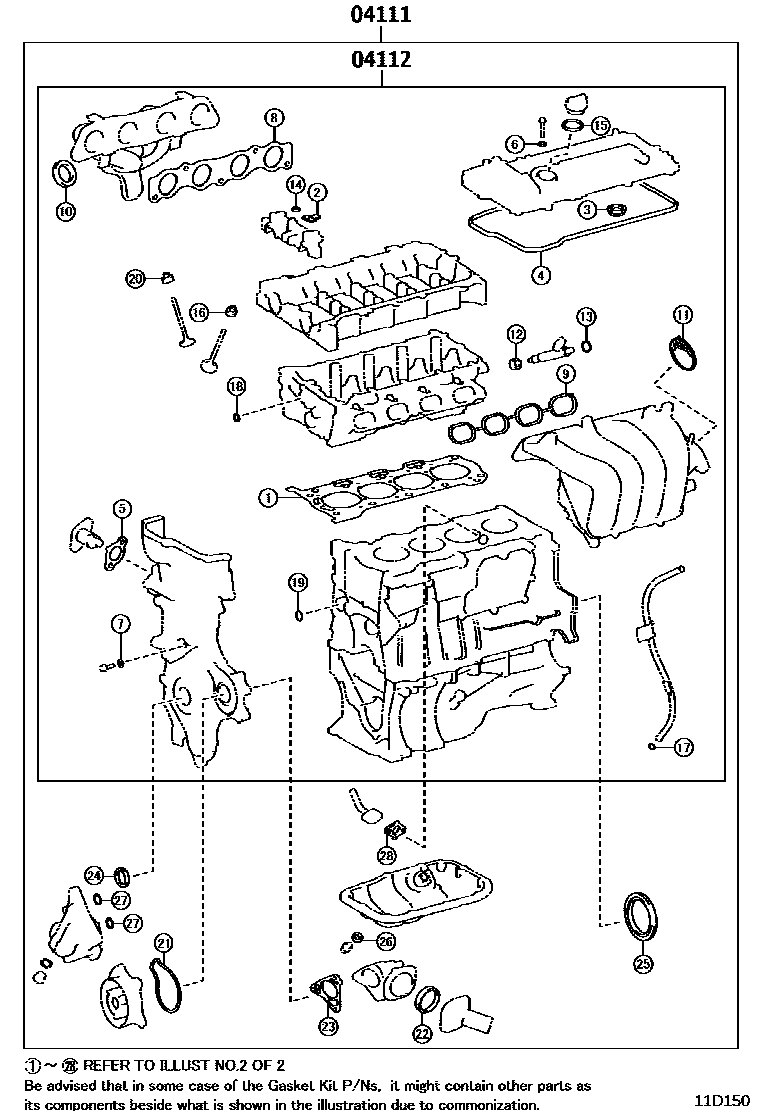

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D150
Engine Overhaul Gasket Kit — 11D150 (201310 – 999999)

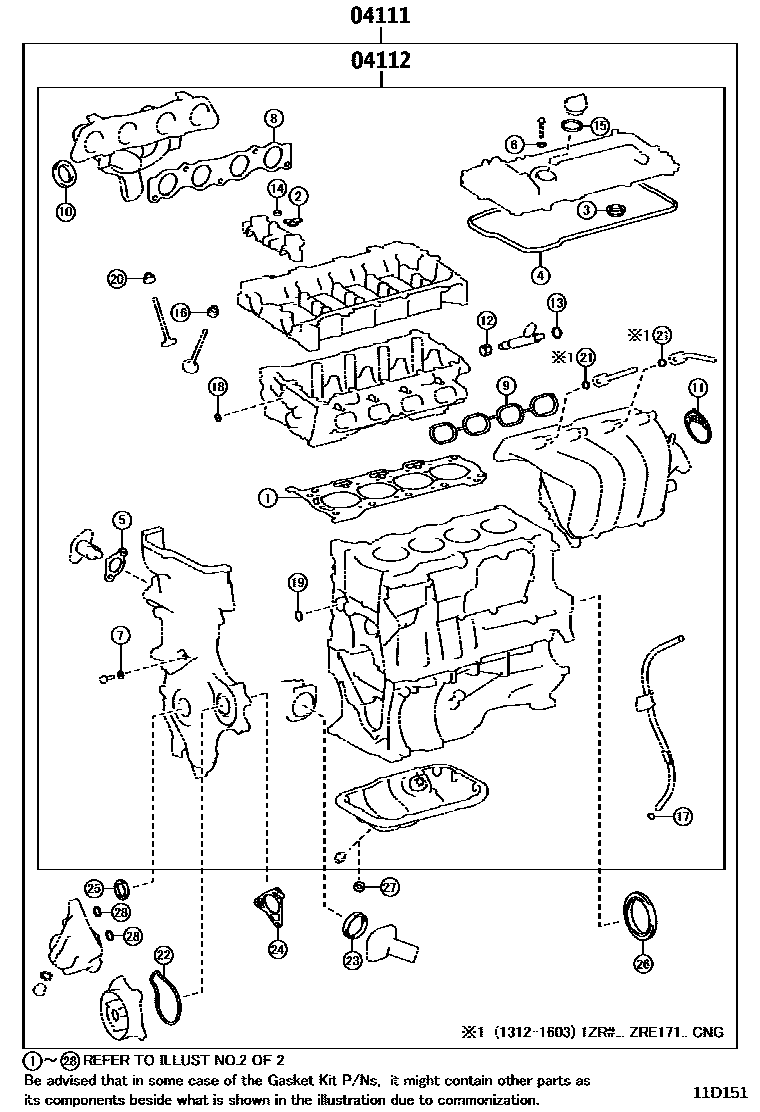

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D151
Engine Overhaul Gasket Kit — 11D151 (201310 – 999999)

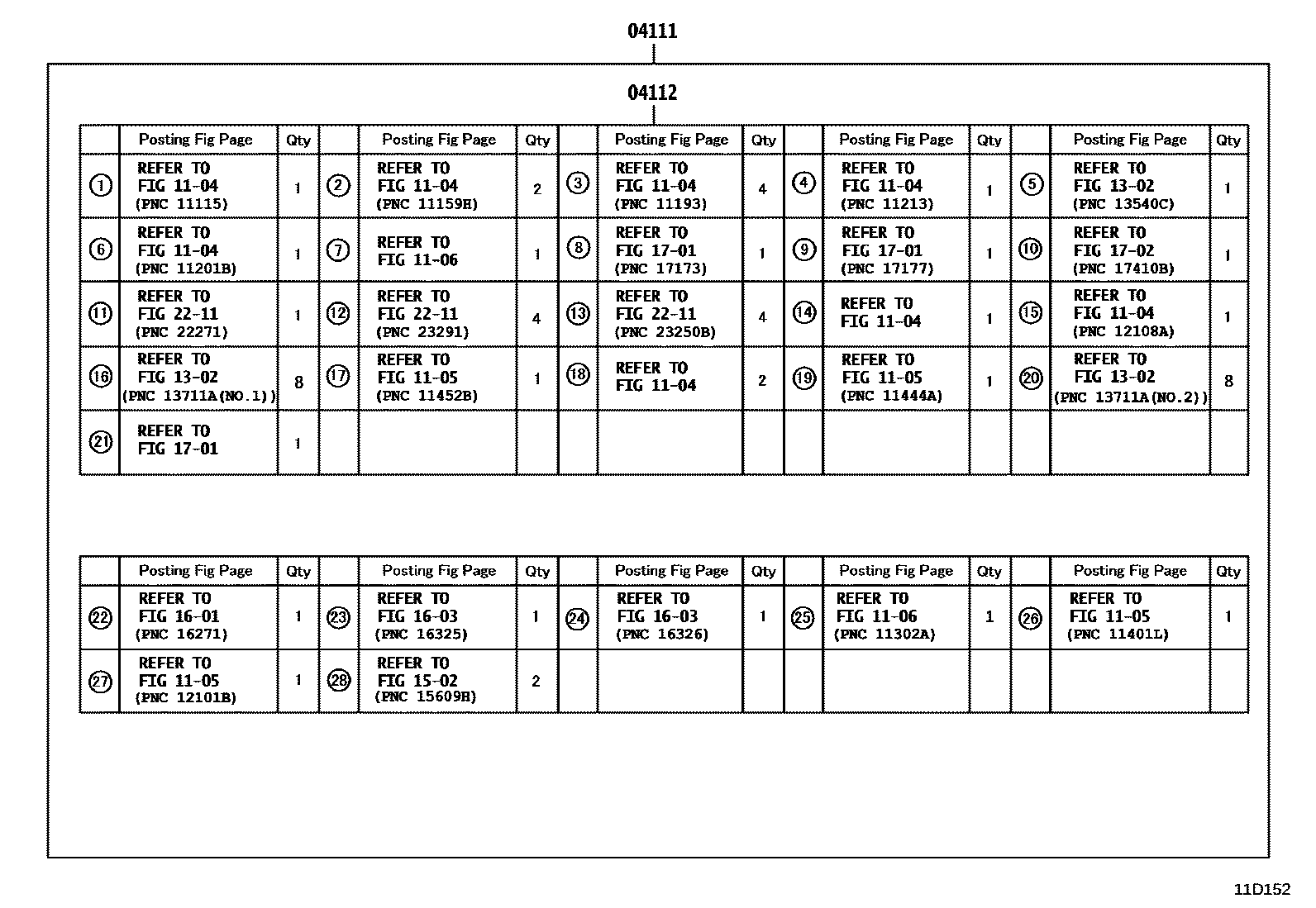

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D152
Engine Overhaul Gasket Kit — 11D152 (201310 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0T230 · 04111-0T231 · 04111-0T232 · 04111-21371 · 04111-21372 · 04111-22842 · 04111-22912 · 04111-30521 · 04111-33191 · 04111-33192 · 04111-37096 · 04111-37097 · 04111-37184 · 04111-37185 · 04111-37275 · 04111-37510 · 04111-37511 · 04111-37520 · 04111-37530
04112Engine valve grinding pad assembly04112-0T210 · 04112-0T211 · 04112-21239 · 04112-21370 · 04112-22690 · 04112-33181 · 04112-33182 · 04112-37075 · 04112-37076 · 04112-37077 · 04112-37224
