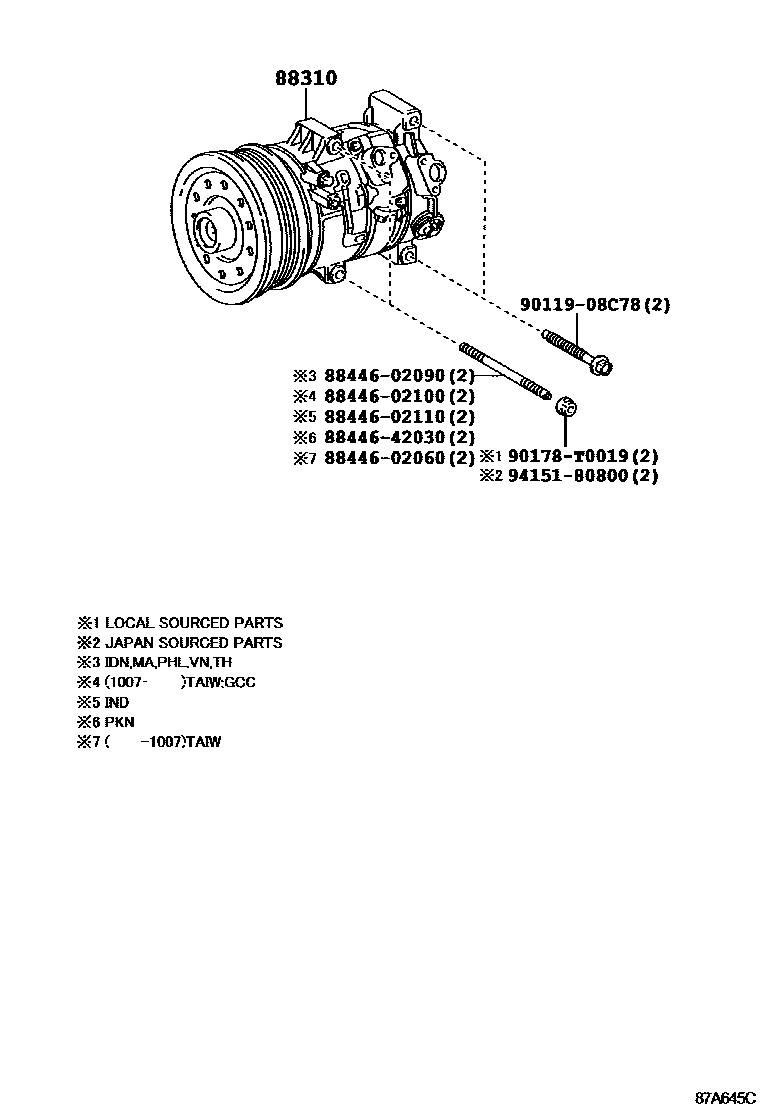

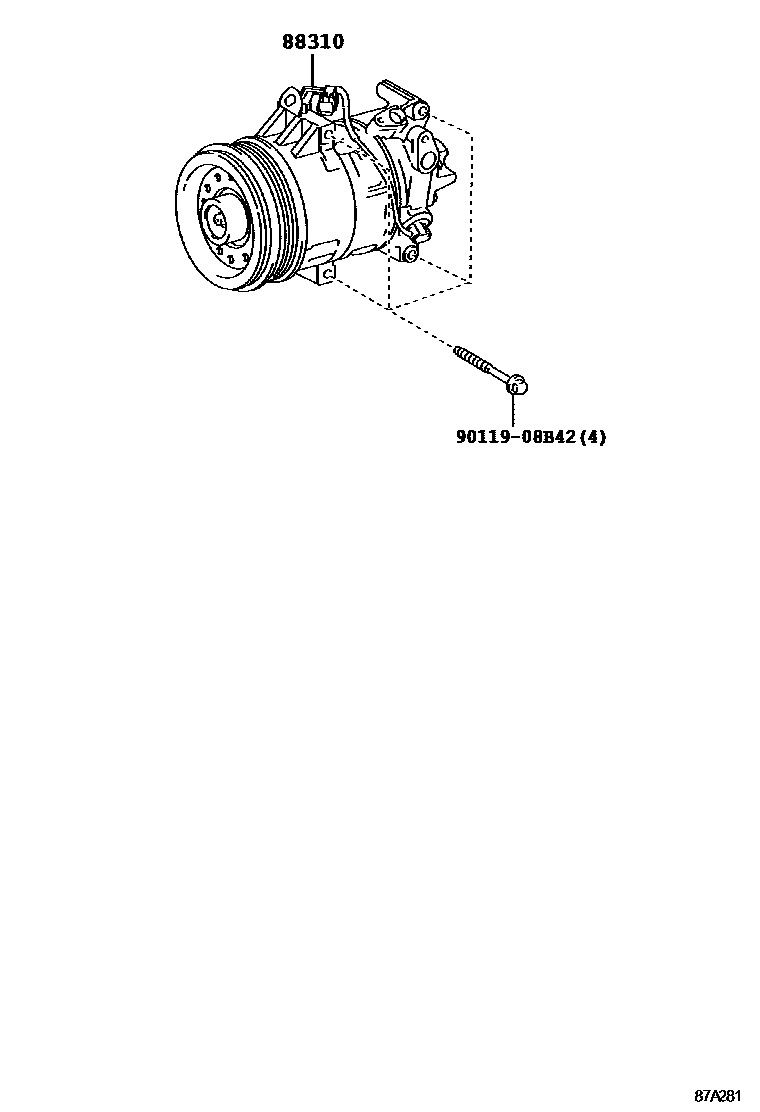

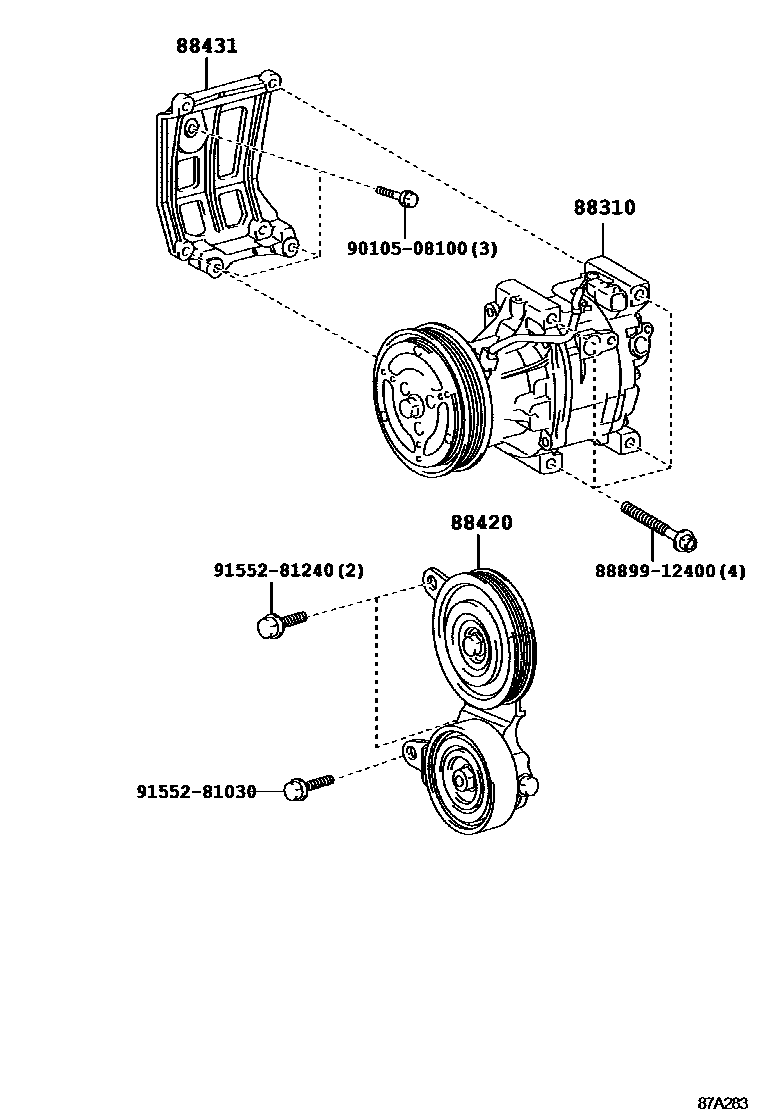

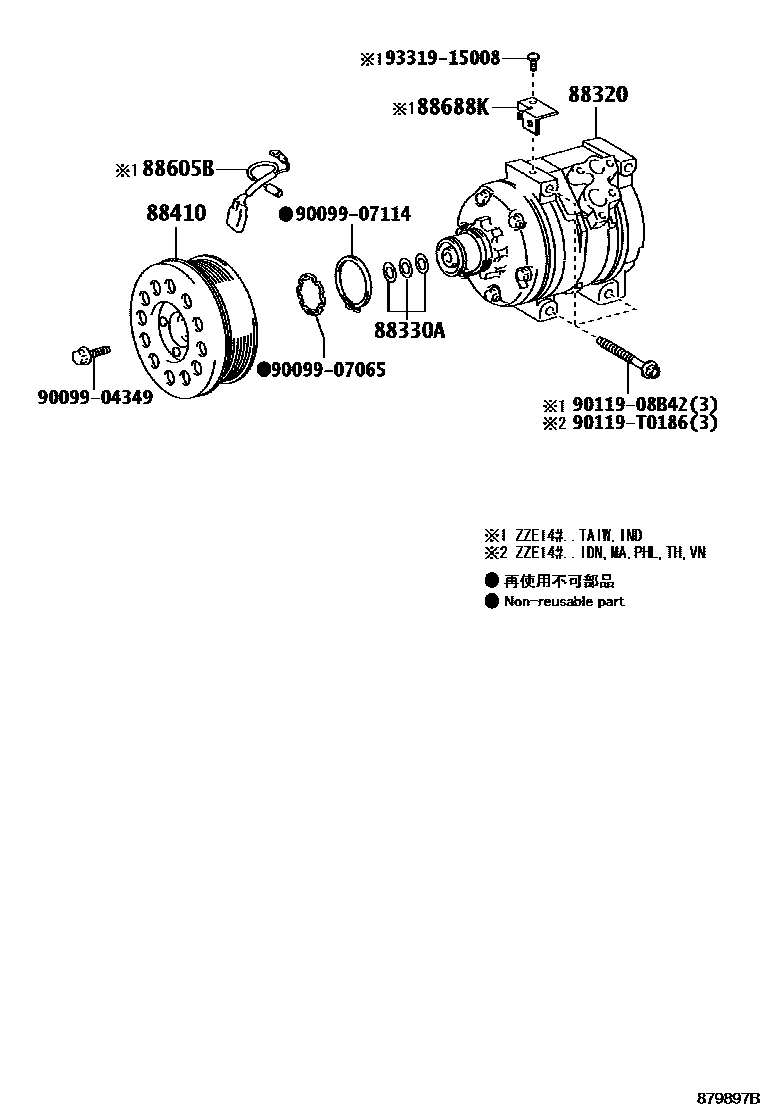

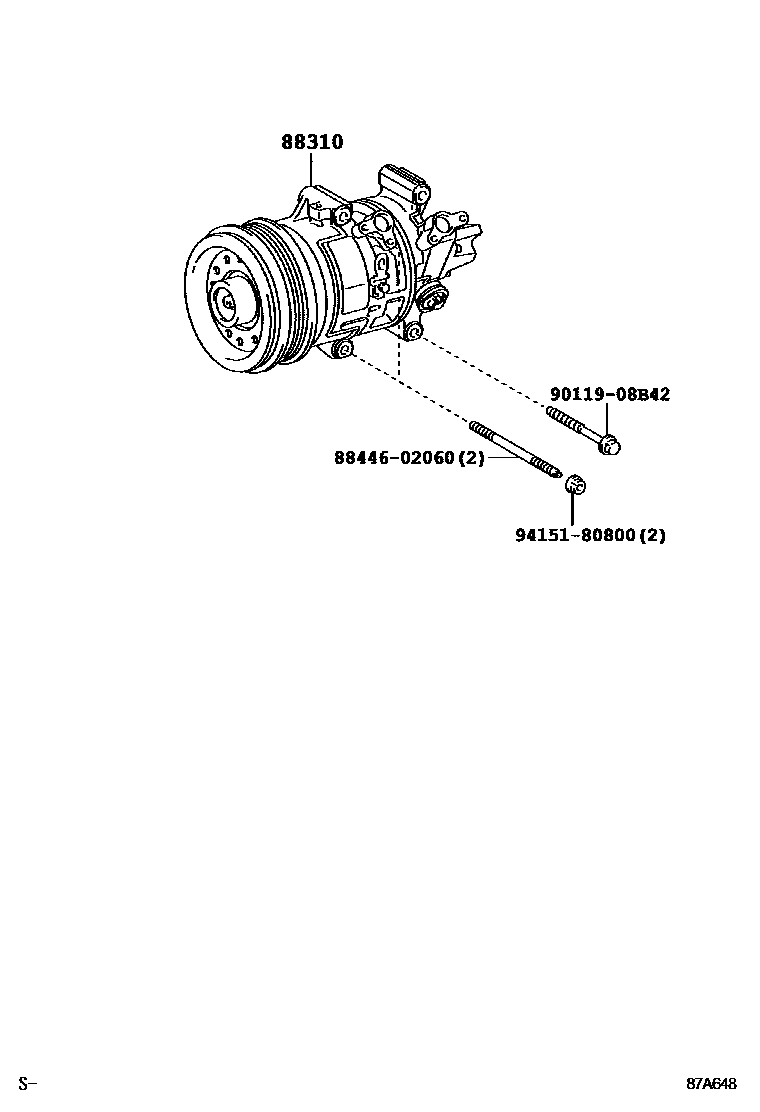

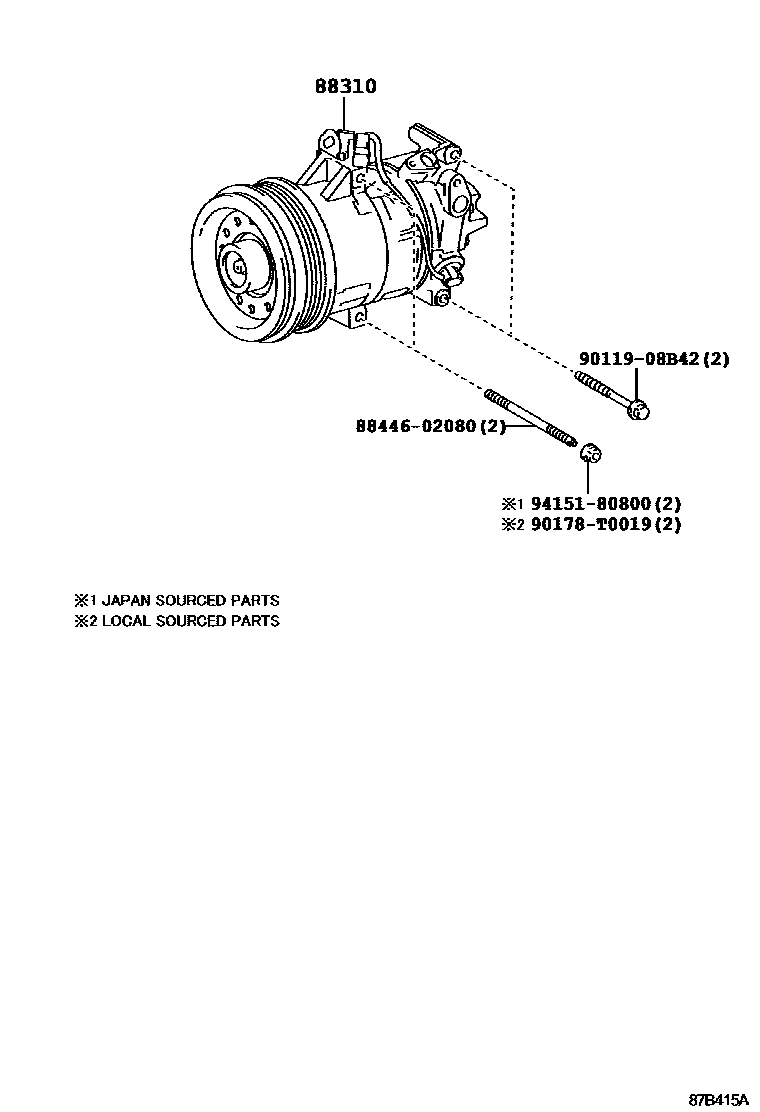

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 7 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-02570 · 88310-02580 · 88310-02590 · 88310-02650 · 88310-02660 · 88310-02670 · 88310-02671 · 88310-02720 · 88310-02730 · 88310-02731 · 88310-02740 · 88310-02741 · 88310-02750 · 88310-02751 · 88310-02760 · 88310-02761 |
| 88320 | Cooler Compressor Assembly | 88320-02150 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88410 | Magnetic Clutch Assembly | 88410-02150 · 88410-02160 |
| 88420 | Idler pulley assembly with bracket | 88420-02070 |
| 88431 | Compressor No. 1 mounting bracket | 88431-02090 |
| 88605B | Air conditioning wiring harness sub-assembly | 88605-35420 |
| 88688K | Cooler compressor bracket | 88688-33260 |
