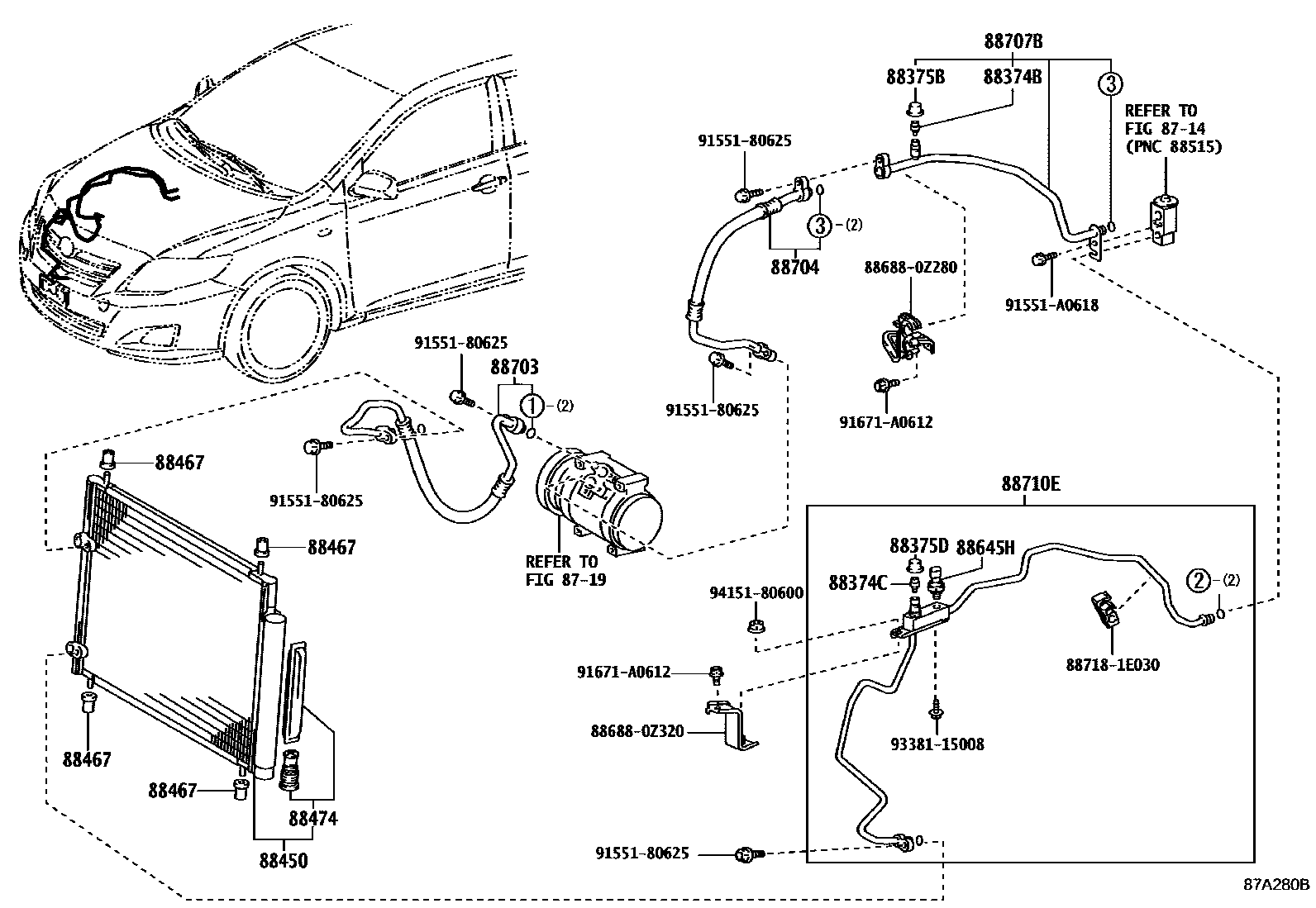

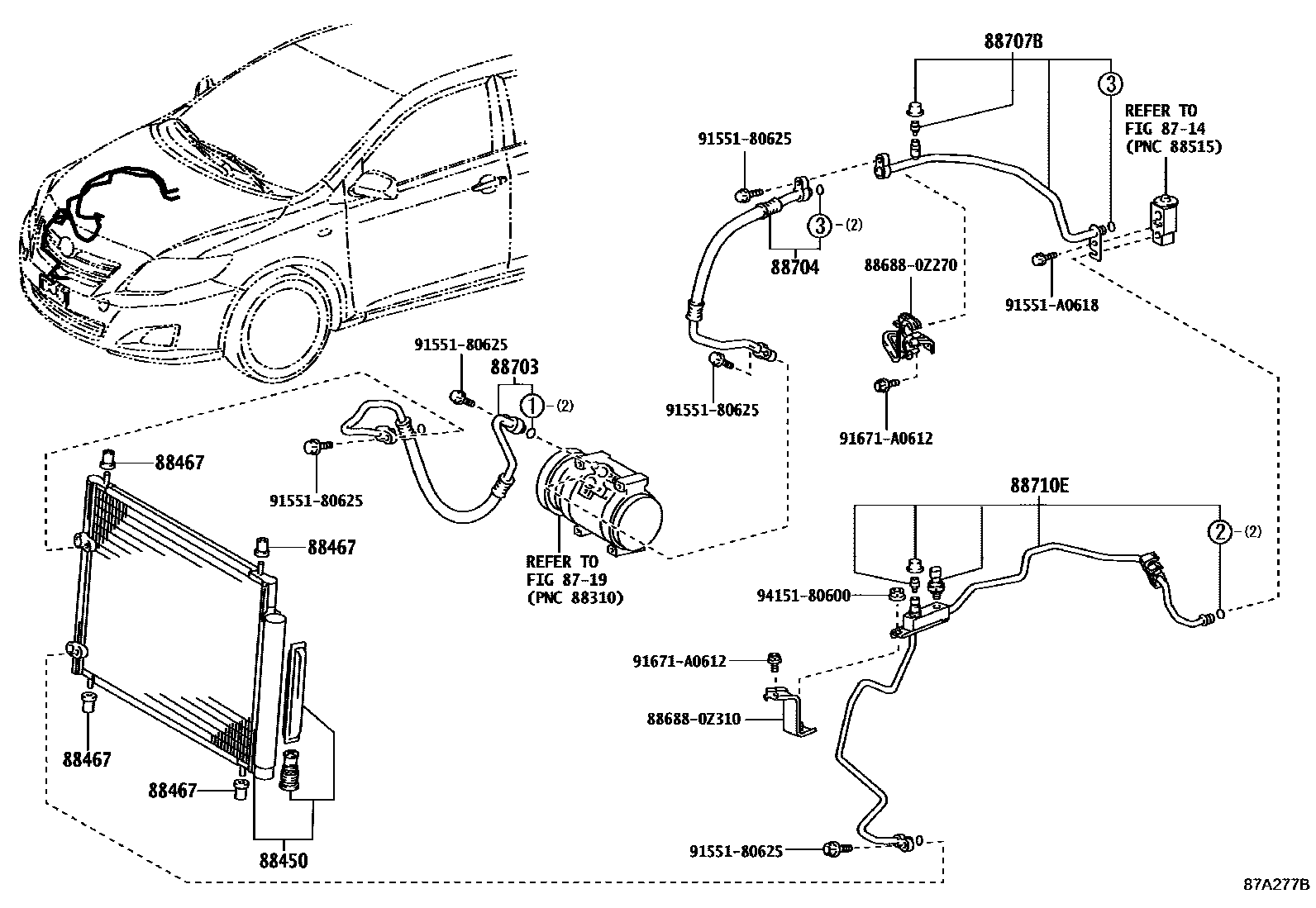

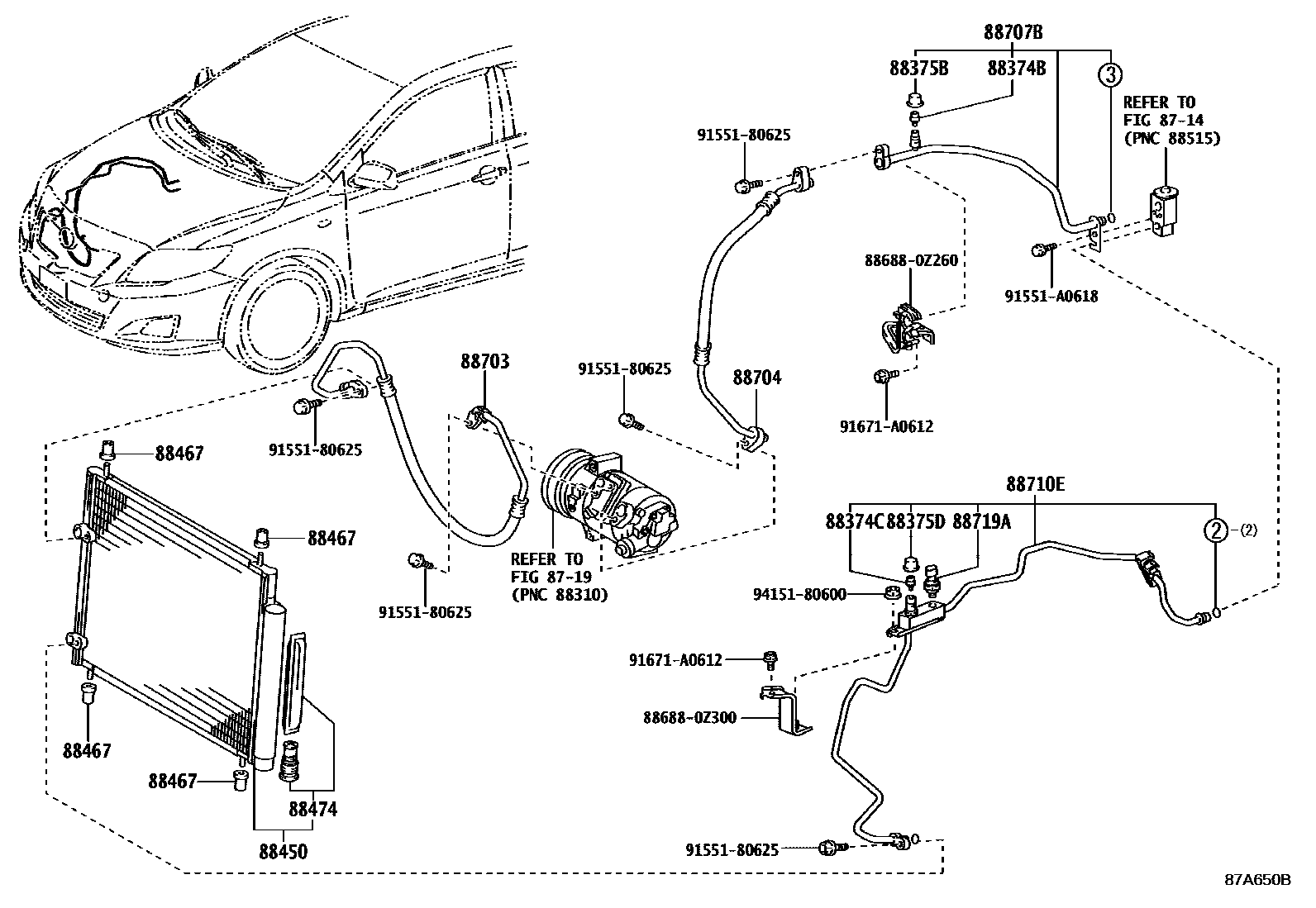

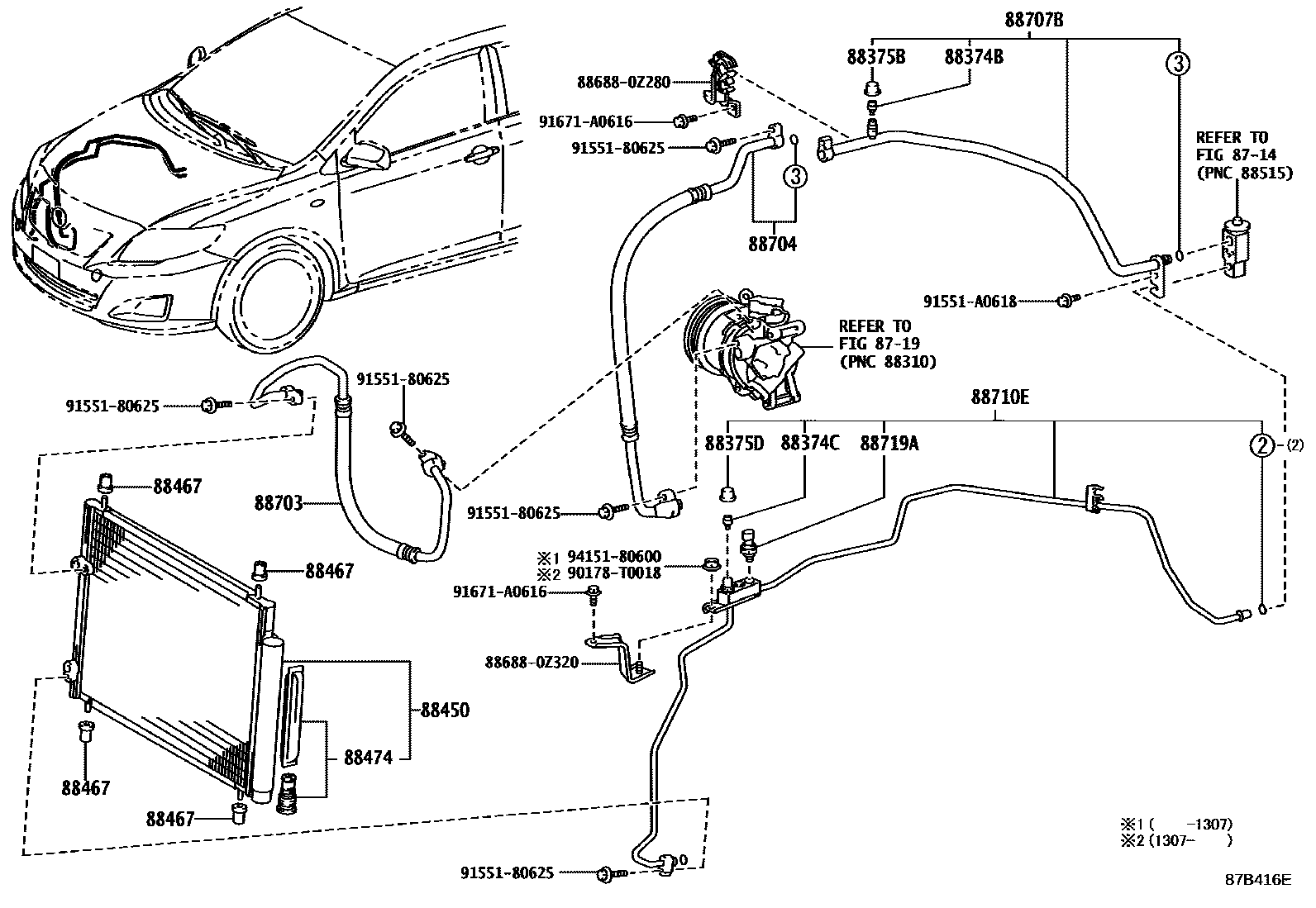

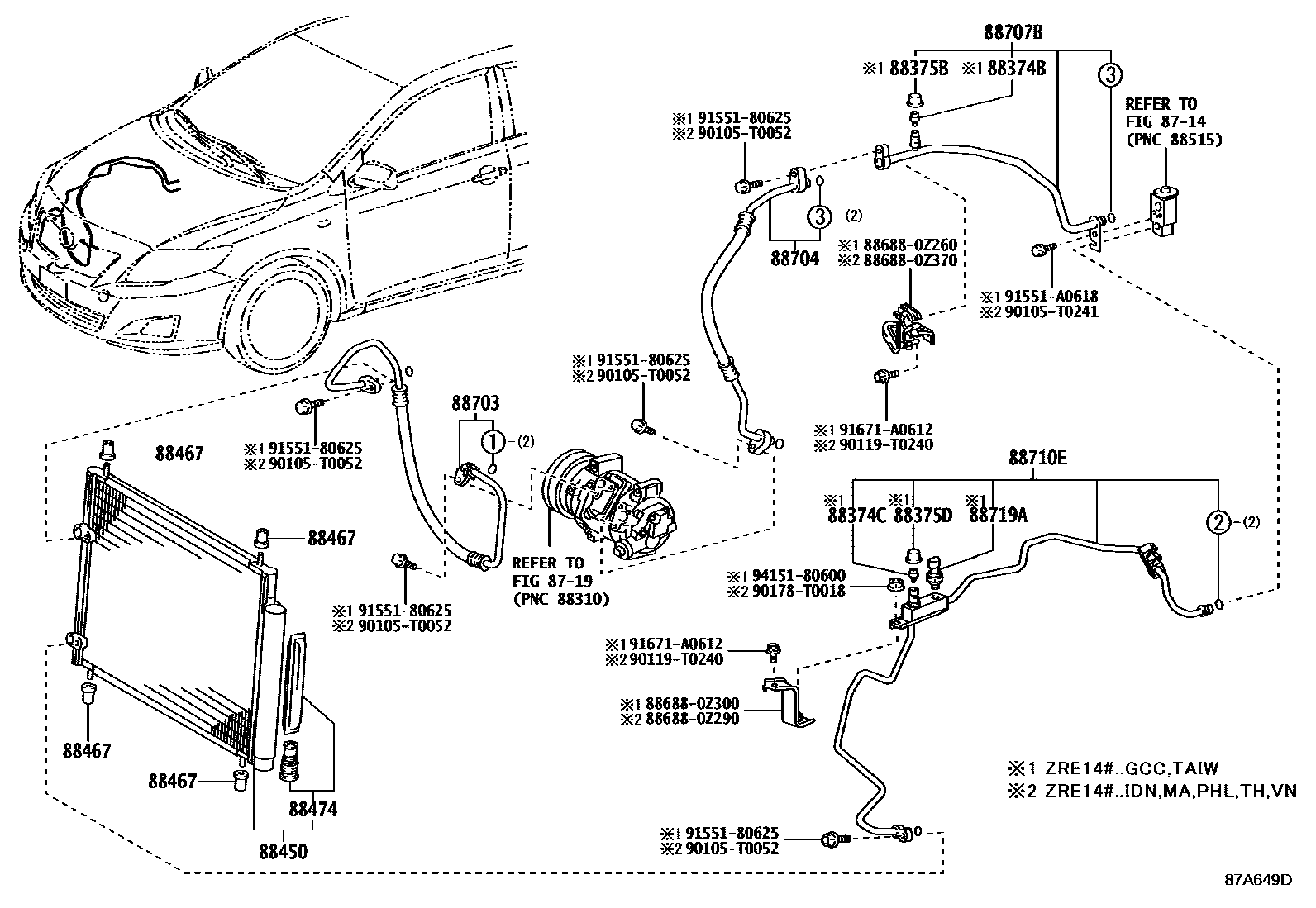

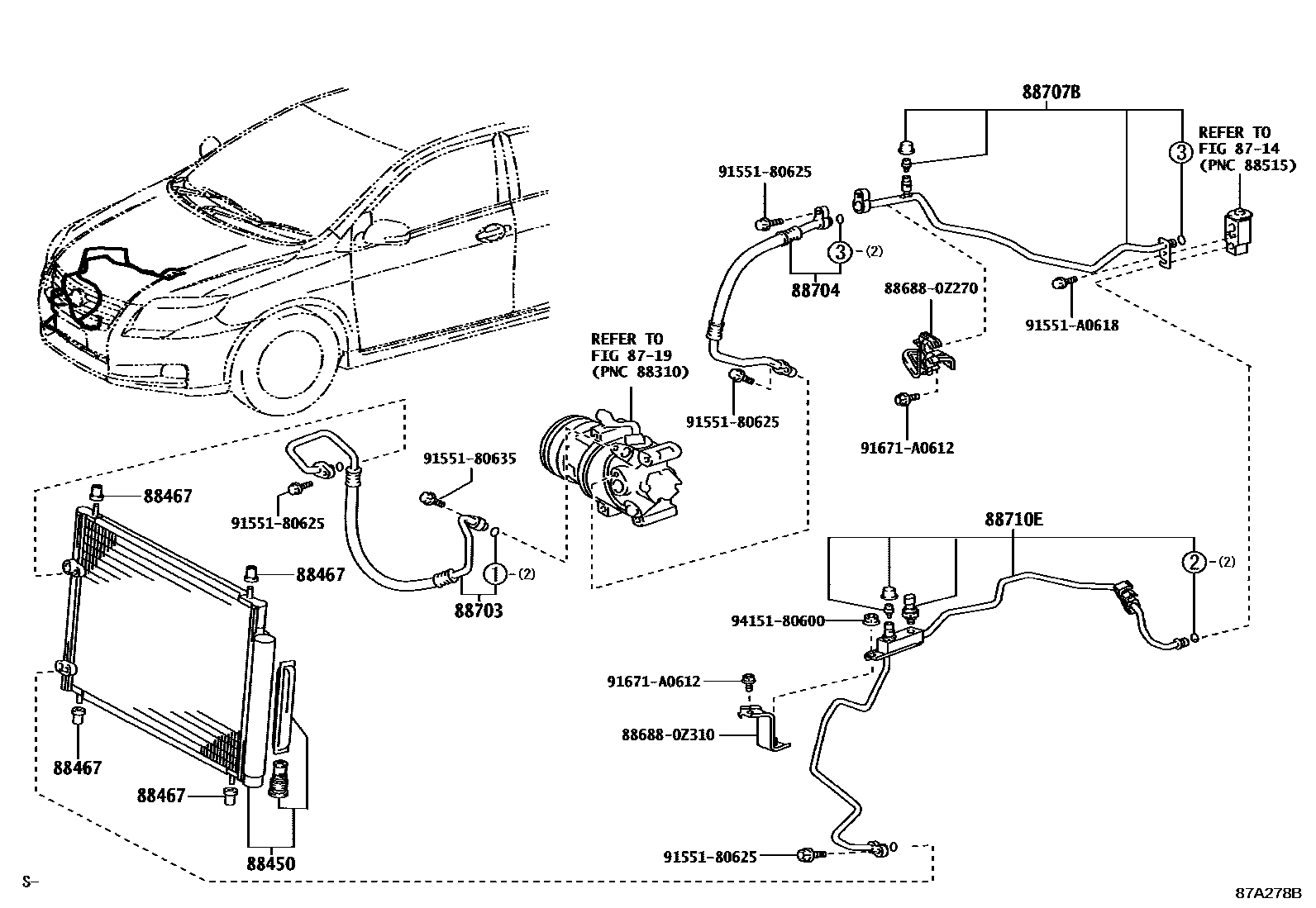

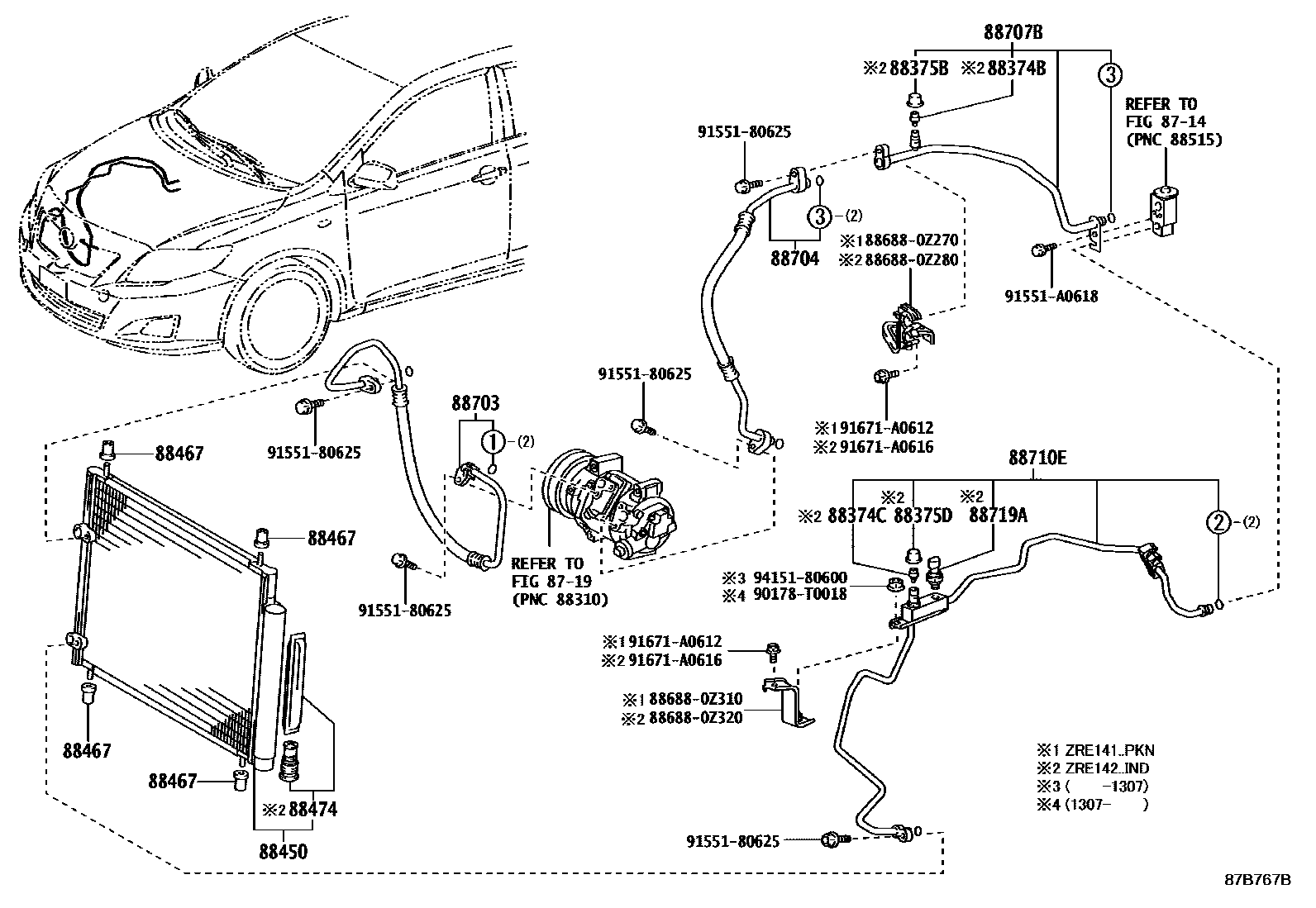

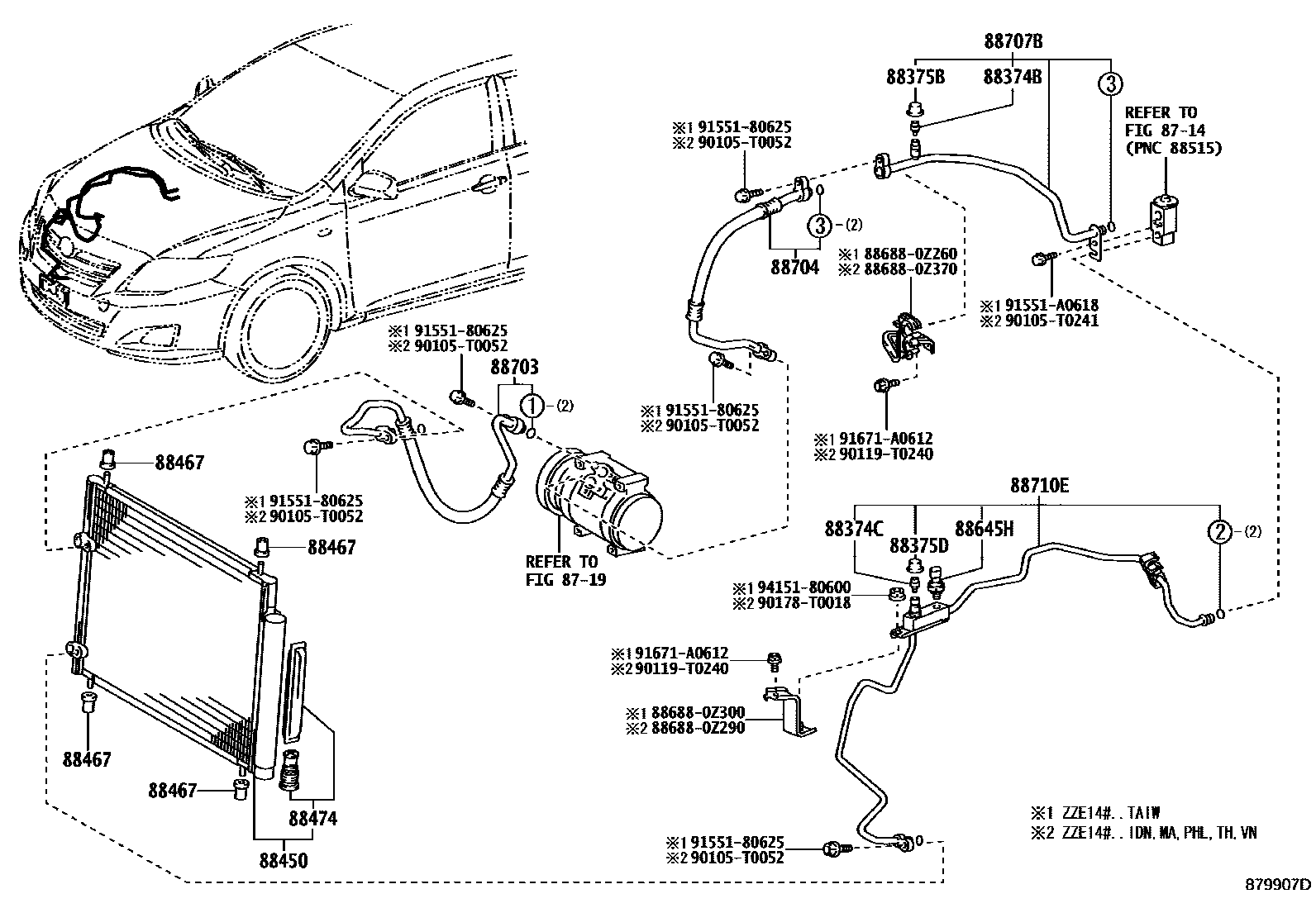

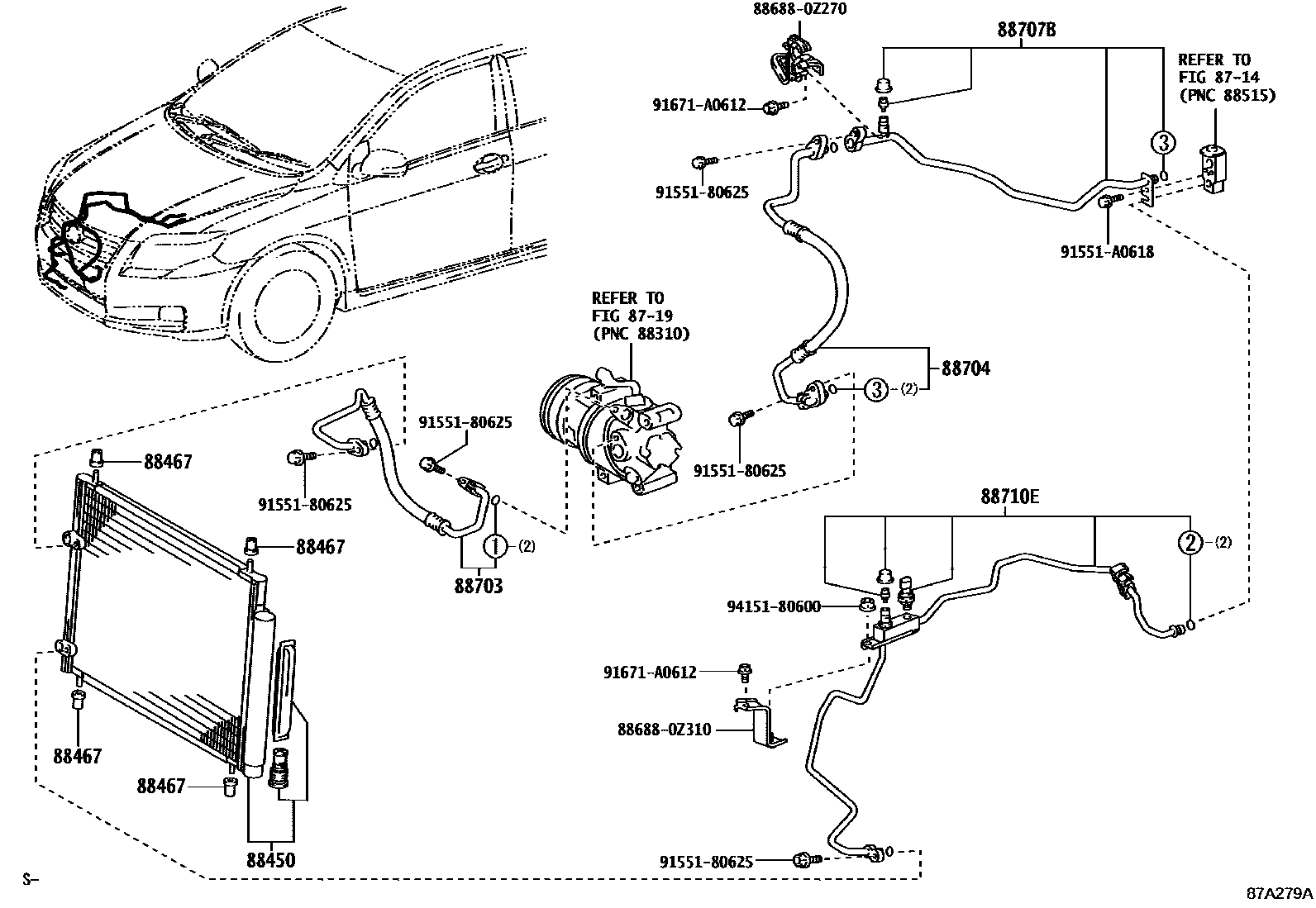

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 10 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88450 | Condenser assembly with liquid reservoir | 88450-02350 · 88450-02360 · 88450-02370 · 88450-02380 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-17010 |
| 88645H | No. 1 pressure switch | 88645-60030 |
| 88703 | Discharge hose sub-assembly | 88703-02490 · 88703-02491 · 88703-02500 · 88703-02510 · 88703-02511 · 88703-02520 · 88703-02530 · 88703-02531 · 88703-02540 · 88703-02650 · 88703-02660 · 88703-02670 · 88703-02700 · 88703-02701 · 88703-02721 · 88703-02731 · 88703-02740 · 88703-02750 |
| 88704 | Oil suction hose sub-assembly | 88704-02740 · 88704-02750 · 88704-02760 · 88704-02770 · 88704-02780 · 88704-02790 · 88704-02890 · 88704-0Z020 · 88704-0Z030 · 88704-0Z060 · 88704-0Z080 · 88704-0Z090 · 88704-0Z100 · 88704-0Z110 |
| 88707B | Suction pipe B sub-assembly | 88707-02080 · 88707-02090 · 88707-02100 · 88707-02110 · 88707-02120 · 88707-02170 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-0Z060 · 88710-0Z070 · 88710-0Z080 · 88710-0Z090 · 88710-0Z100 · 88710-0Z110 · 88710-0Z150 · 88710-0Z210 · 88710-0Z220 · 88710-0Z230 · 88710-0Z240 · 88710-0Z260 · 88710-0Z280 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
