Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

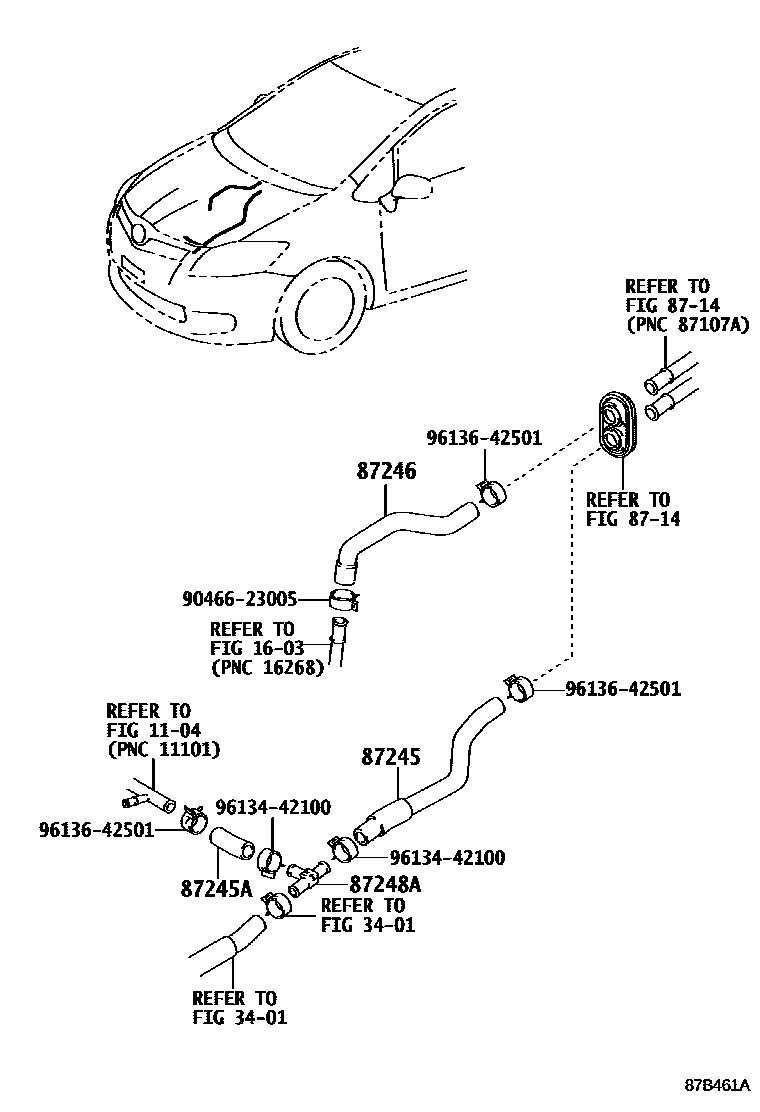

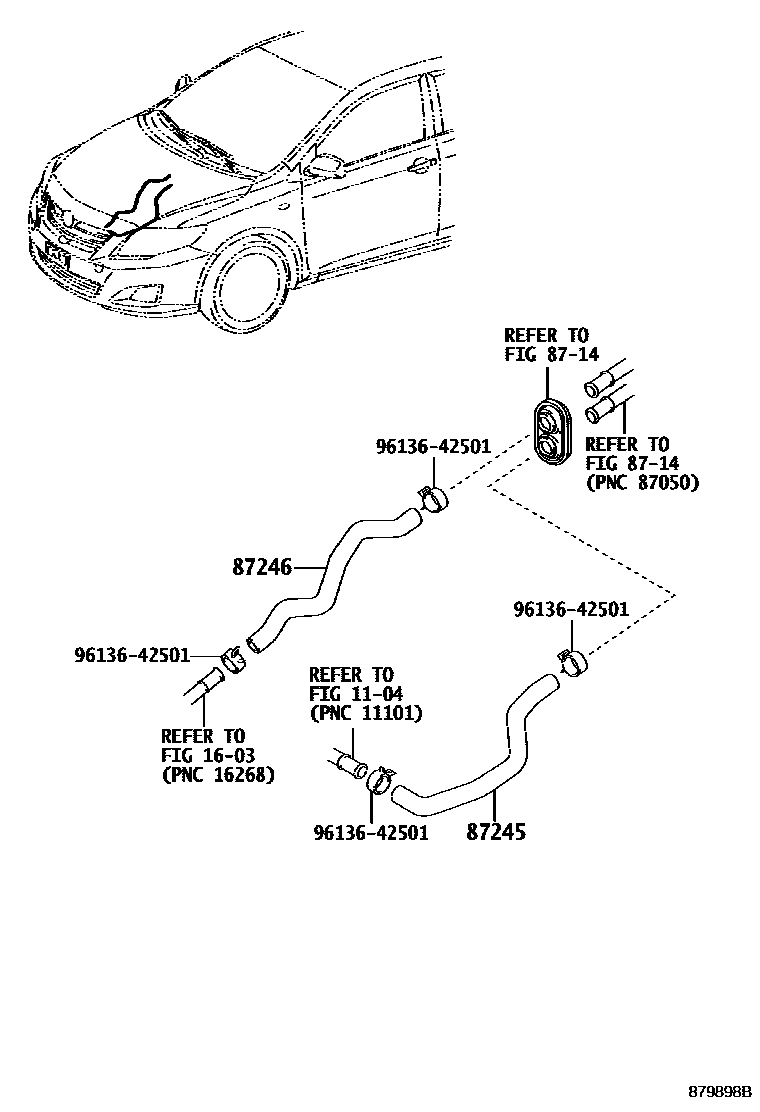

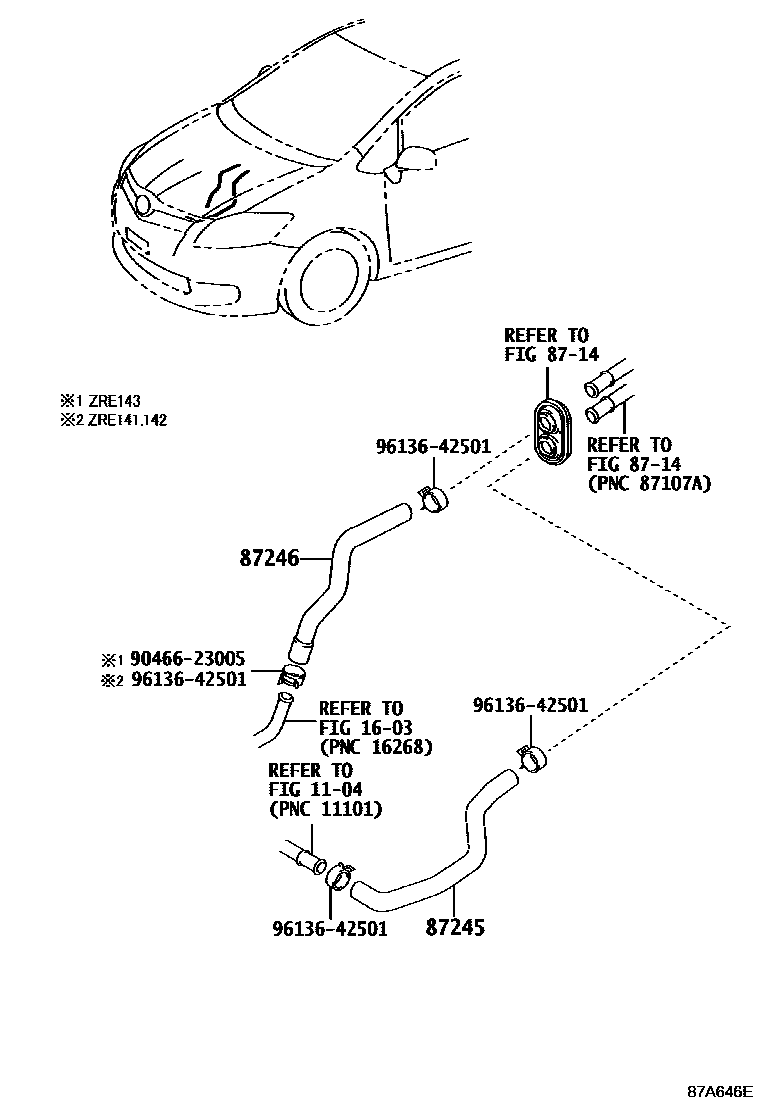

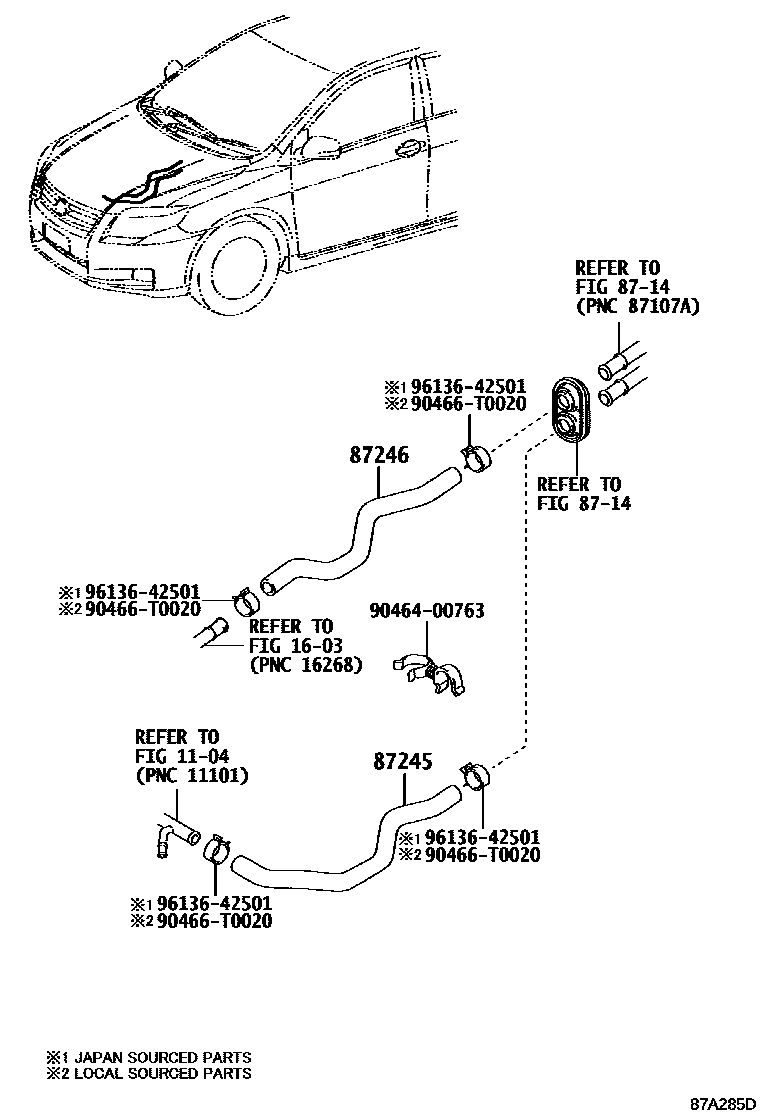

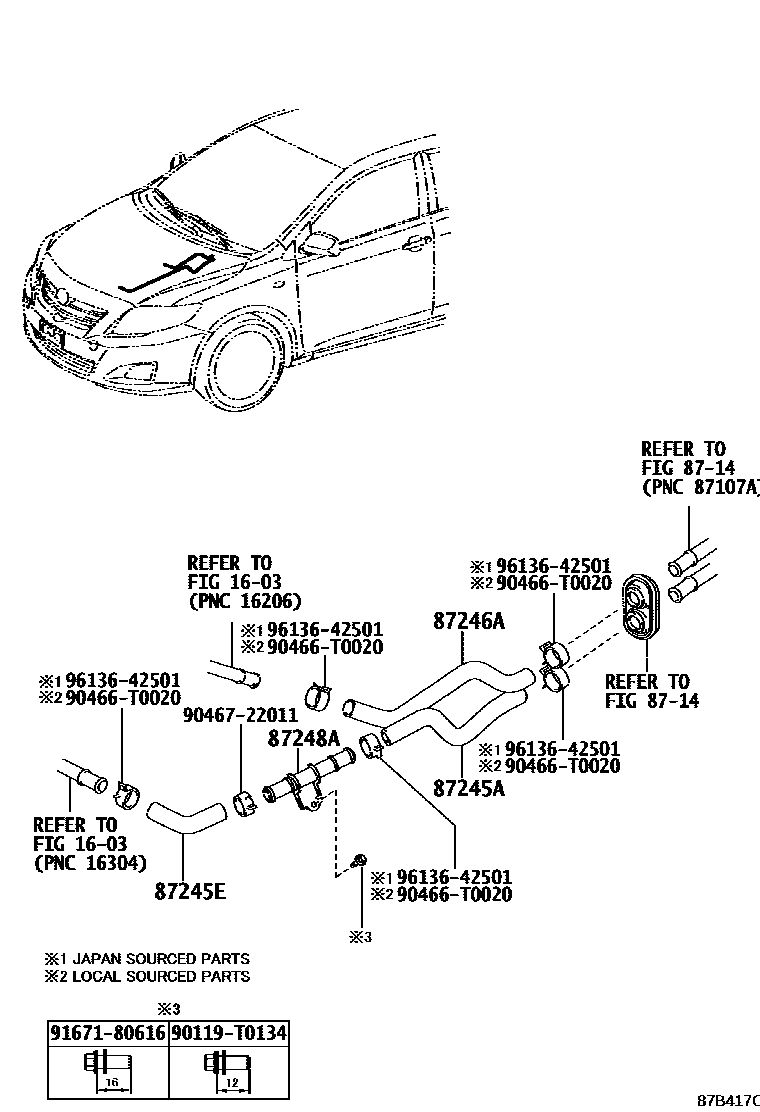

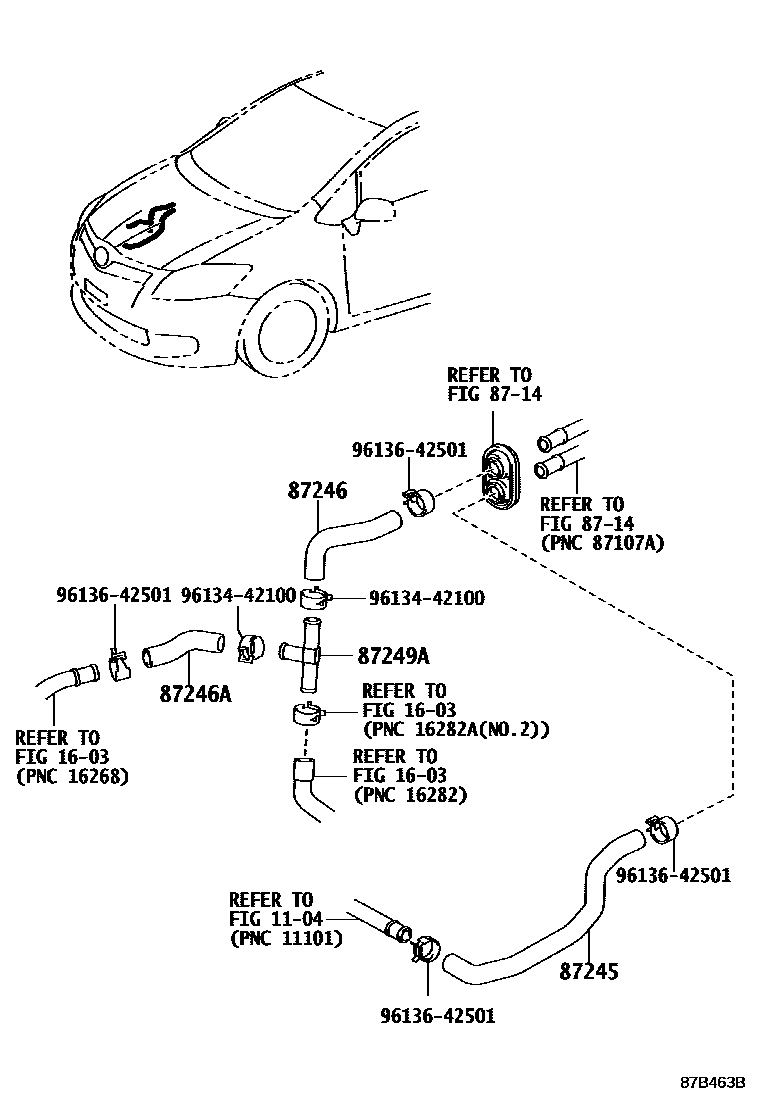

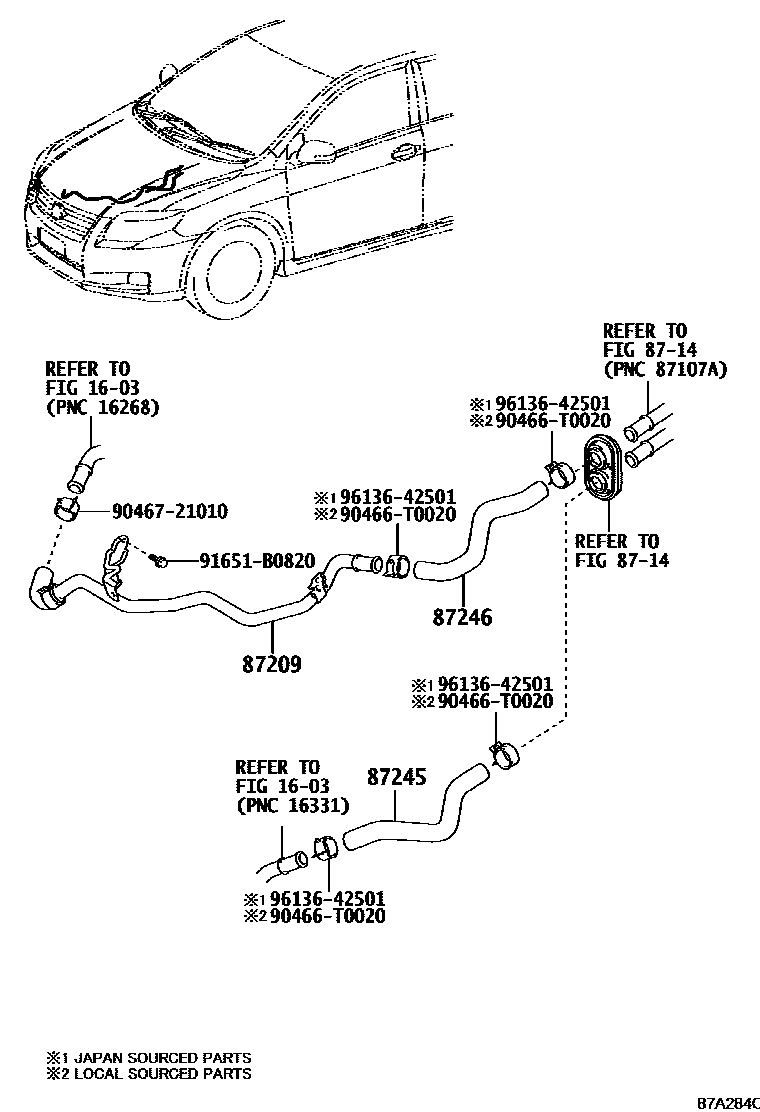

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 7 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87209 | Water hose sub-assembly | 87209-12450 |
| 87245 | Heater water inlet hose | 87245-02D40 · 87245-02D60 · 87245-02D80 · 87245-02E00 · 87245-02E20 · 87245-02E80 · 87245-02F50 · 87245-02F70 · 87245-02J50 · 87245-02J70 · 87245-02J90 · 87245-02K10 · 87245-02L51 · 87245-02L91 |
| 87245A | Heater water inlet hose A | 87245-02G70 · 87245-02L40 · 87245-02L80 |
| 87245E | Heater water inlet hose E | 87245-02G90 |
| 87246 | Heater outlet hose | 87245-02D50 · 87245-02D70 · 87245-02D90 · 87245-02E10 · 87245-02E30 · 87245-02E90 · 87245-02F60 · 87245-02F80 · 87245-02J60 · 87245-02J80 · 87245-02K00 · 87245-02K20 · 87245-02L71 · 87245-02M11 · 87245-02M30 |
| 87246A | Heater outlet hose A | 87245-02G80 · 87245-02L60 · 87245-02M00 · 87245-02M20 |
| 87248A | Heater water inlet pipe A | 87248-02020 · 87248-12310 |
| 87249A | Heater outlet pipe A | 87248-12300 |
