Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715

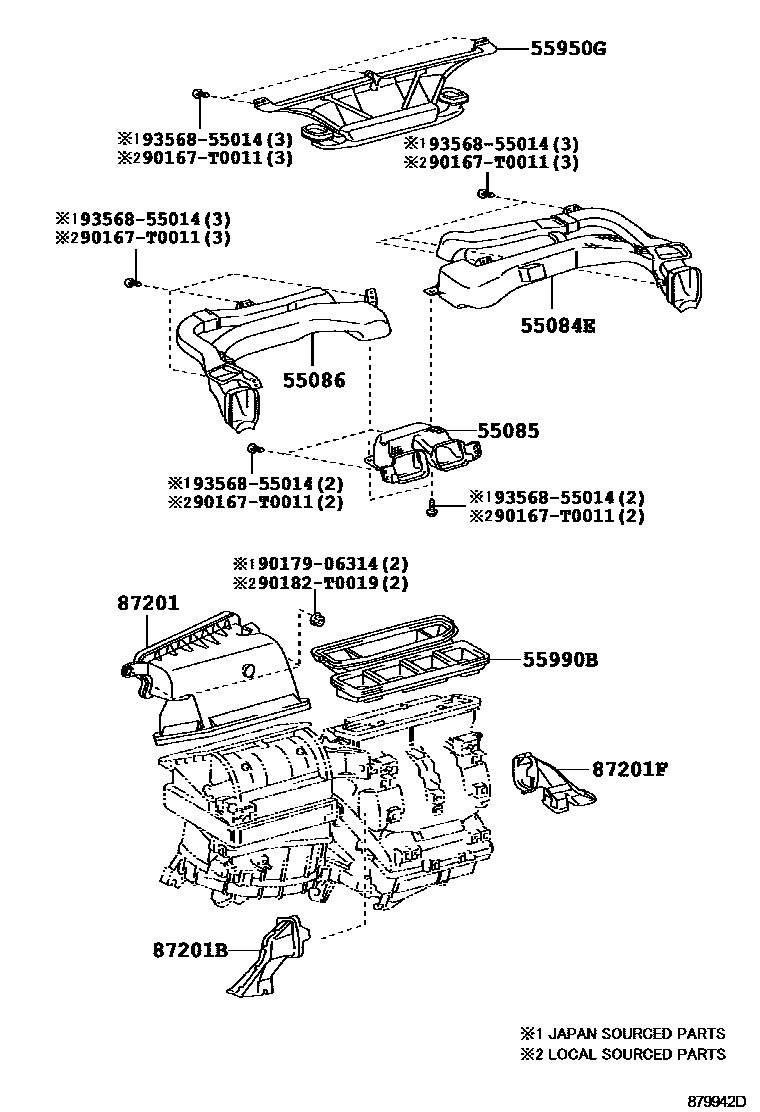

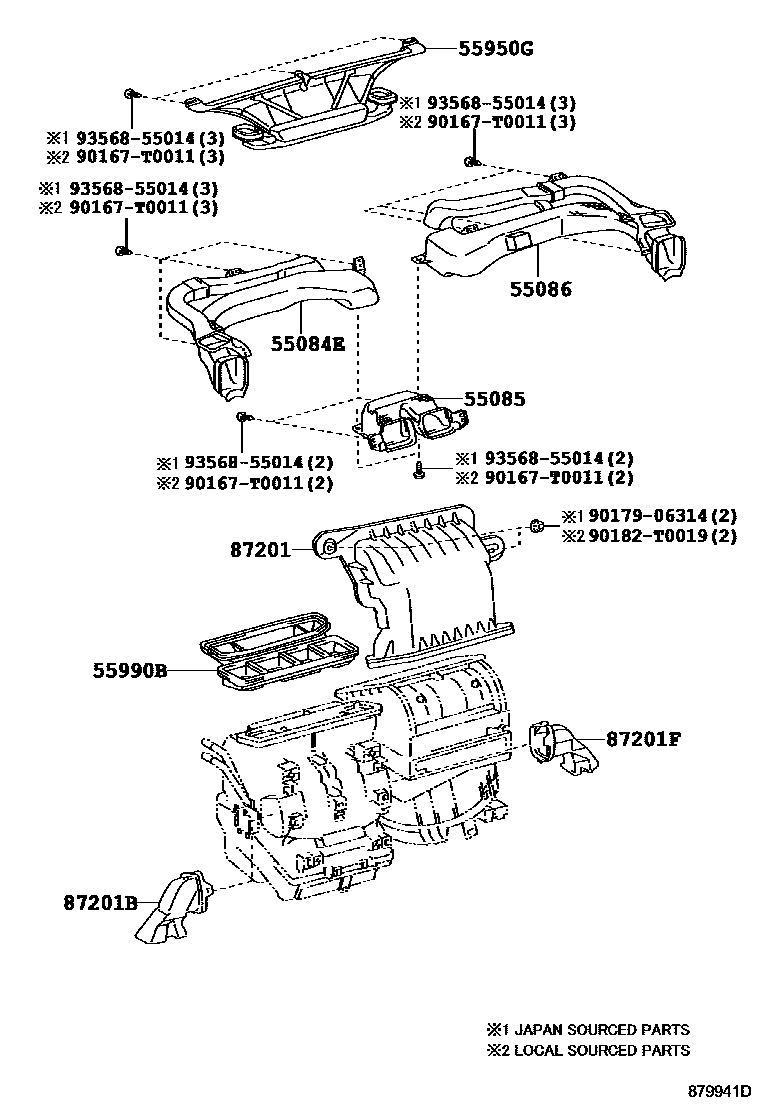

Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-02070 · 55084-02080 · 55084-02090 · 55084-02110 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-02110 · 55085-02120 · 55085-02130 · 55085-02140 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55086-02120 · 55086-02130 · 55086-02140 · 55086-02150 · 55086-02190 |

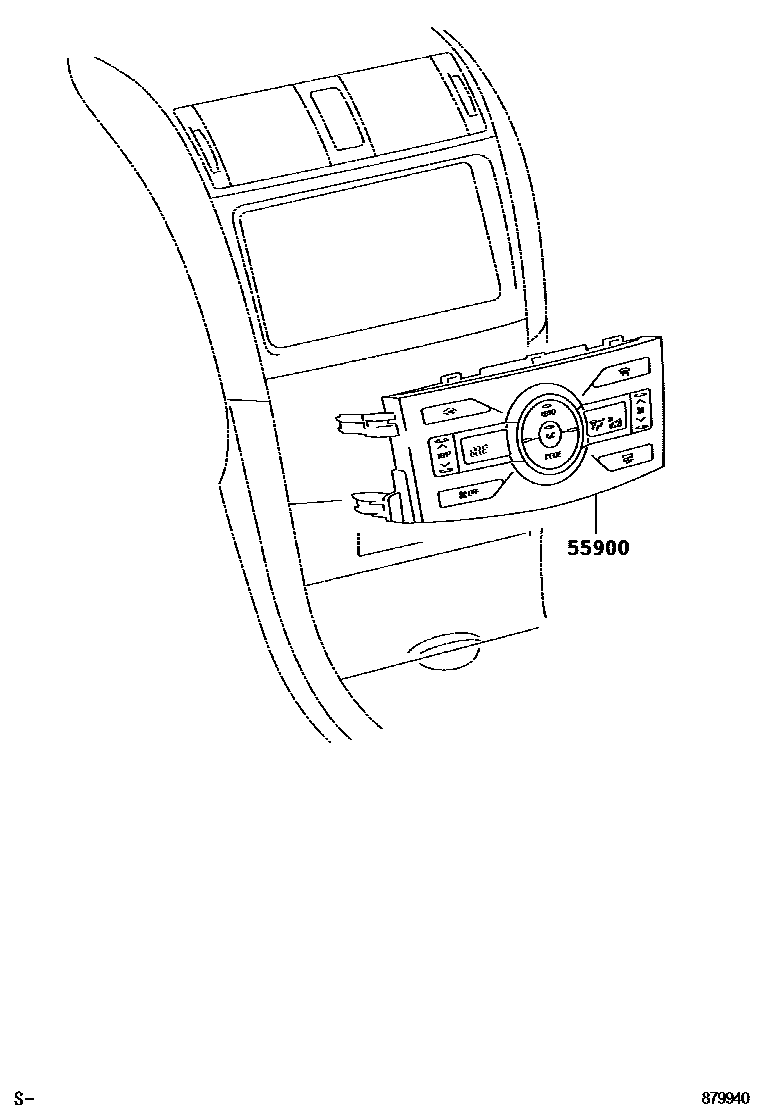

| 55900 | Air conditioning control assembly | 55900-02270 · 55900-02280 |

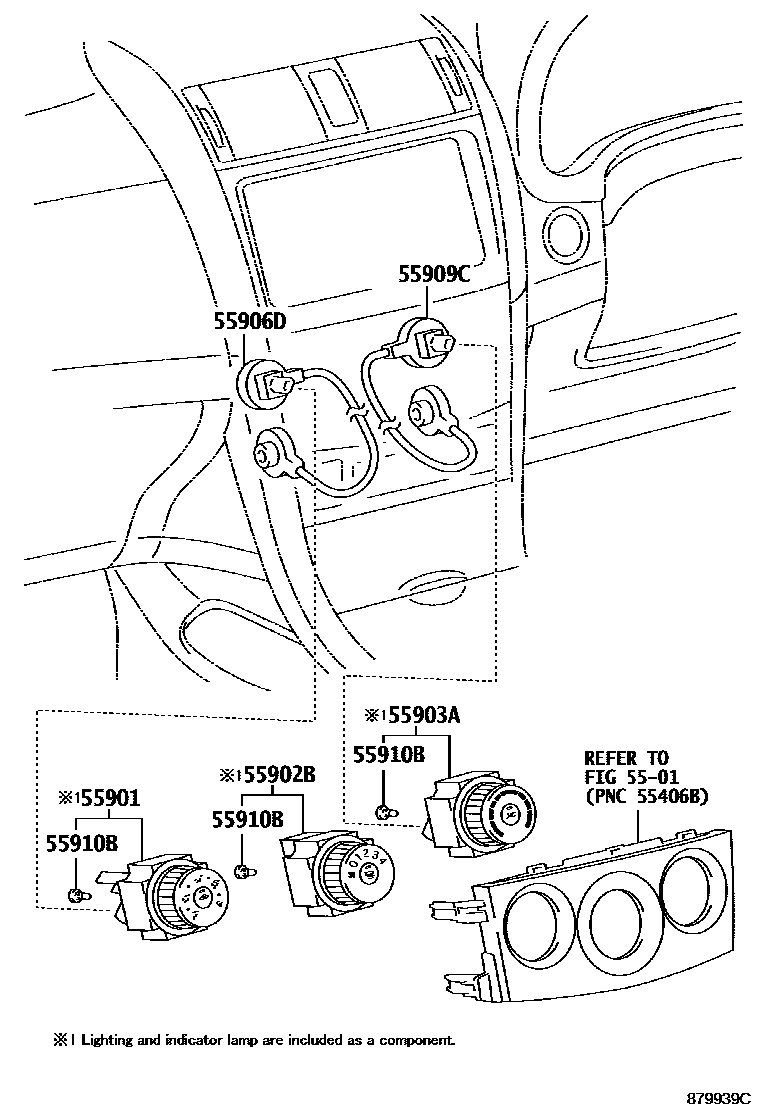

| 55901 | Heater controller base sub-assembly | 55901-02090 · 55901-02100 · 55901-02130 · 55901-02140 |
| 55902B | Heater control sub-assembly | 55902-02040 · 55902-02090 · 55902-02110 · 55902-02140 |
| 55903A | No. 3 heater control sub-assembly | 55903-02080 · 55903-02170 · 55903-02180 · 55903-02190 · 55903-02220 · 55903-02230 · 55903-02240 |
| 55906D | No. 2 heater control cable sub-assembly | 55906-0K010 |
| 55909C | Air mix damper control cable sub-assembly | 55909-0K010 |
| 55910B | heater control light bulb | 90010-01122 |
| 55950G | Defroster nozzle assembly | 55950-02140 · 55950-02200 · 55950-02210 · 55950-02220 · 55950-02230 |
| 55990B | Lower defroster nozzle assembly | 55990-02110 · 55990-02120 · 55990-02140 · 55990-12080 |
| 87201 | No. 1 air duct sub-assembly | 87220-02080 · 87220-02090 · 87220-02100 · 87220-02110 · 87220-02120 |
| 87201B | No. 2 air duct sub-assembly | 87211-02350 · 87211-02360 · 87211-02361 · 87211-02380 · 87211-02381 · 87211-02410 · 87211-02430 |
| 87201F | No. 3 air duct sub-assembly | 87211-02340 · 87211-02341 · 87211-02370 · 87211-02390 · 87211-02400 · 87211-02401 · 87211-02420 · 87211-02421 |

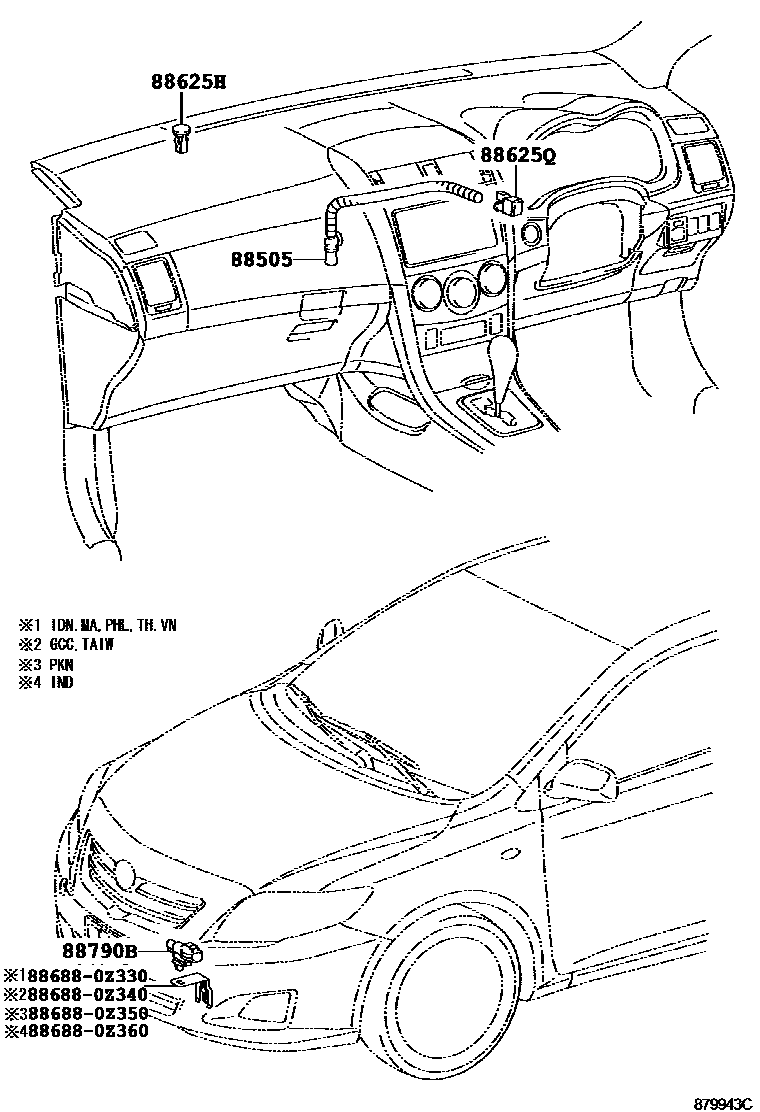

| 88505 | Air conditioning duct sub-assembly | 88505-02080 · 88505-02090 · 88505-02100 · 88505-02110 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-22131 |
