Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 4 images and 8 PNC and OE references.

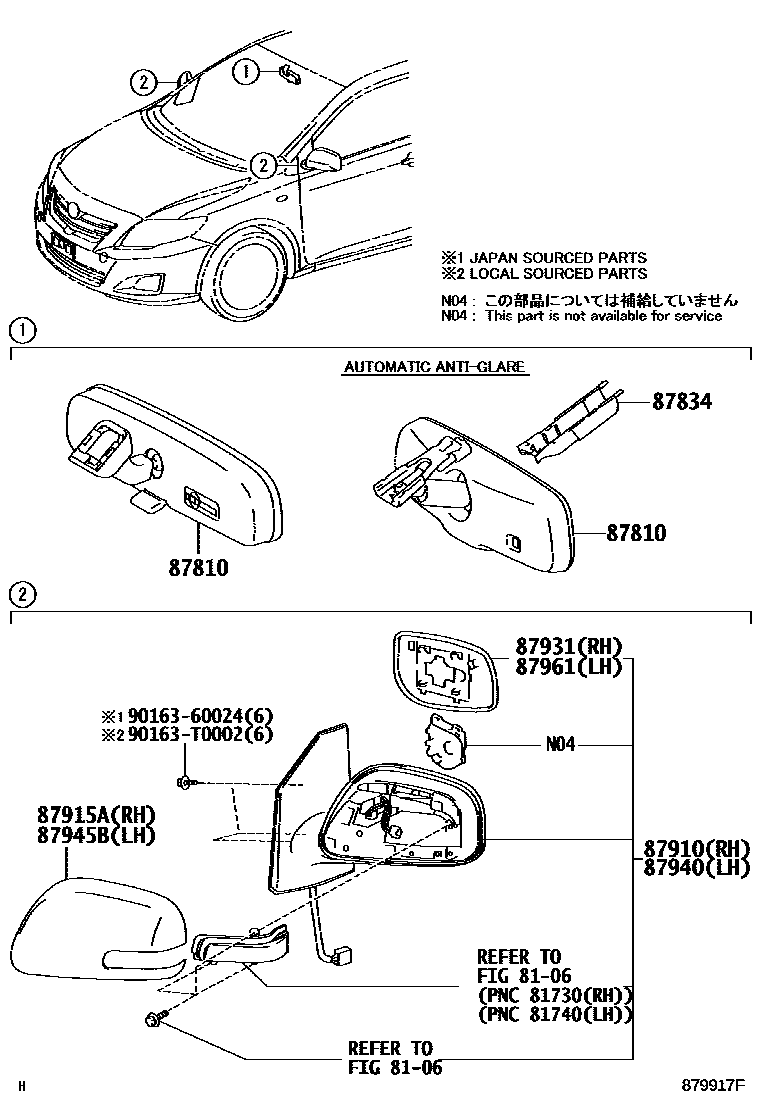

Toyota COROLLA 后视镜 EPC diagram — 879917F
后视镜 — 879917F (200712 – 999999)

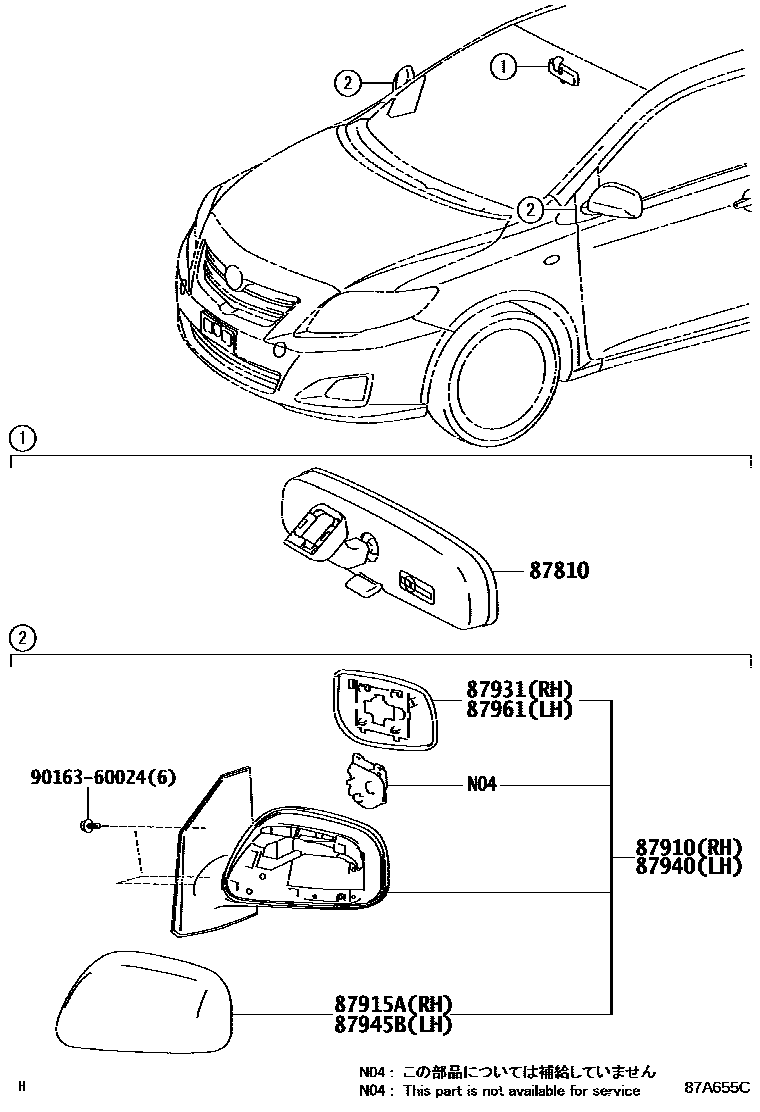

Toyota COROLLA 后视镜 EPC diagram — 87A655C
后视镜 — 87A655C (200901 – 999999)

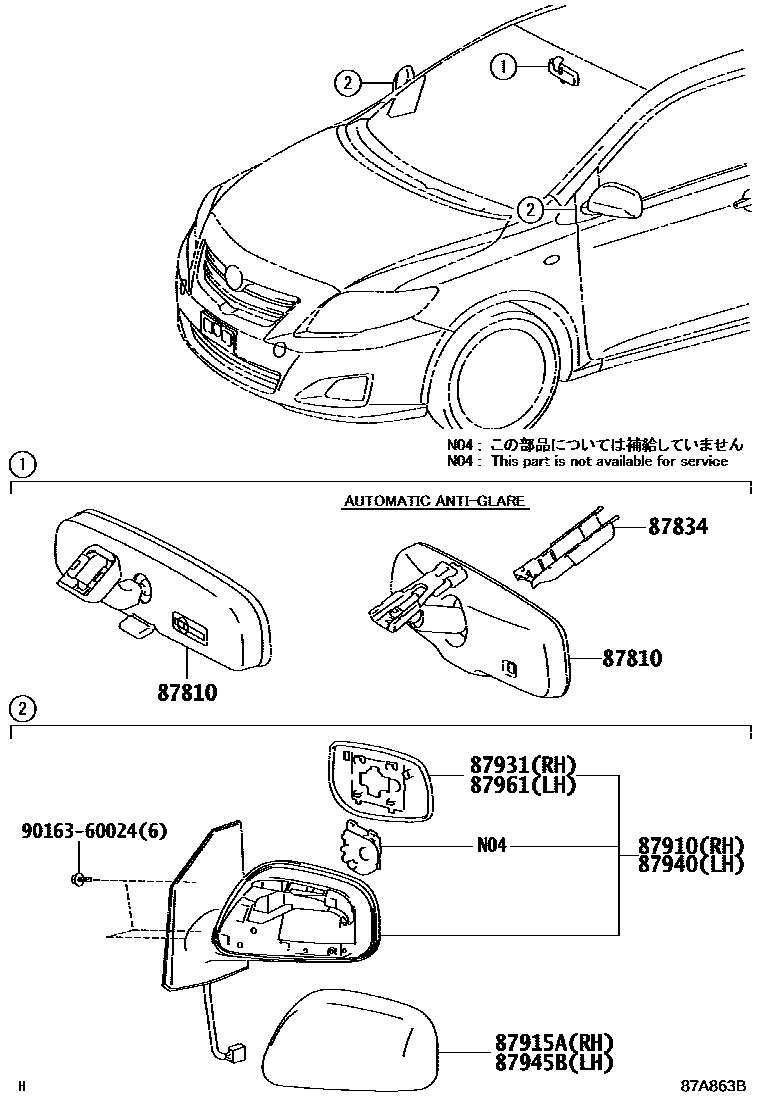

Toyota COROLLA 后视镜 EPC diagram — 87A863B
后视镜 — 87A863B (200901 – 999999)

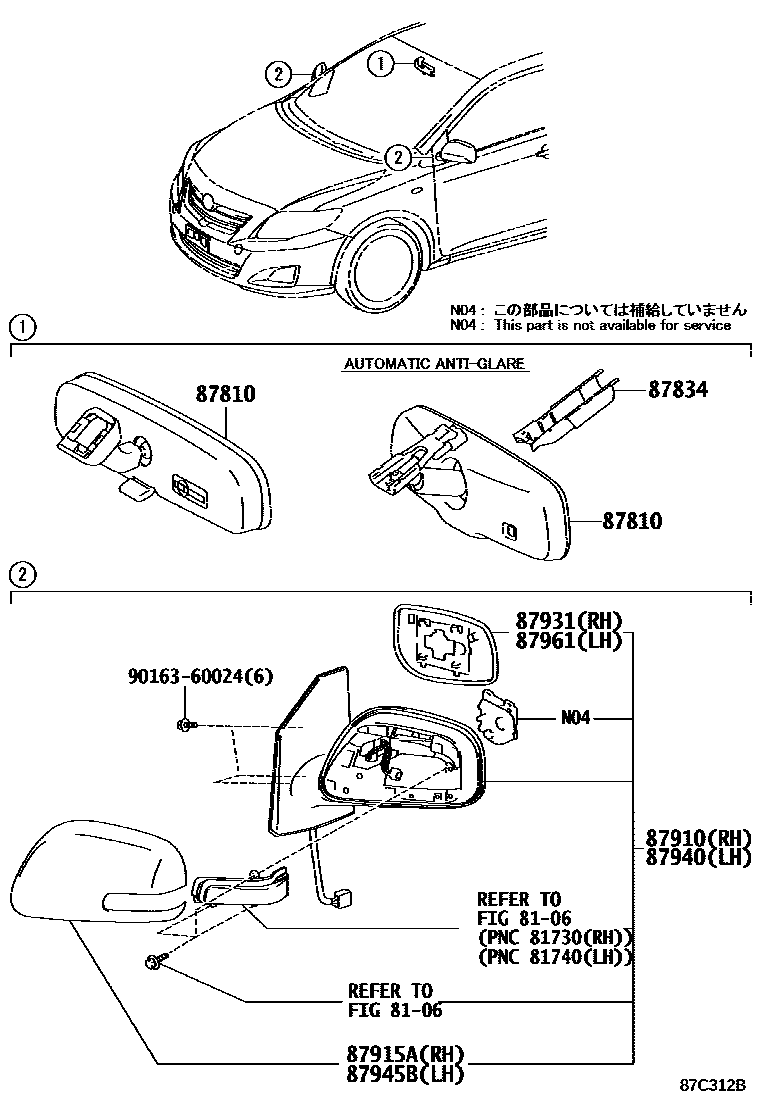

Toyota COROLLA 后视镜 EPC diagram — 87C312B
后视镜 — 87C312B (200712 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-02090 · 87810-02210 · 87810-06030 · 87810-06041 · 87810-0F050 · 87810-52041 · 87810-AA011
87834Interior rearview mirror stay fixing cover87818-0W060 · 87818-33010
87910Right exterior rearview mirror assembly87910-02630 · 87910-02904 · 87910-02905 · 87910-02906 · 87910-02907 · 87910-02A10 · 87910-02A20 · 87910-02A30 · 87910-02A40 · 87910-02A50 · 87910-02A60 · 87910-02B80 · 87910-02F00
87915ARight exterior rearview mirror cover87915-02120 · 87915-02290 · 87915-02310 · 87915-02912 · 87915-02917 · 87915-06901 · 87915-06903
87931Right exterior rearview mirror87931-02A20 · 87931-02A70 · 87931-02B60 · 87931-0D290
87940Left exterior rearview mirror assembly87940-02610 · 87940-02890 · 87940-02904 · 87940-02905 · 87940-02906 · 87940-02907 · 87940-02A00 · 87940-02A10 · 87940-02A20 · 87940-02A30 · 87940-02A40 · 87940-02B70 · 87940-02E40
87945BLeft exterior rearview mirror cap87945-02260 · 87945-02290 · 87945-02310 · 87945-02912 · 87945-02917 · 87945-06901 · 87945-06903
87961Left exterior rearview mirror87961-02A00 · 87961-02A50 · 87961-02B50 · 87961-0D290
