Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 2 images and 2 PNC and OE references.

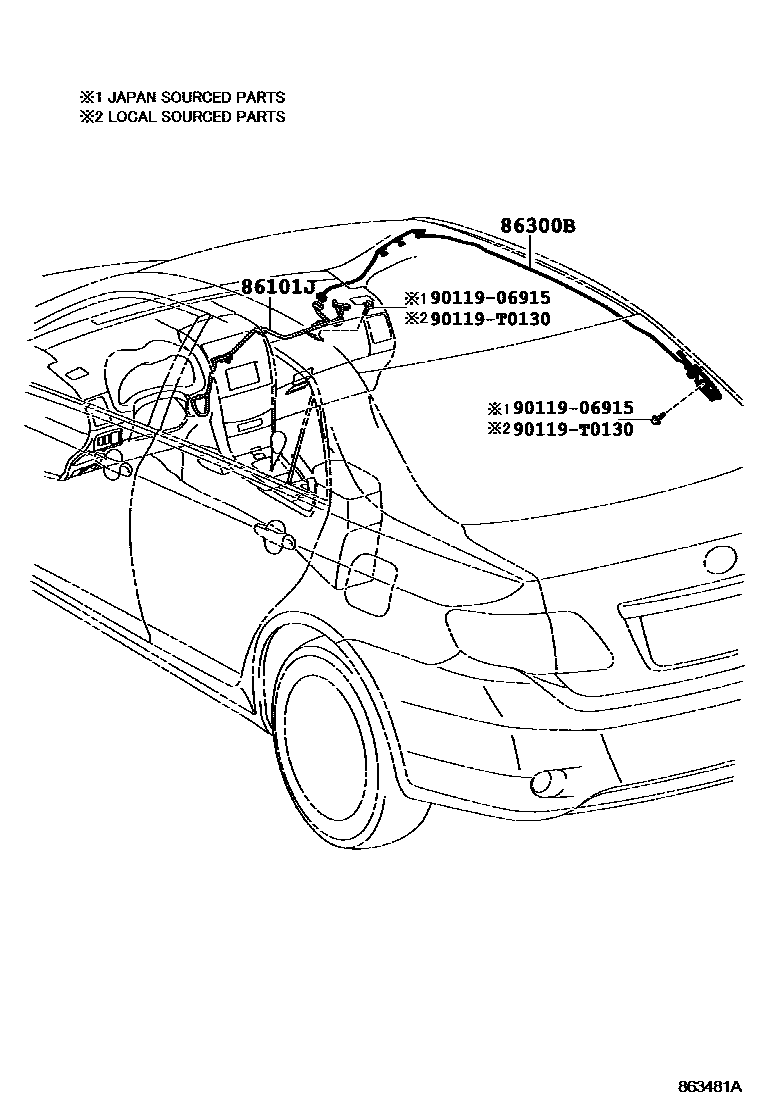

Toyota COROLLA antenna EPC diagram — 863481A
antenna — 863481A (200712 – 999999)

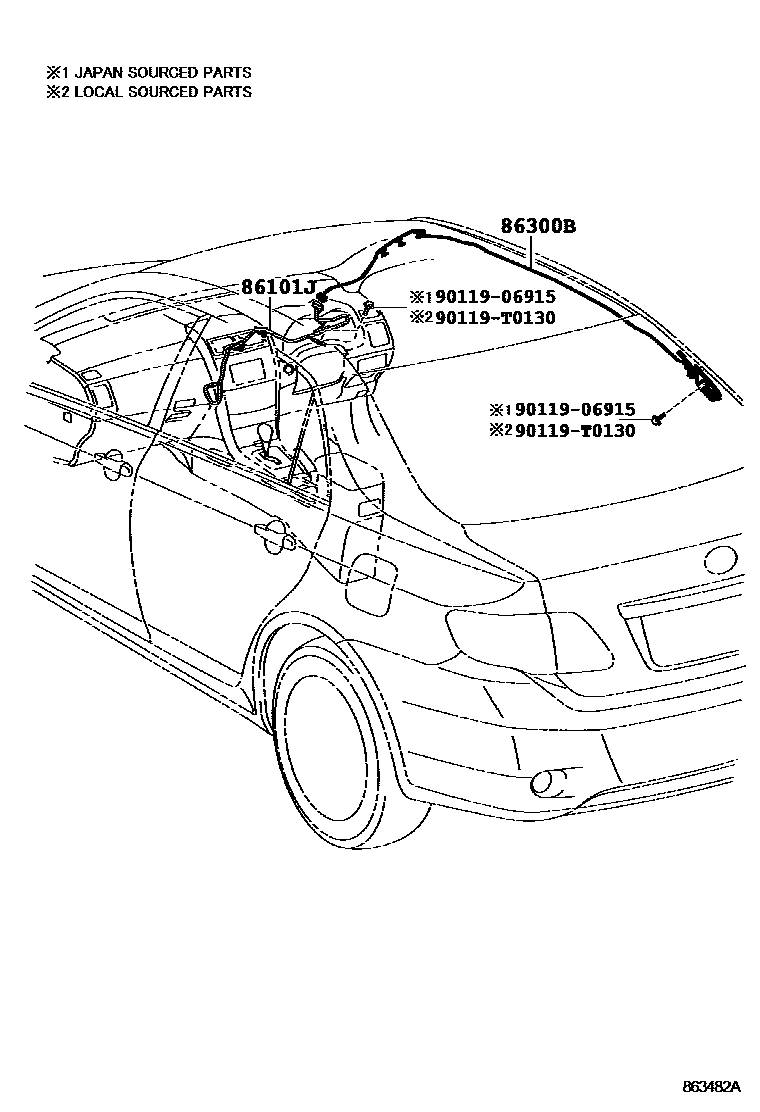

Toyota COROLLA antenna EPC diagram — 863482A
antenna — 863482A (200801 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101JAntenna No. 2 wire sub-assembly86101-02240 · 86101-02250 · 86101-02270 · 86101-12540 · 86101-12840
86300BNo. 1 amplifier antenna assembly86300-02250 · 86300-02260 · 86300-12A00
