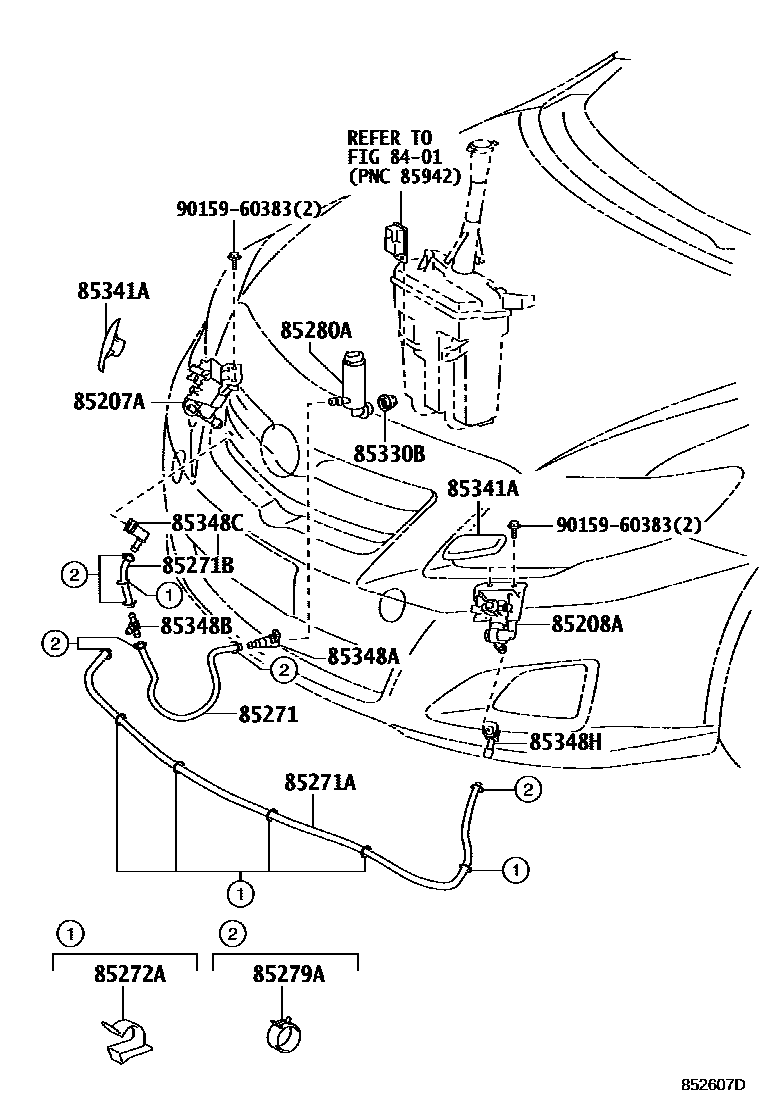

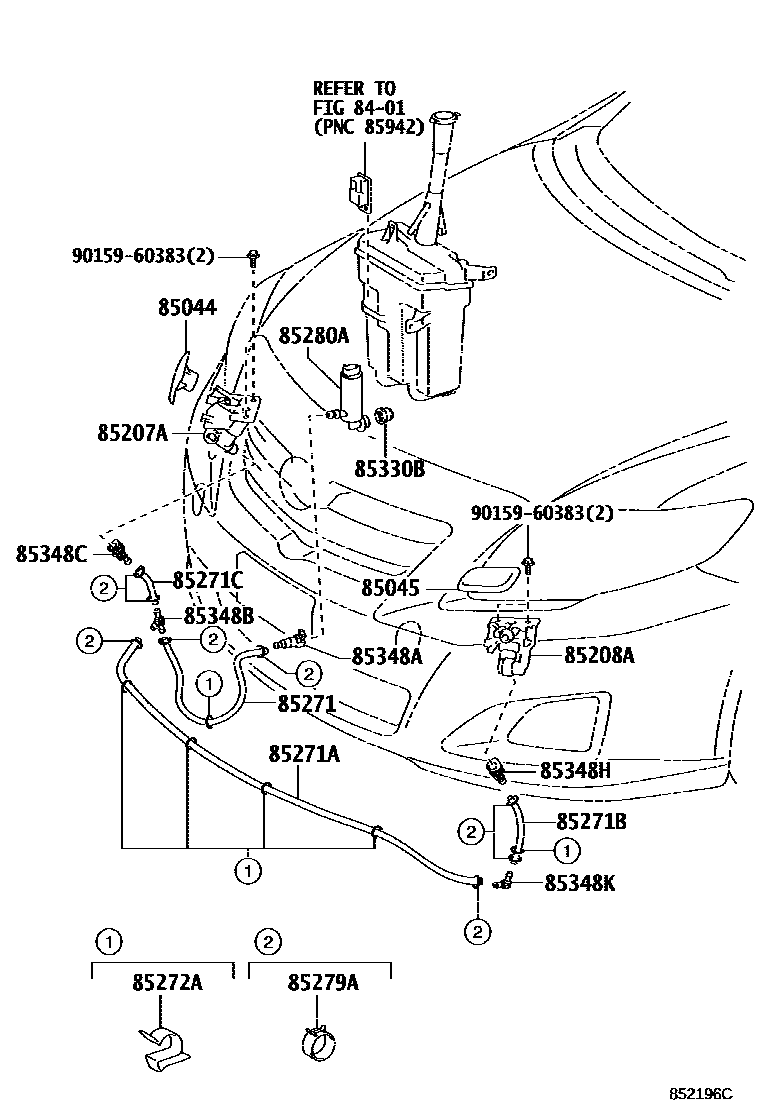

Toyota COROLLA 前大灯清洗器 — Figure 8505
Toyota COROLLA EPC diagram 8505, 前大灯清洗器, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85044 | Right type 1 headlight washer nozzle sub-assembly | 85044-12901 |
| 85045 | Left type 1 headlight washer nozzle sub-assembly | 85045-12901 |
| 85207A | Right headlight washer actuator sub-assembly | 85207-02040 · 85207-02100 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-02040 · 85208-02100 |
| 85271 | No. 1 headlight washer hose | 85275-0W010 · 85277-0W050 |
| 85271A | No. 2 headlight washer hose | 85275-0W050 · 85276-02050 |
| 85271B | No. 3 headlight washer hose | 85276-0W050 · 85277-05040 |
| 85271C | No. 4 headlight washer hose | 85277-05040 |
| 85272A | Headlight washer No. 1 clip | 85272-05021 |
| 85279A | Headlight washer hose connector | 85279-05040 |
| 85280A | Headlight washer motor and pump assembly | 85280-05031 |
| 85330B | Headlight washer washer fluid tank bushing | 90069-20005 |
| 85341A | Headlight washer nozzle cover | 85353-12901 · 85353-12903 · 85354-12901 · 85354-12903 |
| 85348A | Headlight washer hose connector No. 1 | 85285-05040 |
| 85348B | No. 2 headlight washer hose connector | 85288-05080 |
| 85348C | No. 3 headlight washer hose connector | 85286-02060 · 85287-02070 |
| 85348H | No. 4 headlight washer hose connector | 85286-02060 · 85287-02070 |
| 85348K | No. 1 headlight washer elbow joint | 85278-02050 |
