Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

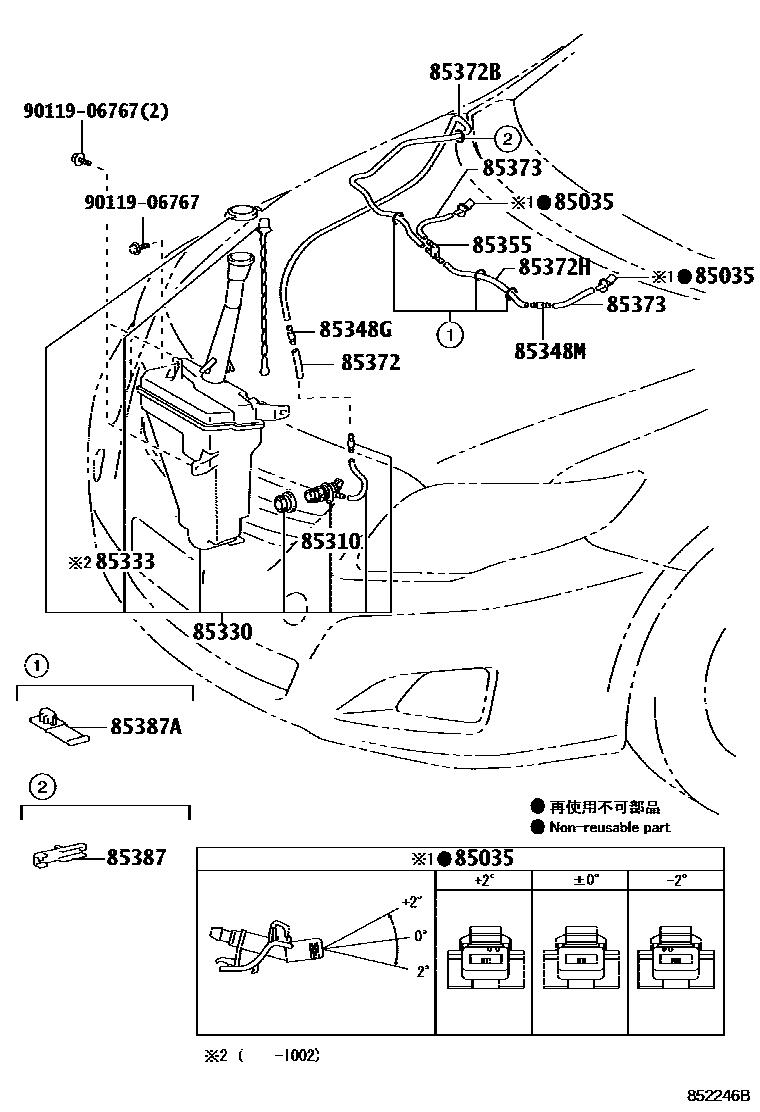

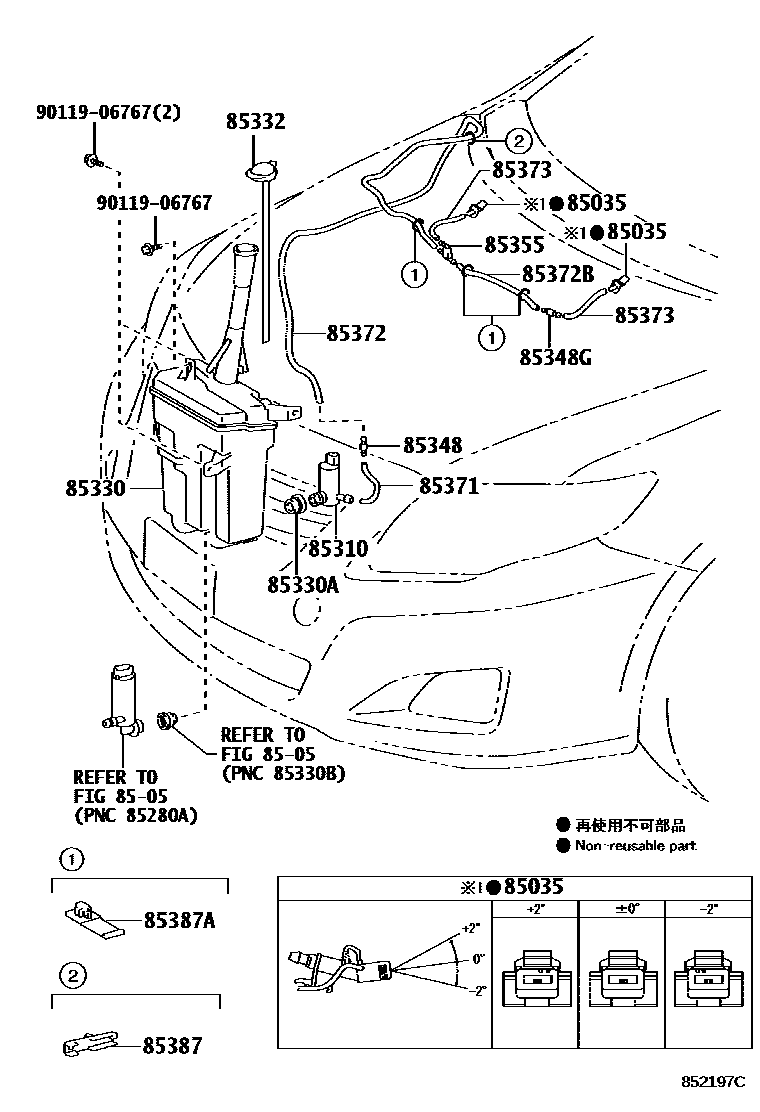

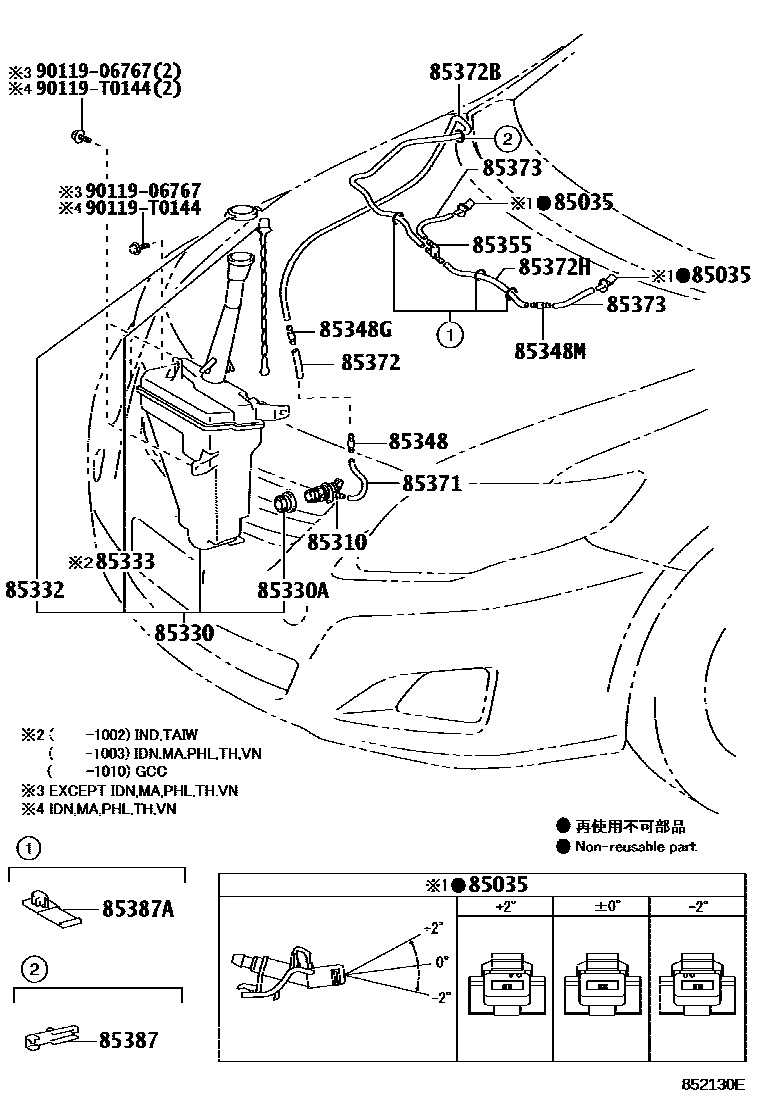

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12300 · 85381-12310 · 85381-12320 |
| 85310 | Windshield washer motor and pump assembly | 85330-02030 · 85330-0D100 · 85330-21010 · 85330-71020 |
| 85330 | Windshield washer fluid tank assembly | 85310-02420 · 85310-02421 · 85315-02340 · 85315-02350 · 85315-02351 · 85315-02360 · 85315-02361 · 85315-02410 · 85315-02411 · 85315-02470 · 85355-0W010 |
| 85330A | Windshield washer fluid tank bushing | 85336-0K020 · 85336-60300 · 90069-20005 |
| 85332 | Windshield washer fluid tank cap | 85316-02350 · 85356-0W010 · 85386-60050 |
| 85333 | Windshield washer fluid tank filter | 85312-02070 · 85312-48010 |
| 85348 | Windshield washer hose connector No. 1 | 85375-05050 · 85375-06101 · 85375-10260 |
| 85348G | Windshield washer hose connector No. 2 | 85375-02330 · 85375-06101 · 85375-10260 |
| 85348M | No. 3 windshield washer hose connector | 85375-06101 · 85375-10260 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-59066 · 90069-16009 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33019 · 90068-33105 · 90068-33160 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-33106 · 90068-59065 · 90099-59355 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90068-59063 |
| 85387 | Clip No. 1 (for windshield washer) | 85387-02330 · 85387-12840 |
| 85387A | Cleaner clip No. 2 | 82711-3A540 |
