Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 13 PNC and OE references.

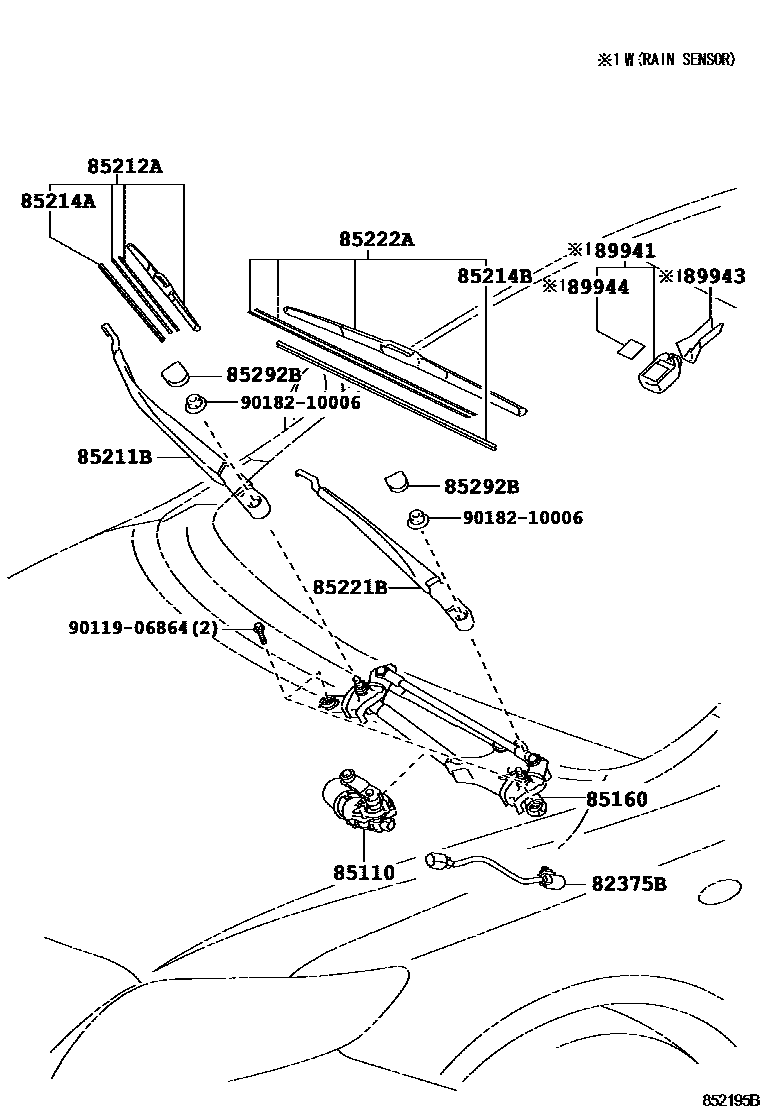

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 852195B
挡风玻璃刮水器 — 852195B (200712 – 999999)

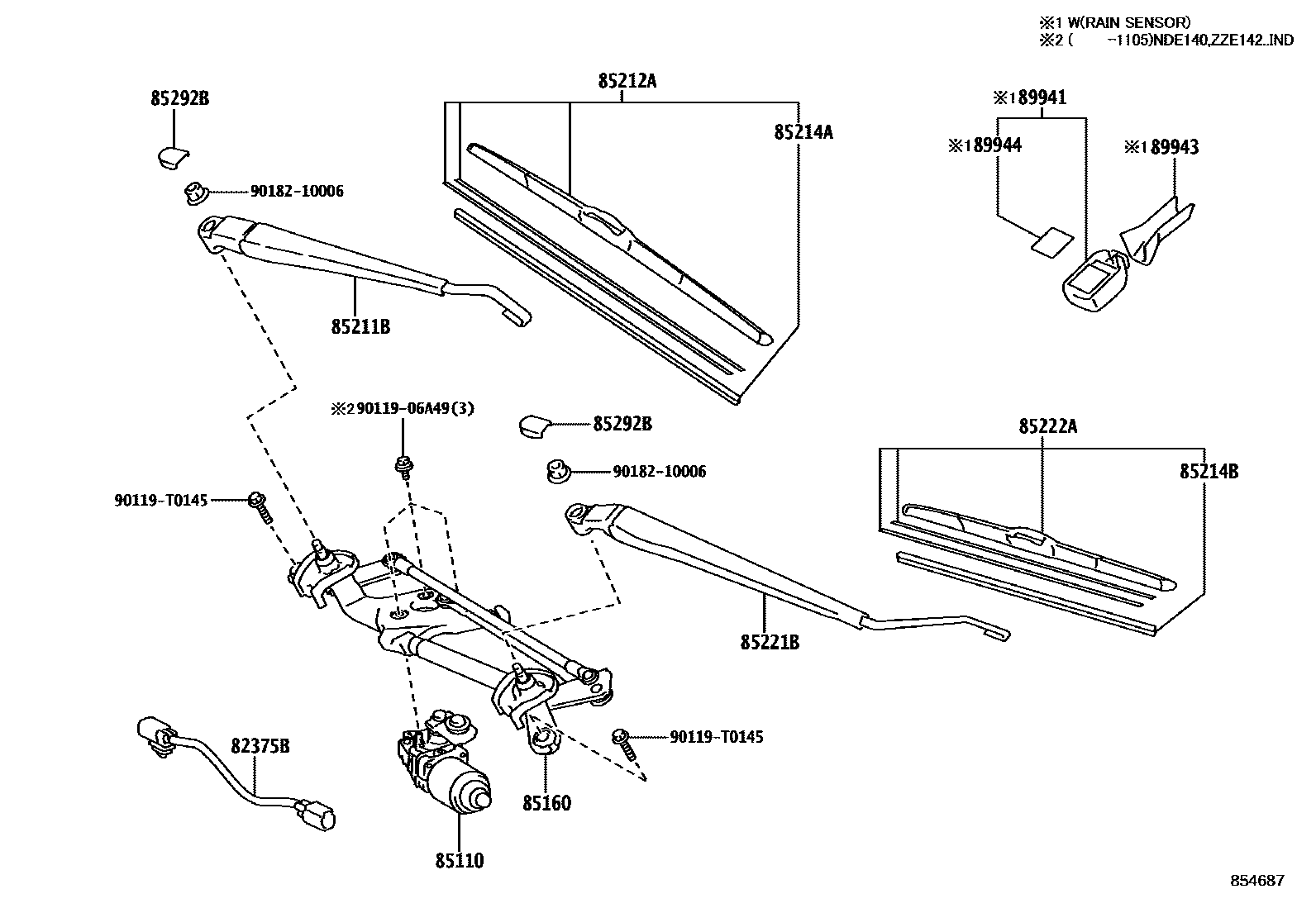

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 854687
挡风玻璃刮水器 — 854687 (200712 – 999999)

PNC and OE references

PNCPart nameOE numbers
82375BWiper motor wiring harness82375-12310 · 82375-12311
85110Windshield wiper motor assembly85110-02290 · 85110-02300 · 85110-02310
85160Windshield wiper connecting rod assembly85150-02250 · 85150-02260 · 85150-02270
85211BRight front wiper arm85211-02270 · 85211-02280
85212ARight front wiper blade85212-12430 · 85212-12480
85214ARight wiper rubber strip85214-68020 · 85214-68030
85214BLeft wiper rubber strip85214-68020 · 85214-68030
85221BLeft front wiper arm85221-02280 · 85221-02290 · 85221-02320
85222ALeft front wiper blade85222-12830 · 85222-12860
85292BFront wiper arm cap85292-0D030 · 85292-0D050 · 85292-13010
89941rain sensor89941-42010
89943Rain sensor cover89943-42010
89944Rain sensor tape89944-42010
