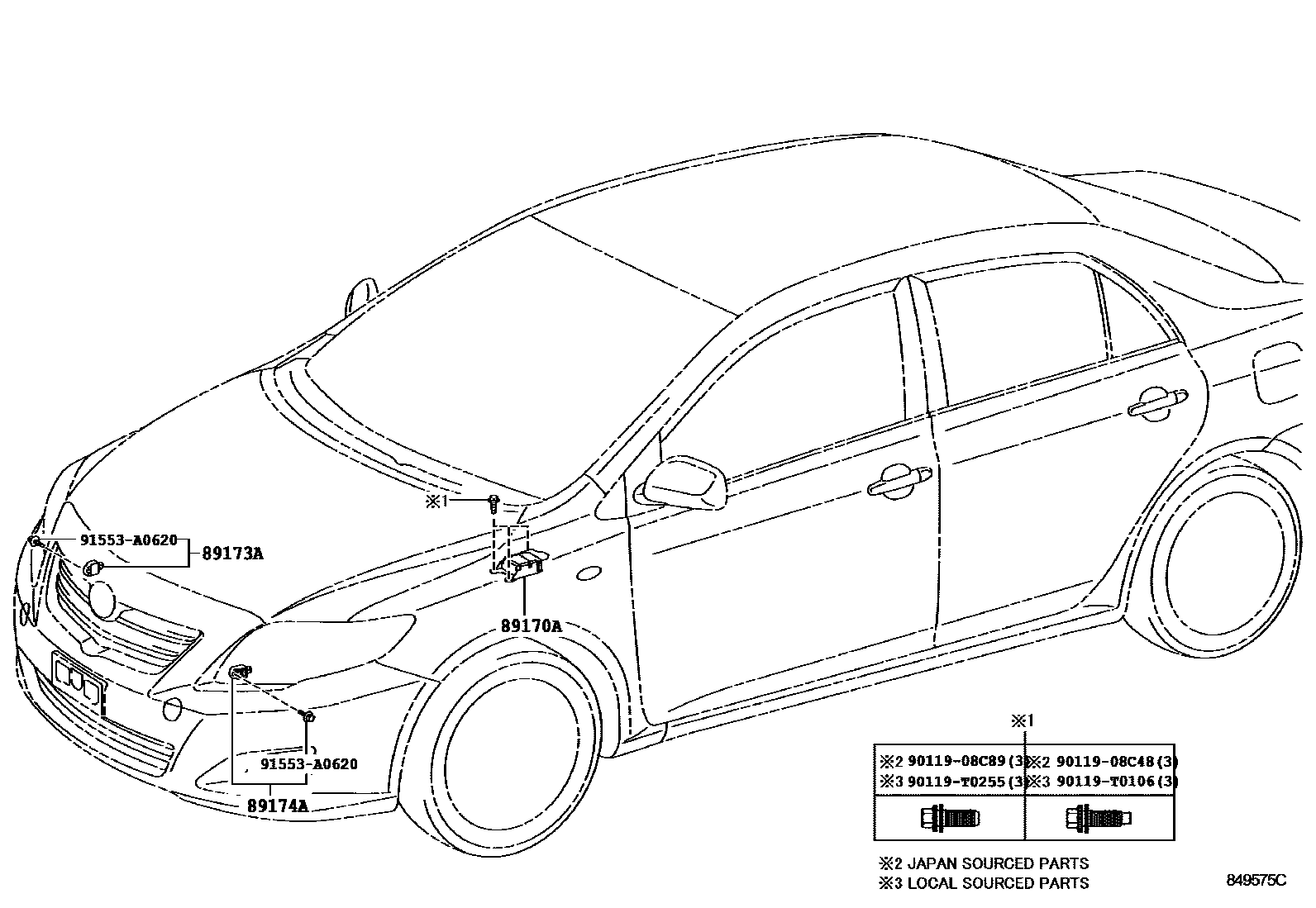

Toyota COROLLA 空气囊 — Figure 8421
Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-02780 · 89170-02810 · 89170-02820 · 89170-02860 · 89170-02B10 · 89170-02B20 · 89170-02B30 · 89170-02B80 |
| 89173A | Right front air bag sensor | 89173-49435 |
| 89174A | Left front air bag sensor | 89173-49435 |
