Toyota COROLLA 开关和继电器和ECU — Figure 8401

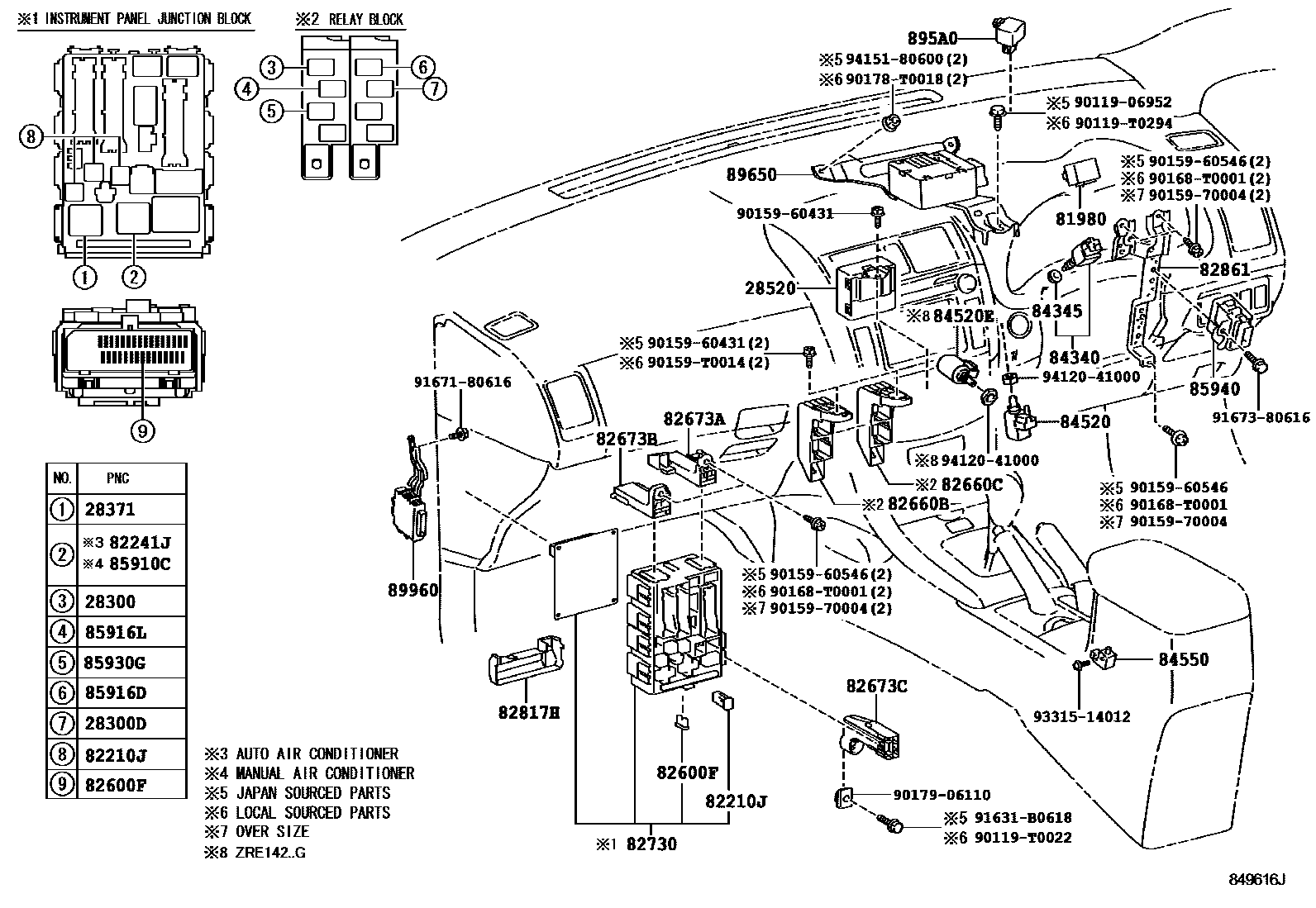

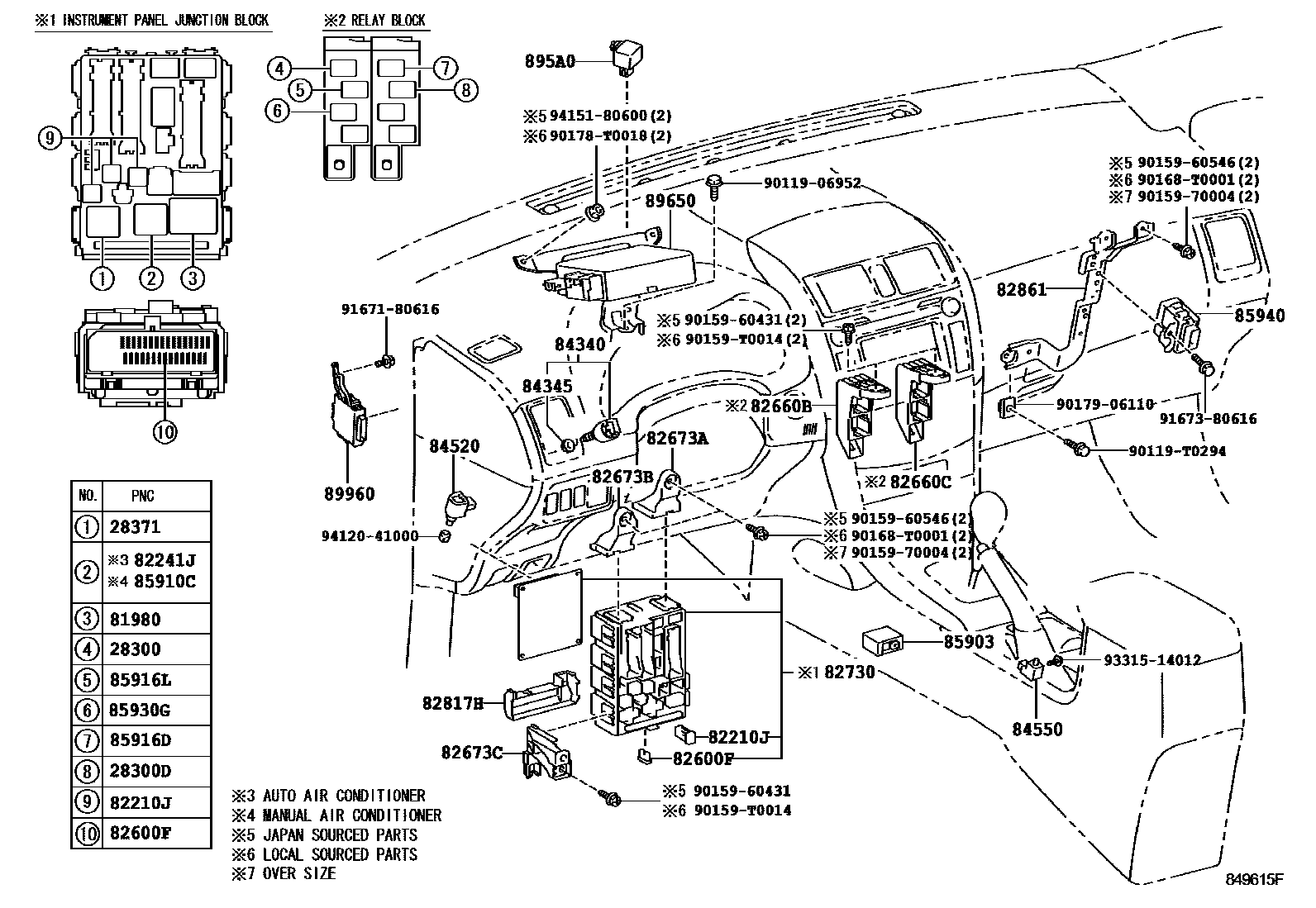

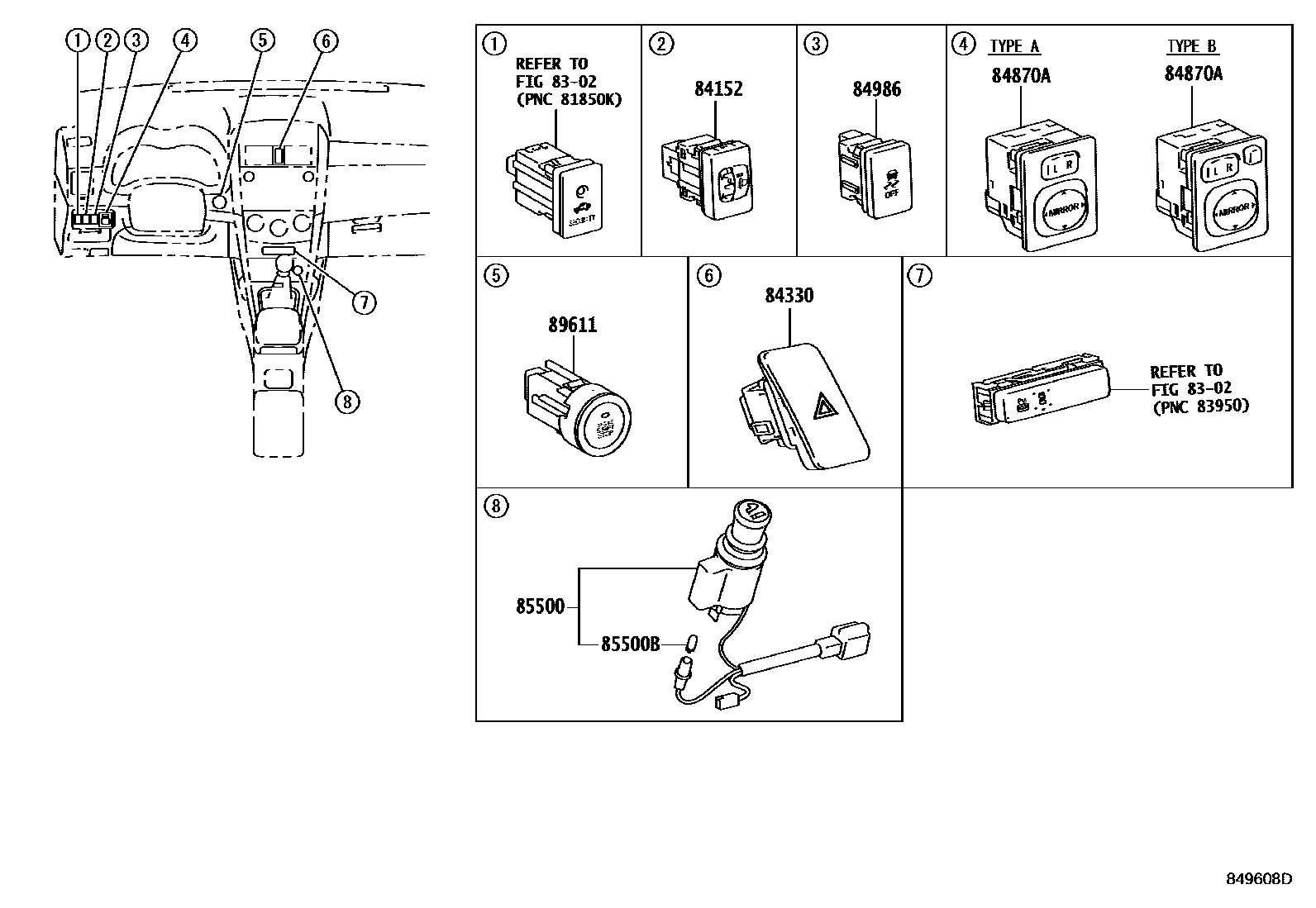

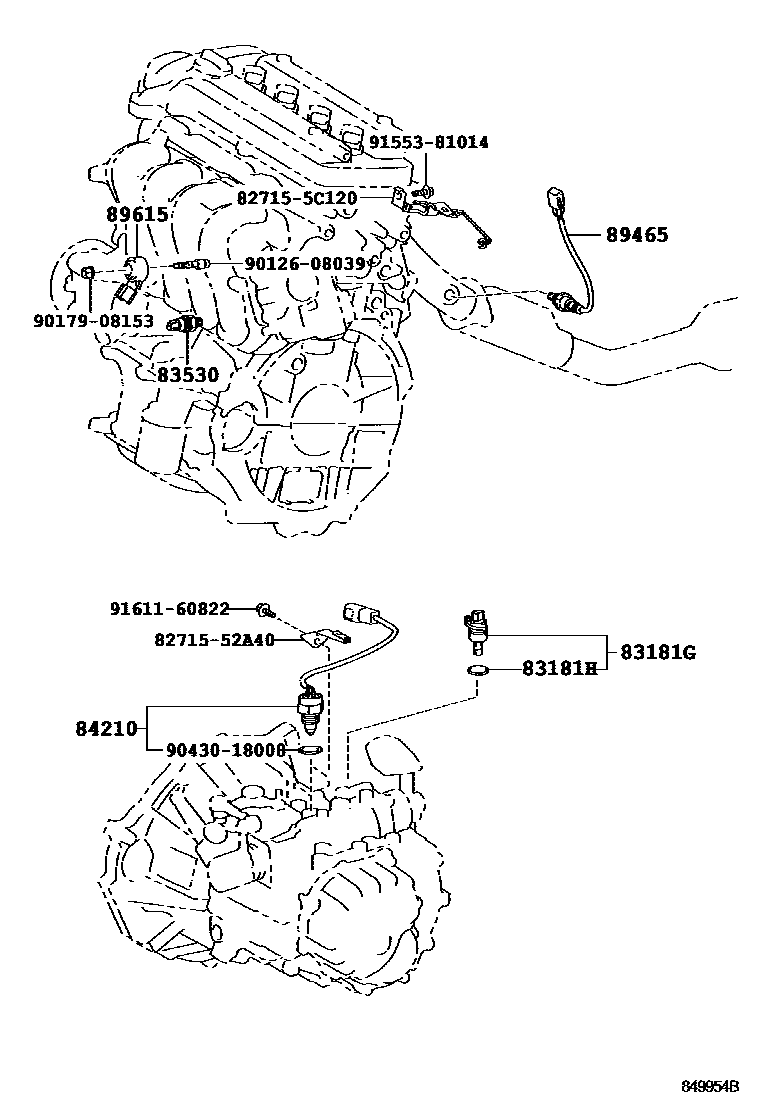

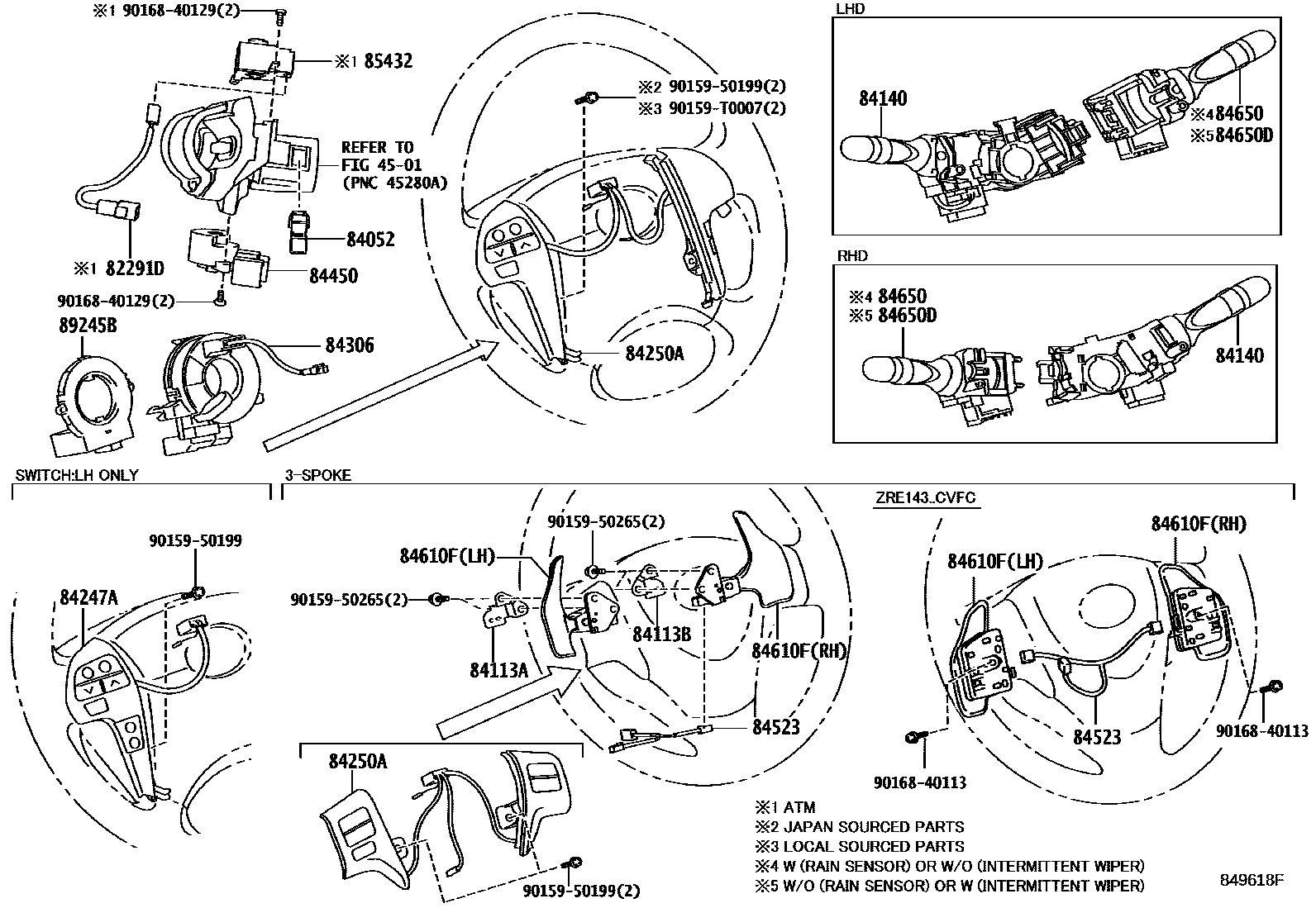

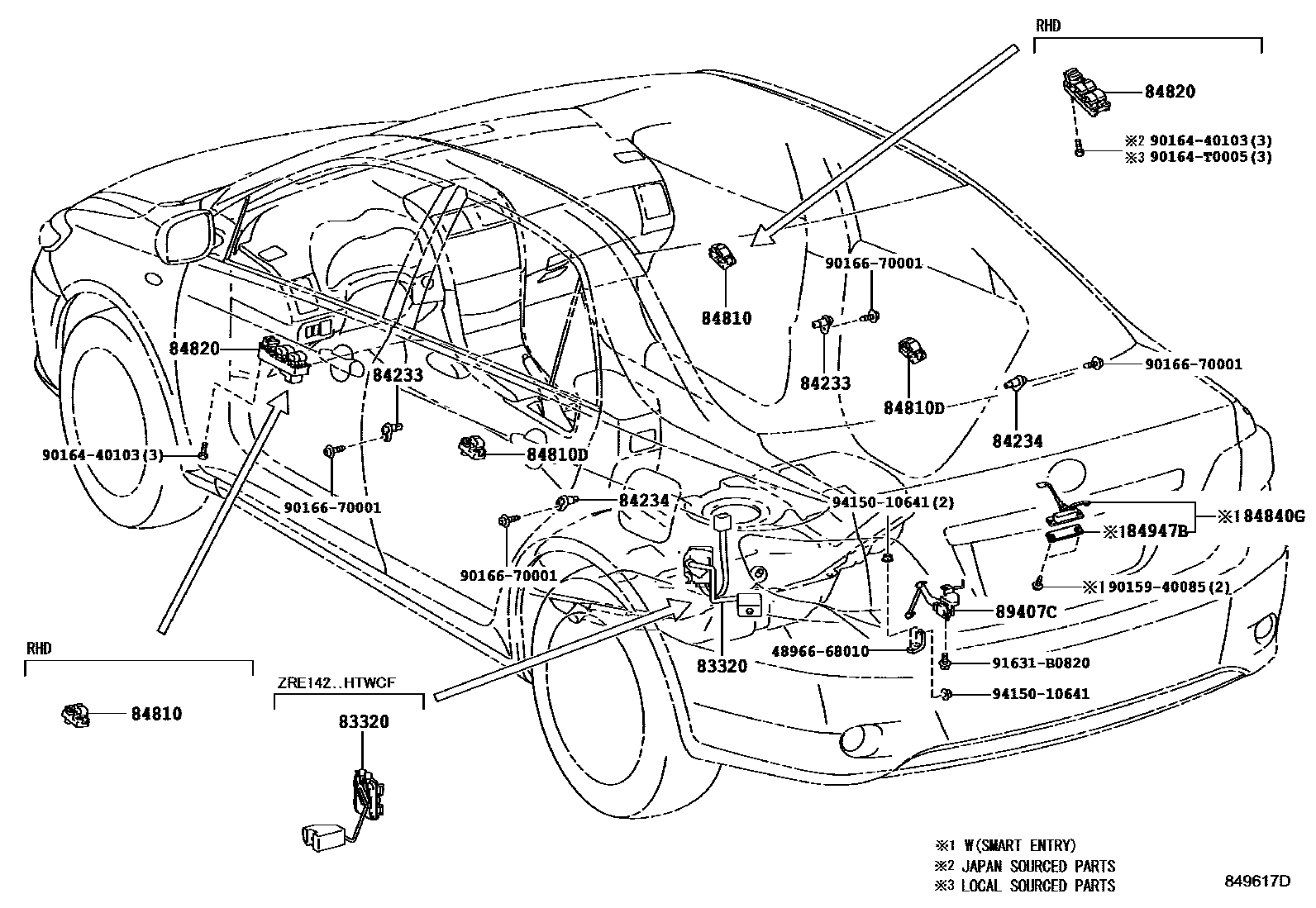

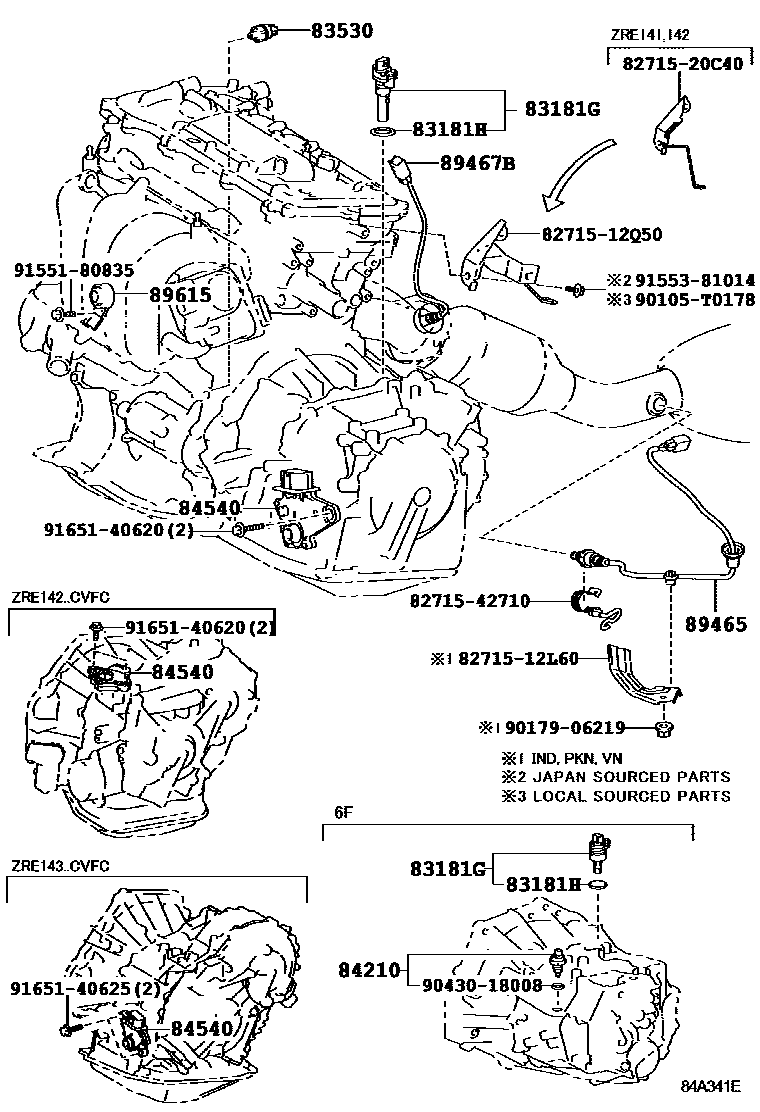

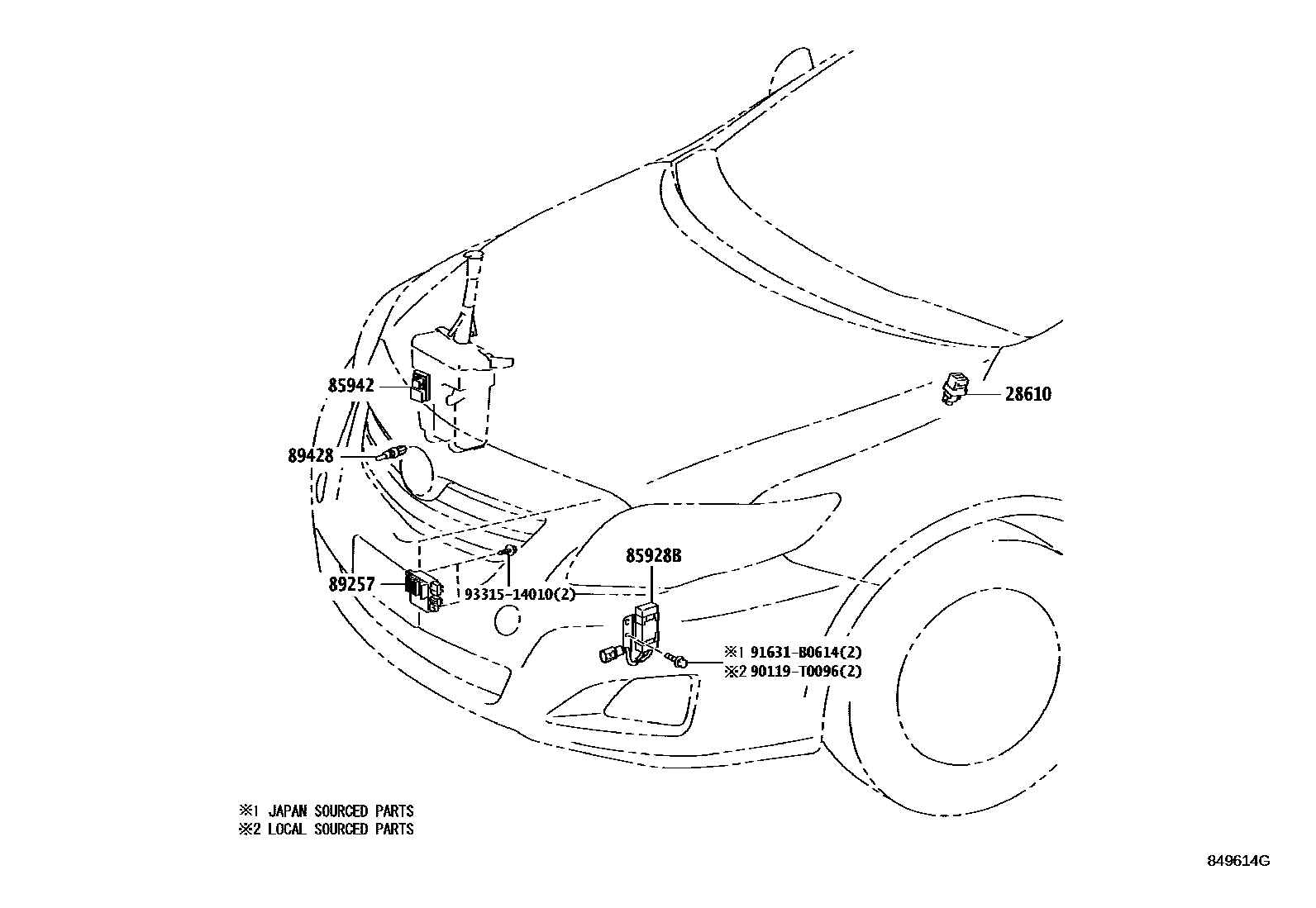

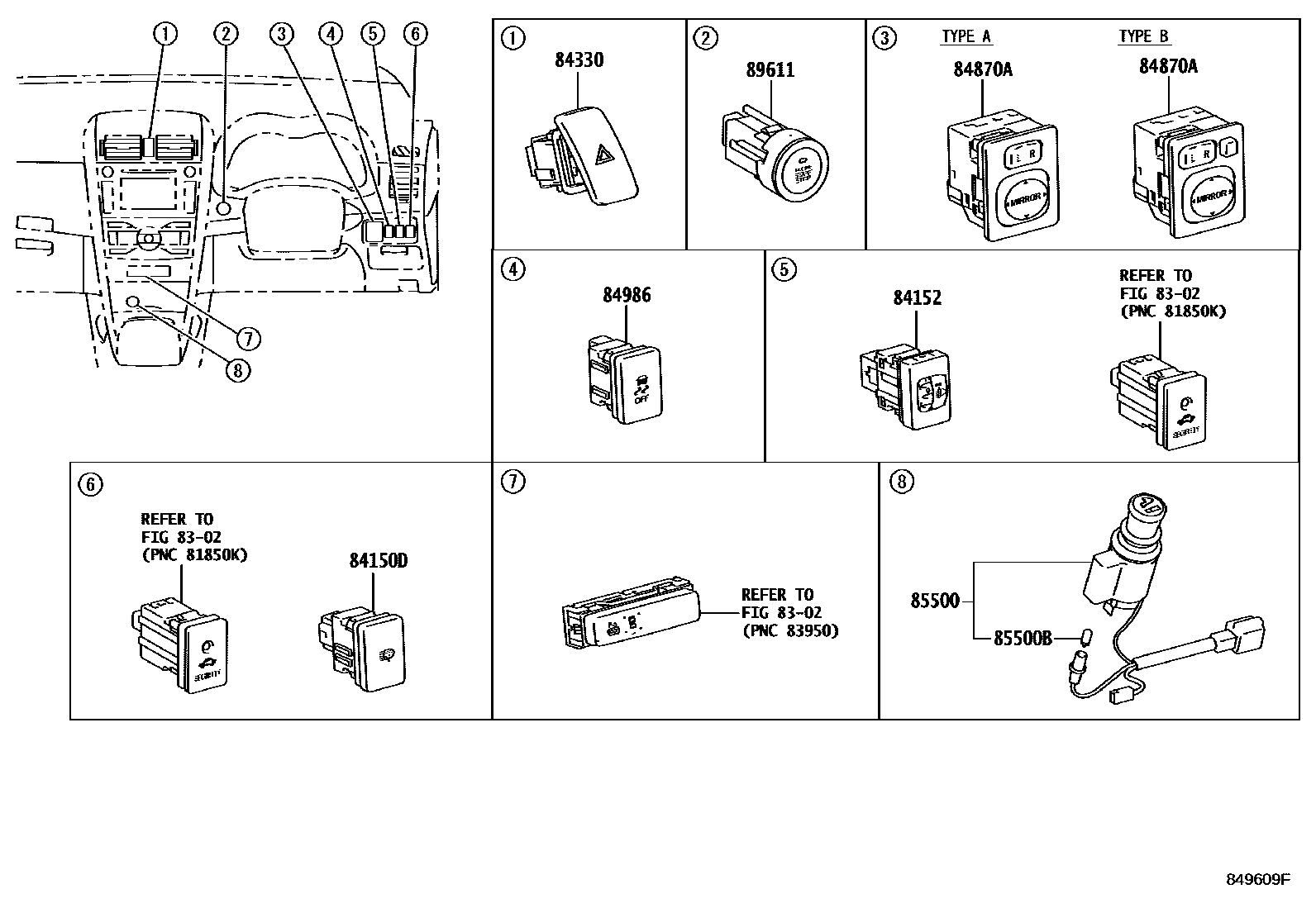

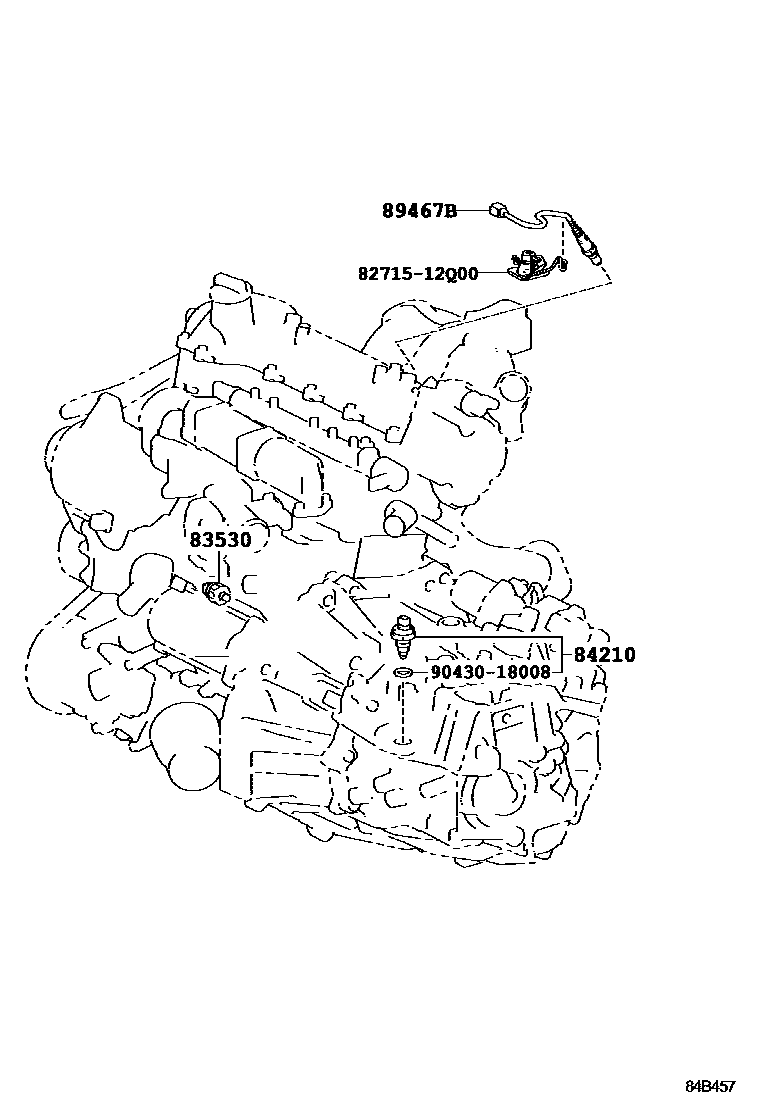

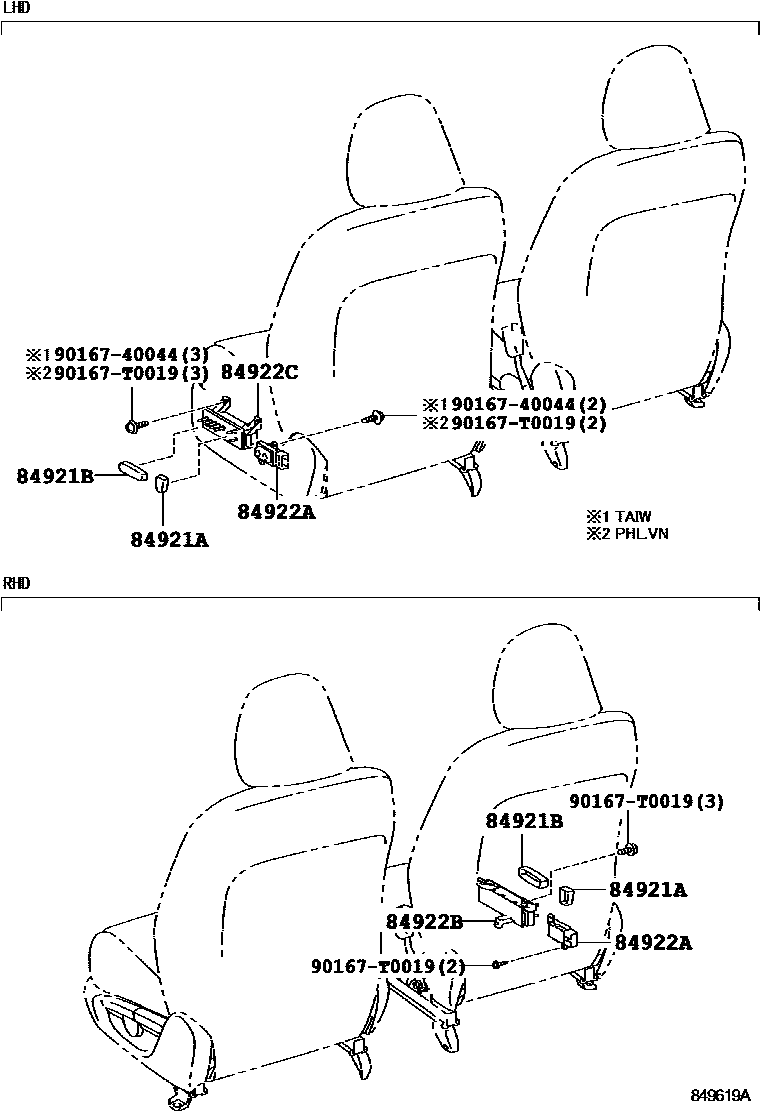

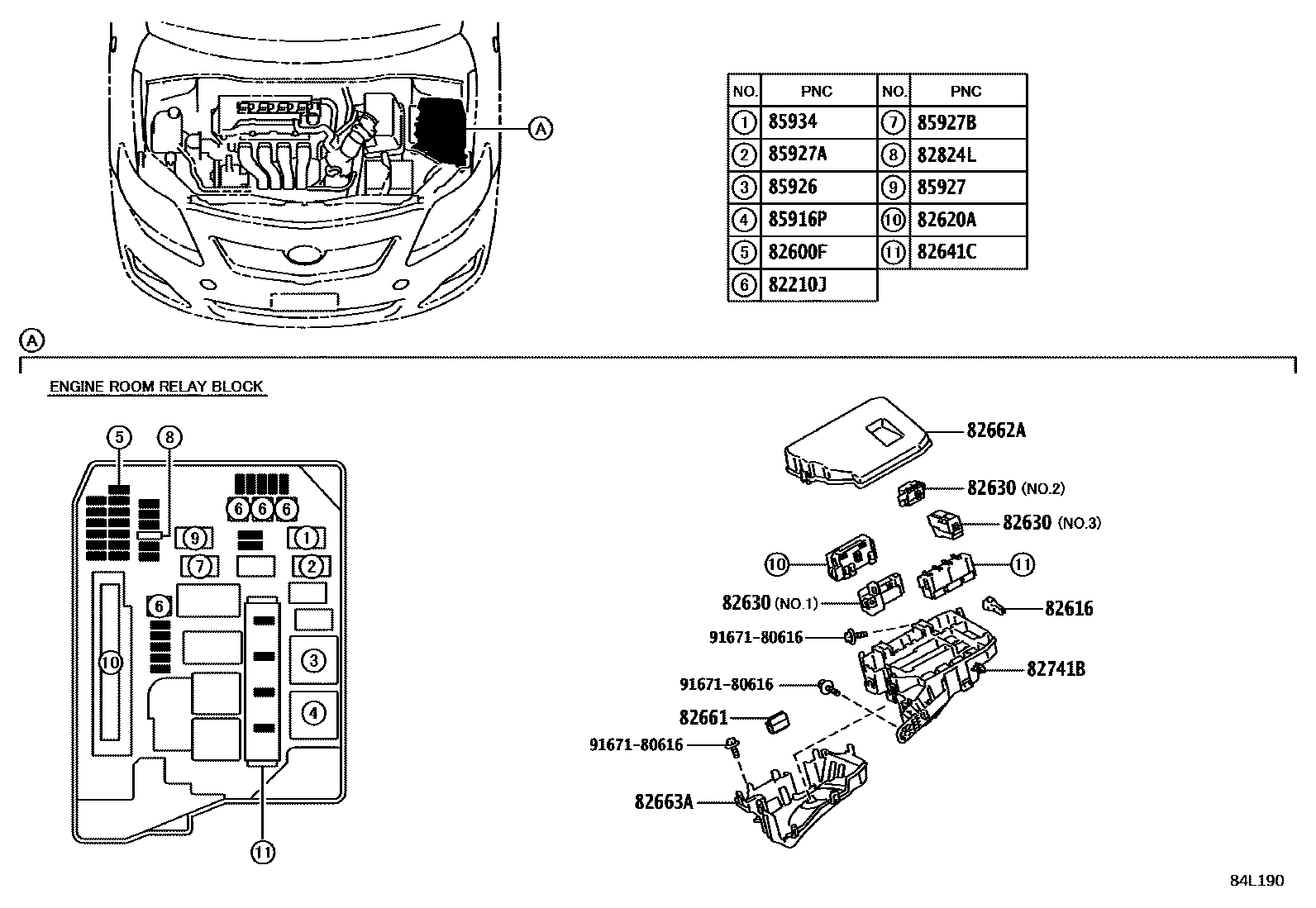

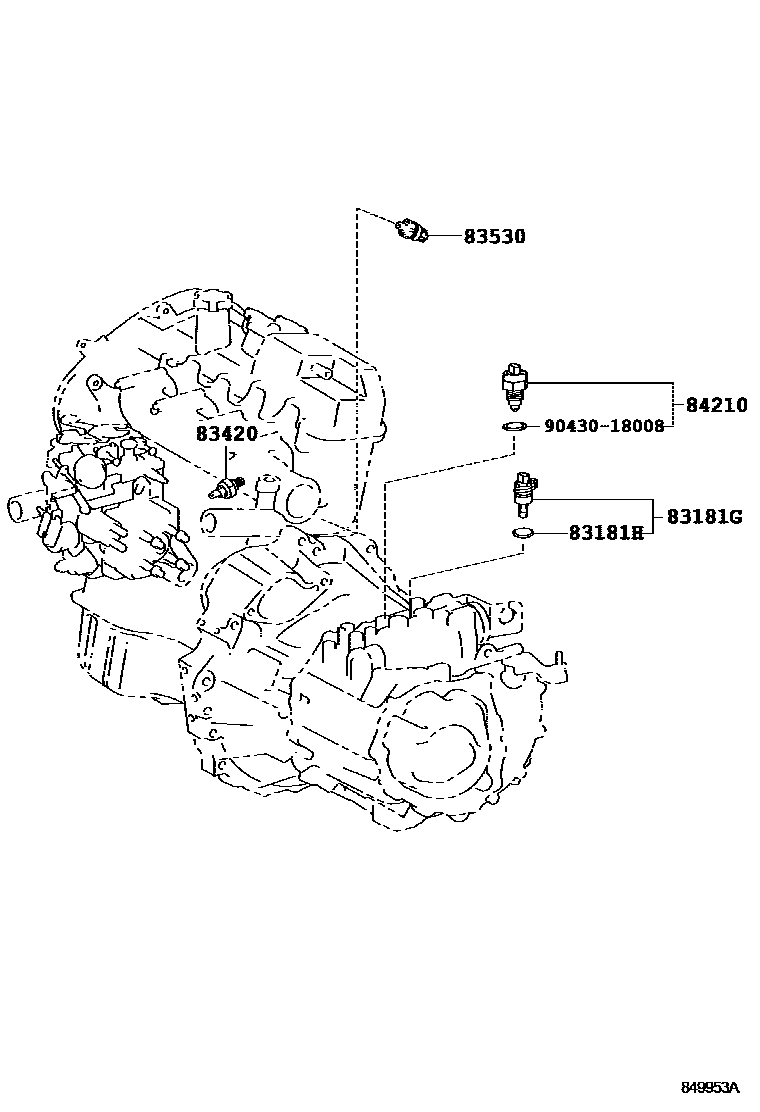

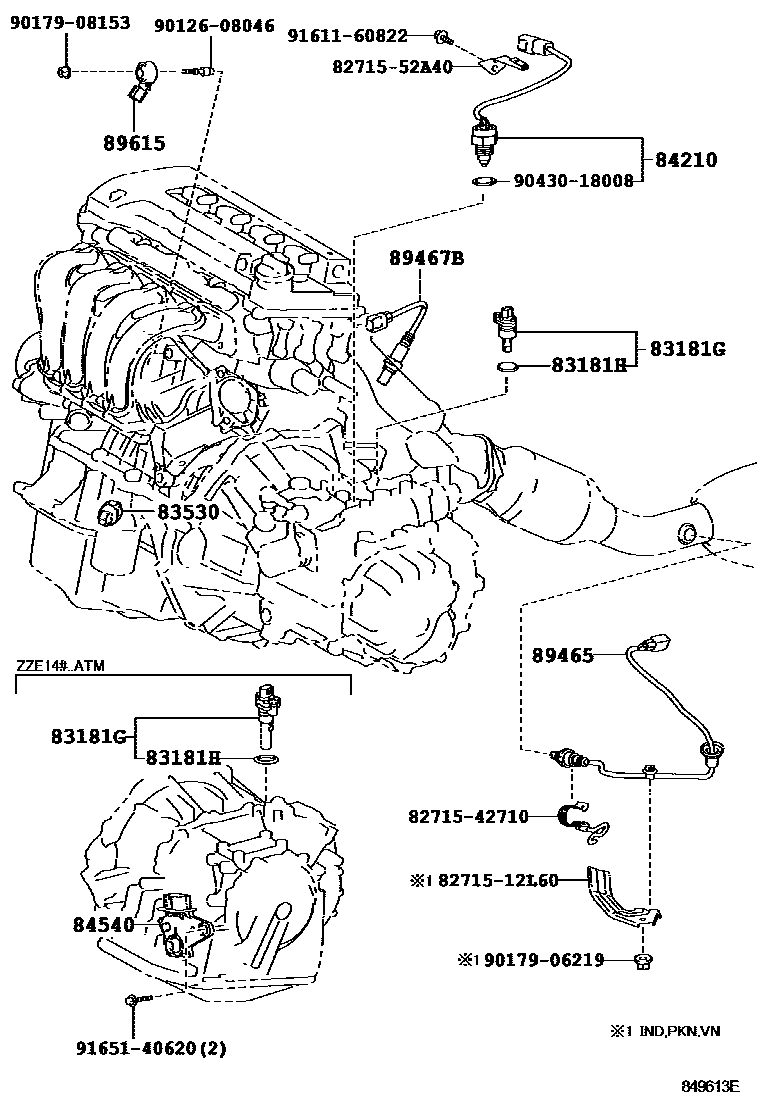

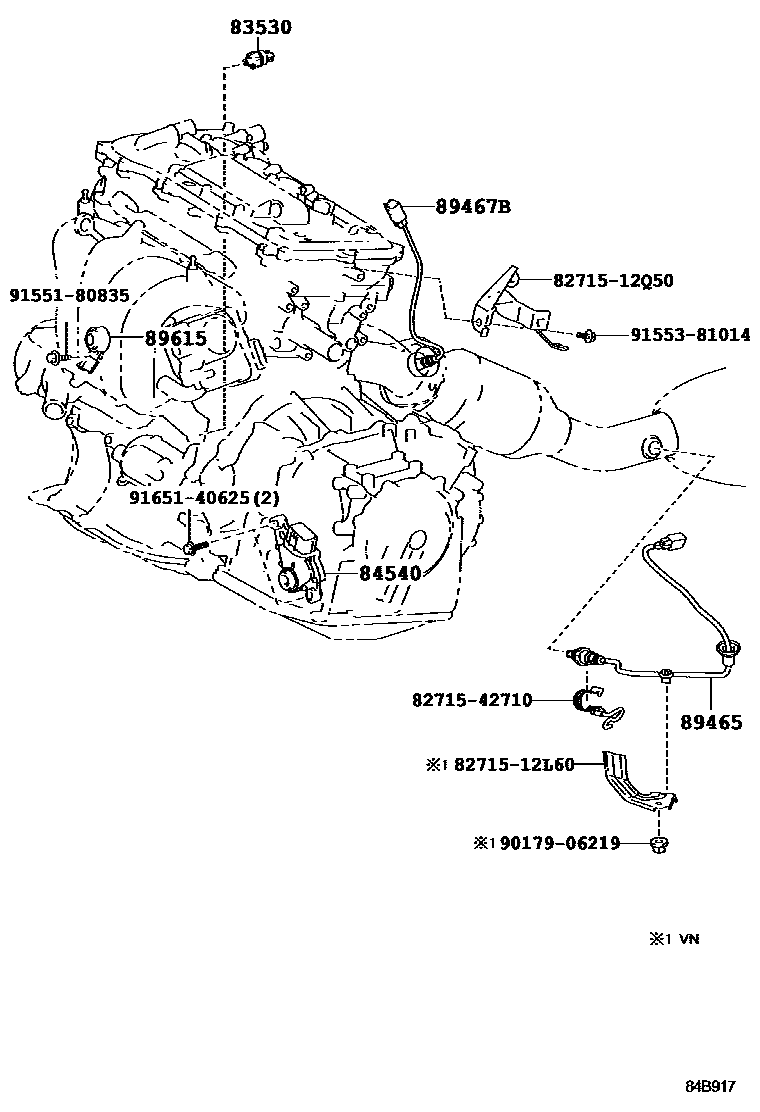

Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 15 images and 93 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-28010 |
| 28300D | starter cutoff relay | 90987-02027 · 90987-T2001 |
| 28371 | No. 1 ignition relay | 90987-T2009 |
| 28520 | Preheat timer assembly | 28520-64520 · 28520-64530 |
| 28610 | Intake air heater or glow plug relay assembly | 28610-67010 |
| 81980 | Turn signal flasher relay assembly | 81980-0D050 · 81980-46010 |
| 82210J | fuse | 90982-08295 |
| 82241J | Shorting pin | 82241-42010 |
| 82291D | Wiring harness (to solenoid valve) | 82291-02030 · 82291-42010 |
| 82600F | Spare fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-12280 |
| 82630 | Fuse holder assembly | 82631-12070 · 82631-12080 · 82631-12090 |
| 82641C | Integrated relay No. 2 | 82641-47020 |
| 82660B | Relay assembly | 82755-12010 |
| 82660C | Relay assembly | 82755-12020 |
| 82661 | No. 1 relay box cover | 82661-12310 |
| 82662A | No. 1 relay box upper cover | 82662-12340 · 82662-12370 · 82662-12410 · 82662-12420 · 82662-12430 · 82662-12440 · 82662-12540 · 82662-12550 · 82662-12560 · 82662-12640 · 82662-12650 · 82662-12660 · 82662-12700 · 82662-12730 · 82662-12800 · 82662-12820 |
| 82663A | No. 2 relay box lower cover | 82663-12090 · 82663-12100 · 82663-12110 |
| 82673A | Junction box bracket | 82673-12200 · 82673-12240 |
| 82673B | Junction box bracket | 82673-12210 · 82673-12250 |
| 82673C | Junction box bracket | 82673-12230 · 82673-12260 |
| 82730 | Instrument panel junction box assembly | 82730-02680 · 82730-02690 · 82730-02700 · 82730-02720 · 82730-02730 · 82730-02740 · 82730-02750 · 82730-02800 · 82730-02810 · 82730-02820 · 82730-02840 · 82730-02F10 · 82730-02F20 · 82730-02F50 · 82730-02F60 · 82730-02F70 · 82730-02F80 · 82730-02G00 · 82730-02G01 · 82730-02G30 · 82730-02G31 · 82730-02G40 · 82730-02G70 · 82730-02G80 · 82730-02G90 · 82730-02M30 · 82730-02M40 · 82730-02M50 · 82730-02M60 · 82730-02M70 · 82730-02M80 · 82730-02M90 · 82730-02N00 · 82730-02N01 · 82730-02N02 · 82730-02V20 · 82730-02V21 · 82730-02V22 · 82730-02V30 · 82730-02V31 · 82730-02V32 · 82730-02X40 · 82730-02X42 · 82730-02X50 · 82730-02X51 · 82730-02X52 · 82730-0Z020 · 82730-0Z040 · 82730-0Z050 |
| 82741B | Engine room relay box | 82741-12110 |
| 82817H | Harness protection device | 82817-12B50 |
| 82824L | Shorting pin | 82824-20140 |
| 82861 | No. 1 ECU integrated bracket | 82861-12030 · 82861-12040 |
| 83181G | speedometer sensor | 83181-12020 · 83181-12030 · 83181-12040 |
| 83181H | O-ring (for speedometer sensor) | 96711-24018 · 96711-24030 |
| 83320 | Fuel gauge sensor assembly | 83320-02120 · 83320-02180 · 83320-02250 · 83320-12770 · 83320-12830 |
| 83420 | Water temperature sensor assembly | 83420-20020 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-12050 · 83530-12060 · 83530-12070 · 83530-28010 · 83530-28020 · 83530-60010 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-0K020 · 84052-71010 |
| 84113A | No.1 switch bracket | 84113-52010 |
| 84113B | No. 2 switch bracket | 84113-52020 |
| 84140 | Headlight dimmer switch assembly | 84140-02520 · 84140-02580 · 84140-02581 · 84140-02590 · 84140-02600 · 84140-02680 · 84140-02690 · 84140-02700 · 84140-02710 · 84140-02780 · 84140-06290 · 84140-06291 · 84140-06300 · 84140-06301 · 84140-06340 · 84140-06350 · 84140-06370 · 84140-06430 · 84140-0D200 · 84140-0D201 · 84140-0D220 · 84140-0K121 · 84140-0K141 |
| 84150D | Headlight washer switch assembly | 84150-42020 |
| 84152 | Headlight beam height adjustment switch | 84152-02060 · 84152-12070 |
| 84210 | Reversing light switch assembly | 84210-12040 · 84210-52010 · 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-02040 · 84231-02070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-02040 · 84231-02070 |
| 84247A | Steering wheel decorative cover left switch | 84247-12080 · 84247-12210 · 84247-68060 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-02300 · 84250-02301 · 84250-02310 · 84250-02311 · 84250-12060 · 84250-12070 · 84250-12140 · 84250-12210 · 84250-68110 · 84250-68120 |
| 84306 | Spiral cable sub-assembly | 84306-06080 · 84306-0D100 · 84306-0D110 · 84306-0K030 · 84306-0K050 · 84306-0K051 |
| 84330 | Hazard warning signal switch assembly | 84332-12520 |
| 84340 | brake light switch assembly | 84340-09040 · 84340-69075 |
| 84345 | Brake light switch base adjuster | 84345-0K010 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84520E | No. 2 clutch start switch assembly | 84520-42010 |
| 84523 | No. 1 switch harness | 84523-42010 · 84523-52020 |
| 84540 | Neutral start switch assembly | 84540-46010 · 84540-48010 · 84540-52070 |
| 84550 | Parking brake switch assembly | 84550-02030 · 84550-16060 · 84550-33010 |
| 84610F | Transmission shift switch assembly | 84610-52030 · 84610-52040 · 84610-68010 · 84610-68020 |
| 84650 | Windshield wiper switch assembly | 84652-02650 · 84652-06150 · 84652-06151 · 84652-06160 · 84652-06200 · 84652-06201 · 84652-0D130 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-02570 · 84652-02571 · 84652-02630 · 84652-02640 · 84652-06210 · 84652-06211 · 84652-06220 · 84652-06230 · 84652-0D120 · 84652-0D140 · 84652-0K061 · 84652-0K071 |
| 84810 | Electric window lift switch assembly | 84810-06040 · 84810-06050 |
| 84810D | Rear electric window lift switch assembly | 84810-06040 · 84810-06050 |
| 84820 | Electric window lift main switch assembly | 84820-02260 · 84820-0D111 · 84820-0D160 |
| 84840G | Back door opener switch assembly | 84840-12050 |
| 84870A | Exterior rearview mirror switch assembly | 84870-0D030 · 84870-0K010 · 84870-0M010 · 84870-16070 |
| 84922B | Front right electric seat switch | 84922-06070 |
| 84922C | Front left electric seat switch | 84922-02030 · 84922-06060 |
| 84947B | switch cover | 69219-68010 |
| 84986 | vehicle stability control switch | 84986-12010 |
| 85432 | Key interlock solenoid valve | 85432-0K010 · 85432-71010 |
| 85500 | Cigarette lighter assembly | 85500-20340 |
| 85500B | Cigarette lighter bulb | 90010-01163 |
| 85903 | Shift lock control ECU sub-assembly | 85903-06050 |
| 85910C | Relay assembly (for heater blower motor) | 90987-T2003 |
| 85916D | fog light relay | 90987-02027 · 90987-T2001 |
| 85916L | Rear fog light relay | 90987-02027 · 90987-T2001 |
| 85916P | headlight relay | 90987-02025 · 90987-T2002 |
| 85926 | Headlight dimmer relay | 90987-02025 · 90987-04010 · 90987-T2002 · 90987-T2003 |
| 85927 | cooling fan relay | 90987-02027 · 90987-T2001 |
| 85927A | Cooling fan relay No. 2 | 90080-87009 |
| 85927B | Cooling fan relay No. 3 | 90987-T2001 |
| 85928B | Cooling fan resistor | 85928-12030 |
| 85930G | ACC relay | 90987-02027 · 90987-T2001 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 85940 | Windshield wiper relay assembly | 85940-12160 |
| 85942 | Headlight washer control relay | 85942-12031 · 85942-12040 |
| 89245B | steering sensor | 89245-12020 · 89245-48050 |
| 89257 | Cooling fan ECU | 89257-12010 · 89257-12020 |
| 89407C | Rear height control sensor sub-assembly | 89407-12010 |
| 89428 | No. 2 temperature detection switch | 89428-20110 |
| 89465 | oxygen sensor | 89465-02210 · 89465-52380 |
| 89467B | air fuel ratio sensor | 89467-02080 · 89467-12030 · 89467-12100 · 89467-12130 · 89467-12170 · 89467-52060 |
| 895A0 | Brake light control relay assembly | 895A0-28010 · 895A0-46020 |
| 89611 | One-button start switch | 89611-52021 · 89611-52022 · 89611-52023 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-02620 · 89650-02621 · 89650-02650 · 89650-02651 · 89650-02660 · 89650-02661 · 89650-02680 · 89650-02681 · 89650-02700 · 89650-02701 · 89650-02730 · 89650-12420 · 89650-12540 · 89650-12541 · 89650-12560 · 89650-12561 · 89650-12570 · 89650-12620 · 89650-12640 · 89650-12650 · 89650-12660 · 89650-12800 · 89650-12810 · 89650-12820 · 89650-12830 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-12450 · 89960-12470 |
