Toyota COROLLA 后牌照灯 — Figure 8113

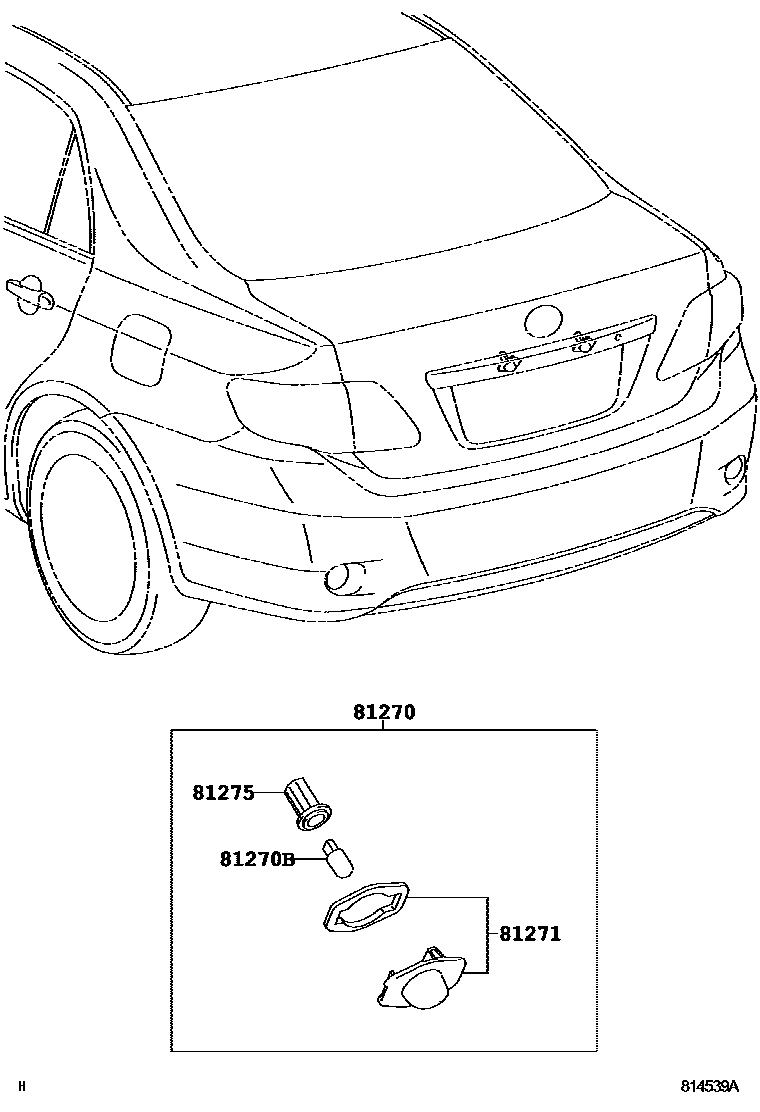

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-02200 · 81270-02201 · 81270-12520 · 81270-12521 |
| 81270B | Bulb (for license plate light) | 99132-12050 |
| 81271 | license plate lamp shade | 81271-02201 · 81271-12520 · 81271-12521 · 81271-8C005 |
| 81275 | License plate lamp holder and wiring harness | 81275-02201 · 81275-12520 · 81275-8C001 |
