Toyota COROLLA Headlamp — Figure 8101

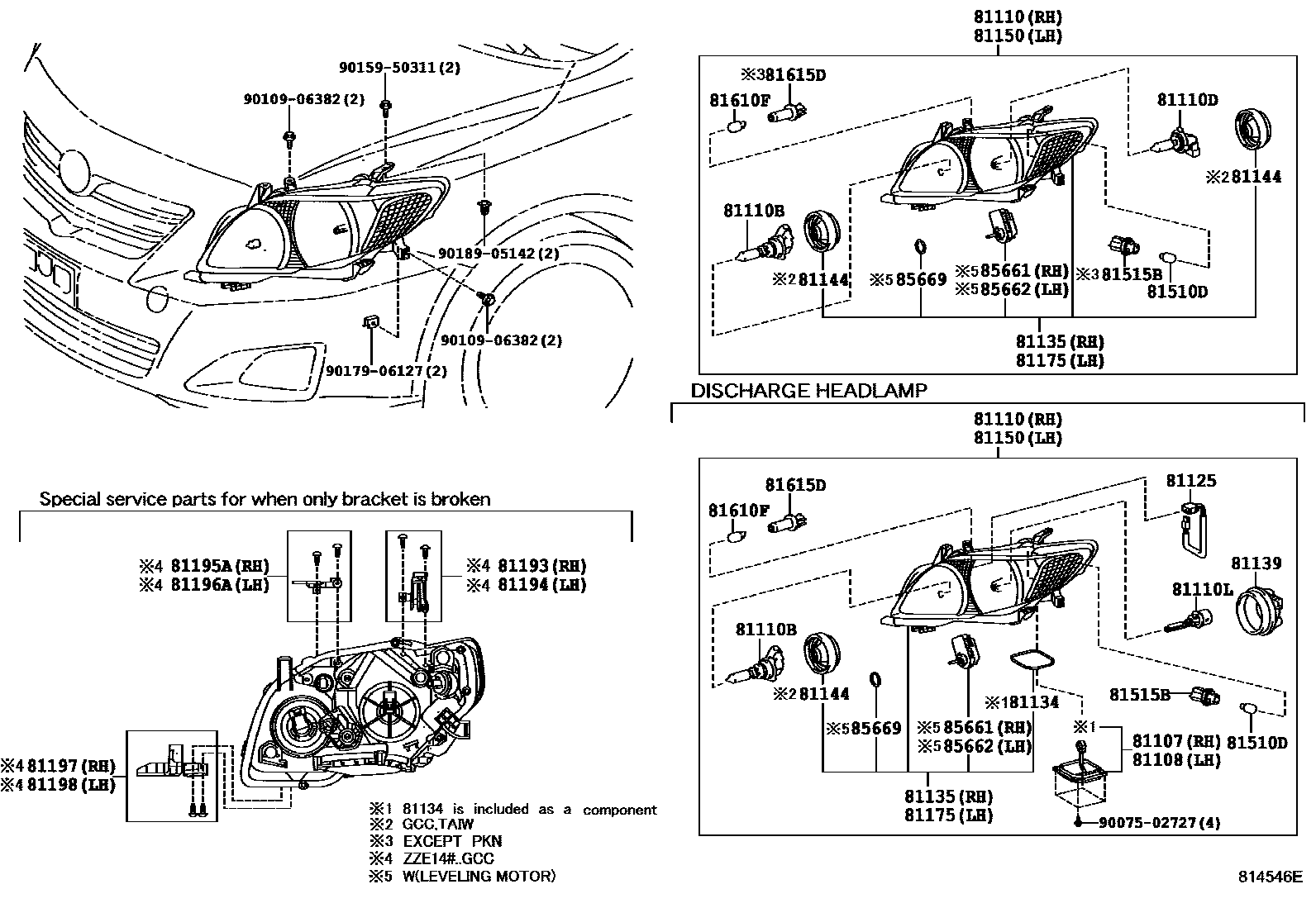

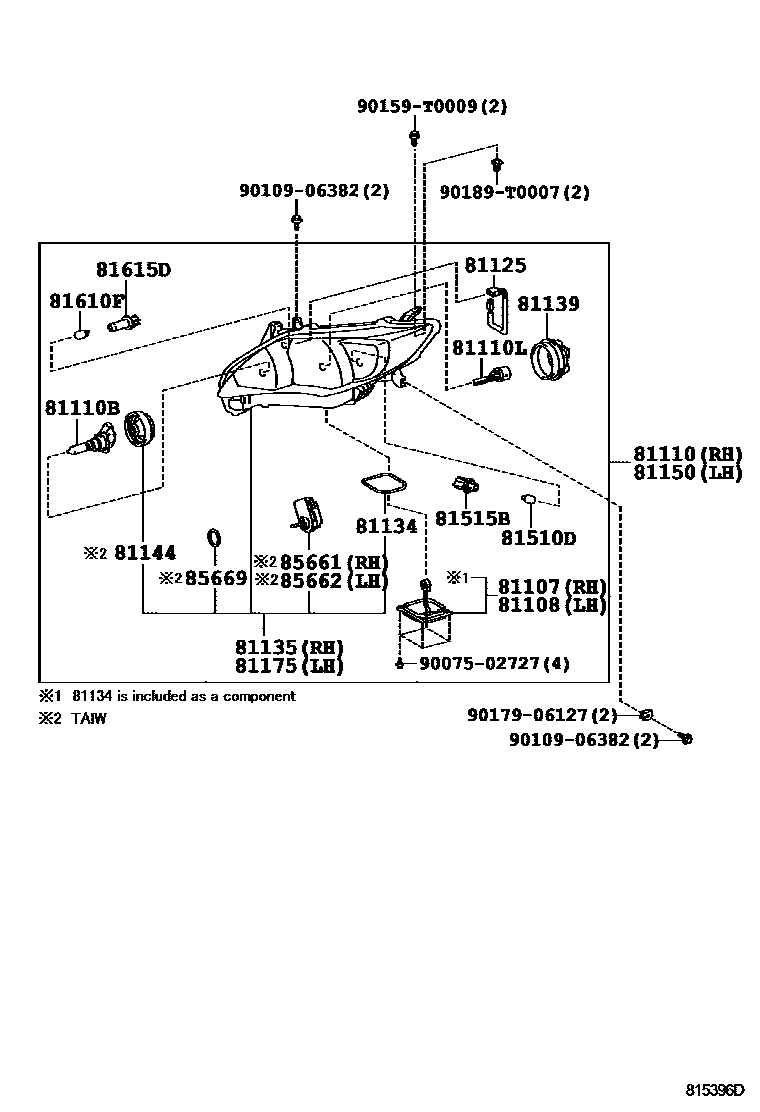

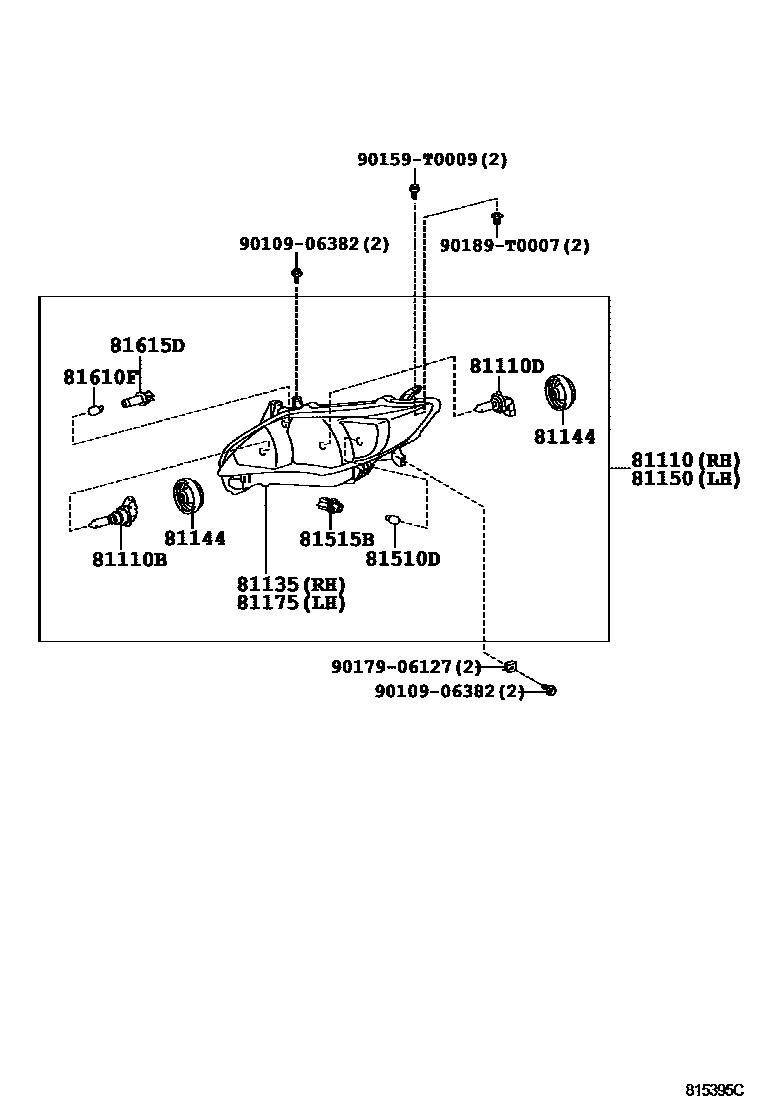

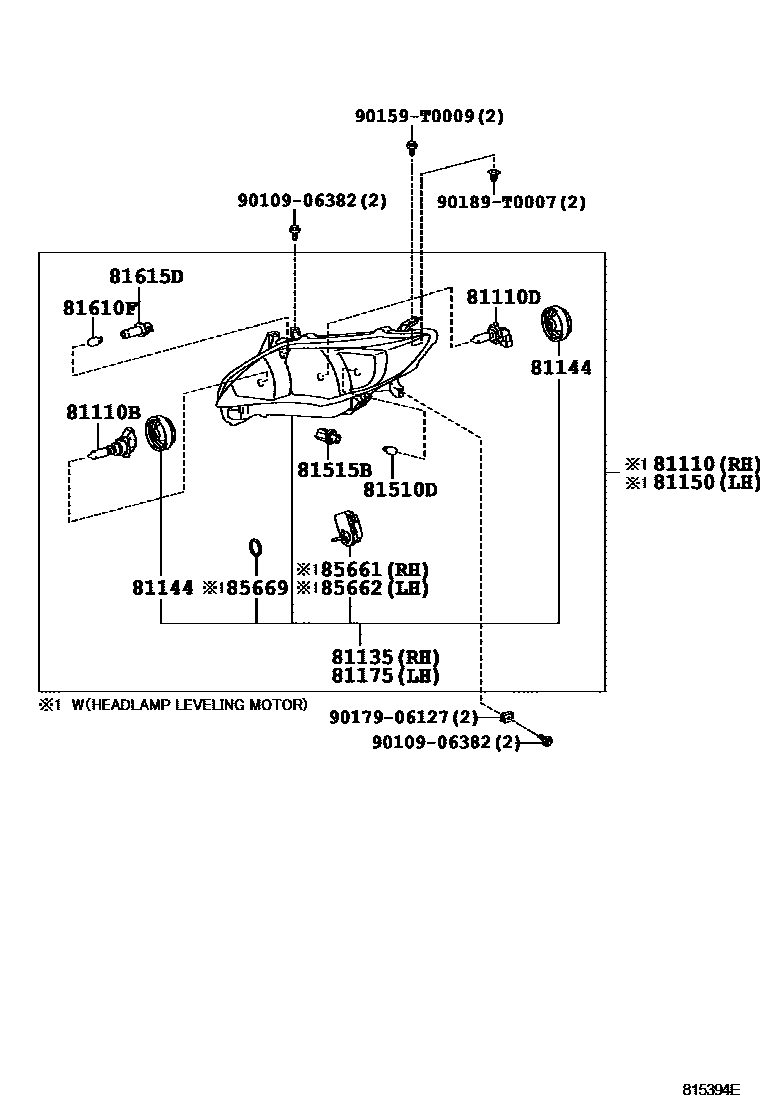

Toyota COROLLA EPC diagram 8101, Headlamp, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 81107-02770 · 81107-02771 · 81107-8C006 |
| 81108 | Left headlight control ECU sub-assembly | 81107-02770 · 81107-02771 · 81107-8C006 |
| 81110 | Right headlight assembly | 81110-02710 · 81110-02720 · 81110-02730 · 81110-02750 · 81110-02760 · 81110-02770 · 81110-02780 · 81110-02810 · 81110-02820 · 81110-02880 · 81110-02B90 · 81110-02C20 · 81110-02C30 · 81110-02C60 · 81110-02C70 · 81110-02C80 · 81110-02D20 · 81110-02D50 · 81110-02D60 · 81110-02D61 · 81110-02D70 · 81110-02D71 |
| 81110B | Bulb (for headlight No. 1) | 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90981-13047 |
| 81110L | Discharge headlight bulb | 90981-20015 · 90981-20029 |
| 81125 | headlight wire | 81125-02750 · 81125-02770 |
| 81134 | headlight gasket | 90075-68007 |
| 81135 | Right headlight assembly assembly | 81130-02710 · 81130-02720 · 81130-02730 · 81130-02760 · 81130-02770 · 81130-02780 · 81130-02A00 · 81130-02A10 · 81130-02B90 · 81130-02C20 · 81130-02D00 · 81130-02D20 · 81130-02D40 · 81145-02750 · 81145-02810 · 81145-02820 · 81145-02C30 · 81145-02C60 · 81145-02C80 · 81145-02D50 · 81145-02D60 · 81145-02D61 · 81145-02D70 · 81145-02D71 |
| 81139 | Headlight lamp holder cover | 90075-66003 |
| 81144 | No. 1 headlight cover | 81139-06241 · 90075-65006 |
| 81150 | Left headlight assembly | 81150-02710 · 81150-02720 · 81150-02730 · 81150-02750 · 81150-02760 · 81150-02770 · 81150-02780 · 81150-02810 · 81150-02820 · 81150-02880 · 81150-02B90 · 81150-02C20 · 81150-02C30 · 81150-02C60 · 81150-02C70 · 81150-02C80 · 81150-02D20 · 81150-02D50 · 81150-02D60 · 81150-02D61 · 81150-02D70 · 81150-02D71 |
| 81175 | Left headlight assembly assembly | 81170-02710 · 81170-02720 · 81170-02730 · 81170-02760 · 81170-02770 · 81170-02780 · 81170-02A00 · 81170-02A10 · 81170-02B90 · 81170-02C20 · 81170-02D00 · 81170-02D20 · 81170-02D40 · 81185-02750 · 81185-02810 · 81185-02820 · 81185-02C30 · 81185-02C60 · 81185-02C80 · 81185-02D50 · 81185-02D60 · 81185-02D61 · 81185-02D70 · 81185-02D71 |
| 81193 | Right headlight upper protective ring | 81193-12050 |
| 81194 | Left headlight upper protective ring | 81194-12050 |
| 81195A | Right headlight lower protection ring | 81195-12060 |
| 81196A | Left headlight lower protection ring | 81196-12060 |
| 81197 | Right headlight lower bracket | 81197-12060 |
| 81198 | Left headlight lower bracket | 81198-12060 |
| 81510D | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60077 |
| 85661 | Right headlight beam height adjustment motor | 85661-0K010 · 85661-0P010 · 85661-12010 · 85661-12020 |
| 85662 | Left headlight beam height adjustment motor | 85661-0K010 · 85661-0P010 · 85661-12010 · 85661-12020 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
