Toyota COROLLA accelerator pedal connecting rod — Figure 7801

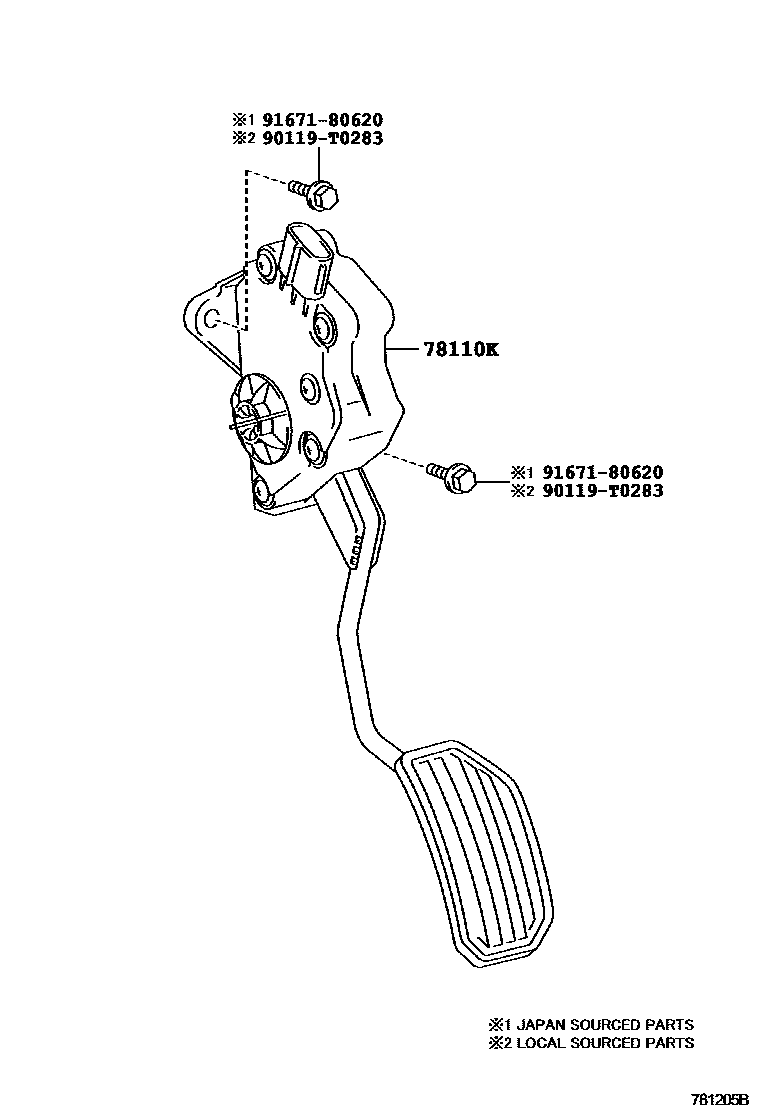

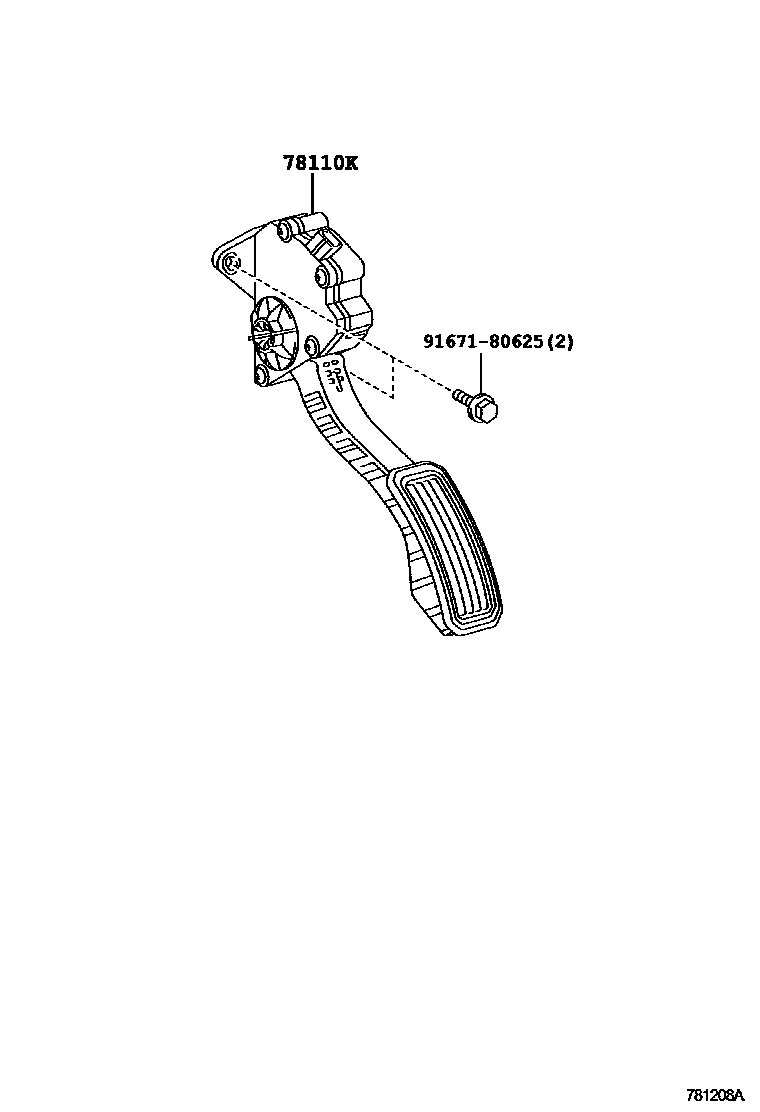

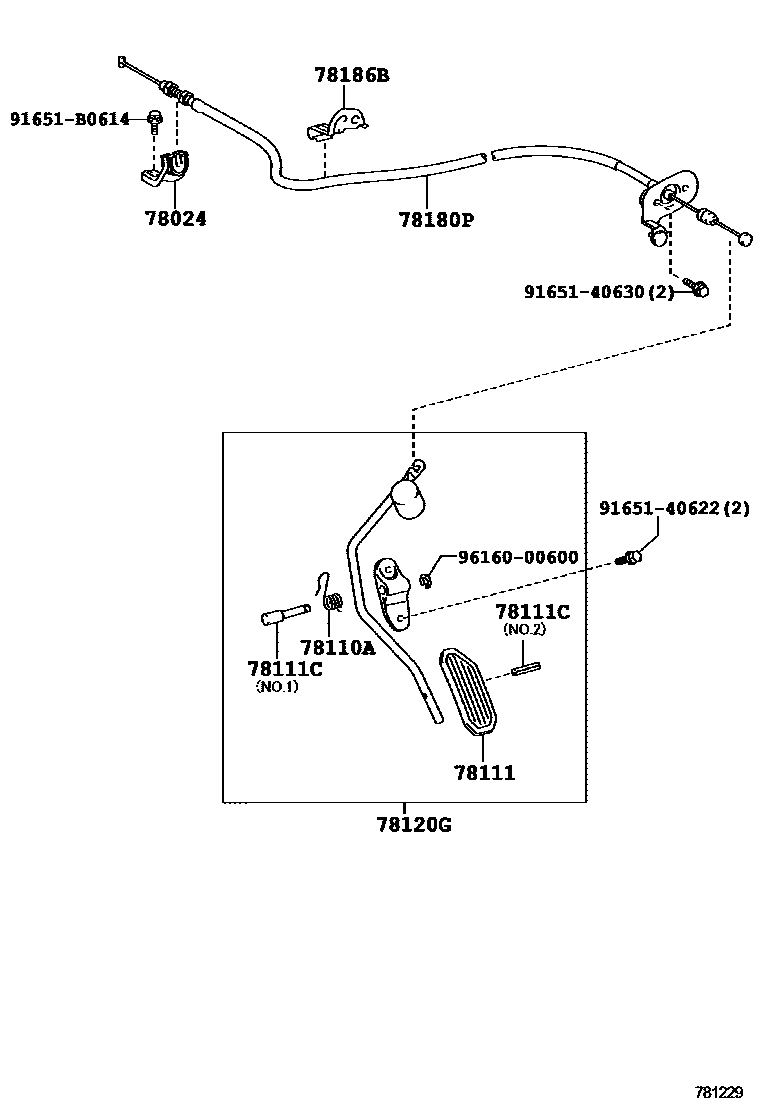

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-32140 |
| 78110A | Spring (for accelerator pedal lever) | 90959-03307 |
| 78110K | Accelerator pedal connecting rod assembly with sensor | 78110-02040 · 78110-02041 · 78110-02050 · 78110-02051 · 78110-33020 · 78110-33110 |
| 78111 | accelerator pedal | 78111-32020 |
| 78111C | pin (for gas pedal) | 90249-08066 · 90254-04019 |
| 78120G | Accelerator pedal lever assembly | 78120-12390 |
| 78180P | Accelerator pedal control cable assembly | 78180-12A50 · 78180-12A51 |
| 78186B | No. 2 accelerator pedal control cable bracket | 78186-12460 |
