Toyota COROLLA 燃油箱和燃油管 — Figure 7701

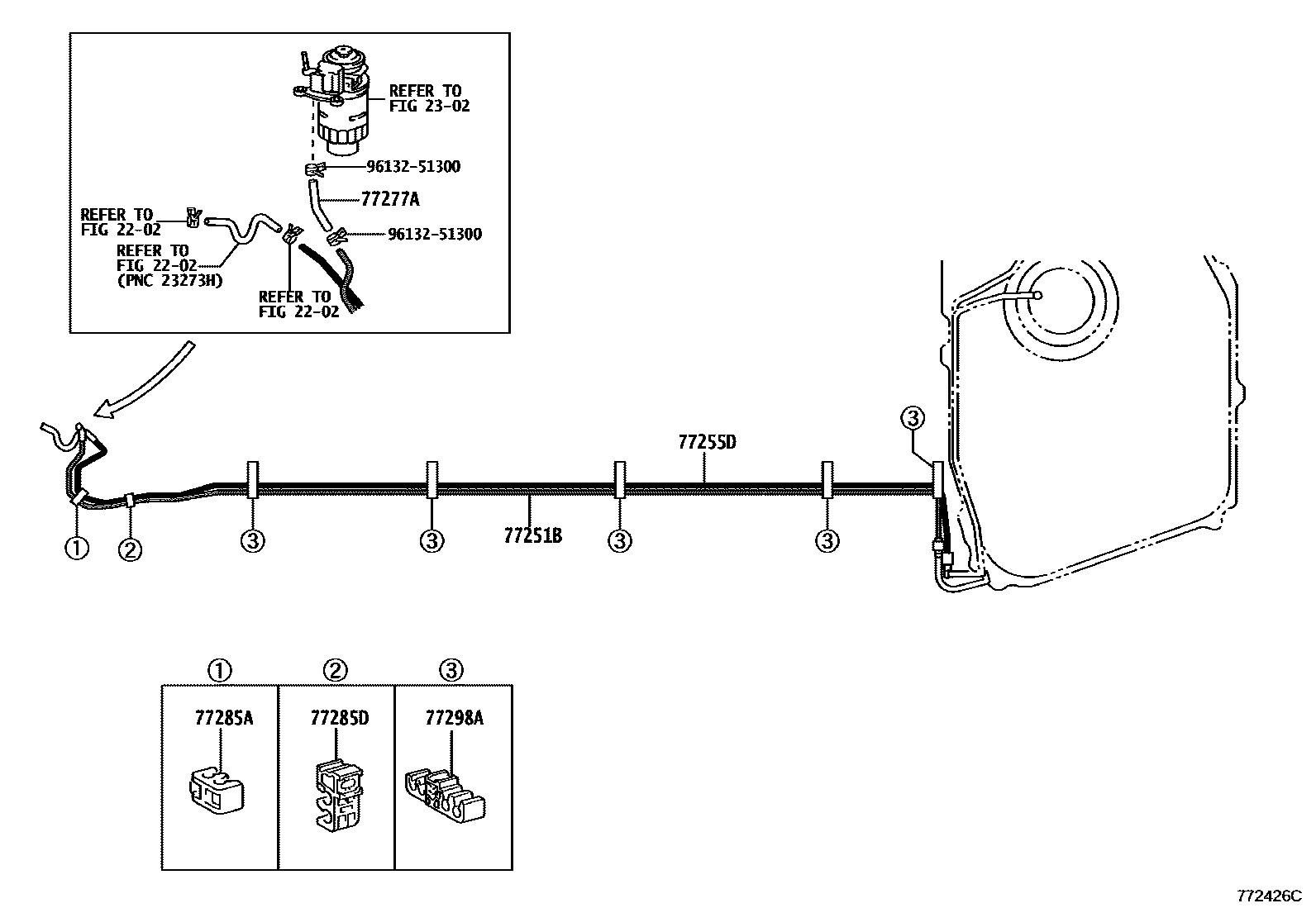

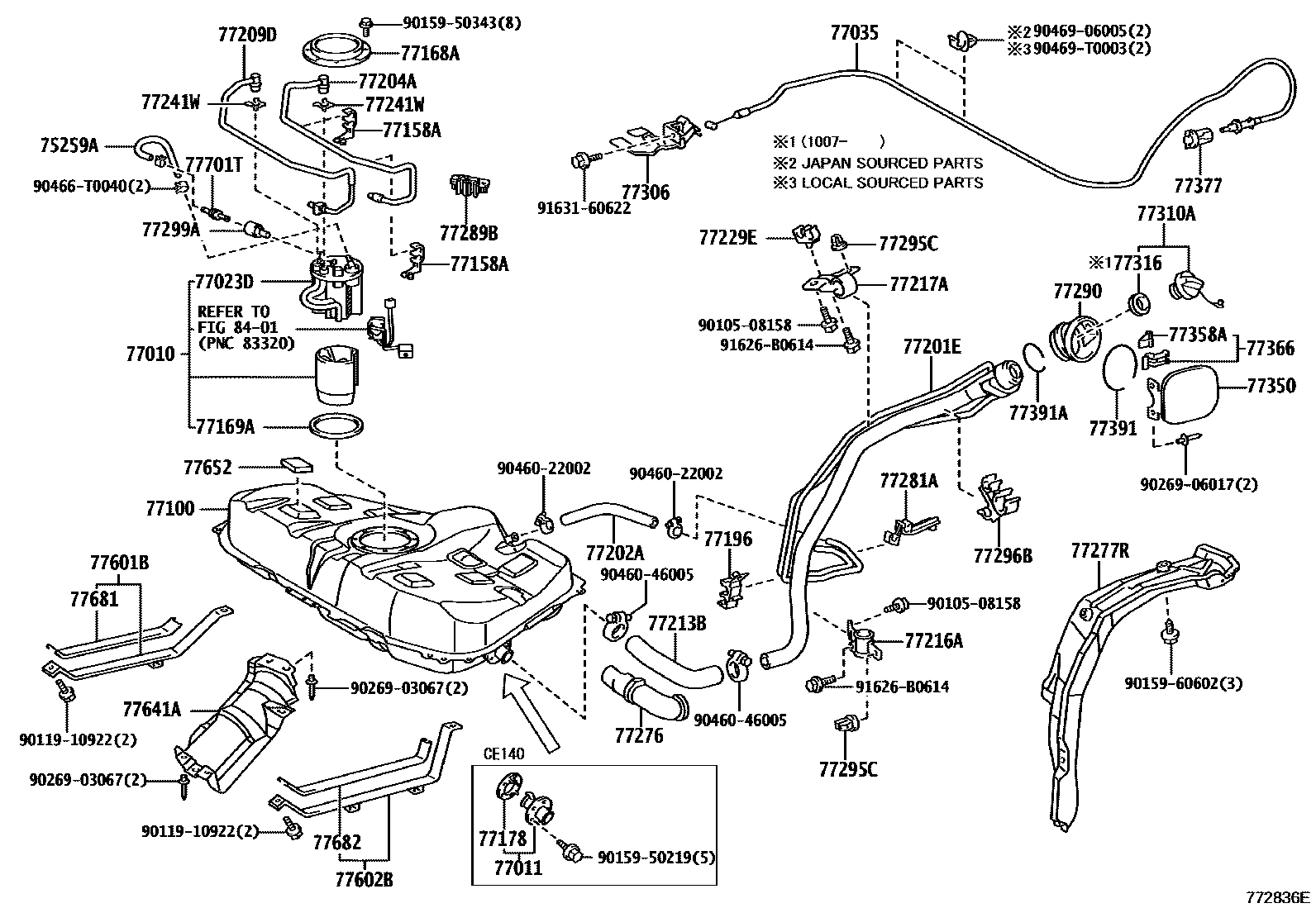

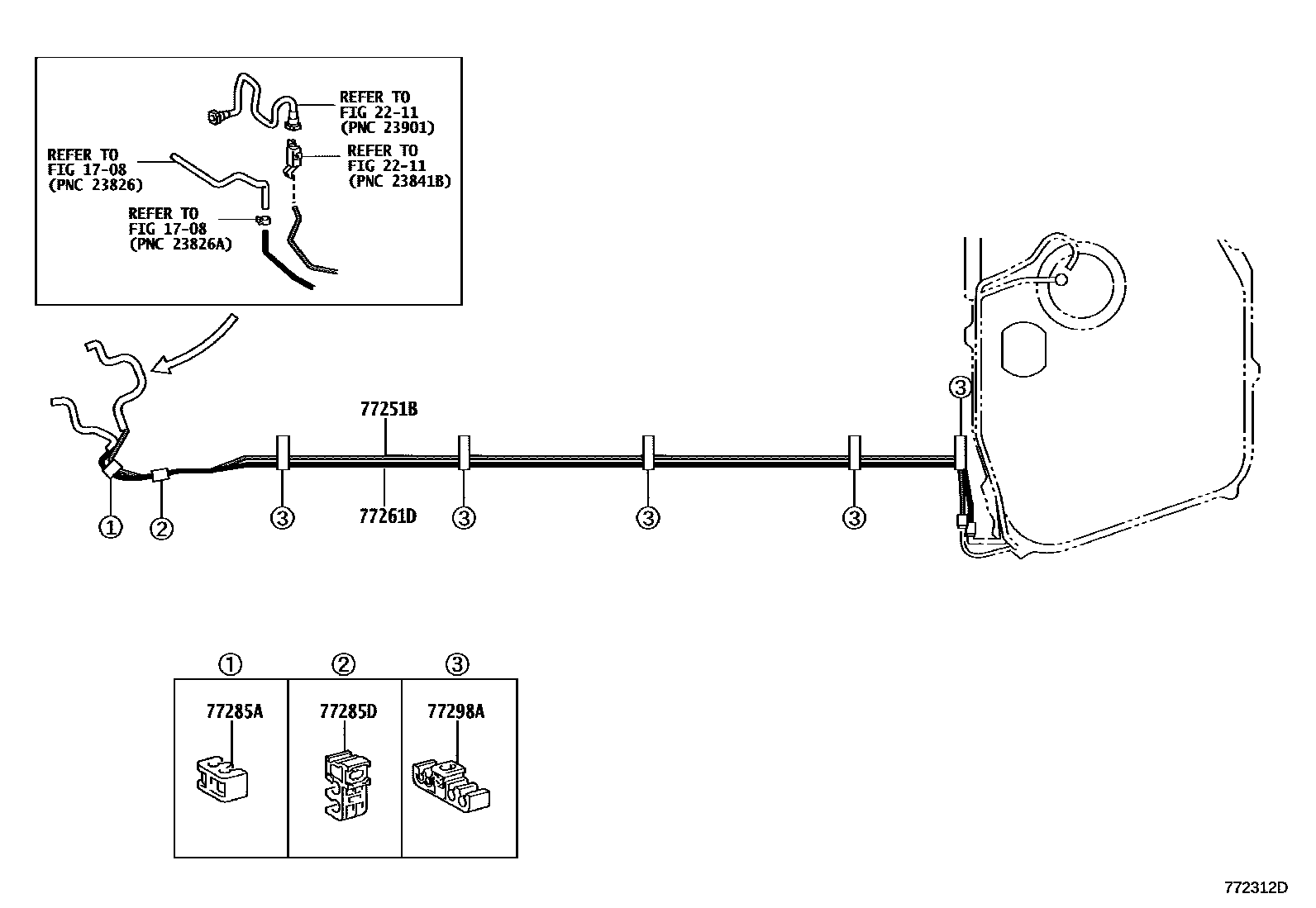

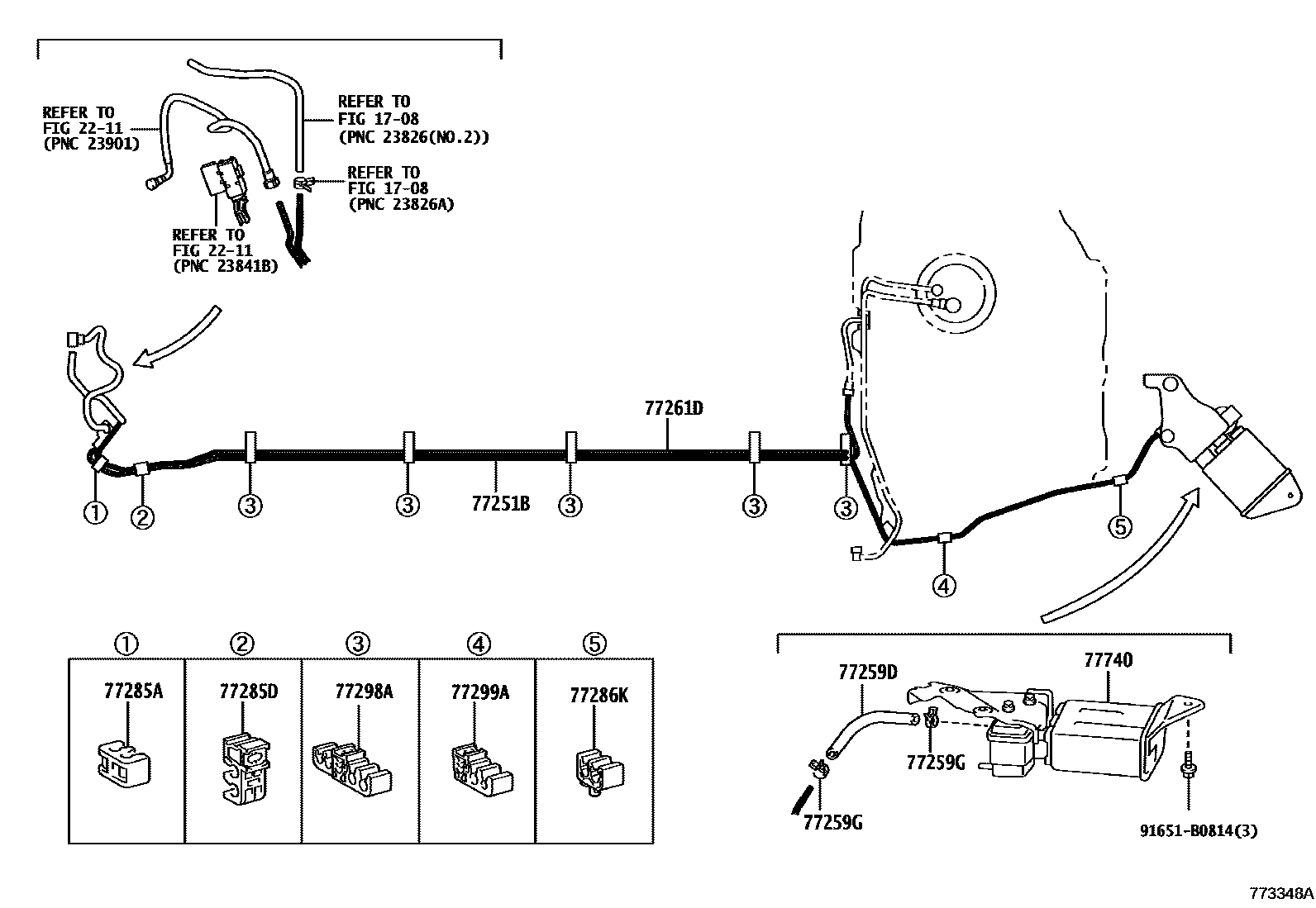

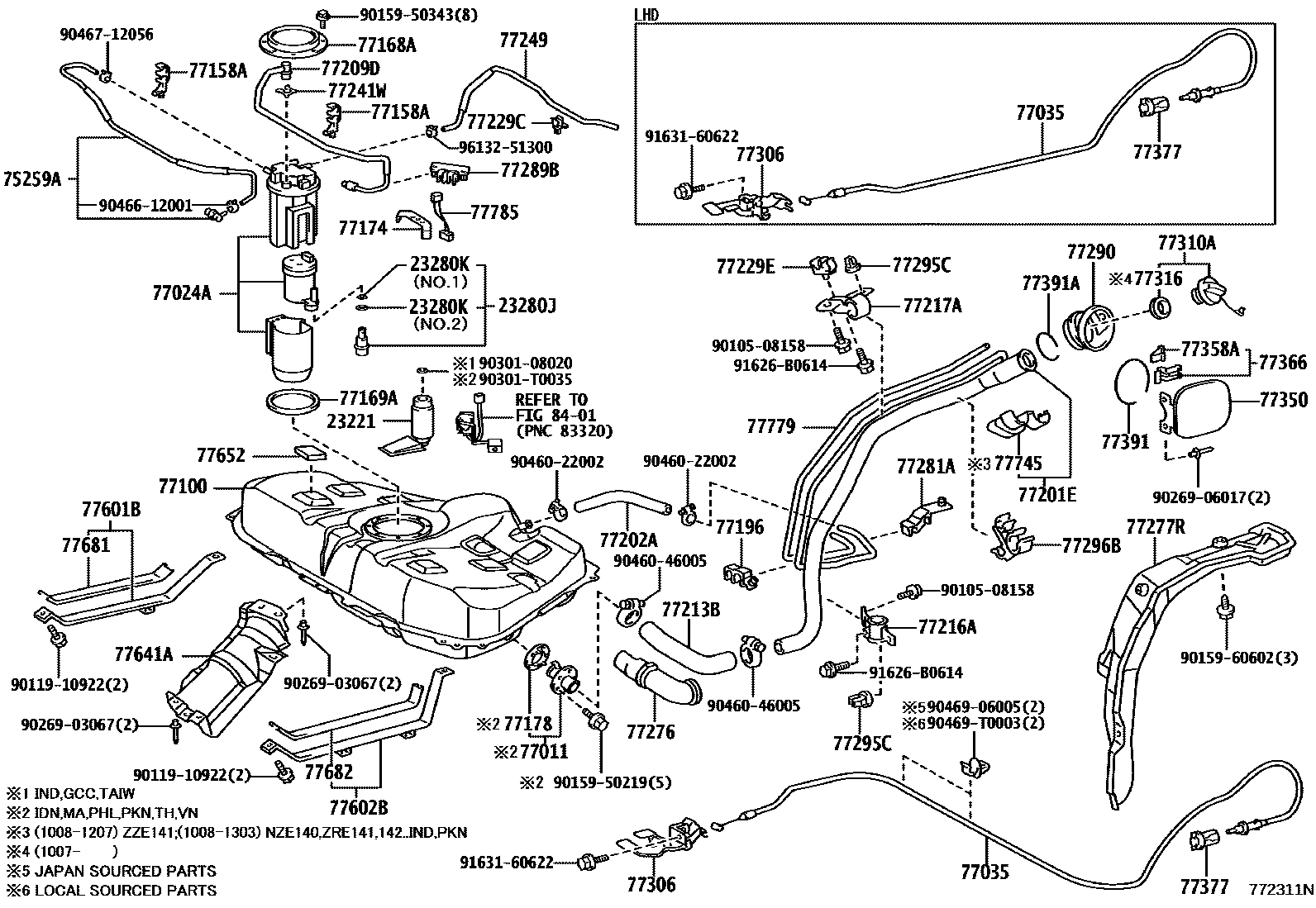

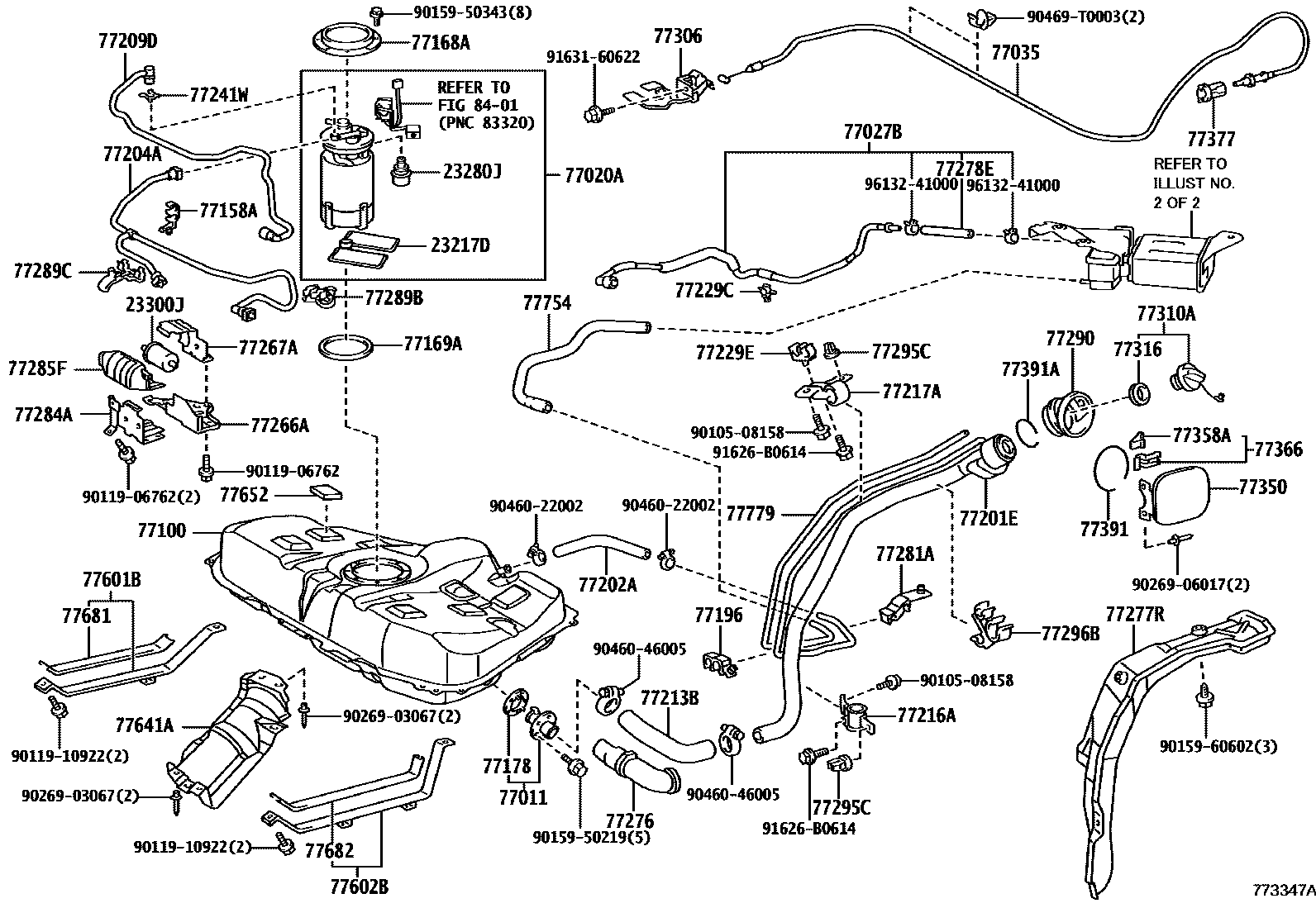

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 6 images and 76 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-0D040 |
| 23221 | fuel pump | 23220-0D170 · 23220-0D171 · 23220-0D180 · 23220-0D190 · 23220-0D191 · 23220-0M030 · 23220-0T110 · 23220-0T111 · 23220-0T120 · 23220-0T121 · 23220-0T160 · 23220-0T161 |
| 23280J | Fuel pressure regulator assembly | 23280-0D010 · 23280-21010 · 23280-21020 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 23300J | fuel filter assembly | 23300-0D100 |
| 75259A | fuel hose | 77259-02060 · 95337-06020 |
| 77010 | Fuel tank vent pipe assembly | 77010-12390 · 77010-12400 |
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-02040 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02540 |
| 77023D | Fuel suction pipe filter sub-assembly | 77023-12070 |
| 77024A | Fuel absorber sub-assembly | 77024-02132 · 77024-02142 · 77024-02152 |
| 77027B | No. 1 fuel evaporation exhaust pipe sub-assembly | 77027-02060 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02260 · 77035-02270 · 77035-02280 · 77035-02290 |
| 77100 | fuel tank assembly | 77001-02340 · 77001-02360 · 77001-02420 · 77001-02430 · 77001-02440 · 77001-02510 · 77001-02530 · 77001-02650 |
| 77158A | Fuel tank suction pipe bracket | 77158-20040 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-02020 · 77168-52020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-52010 · 77169-53010 |
| 77174 | No. 1 oil suction pipe bracket | 77174-02070 · 77174-02080 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-0A010 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-12060 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-02250 · 77201-02260 · 77201-02270 · 77201-02280 · 77201-02340 · 77201-02341 · 77201-02460 |
| 77202A | No. 1 fuel hose (for breather pipe) | 95313-13034 |
| 77204A | fuel tank return pipe | 77204-02080 · 77204-02100 · 77204-12150 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-02130 · 77209-02240 · 77209-12240 |
| 77213B | Fuel tank to filler pipe hose | 77213-32090 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-02140 · 77216-02160 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-02100 · 77217-02130 |
| 77229C | Snorkel clamp | 77229-12110 |
| 77229E | Snorkel clamp | 77229-12100 |
| 77241W | Pipe joint clip | 77241-33011 · 77241-60320 |
| 77249 | fuel drain hose | 77249-02030 |
| 77251B | main fuel pipe | 77251-02370 · 77251-02380 · 77251-02540 · 77251-02550 · 77251-02660 |
| 77255D | fuel return pipe | 77255-02290 · 77255-02330 |
| 77259D | No. 1 fuel hose | 77259-12420 |
| 77259G | fuel hose clip | 96132-51100 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02310 · 77261-02420 · 77261-02500 |
| 77266A | No. 1 fuel line protection device | 77266-02050 |
| 77267A | No. 2 fuel pipe protection device | 77267-02030 |
| 77276 | Fuel hose protector | 77276-12050 · 77276-12120 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 95337-08019 |
| 77277R | Fuel tank filler pipe protection device | 77277-02090 · 77277-02100 |
| 77278E | fuel hose | 95326-06007 |
| 77281A | Fuel filler pipe clamp | 77281-12110 |
| 77284A | No. 3 fuel pipe protection device | 77284-02040 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-42110 |
| 77285D | No. 1 fuel pipe clamp | 77285-50040 |
| 77285F | No. 1 fuel pipe clamp | 77285-12110 |
| 77286K | No. 2 fuel pipe clamp | 77286-12120 |
| 77289B | No. 3 fuel pipe clamp | 77289-02060 · 77289-52100 |
| 77289C | No. 4 fuel pipe clamp | 77285-02100 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-02130 |
| 77295C | Fuel pipe retaining ring | 77295-12070 |
| 77296B | No. 1 fuel line protector bracket | 77296-12070 |
| 77298A | No. 4 fuel pipe clamp | 77298-12130 · 77298-52070 |
| 77299A | No. 5 fuel pipe clamp | 77298-42010 · 77299-02040 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-02040 · 64606-12050 · 64606-12060 |
| 77310A | Fuel tank cap assembly | 77300-20020 · 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-02080 |
| 77358A | Fuel filler cap stopper | 77358-30060 |
| 77366 | Fuel filler cap hinge spring | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-06020 · 77377-06030 · 77377-0D040 |
| 77391 | fuel inlet ring | 77391-12060 |
| 77391A | fuel inlet ring | 77391-02020 · 77391-12020 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-02090 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-02090 |
| 77641A | No. 1 fuel tank protective shell | 77641-02150 · 77641-12160 |
| 77652 | No. 1 fuel tank liner | 77651-02060 · 77651-20090 |
| 77681 | Fuel tank right side strap seat | 77616-02050 · 77616-68010 |
| 77682 | Fuel tank left side strap seat | 77681-02060 · 77681-12070 |
| 77701T | Check valve (for main fuel tank) | 90917-10091 |
| 77740 | Carbon canister assembly | 77740-12740 |
| 77745 | No. 1 carbon canister filter | 77745-42030 · 77745-52030 |
| 77754 | No. 1 carbon canister outlet hose | 77754-02150 |
| 77779 | Carbon canister outlet pipe | 77779-02030 · 77779-12020 |
| 77785 | fuel pump wiring harness | 77785-02060 · 77785-02061 |
