Toyota COROLLA 挡泥板和扰流板 — Figure 7601

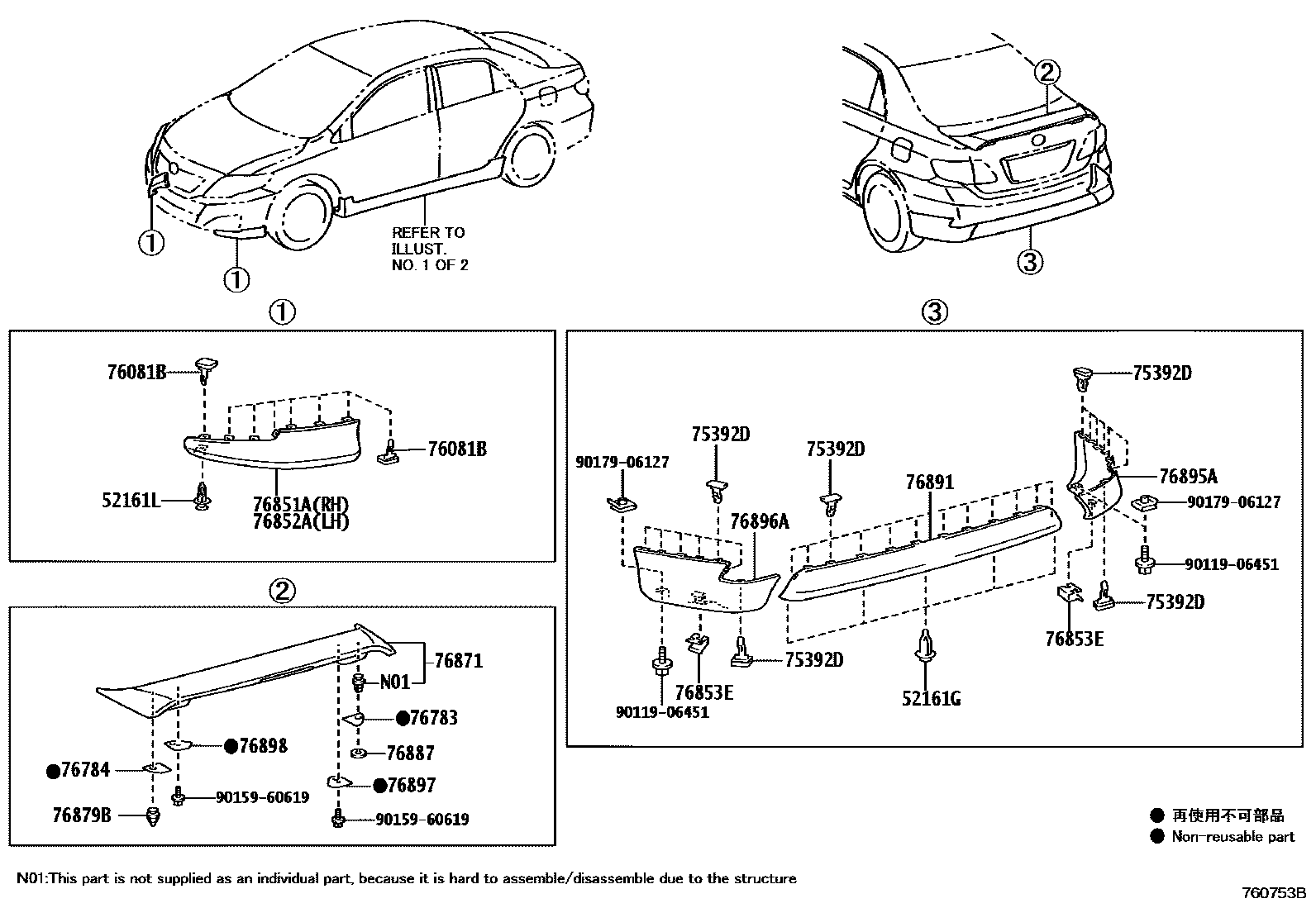

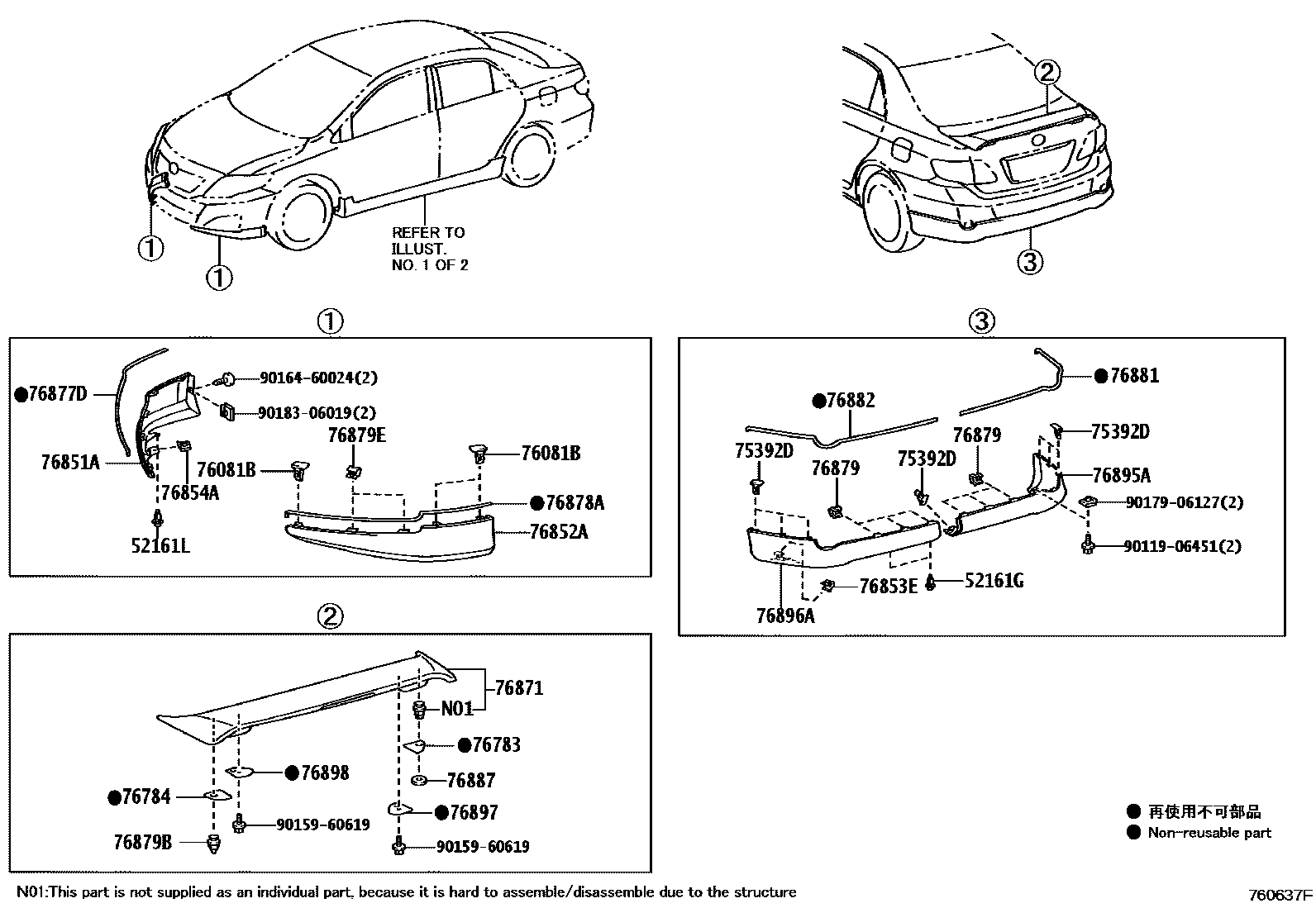

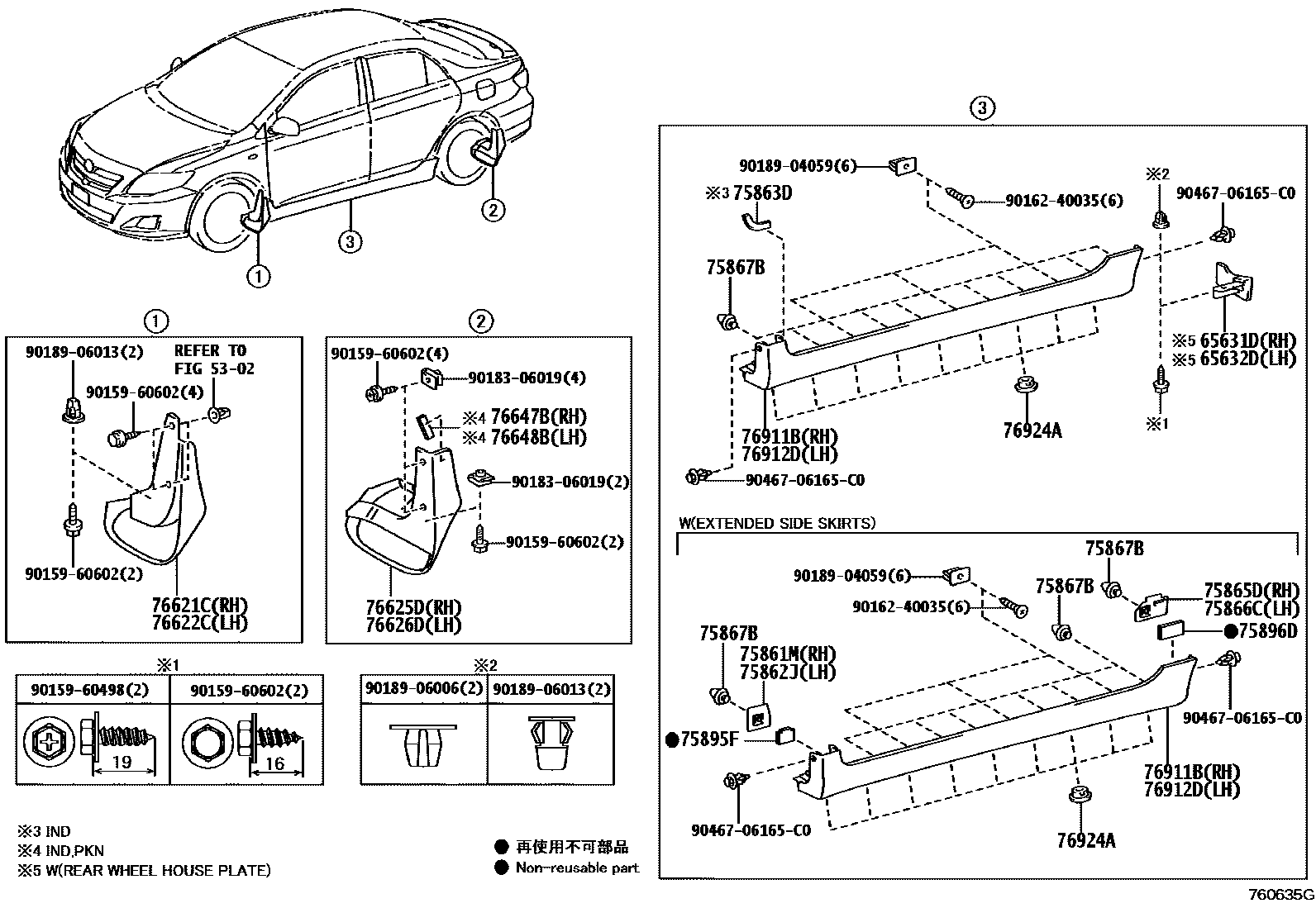

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 3 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161G | Rear bumper insert | 52161-0K040 · 52161-16010 |
| 52161L | front spoiler insert | 52161-0K040 · 52161-16010 |
| 65631D | Right rear wheel house front panel | 65631-02140 · 65631-12060 |
| 65632D | Left rear wheel house front panel | 65632-02140 · 65632-12060 |
| 75392D | External protective strip fixings | 75392-0K010 · 75392-35200 · 75392-35220 |
| 75861M | Right side door sill panel protective strip fixing | 75861-02030 · 75861-02040 |
| 75862J | Left side door sill panel protective strip fixing | 75862-02030 · 75862-02040 |
| 75863D | No. 3 rocker panel protective strip protective cover | 75863-02020 |
| 75865D | Right side door sill panel protective strip fixing | 75865-02020 · 75865-02030 |
| 75866C | Left side door sill panel protective strip fixing | 75866-02020 · 75866-02030 |
| 75867B | Door sill panel protective strip clip | 75867-12040 |
| 75895F | No. 1 protective strip tape | 75895-02060 |
| 75896D | No. 2 protective strip tape | 75896-02020 |
| 76081B | Front spoiler fixings | 75392-0K010 · 75392-35200 · 75392-35220 |
| 76621C | Right front fender fender | 76621-02200 · 76621-02908 |
| 76622C | Left front fender fender | 76622-02200 · 76622-02908 |
| 76625D | Right rear side fender | 76625-02220 · 76625-02240 · 76625-02290 · 76625-02911 · 76625-02912 |
| 76626D | Left rear side fender | 76626-02220 · 76626-02240 · 76626-02290 · 76626-02911 · 76626-02912 |
| 76647B | Right rear body fender bracket | 76647-02010 |
| 76648B | Left rear body fender bracket | 76648-02010 |
| 76783 | Right rear lower spoiler tape | 76783-02060 |
| 76784 | Left rear lower spoiler tape | 76784-02060 |
| 76851A | Right front spoiler cover | 76851-02903 · 76851-02907 |
| 76852A | Left front spoiler cover | 76852-02903 · 76852-02907 |
| 76853E | No. 1 rear spoiler fixing piece | 76854-44010 |
| 76854A | No. 2 front spoiler fixing piece | 76854-44010 |
| 76871 | rear spoiler | 76871-02909 |
| 76879 | No. 1 rear spoiler clip | 76879-44010 |
| 76879B | No. 2 rear spoiler clip | 76879-12060 |
| 76879E | Front spoiler clip | 76879-44010 |
| 76887 | Rear spoiler seal | 76887-12040 |
| 76891 | No. 1 rear spoiler | 76891-02020 |
| 76895A | Right rear bumper spoiler | 76895-02906 · 76895-02912 |
| 76896A | Left rear bumper spoiler | 76896-02904 · 76896-02910 |
| 76897 | Right rear spoiler protection strip | 76897-02060 |
| 76898 | Left rear spoiler protection strip | 76898-02060 |
| 76911B | right fender | 76911-02910 · 76911-02911 · 76911-02912 · 76911-02913 · 76911-02916 · 76911-02917 · 76911-02918 · 76911-02921 |
| 76912D | left fender | 76912-02910 · 76912-02911 · 76912-02912 · 76912-02913 · 76912-02916 · 76912-02917 · 76912-02918 · 76912-02921 |
| 76924A | No. 2 side fender fixings | 76924-12040 |
