Toyota COROLLA 后防护条 — Figure 7504

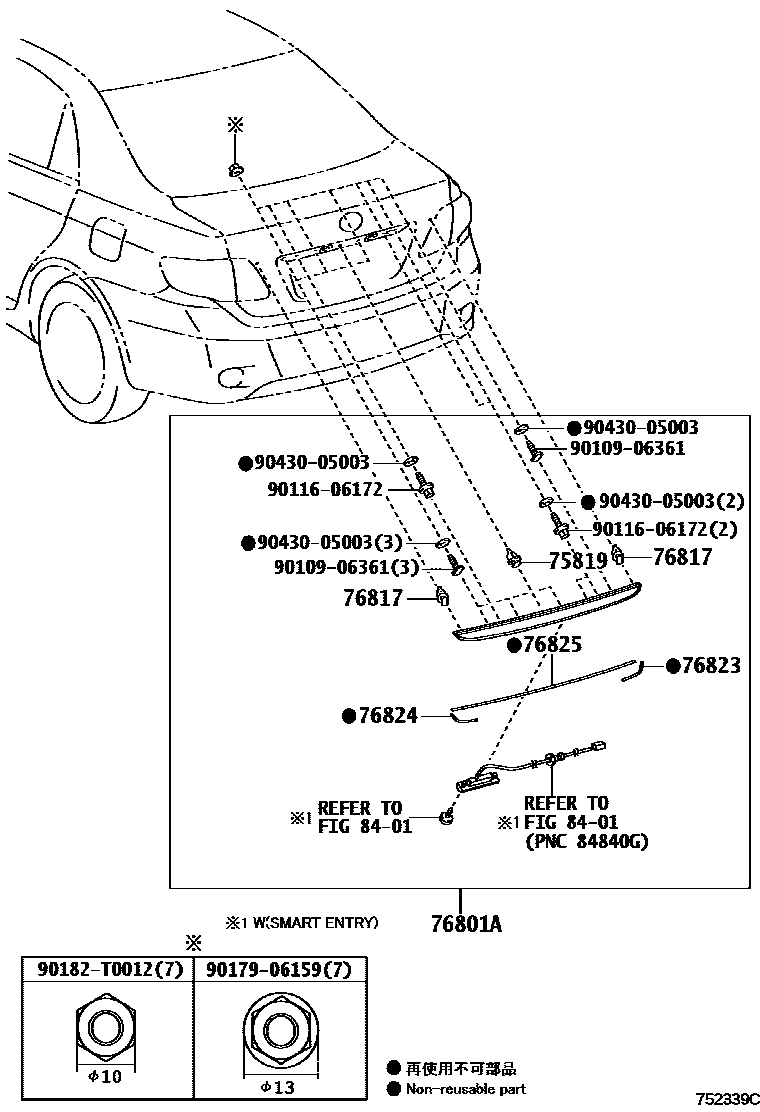

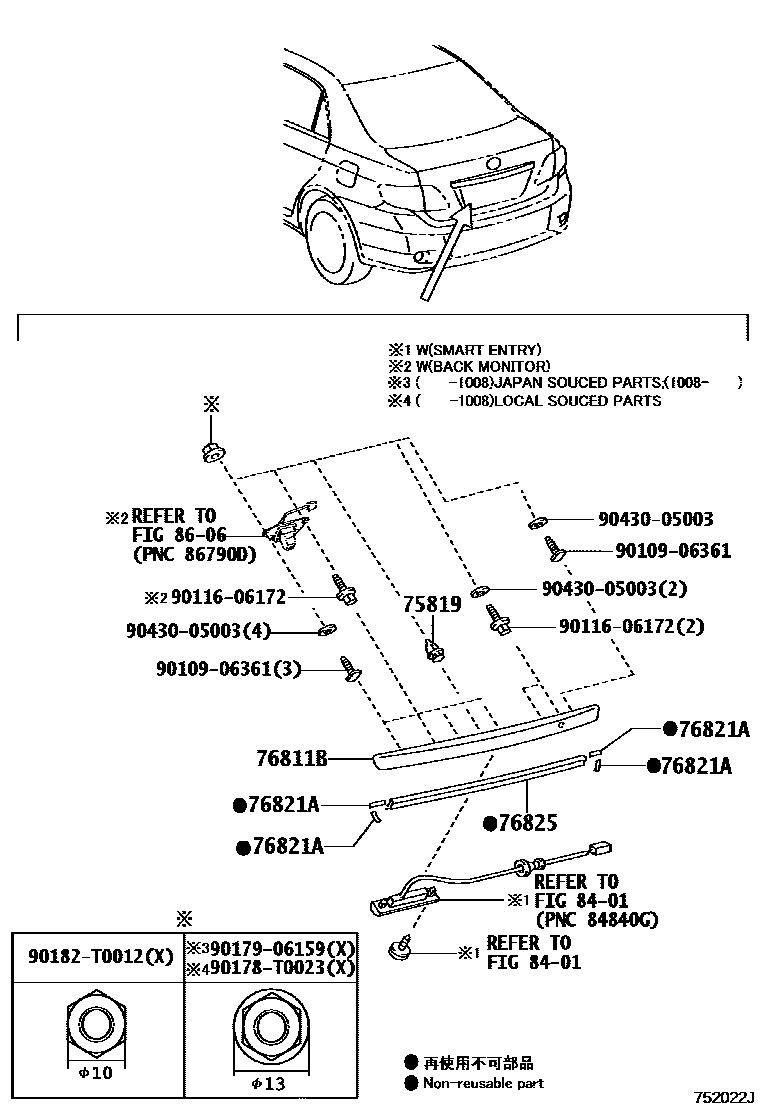

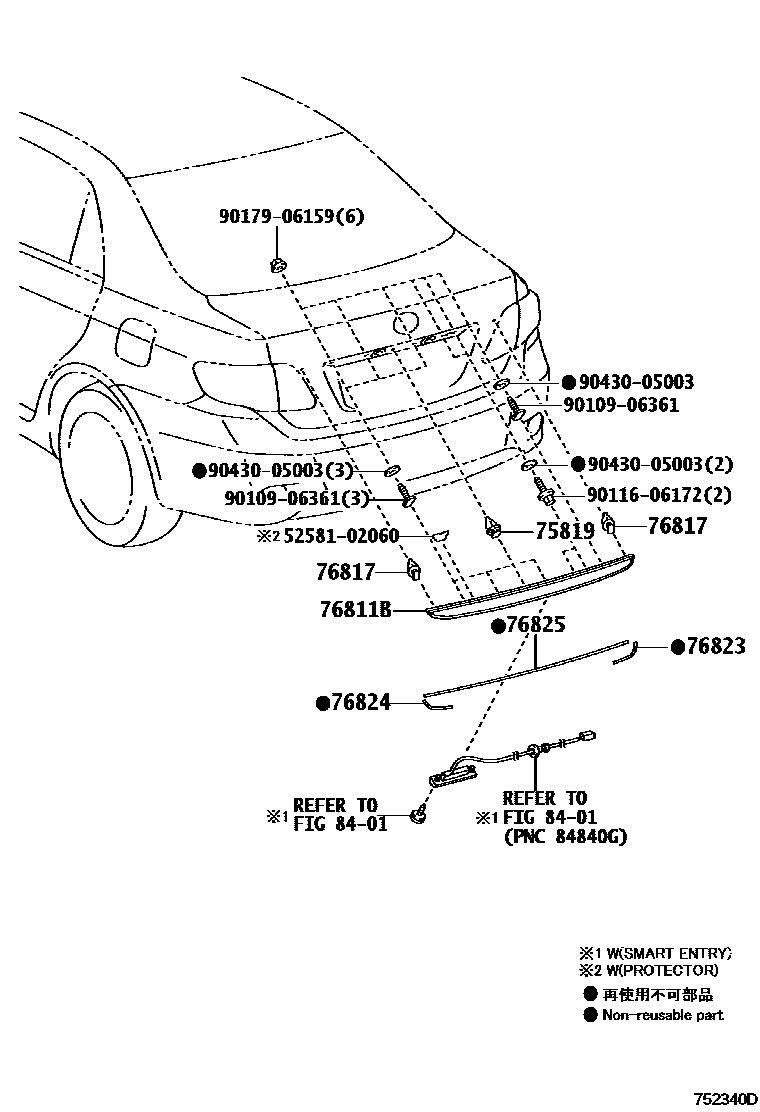

Toyota COROLLA EPC diagram 7504, 后防护条, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75819 | Trunk door protective strip clip | 75819-33010 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-02750 · 76801-02760 · 76801-02770 · 76801-02902 · 76801-02B90 |
| 76811B | Trunk door exterior trim strip | 76811-02360 · 76811-02370 · 76811-02380 · 76811-02430 · 76811-02450 · 76811-02710 · 76811-02720 · 76811-02917 · 76811-02919 · 76811-02924 · 76811-02925 · 76811-02927 · 76811-02929 · 76811-12A90 · 76811-12B00 |
| 76817 | Rear door exterior decorative strip clip | 76817-02100 · 76817-12100 |
| 76821A | Luggage door outer decorative strip protective cover | 76821-02110 |
| 76823 | Rear door right side decorative strip protective cover | 76823-02020 |
| 76824 | Rear door left side decorative strip protective cover | 76824-02010 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-02070 · 76825-02120 |
