Toyota COROLLA 侧防护条 — Figure 7503

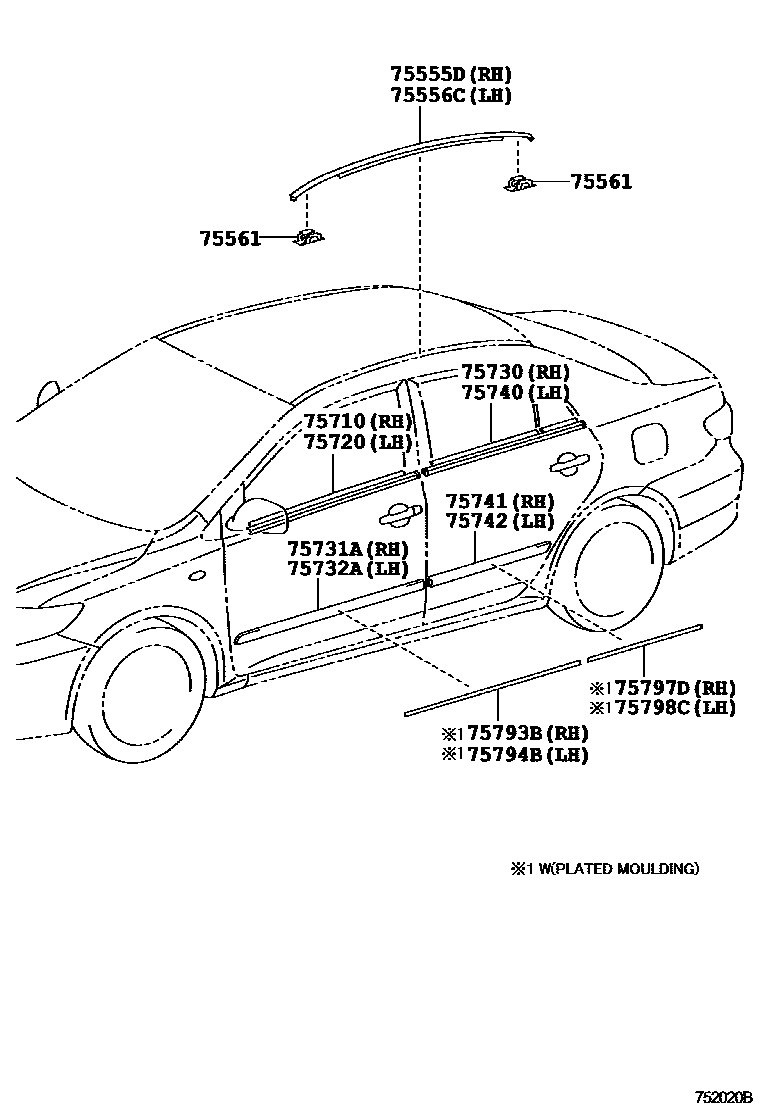

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-02150 · 75555-02170 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-02150 · 75556-02170 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-52040 |
| 75710 | Right front door waistline protection strip assembly | 75710-02220 · 75710-02240 · 75710-02250 · 75710-02270 · 75710-02280 |
| 75720 | Left front door waistline protection strip assembly | 75720-02220 · 75720-02240 · 75720-02250 · 75720-02270 · 75720-02280 |
| 75730 | Right rear door waistline protection strip assembly | 75730-02200 · 75730-02210 · 75730-02230 · 75730-02250 · 75730-02260 |
| 75731A | Right front door outer protective strip | 75731-02918 · 75731-02919 · 75731-02920 · 75731-02921 |
| 75732A | Left front door outer protective strip | 75732-02918 · 75732-02919 · 75732-02920 · 75732-02921 |
| 75740 | Left rear door waistline protection strip assembly | 75740-02200 · 75740-02210 · 75740-02230 · 75740-02250 · 75740-02260 |
| 75741 | Right rear door outer protective strip | 75741-02916 · 75741-02917 · 75741-02918 · 75741-02919 |
| 75742 | Left rear door outer protective strip | 75742-02916 · 75742-02917 · 75742-02918 · 75742-02919 |
| 75793B | Right front door outer protective strip insert | 75793-02040 |
| 75794B | Left front door outer protective strip insert | 75794-02040 |
| 75797D | Right rear door outer protective strip insert | 75797-02040 |
| 75798C | Left rear door outer protective strip insert | 75798-02040 |
