Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

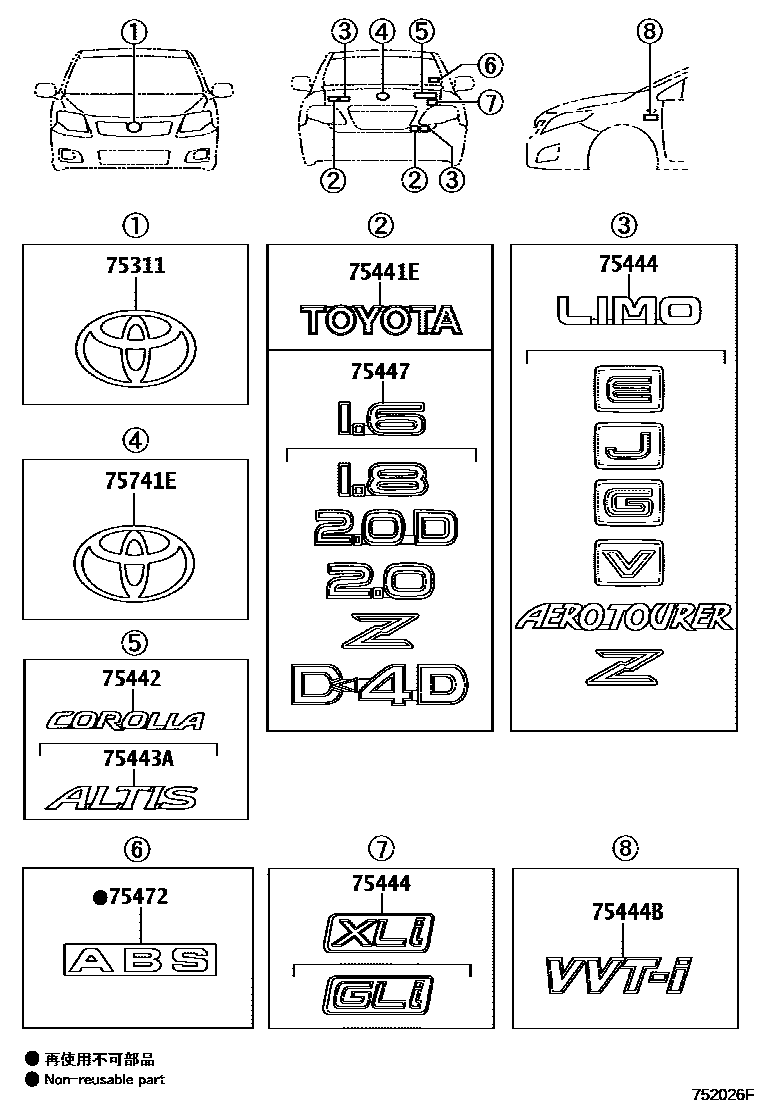

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75301-02050 · 75301-02090 |
| 75441E | Back door No. 1 nameplate | 75441-02170 |
| 75442 | Trunk door number plate No. 2 | 75442-02200 · 75442-02210 |
| 75443A | Trunk door No. 3 nameplate | 75442-02220 |
| 75444 | Trunk door No. 4 nameplate | 75442-02230 · 75443-13370 · 75444-02150 · 75444-02540 · 75444-02550 · 75444-02560 · 75444-02580 · 75444-02590 · 75444-02650 · 75444-02660 · 75444-02670 · 75444-13430 |
| 75444B | Front fender nameplate | 75444-02161 |
| 75447 | Trunk door No. 7 nameplate | 75443-13370 · 75447-02100 · 75447-02110 · 75447-02130 · 75447-02160 · 75447-02180 · 75447-02190 · 75447-12041 |
| 75472 | Rear window nameplate | 75485-02050 |
| 75741E | logo | 75431-02090 |
