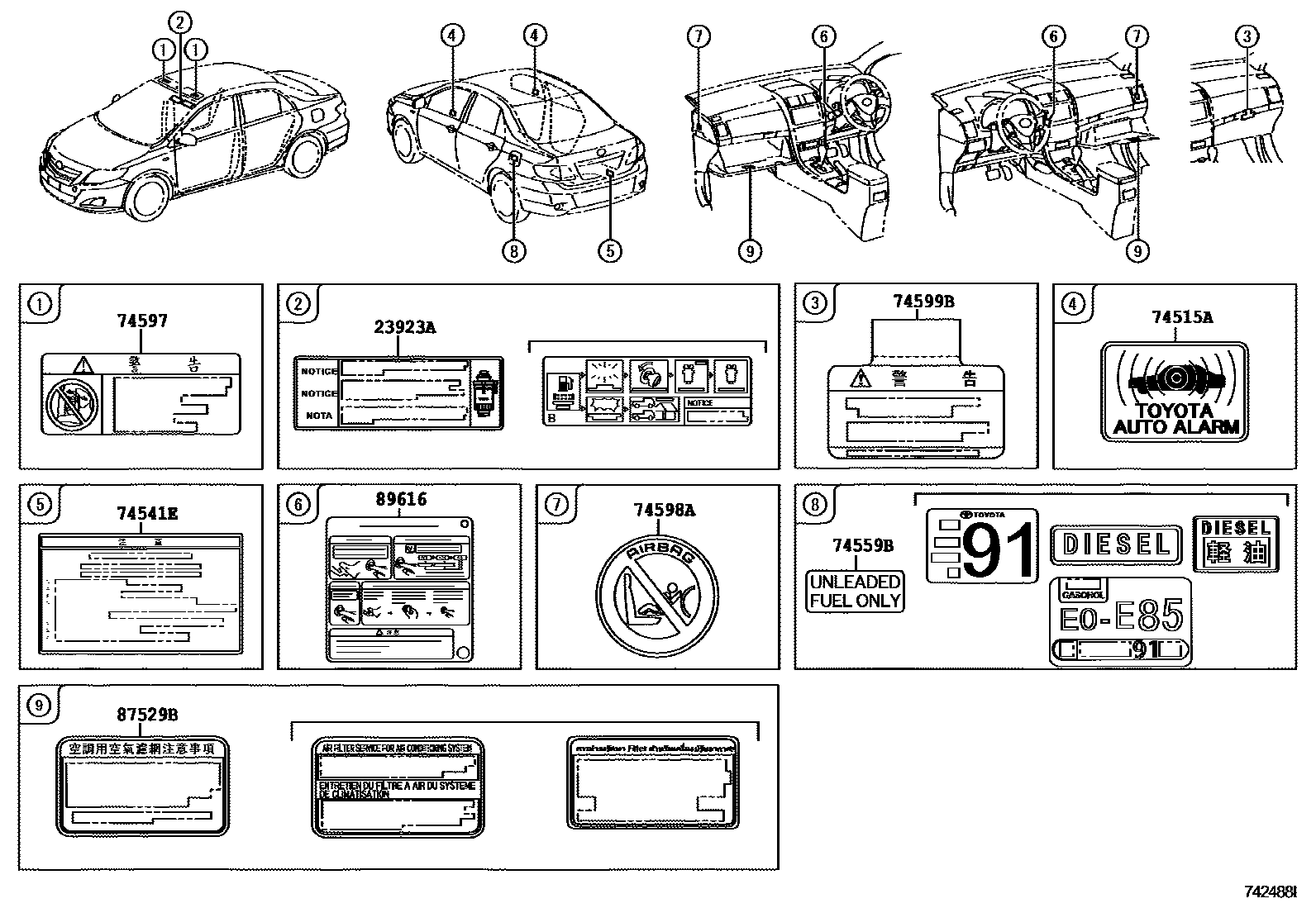

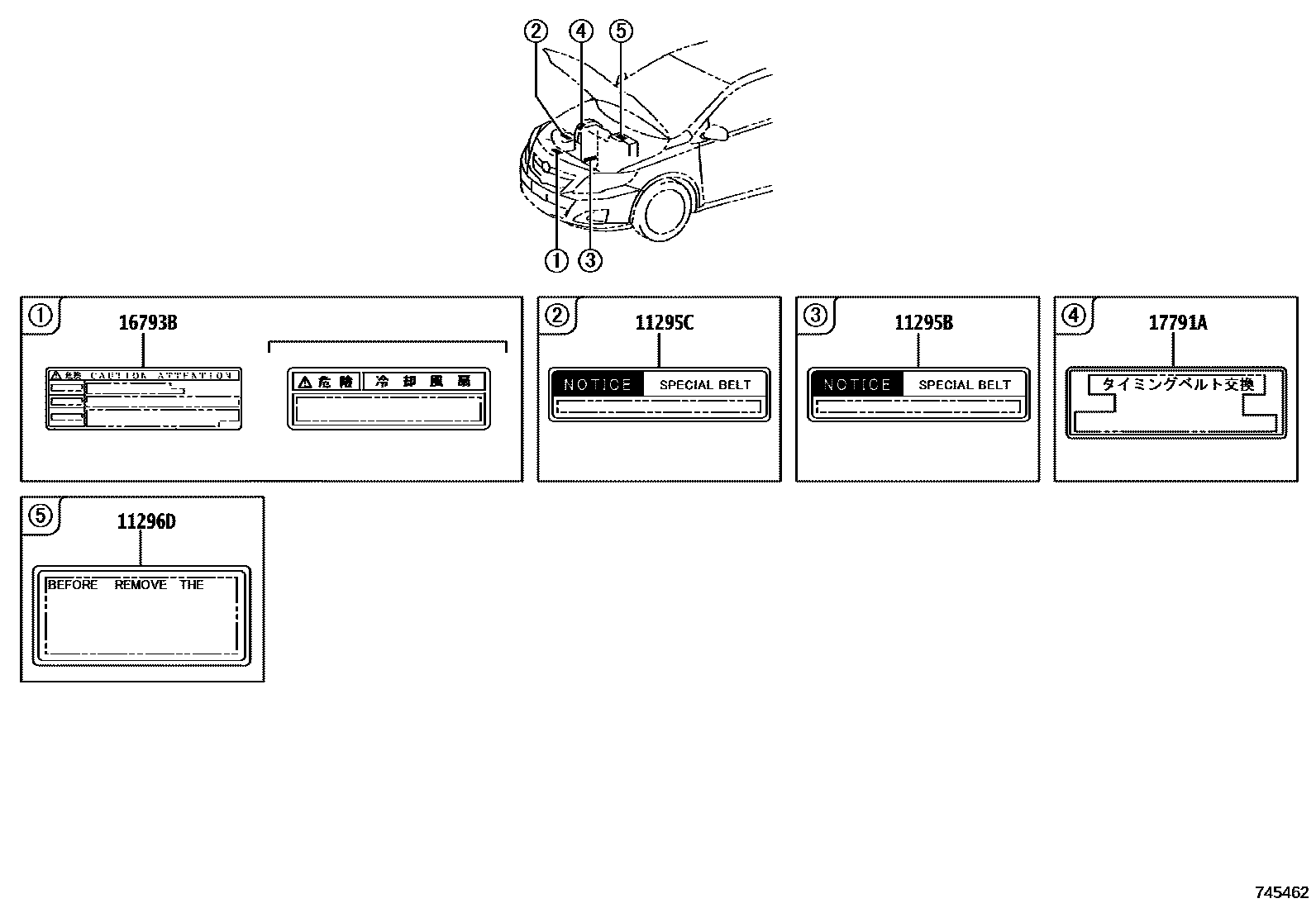

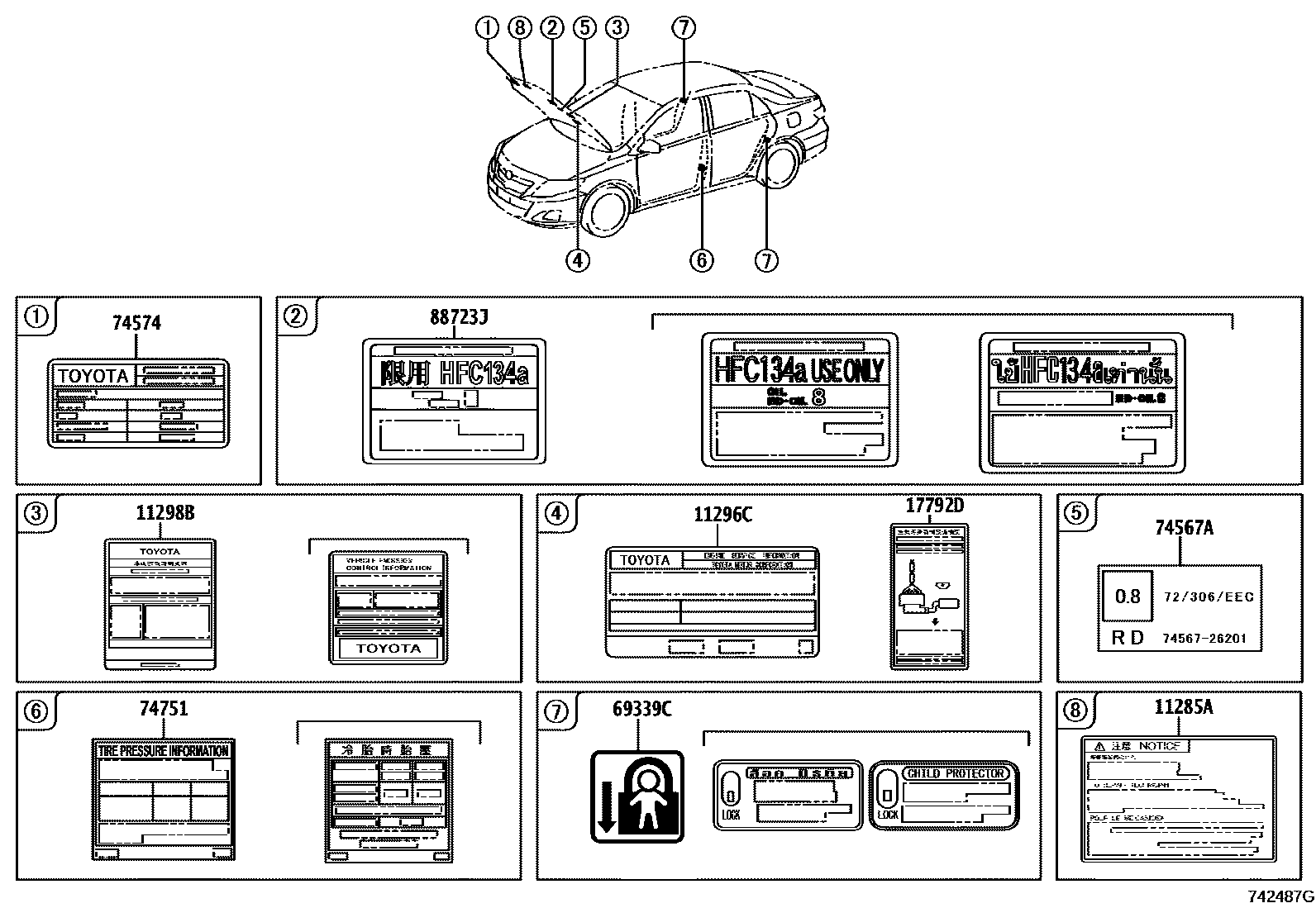

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-33040 |
| 11295B | No. 1 Engine Maintenance Attention Label | 11295-33010 |
| 11295C | No. 2 Engine Maintenance Attention Label | 11295-33010 |
| 11296C | Engine maintenance information label | 11296-0D010 |
| 11296D | Engine maintenance information label | 11296-0B010 |
| 11298B | Emission Control Information Label | 11298-0D050 · 11298-0D051 · 11298-0D052 · 11298-0D060 · 11298-0D070 · 11298-0D080 · 11298-0T010 · 11298-0T020 · 11298-0T040 · 11298-0T050 · 11298-0T061 · 11298-0T070 · 11298-0T100 · 11298-0T110 · 11298-0T140 · 11298-0T141 · 11298-0T150 · 11298-0T151 |
| 16793B | Cooling fan information label | 16793-02010 · 16793-0T030 · 16793-11010 · 16793-46010 |
| 17791A | Maintenance information label | 17791-55010 |
| 17792D | Emission control device information label | 17792-0D040 · 17792-0D041 · 17792-0D050 · 17792-0T010 · 17792-0T030 · 17792-0T041 · 17792-0T051 |
| 23923A | Fuel Precipitator Caution Label | 23923-30030 · 23923-64011 |
| 69339C | Child Restraint Information Label | 69339-02060 · 69339-06060 · 69339-06070 · 69339-0A010 · 69339-0D030 · 69339-0K010 · 69339-12010 · 69339-20040 · 69339-33040 |
| 74515A | Anti-theft warning nameplate | 74515-33020 |
| 74541E | Small spare tire warning plate | 42668-16020 |
| 74559B | fuel information label | 74559-02030 · 74559-02050 · 74559-14030 · 74559-14050 · 74559-89101 · 74579-0B010 |
| 74567A | E.C.E approval number plate | 74567-26201 |
| 74574 | Noise identification nameplate | 74574-02020 · 74574-02040 · 74574-02050 |
| 74597 | Driver and Passenger Air Bag Warning Labels | 74597-0B020 |
| 74598A | Passenger air bag warning label | 74598-02040 · 74598-30040 |
| 74599B | Driver and passenger air bag information labels | 74599-0B010 |
| 74751 | tire pressure information label | 42661-02A80 · 42661-02A90 · 42661-02B00 · 42661-02B10 · 42661-02B20 · 42661-02B30 · 42661-02E70 · 42661-12C50 · 42661-12E70 |
| 87529B | Cabin filter information label | 87529-02010 · 87529-02070 · 87529-06030 · 87529-0M010 · 87529-50010 |
| 88723J | Cooler No. 2 maintenance warning label | 88723-02080 · 88723-02180 · 88723-02220 · 88723-0K010 · 88733-20020 |
| 89616 | Launch information labels with one click | 89616-30031 · 89616-33010 · 89616-33020 |
