Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 5 PNC and OE references.

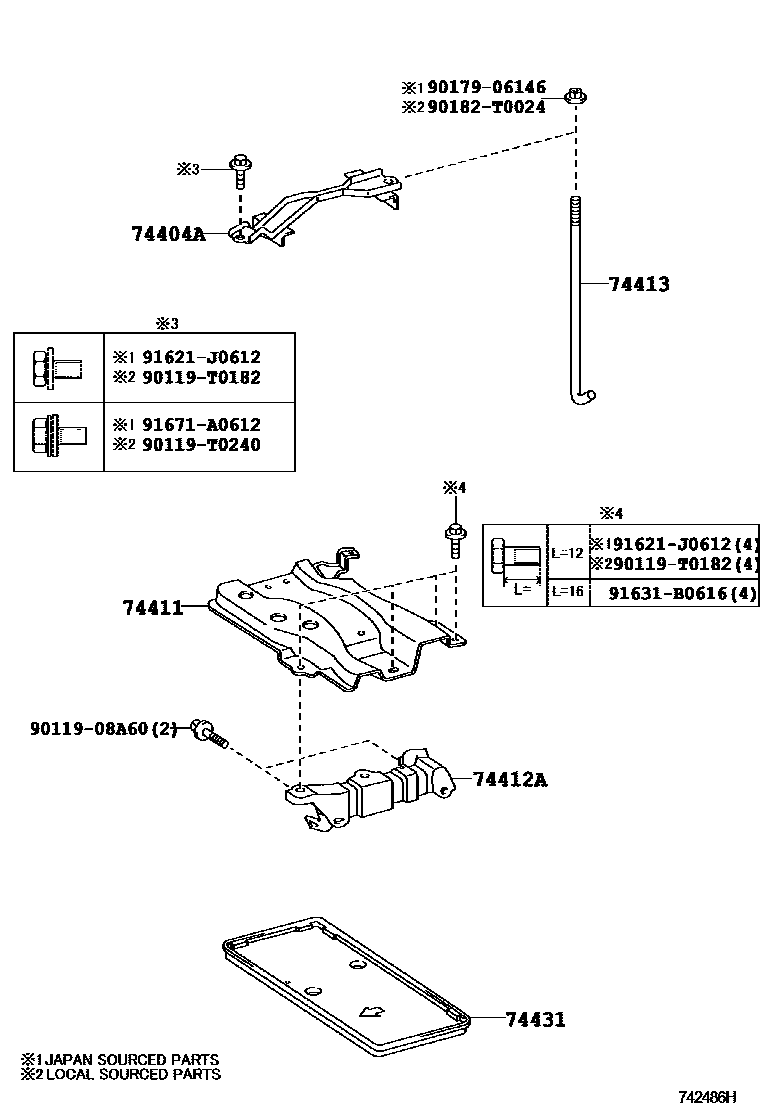

Toyota COROLLA battery holder EPC diagram — 742486H
battery holder — 742486H (200712 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-02200 · 74404-02210 · 74404-02290 · 74404-02300
74411battery holder74401-02050
74412ANo. 2 battery holder74410-02090
74413Battery clamp bolt74451-02110 · 74451-58011
74431battery tray74431-02280 · 74431-02290 · 74431-02300 · 74431-12060
