Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

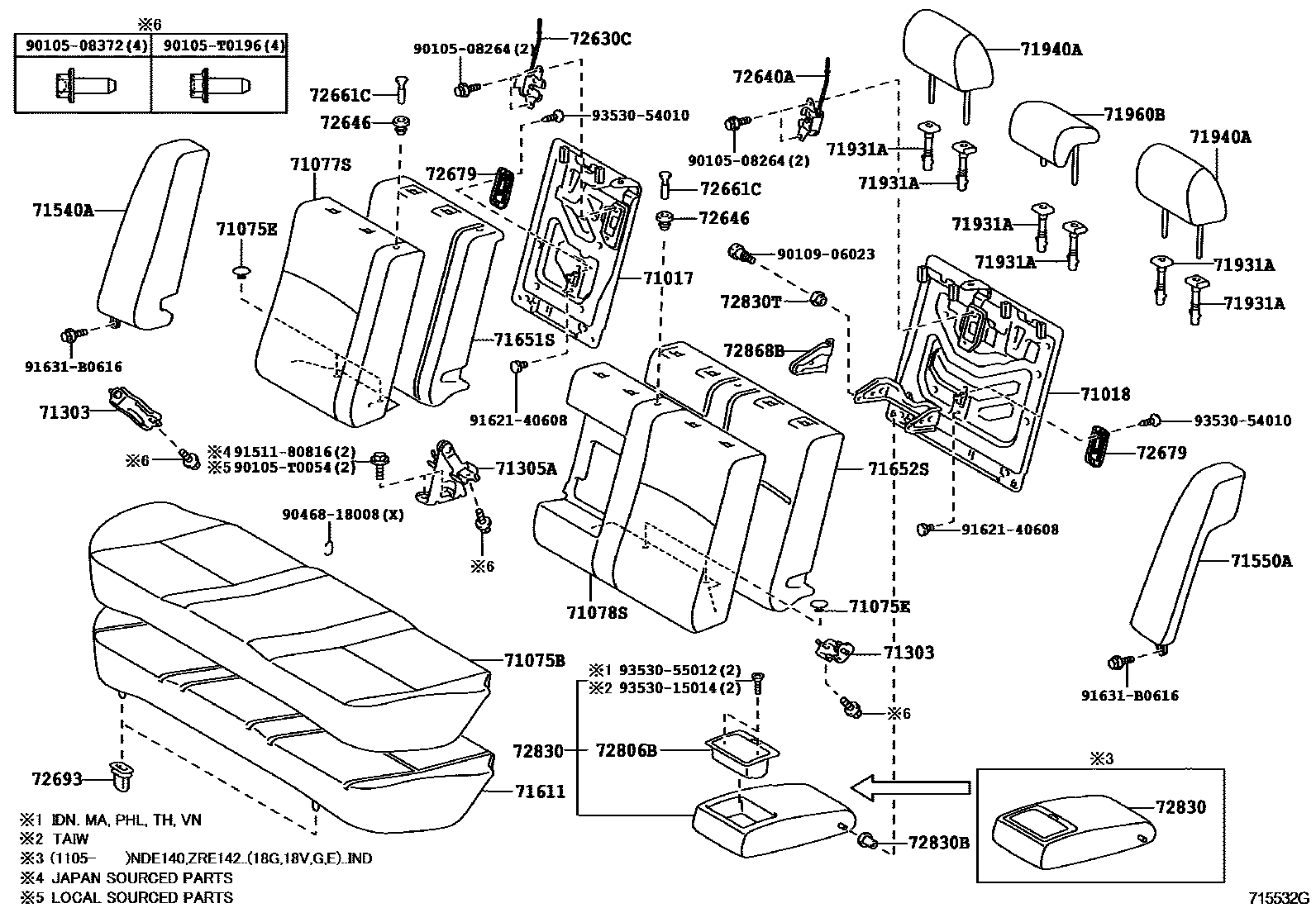

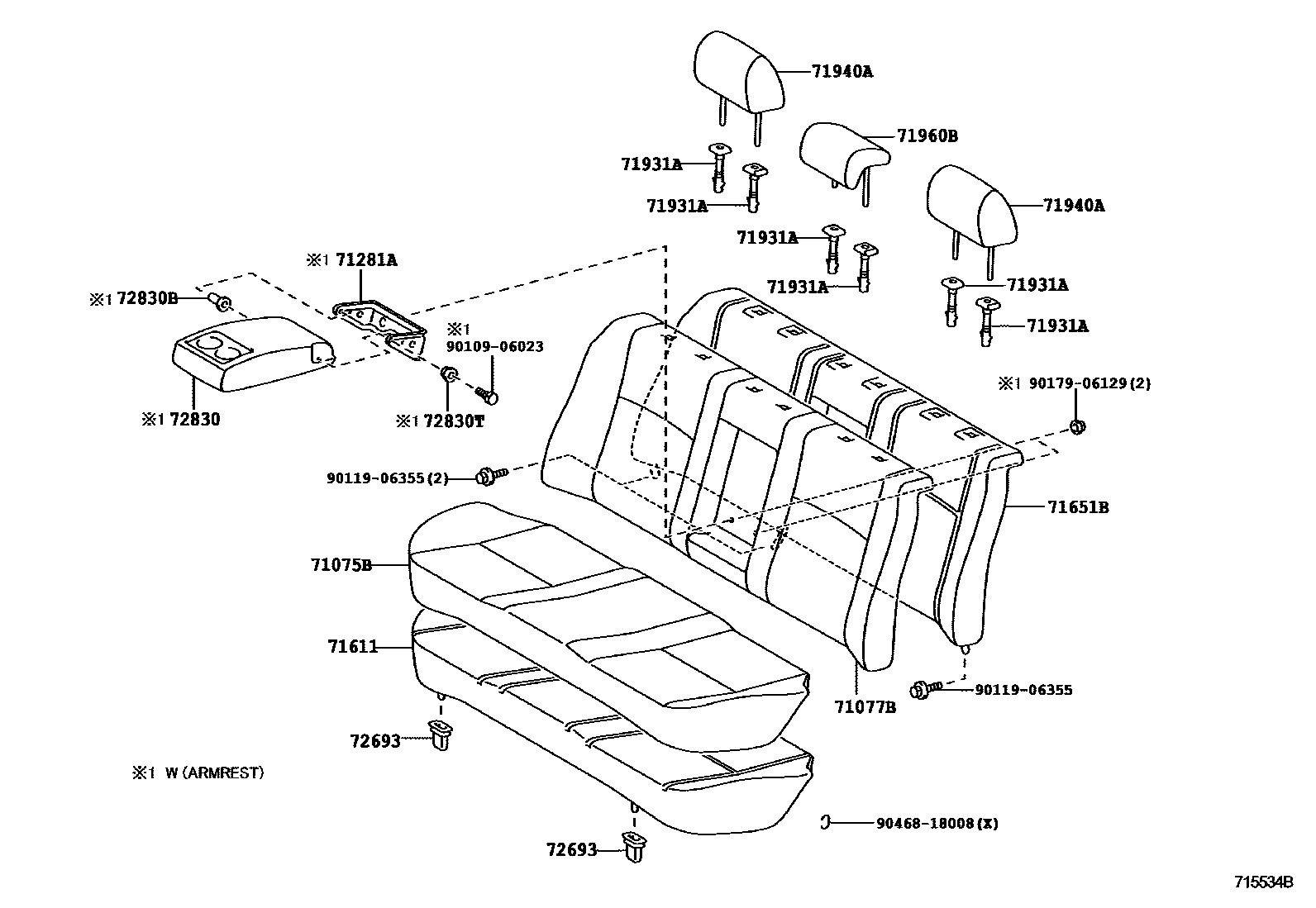

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-02370 · 71017-02390 · 71017-02400 · 71017-02480 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02230 · 71018-02250 · 71018-02260 · 71018-02280 |
| 71281A | Rear seat center armrest hinge | 71281-02040 · 71281-12040 |
| 71303 | Rear seat back hinge sub-assembly | 71303-02160 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02160 · 71305-02180 |
| 71611 | Rear seat cushion cushion | 71503-02160 · 71503-02170 · 71503-02180 · 71503-02190 · 71503-02200 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-02160 · 71507-02170 · 71507-02180 · 71507-02190 · 71507-02200 · 71507-02230 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02250 · 71651-02370 · 71651-02380 · 71651-02390 · 71651-02400 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02230 · 71652-02360 · 71652-02370 · 71652-02380 · 71652-02390 |
| 72630C | Rear right seat back lock assembly | 72630-12350 · 72630-47010 |
| 72640A | Rear left seat back lock assembly | 72640-12320 · 72640-47010 |
| 72693 | Rear seat cushion hook | 72693-02020 · 72693-12080 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06011 |
| 72830T | Bushing (for rear seat center armrest) | 90386-08077 |
