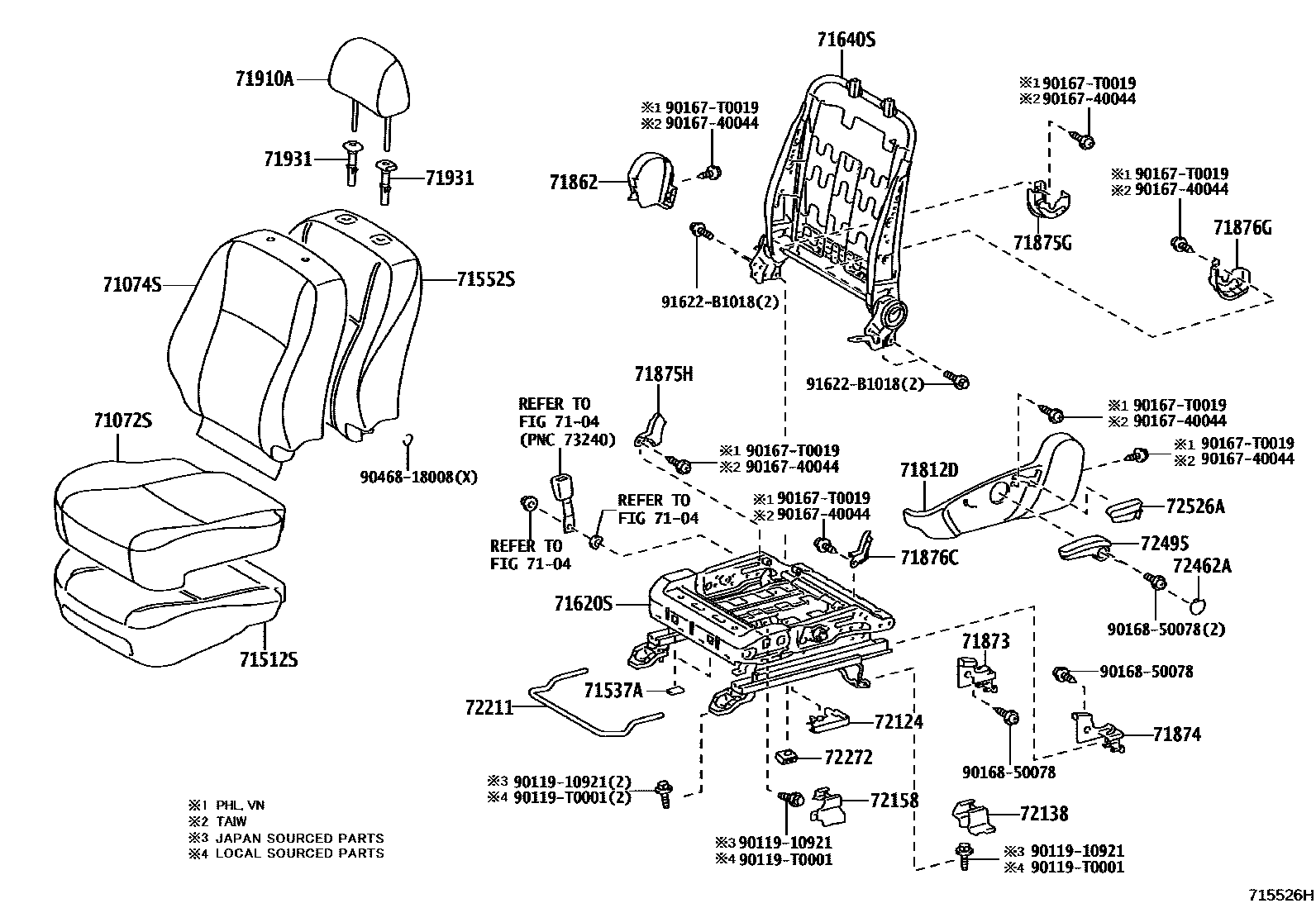

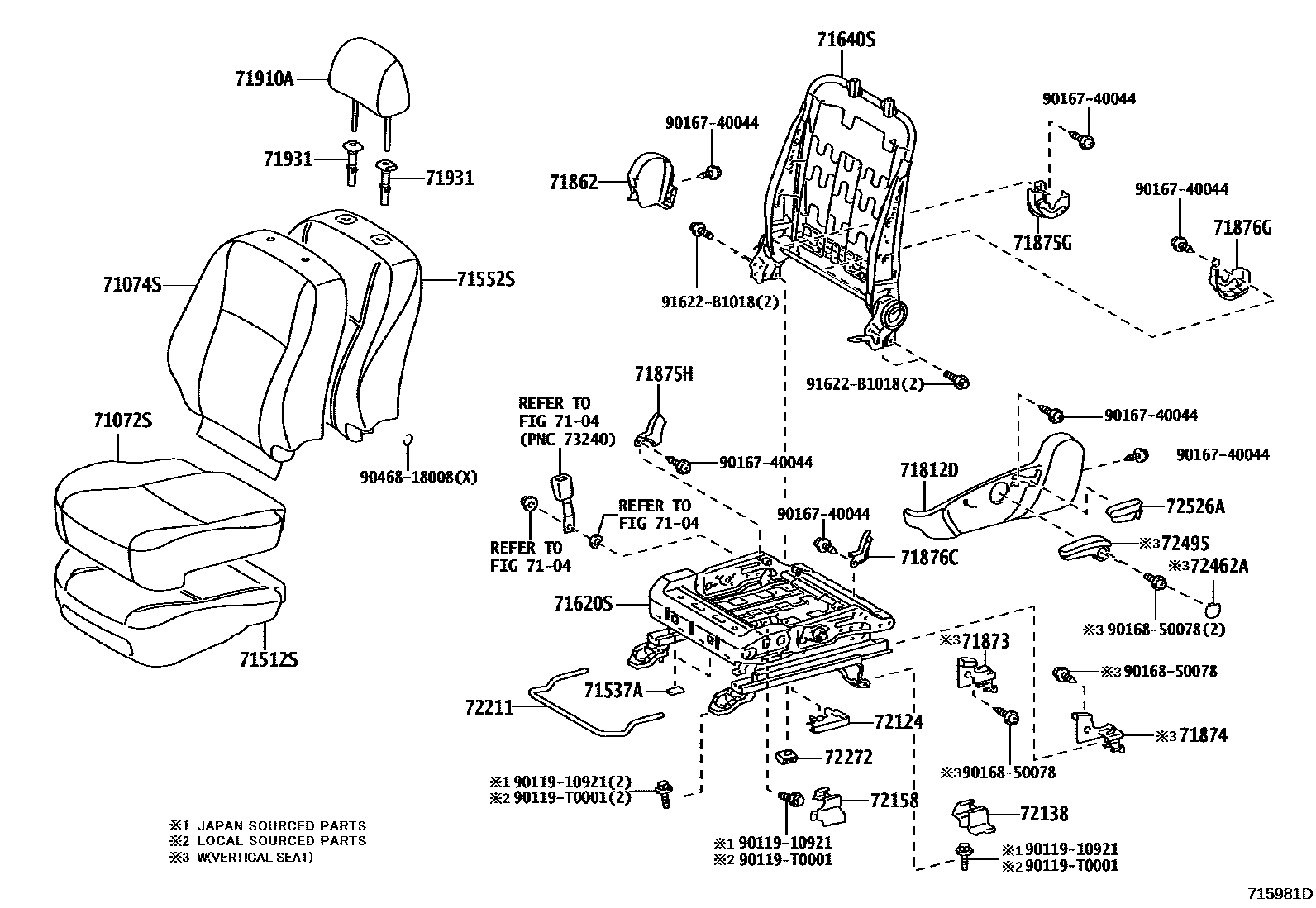

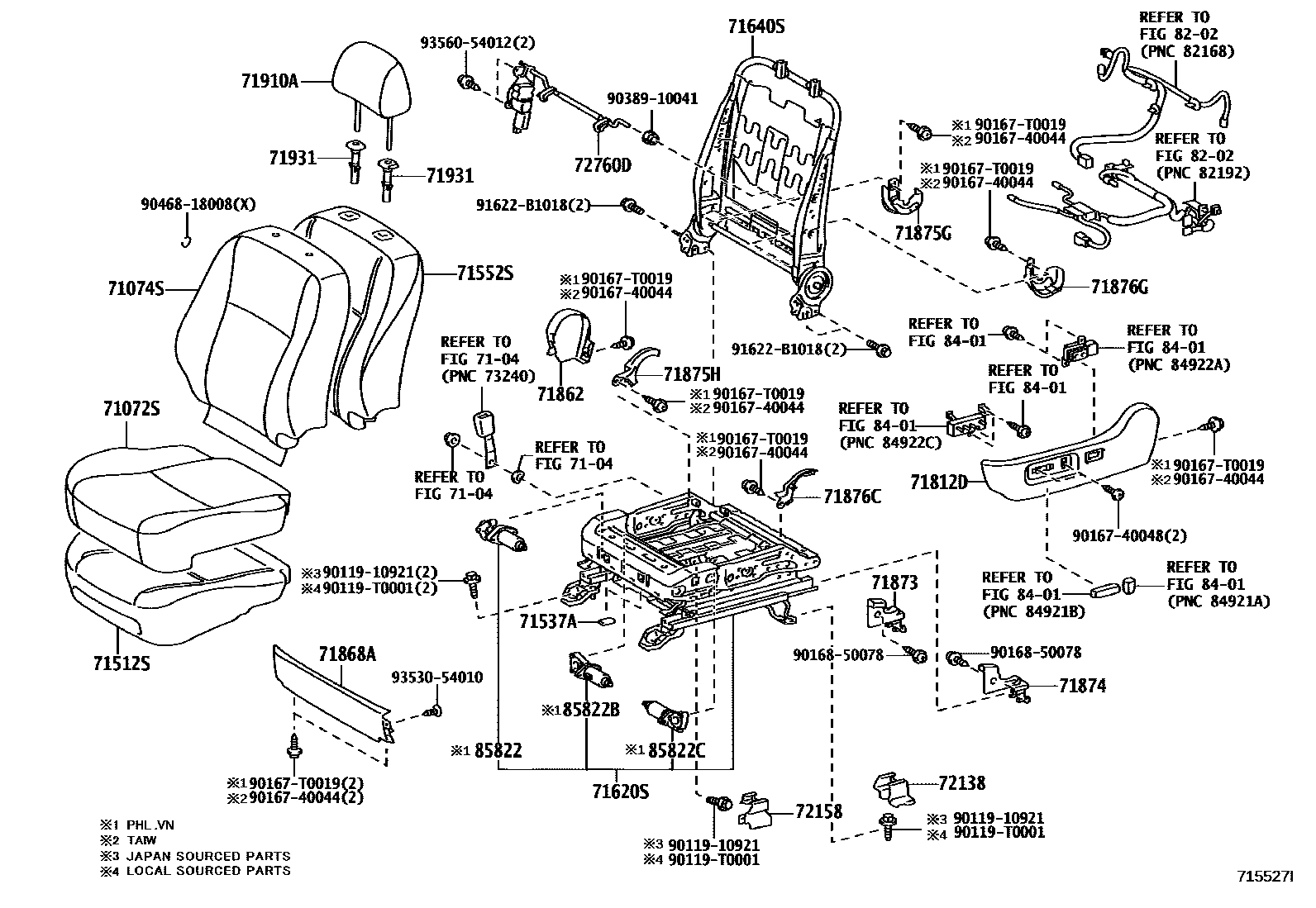

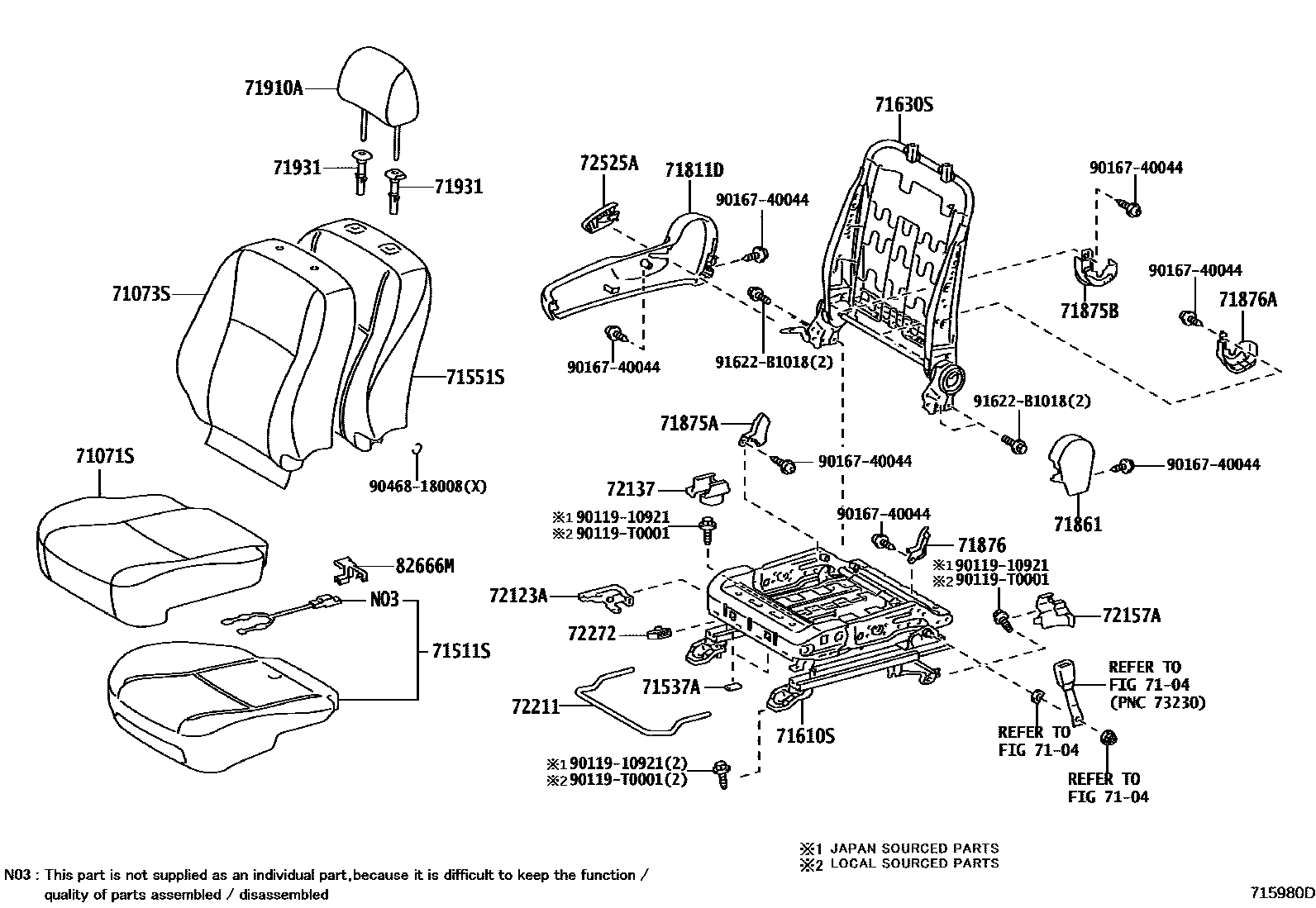

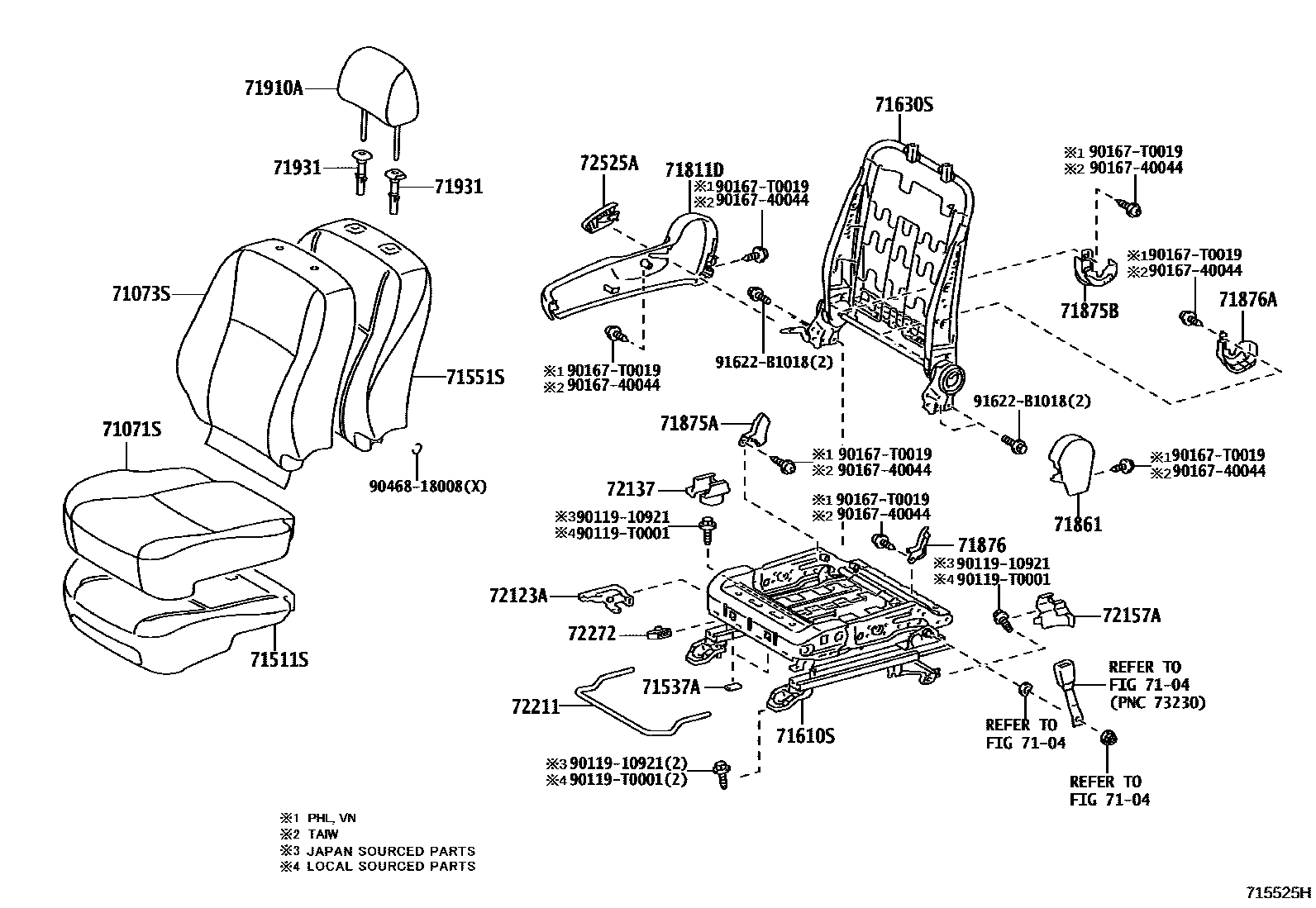

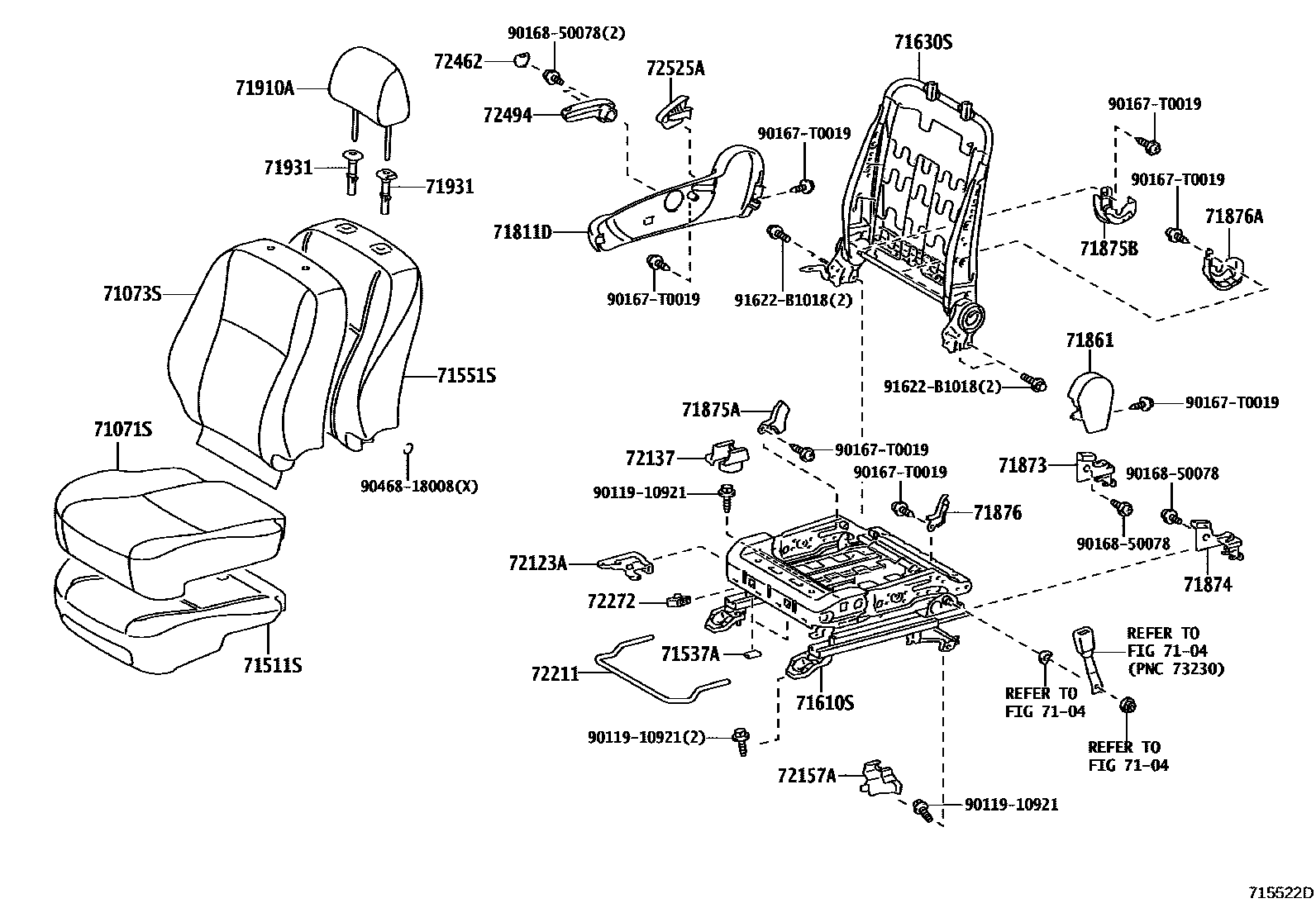

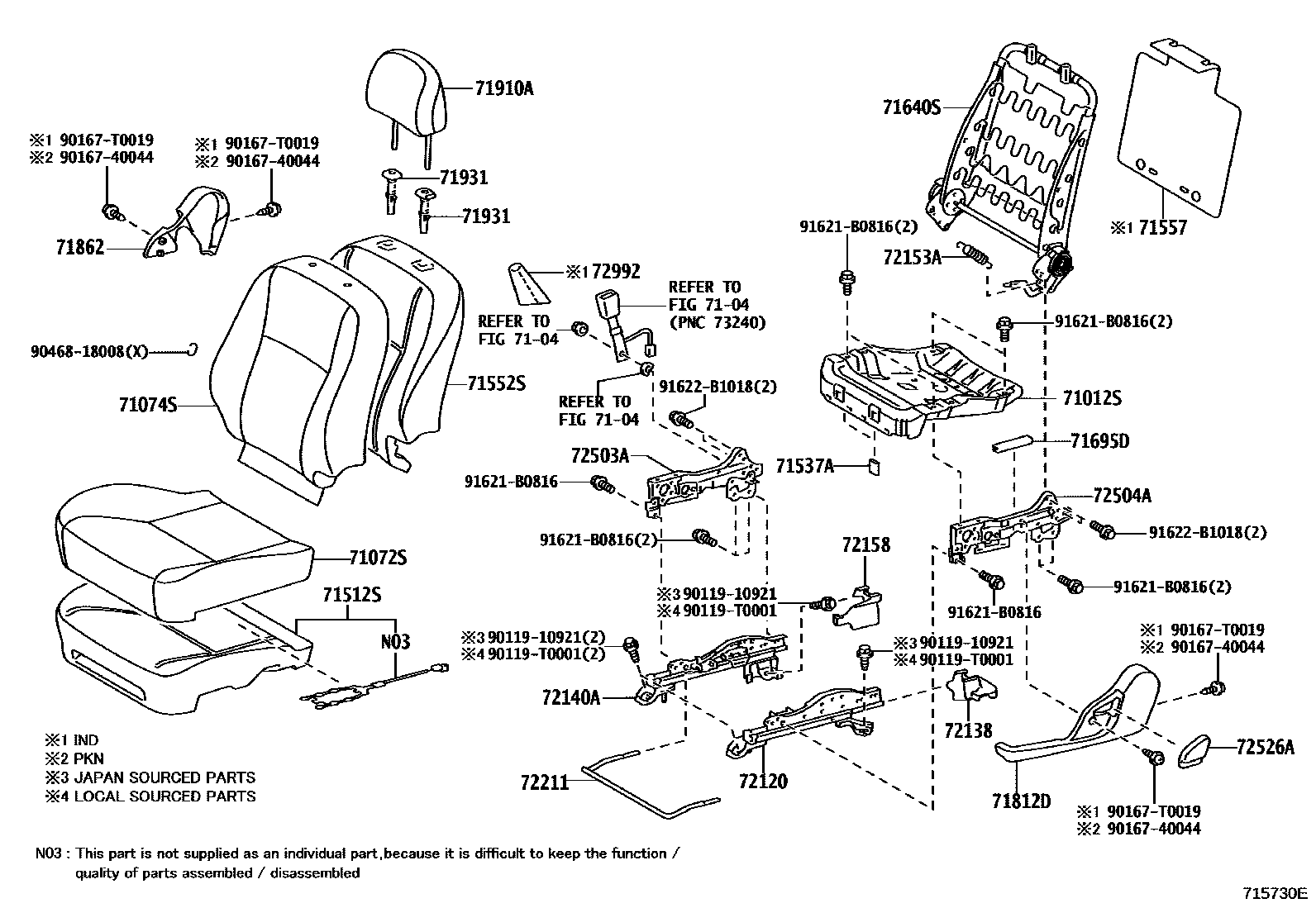

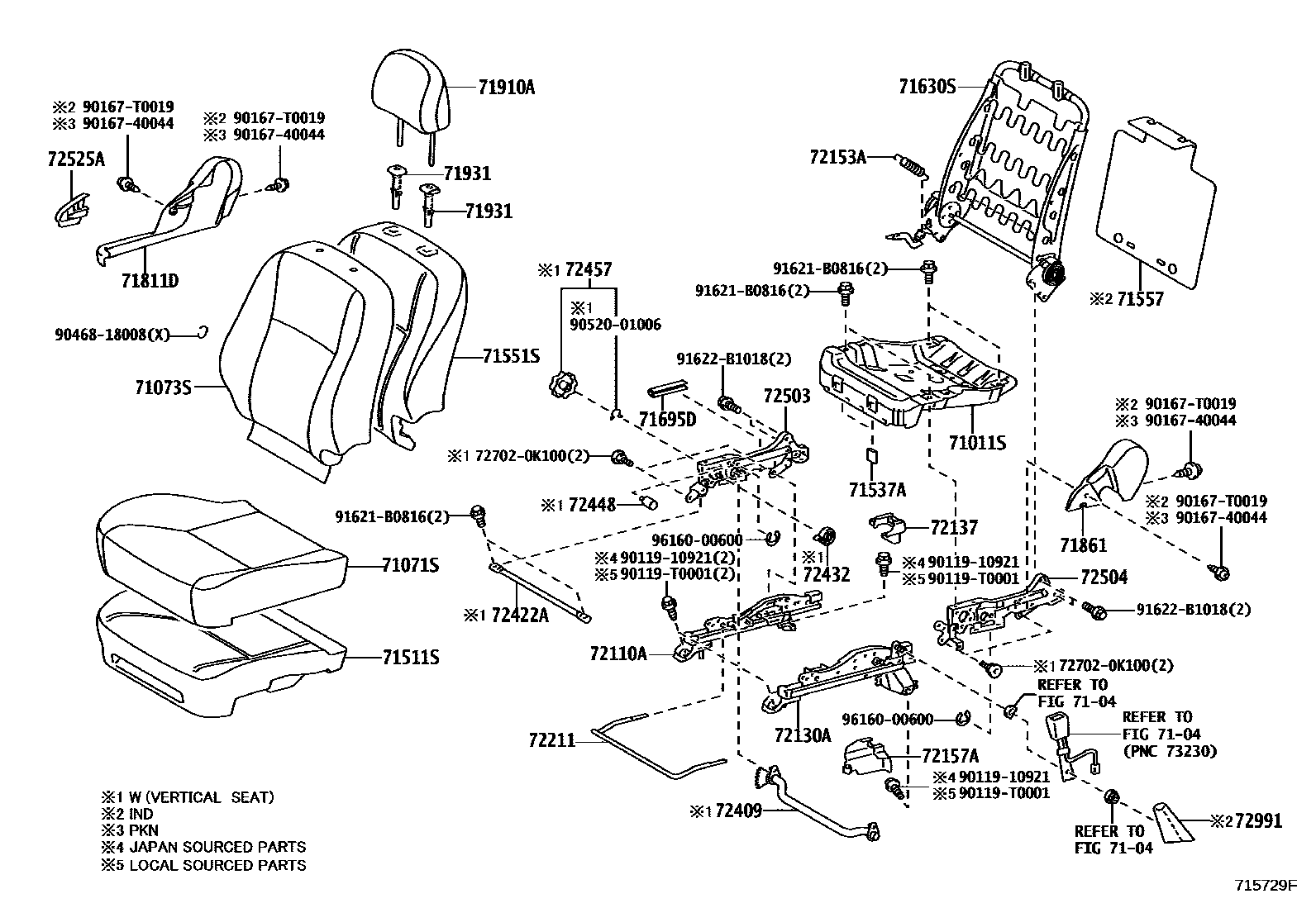

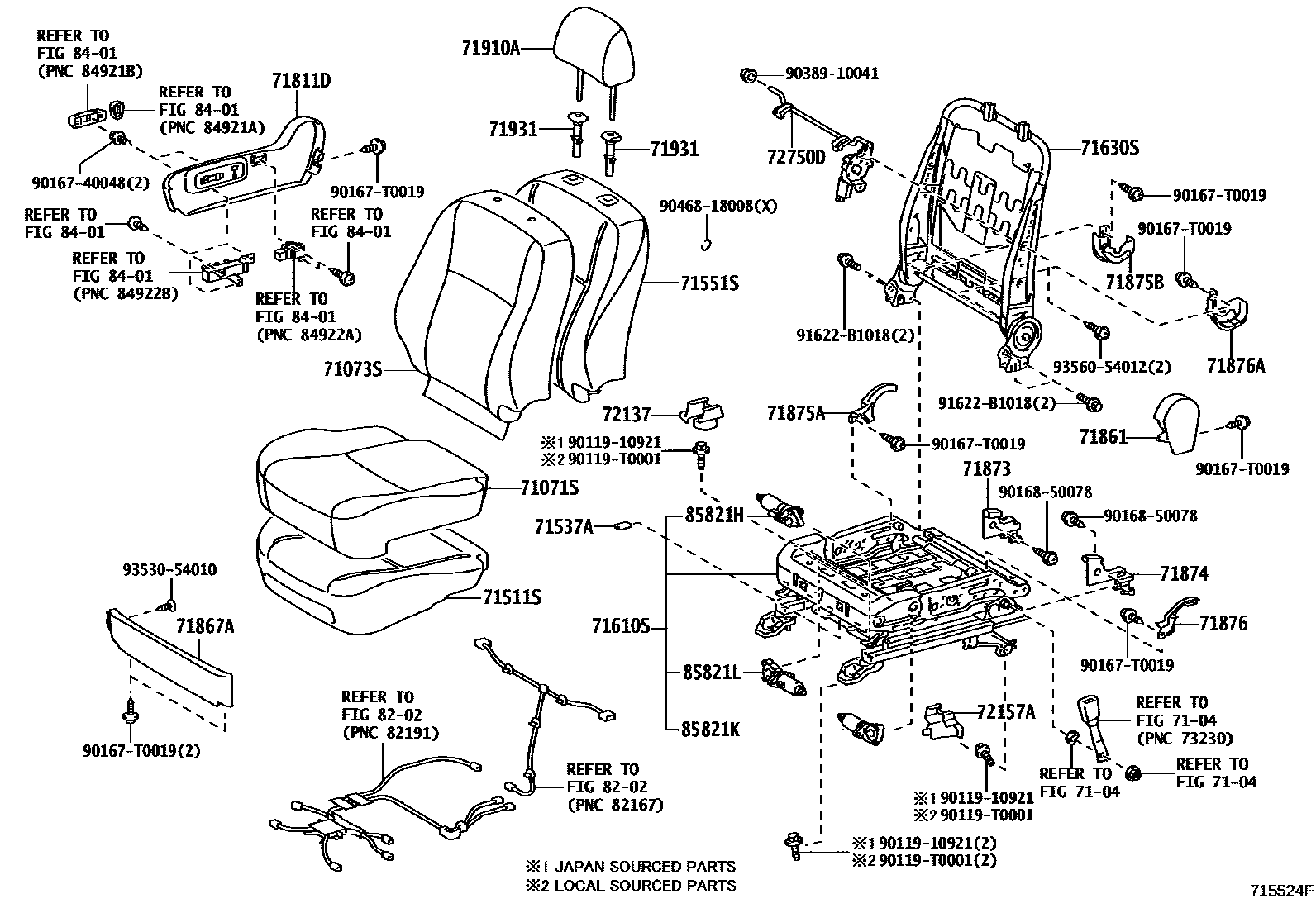

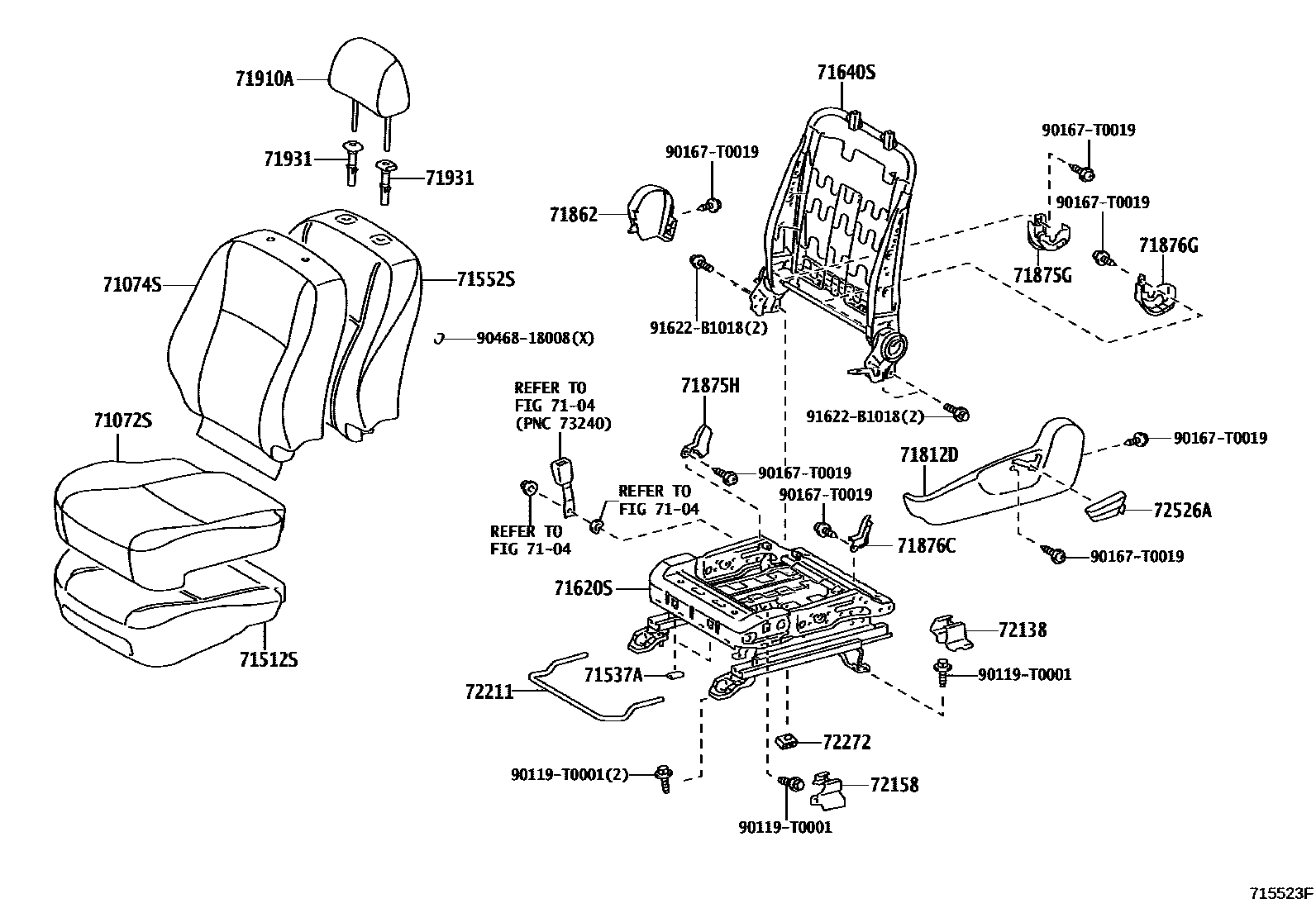

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 10 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-0K030 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-0K030 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-02170 · 71511-02490 · 71511-02500 · 71511-02510 · 71511-02520 · 71511-02530 · 71511-02540 · 71511-02550 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-02160 · 71512-02050 · 71512-02200 · 71512-02210 · 71512-02270 · 71512-02280 · 71512-02290 · 71512-02310 · 71512-02320 · 71512-02370 |
| 71537A | Front seat cushion protective cover | 71537-0K020 · 71537-26010 · 71537-26011 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02600 · 71551-02620 · 71551-02630 · 71551-02650 · 71551-02660 · 71551-02710 |
| 71552S | Front left seat back cushion (for split seats) | 71552-02440 · 71552-02450 · 71552-02470 · 71552-02480 · 71552-02500 |
| 71557 | Lower lining of front seat backrest | 79169-0K080 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-02030 · 71610-02040 · 71610-02050 · 71610-02080 · 71610-02081 · 71610-02090 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-02070 · 71620-02080 · 71620-02110 · 71620-02111 · 71620-02120 · 71620-02130 · 71620-02131 · 71620-02140 · 71620-02150 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02290 · 71630-02450 · 71630-02470 · 71630-02490 · 71630-0K040 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-02230 · 71640-02360 · 71640-02370 · 71640-02390 · 71640-02430 · 71640-0K040 |
| 71695D | seat cover | 71537-0K010 · 71537-71010 |
| 71867A | Front right seat No. 1 seat cushion inner protection panel | 71867-02010 |
| 71873 | Front right seat cushion lower guard panel | 71873-06250 |
| 71874 | Front left seat cushion lower guard | 71874-06260 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-06310 · 71875-06370 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71875-06370 |
| 71876A | Left backrest tilt adjuster inner cover | 71876-06400 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-06080 · 71876-06400 |
| 72110A | Front right seat outer slide rail assembly | 72110-02090 · 72110-02120 |
| 72120 | Front left seat outer slide rail assembly | 72120-02100 · 72120-02130 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-02040 · 72123-02050 |
| 72124 | Front left seat outer slide rail bracket cover | 72124-02040 · 72124-02050 |
| 72130A | Front right seat inner slide rail assembly | 72130-02090 · 72130-02120 |
| 72137 | Right seat outer slide rail cover | 72137-02170 · 72137-02190 |
| 72138 | Left seat outer slide rail cover | 72138-02150 · 72138-02160 |
| 72140A | Front left seat inner slide rail assembly | 72140-02100 · 72140-02130 |
| 72153A | Spring (for seat back tilt remote control) | 72637-0K010 |
| 72157A | Right seat inner slide rail bracket cover | 72157-02170 · 72157-02180 · 72157-02220 |
| 72158 | Left seat inner slide rail bracket cover | 72158-02160 · 72158-02170 |
| 72211 | Seat slide adjustment handle | 72211-06020 · 72211-0K010 · 72211-0K030 |
| 72272 | Seat rail control cable clip | 72272-02050 |
| 72409 | Height adjustment shaft sub-assembly | 72409-0K030 |
| 72422A | Front seat adjuster lever | 72422-0K020 |
| 72432 | seat adjustment spring | 44344-0K010 |
| 72448 | Front right seat adjuster pin No. 2 | 72448-0K010 |
| 72503 | Right seat back recline adjuster lower arm sub-assembly | 72503-0K030 · 72503-0K050 |
| 72503A | Right seat back recline adjuster lower arm sub-assembly | 72503-0K040 · 72503-0K041 · 72503-0K070 |
| 72504 | Left seat back tilt adjuster lower arm sub-assembly | 72504-0K040 · 72504-0K041 · 72504-0K050 |
| 72504A | Left seat back tilt adjuster lower arm sub-assembly | 72504-0K030 · 72504-0K080 |
| 72750D | Right lumbar support adjuster assembly | 72750-06020 |
| 72760D | Left lumbar support adjuster assembly | 72760-06030 |
| 72991 | Front right seat cushion cover | 72991-0K010 |
| 72992 | Front left seat cushion cover | 72991-0K020 |
| 82666M | Connector holder | 82666-12420 |
| 85821H | Right electric seat sliding motor assembly | 85801-06010 |
| 85821K | Right electric seat tilt adjustment motor assembly | 85801-06070 |
| 85821L | Right electric seat height adjustment motor assembly | 85801-06050 |
| 85822 | Left electric seat sliding motor assembly | 85801-06020 |
| 85822B | Left electric seat tilt adjustment motor assembly | 85801-06080 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-06060 |
