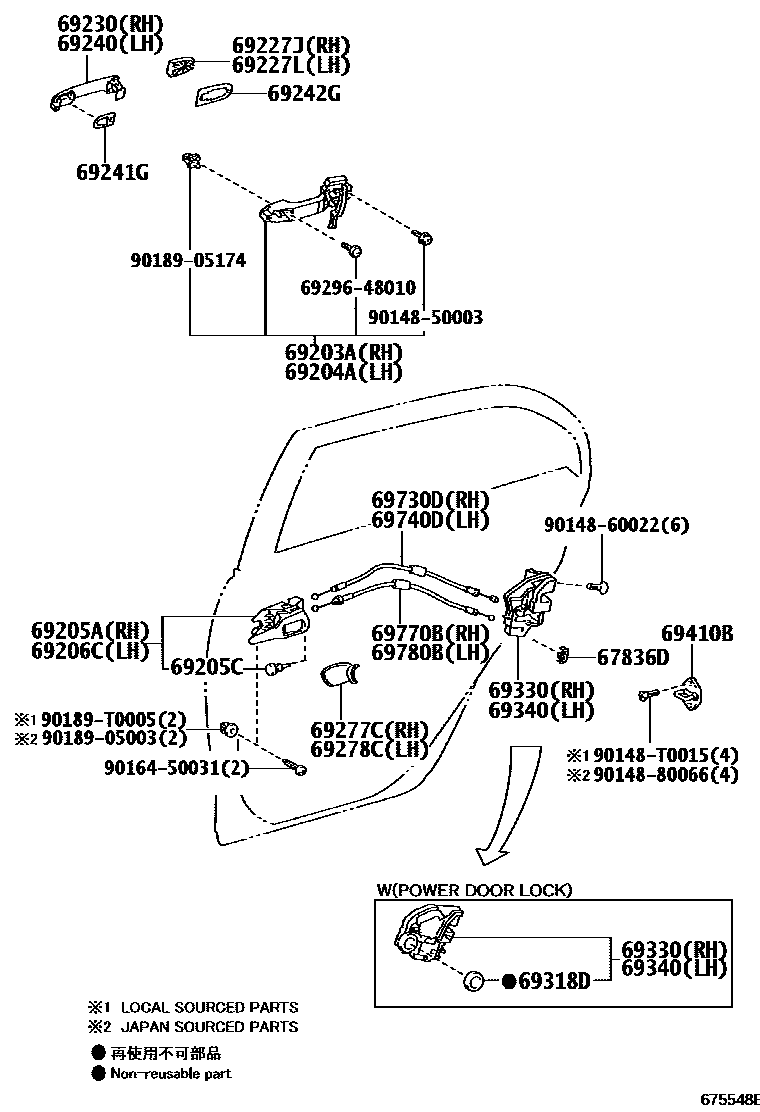

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836D | Rear door lock child restraint cover | 67836-02030 · 67836-06030 · 67836-0K020 · 67836-12040 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-02100 · 69203-02160 · 69203-02170 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-02100 · 69204-02160 · 69204-02170 · 69204-12110 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04027 |
| 69227J | Right rear door outer handle cover | 69227-02070 · 69227-02140 · 69227-02903 · 69227-06030 · 69227-06031 · 69227-06906 · 69227-0K030 · 69227-0K110 · 69227-0K904 · 69227-42060 · 69227-42901 |
| 69227L | Left rear door outer handle cover | 69227-02070 · 69227-02140 · 69227-02903 · 69227-06030 · 69227-06031 · 69227-06906 · 69227-0K030 · 69227-0K110 · 69227-0K904 · 69227-42060 · 69227-42901 |
| 69230 | Right rear door outer handle assembly | 69210-02070 · 69210-06040 · 69210-06905 · 69210-06931 · 69210-0K030 · 69210-0K900 · 69211-02130 · 69211-0K020 · 69211-12903 · 69211-42010 |
| 69240 | Left rear door outer handle assembly | 69210-02070 · 69210-06040 · 69210-06905 · 69210-06931 · 69210-0K030 · 69210-0K900 · 69211-02130 · 69211-0K020 · 69211-12903 · 69211-42010 |
| 69241G | Rear door front exterior handle pad | 69241-06030 · 69241-0D060 · 69241-48020 |
| 69242G | Rear door rear outer handle pad | 69242-06020 · 69242-42010 |
| 69318D | door lock harness seal | 69318-51010 |
| 69330 | Right rear door door lock assembly | 69050-02220 · 69050-02260 · 69050-02280 · 69050-02300 · 69050-06060 · 69050-06070 · 69050-0D130 · 69330-0K010 · 69330-0K040 · 69330-12410 |
| 69340 | Left rear door lock assembly | 69060-02210 · 69060-02260 · 69060-02280 · 69060-02300 · 69060-06060 · 69060-06070 · 69060-0D130 · 69340-0K010 · 69340-0K040 · 69340-12410 |
| 69410B | Rear door lock plate assembly | 69410-06010 · 69410-0K010 · 69410-0K050 |
| 69730D | Right rear door lock remote control cable assembly | 69730-02160 · 69730-02170 · 69730-02180 |
| 69740D | Left rear door lock remote control cable assembly | 69730-02160 · 69730-02170 · 69730-02180 |
| 69770B | Right rear door inner lock cable assembly | 69770-02240 · 69770-02250 · 69770-02260 · 69770-02270 · 69770-12220 |
| 69780B | Left rear door inner lock cable assembly | 69770-02240 · 69770-02250 · 69770-02260 · 69770-02270 · 69770-12220 |
