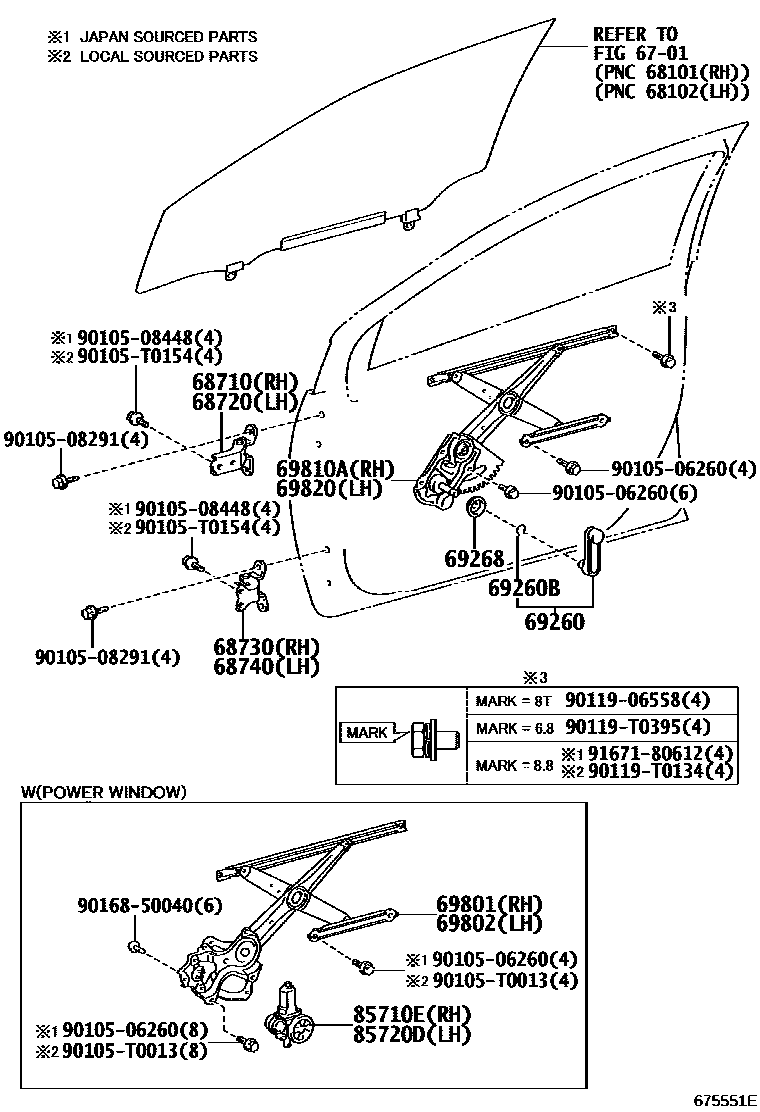

Toyota COROLLA 前门车窗升降器和合页 — Figure 6704
Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-0D050 · 68710-0K030 · 68710-12151 |
| 68720 | Left front door upper hinge assembly | 68720-0D050 · 68720-0K030 · 68720-12151 |
| 68730 | Right front door lower hinge assembly | 68730-02100 |
| 68740 | Left front door lower hinge assembly | 68740-02100 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01274 |
| 69268 | Window lift handle plate | 69268-04020 · 69268-12020 · 69268-52010 |
| 69801 | Right front door window lifter sub-assembly | 69801-02200 · 69801-02220 · 69801-02230 |
| 69802 | Left front door window lifter sub-assembly | 69802-02210 · 69802-02240 · 69802-12220 |
| 69810A | Right front door window lift assembly | 69810-02380 · 69810-12690 |
| 69820 | Left front door window lift assembly | 69820-02390 · 69820-12670 |
| 85710E | Right power window lift motor assembly | 85710-02300 · 85710-06090 · 85710-0K010 · 85710-12361 |
| 85720D | Left electric window lift motor assembly | 85720-02290 · 85720-02360 · 85720-0K010 · 85720-12351 |
