Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

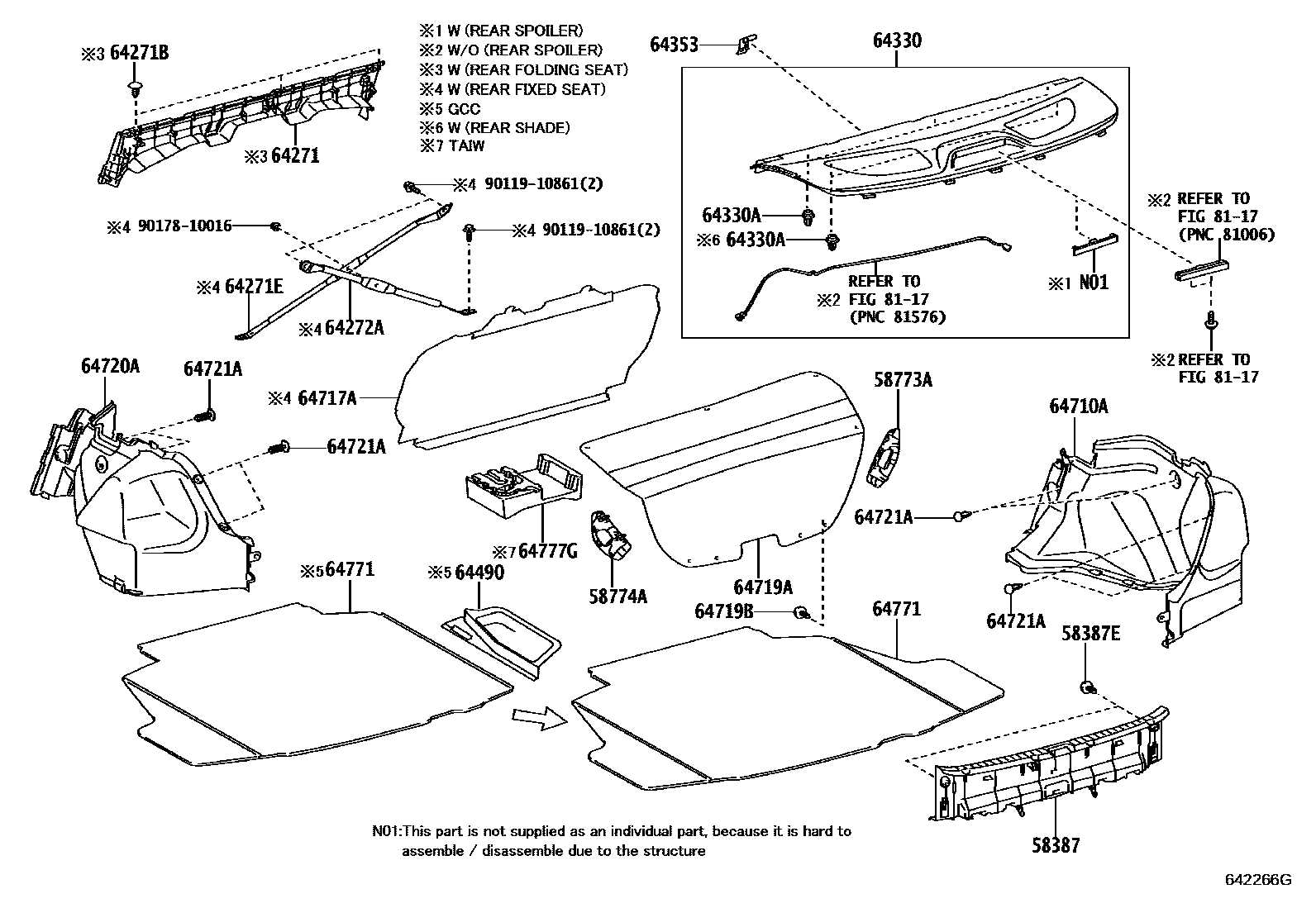

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-02110 · 58387-02120 · 58387-02130 · 58387-02140 · 58387-02180 |
| 58773A | Decorative cover on right side of luggage compartment door | 58773-02110 · 58773-02120 · 58773-02130 · 58773-02140 |
| 58774A | Luggage door left decorative cover | 58774-02100 · 58774-02110 · 58774-02120 · 58774-02130 |
| 64271 | No. 1 compartment partition | 64271-02130 · 64271-02140 · 64271-02150 |
| 64271E | compartment partition | 64241-02050 · 64241-02070 · 64241-02130 · 64241-12050 |
| 64272A | Left compartment partition | 64242-02050 · 64242-02070 · 64242-02130 · 64242-12050 |
| 64330A | Clip (for glove box decorative panel) | 90467-10161 · 90467-T0021 |
| 64490 | Luggage side bracket assembly | 64490-02070 |
| 64717A | Luggage front decorative cover | 64717-02110 · 64717-02120 · 64717-02130 · 64717-02140 |
| 64777G | Spare tire cushion | 64777-02150 |
