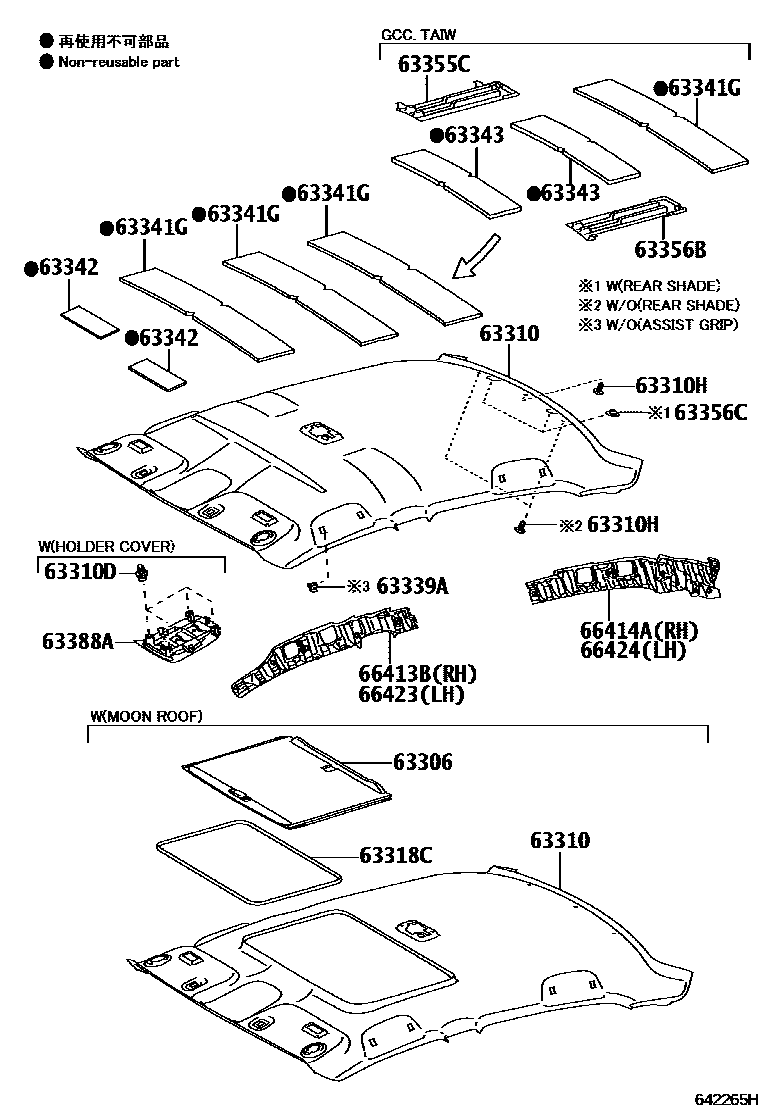

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310D | headliner clip | 90467-10161 |
| 63341G | roof muffler mat | 63341-02180 · 63341-02210 · 63341-02240 · 63341-02250 · 63341-02260 |
| 63342 | No. 2 roof muffler pad | 63342-02230 · 63342-02250 · 63342-02260 · 63342-02300 · 63342-02310 |
| 63343 | No. 3 roof muffler pad | 63342-02330 |
| 63355C | Right side roof lining | 63355-02030 |
| 63356B | Roof left inner lining block | 63356-02060 |
| 66413B | Right front longitudinal member spacer | 66413-02080 · 66413-02090 · 66413-02100 · 66413-02101 |
| 66414A | Right rear longitudinal member spacer | 66414-02100 · 66414-02110 · 66414-02120 · 66414-02121 |
| 66423 | Left front longitudinal member spacer | 66423-02080 · 66423-02090 · 66423-02100 · 66423-02101 |
| 66424 | Left rear longitudinal member spacer | 66424-02100 · 66424-02110 · 66424-02120 · 66424-02121 |
