Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

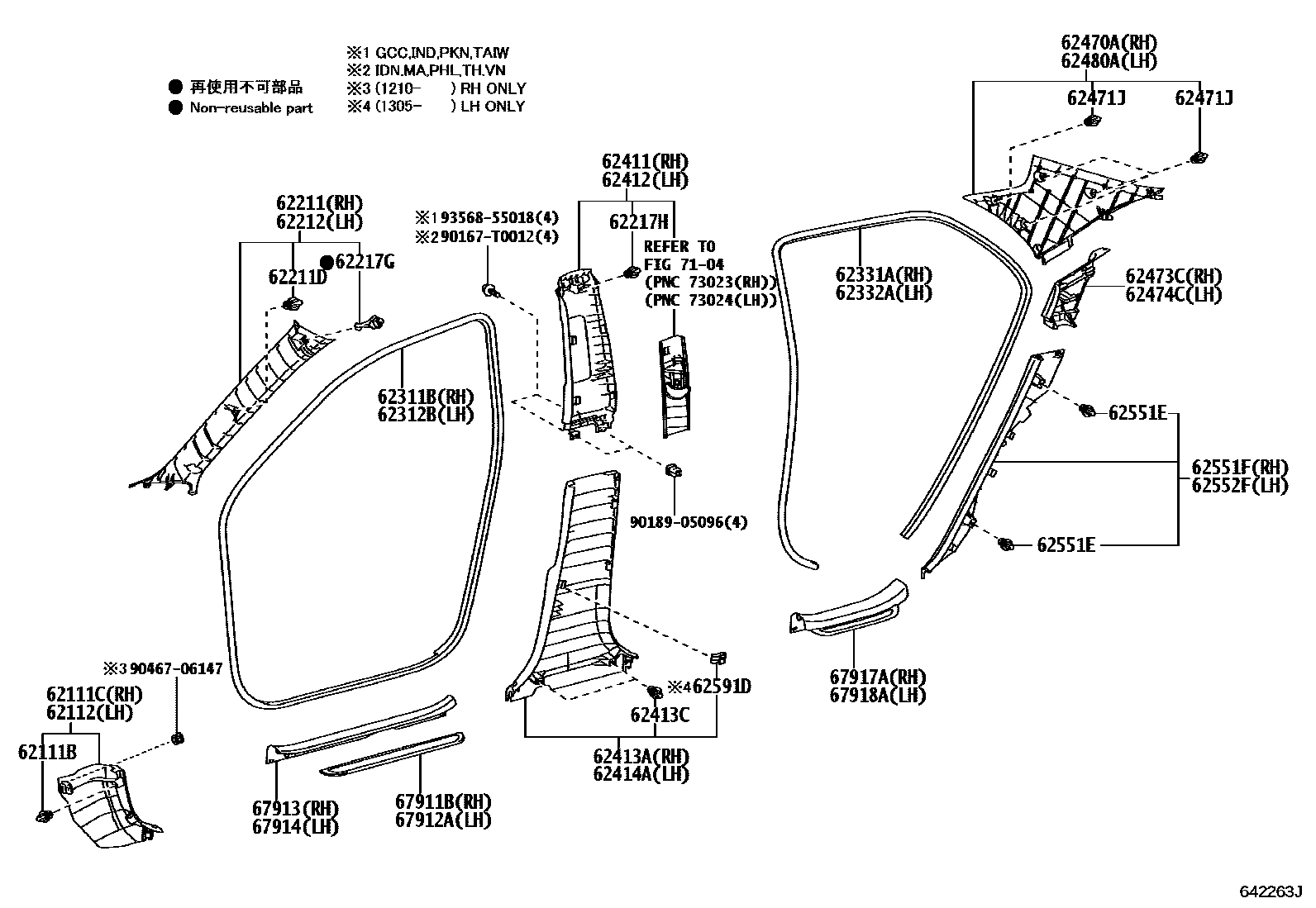

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-10161 · 90467-T0021 |
| 62111C | Right front panel | 62111-02191 |
| 62211D | Clip (for body front pillar decorative panel) | 90467-10161 · 90467-T0021 |
| 62217G | Front pillar decorative plate clip | 62217-52010 |
| 62217H | Center pillar decorative plate clip | 90467-10167 |
| 62413C | Clip (for the decorative panel under the center pillar) | 62217-13010 |
| 62471J | Clips (for roof side trim panels) | 90467-10161 · 90467-T0021 |
| 62551E | Clips (for rear seat side trim panels) | 90467-10161 · 90467-10167 · 90467-T0021 |
| 62591D | No. 1 side trim bottom plate | 62591-12020 |
