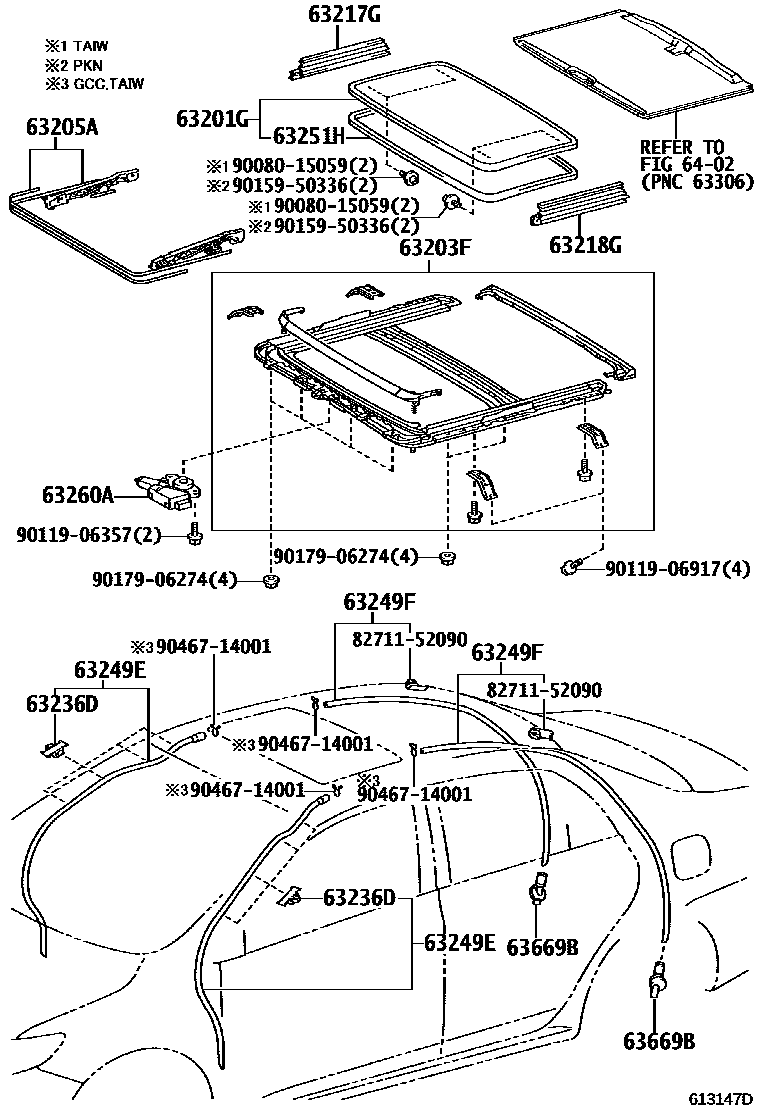

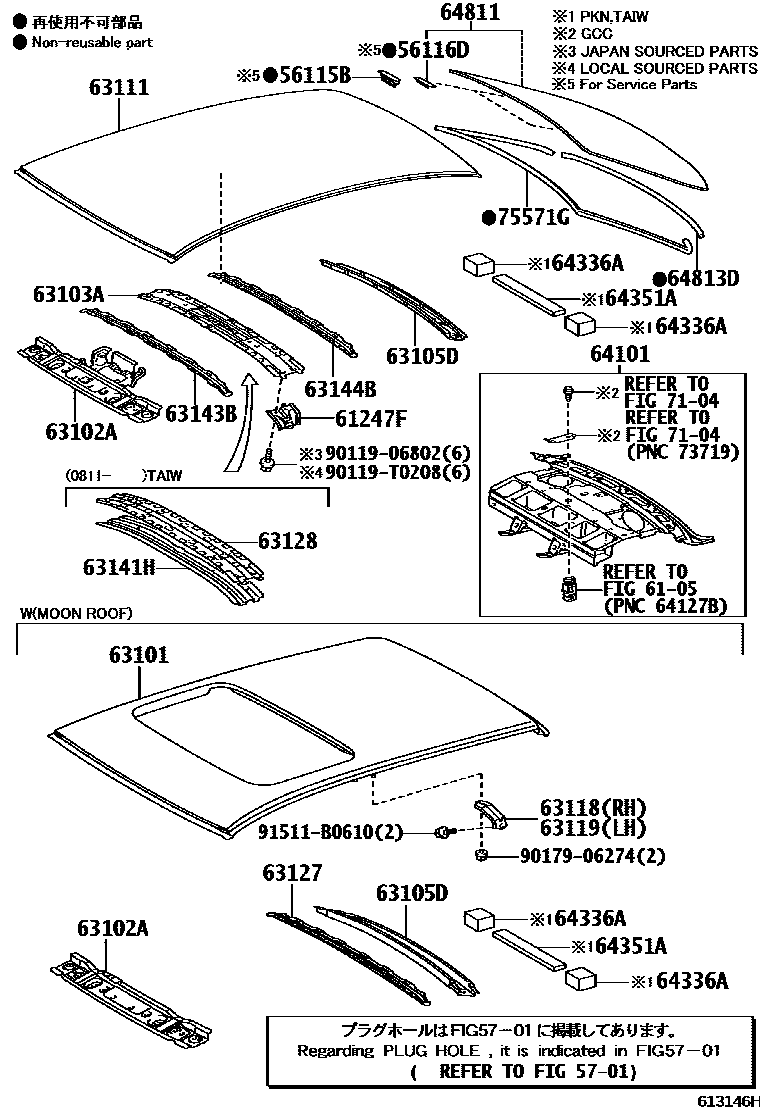

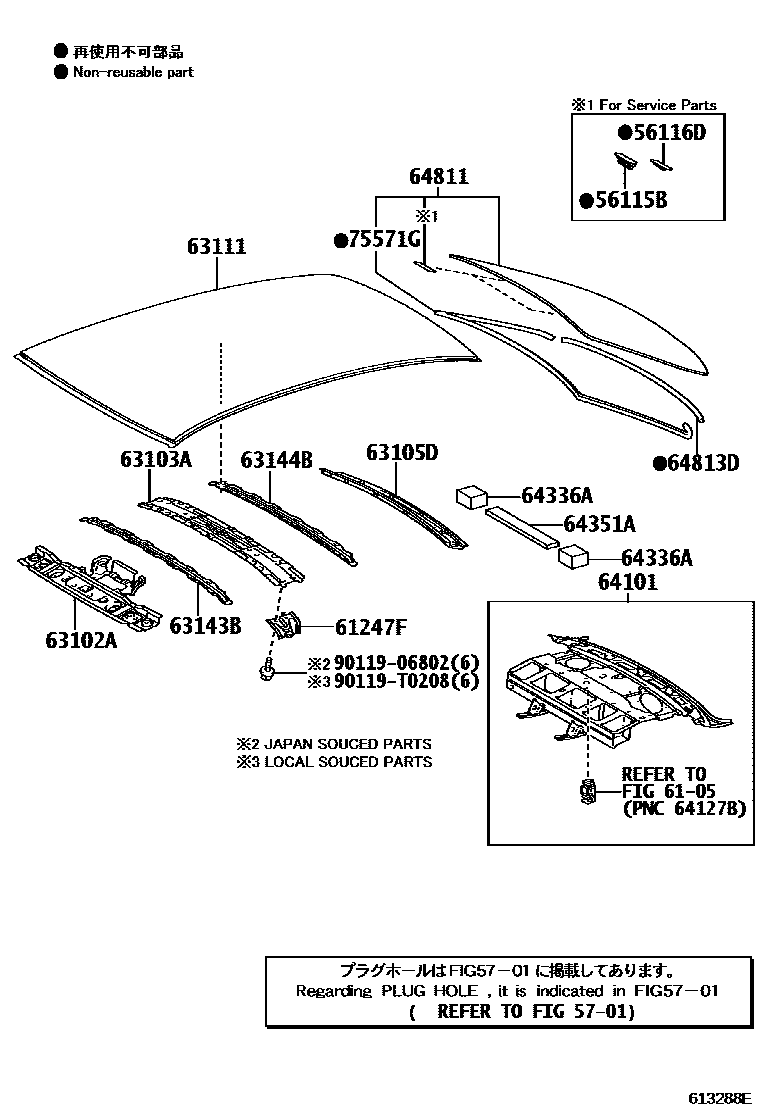

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-02020 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-02080 · 61247-02100 · 61248-02050 |
| 63101 | Roof panel sub-assembly | 63101-02901 |
| 63102A | Windshield roof sub-assembly | 63102-02180 · 63102-02190 · 63102-02200 |
| 63103A | Roof panel reinforcement sub-assembly | 63141-02110 |
| 63105D | Rear window upper frame sub-assembly | 63105-02120 |
| 63111 | roof panel | 63111-02330 |
| 63118 | Right roof panel bracket | 63118-02060 |
| 63119 | Left roof panel bracket | 63118-02060 |
| 63127 | No. 5 roof panel reinforcement | 63127-02050 |
| 63128 | No. 6 roof panel reinforcement | 63128-02040 |
| 63141H | Center roof panel reinforcement | 63141-02130 |
| 63143B | No. 3 roof panel reinforcement | 63143-02080 |
| 63144B | No. 4 roof panel reinforcement | 63144-02100 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-02090 · 63201-13050 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-02050 · 63203-12170 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-06010 · 63205-48010 |
| 63217G | Right sliding sunroof trim | 63217-48030 |
| 63218G | Sliding sunroof trim, left | 63218-48030 |
| 63236D | Sliding skylight drain hose clamp | 63236-12010 |
| 63249E | Sliding skylight drain hose | 63249-02270 · 63249-02280 · 63249-12400 · 63249-12410 |
| 63249F | Sliding skylight drain hose | 63249-02290 · 63249-12430 |
| 63251H | Sliding skylight seal | 63251-63010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-02090 · 63260-12140 |
| 63669B | Sliding skylight drain seal | 90480-26020 |
| 64101 | Upper back panel sub-assembly | 64101-02180 · 64101-02190 · 64101-02200 · 64101-02260 · 64101-02270 · 64101-02300 · 64101-02310 |
| 64336A | Glove box decorative panel side silencer pad | 64336-02030 |
| 64351A | No. 1 glove box decorative mat | 64351-02030 |
| 64811 | back window glass | 64801-02070 · 64801-02901 · 64801-02902 · 64801-02905 · 64801-02907 |
| 64813D | Back window glass adhesive seal | 64813-12180 |
| 75571G | No. 1 rear window outer upper protective strip | 75571-02210 · 75571-02260 · 75571-02290 |
