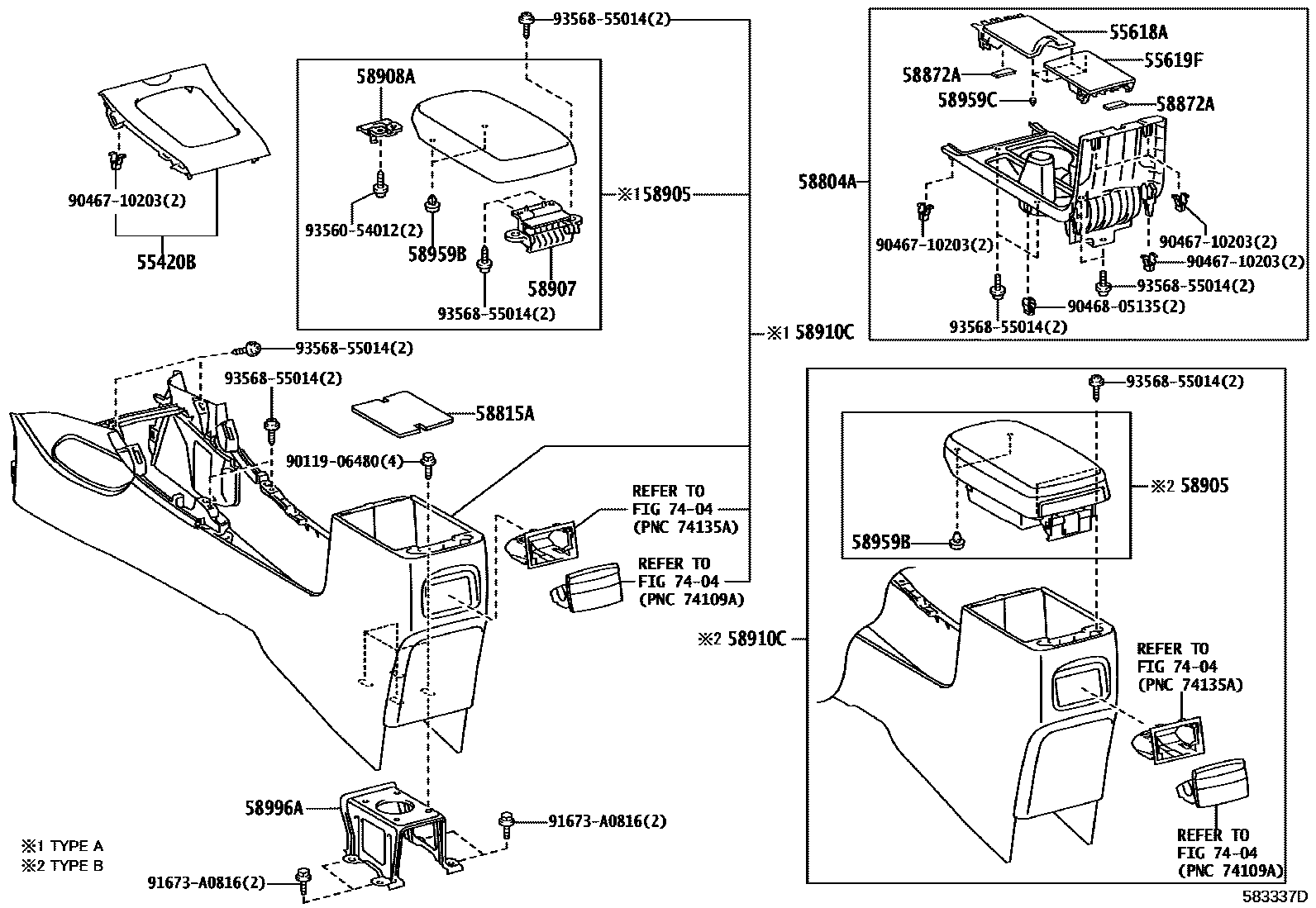

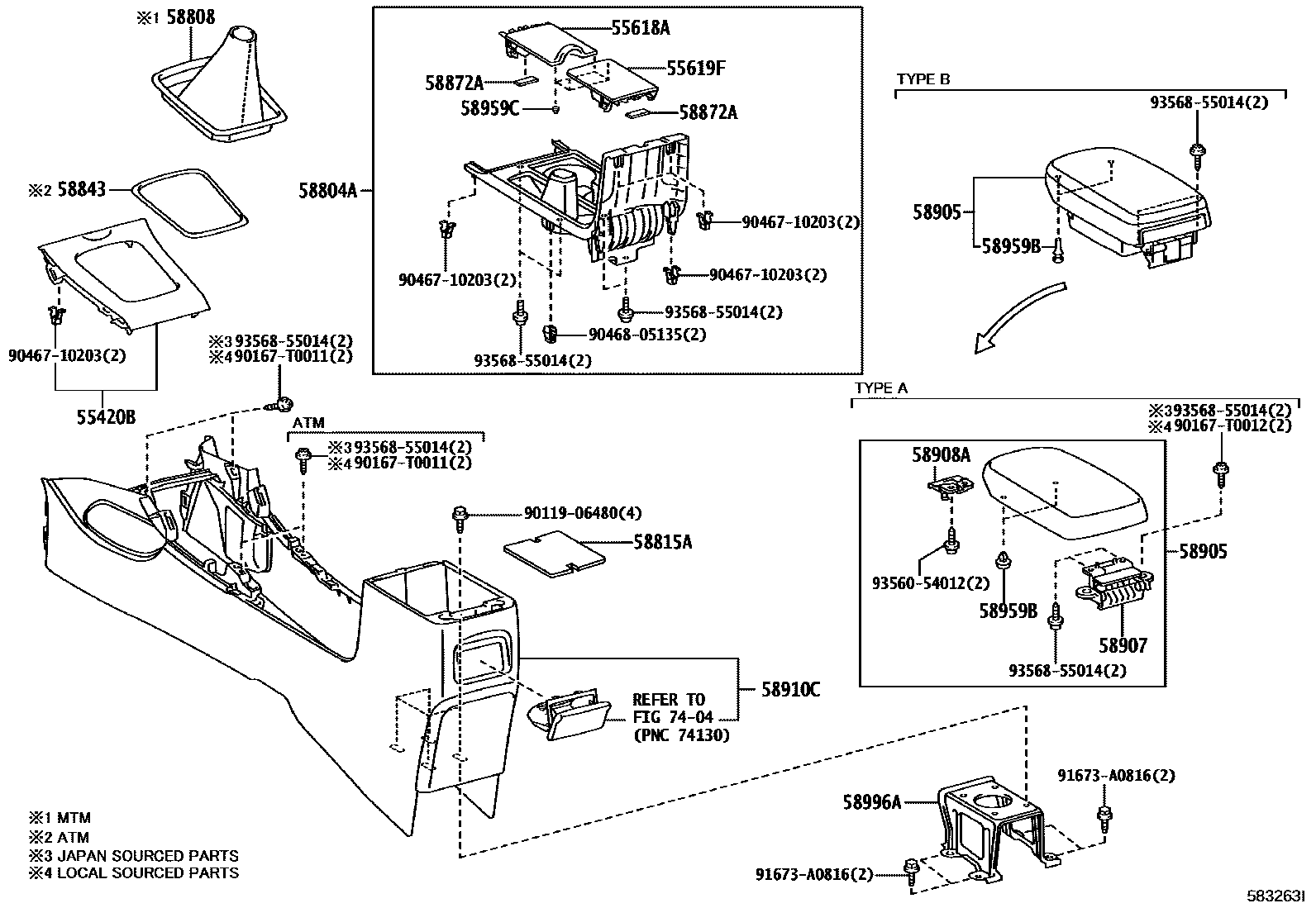

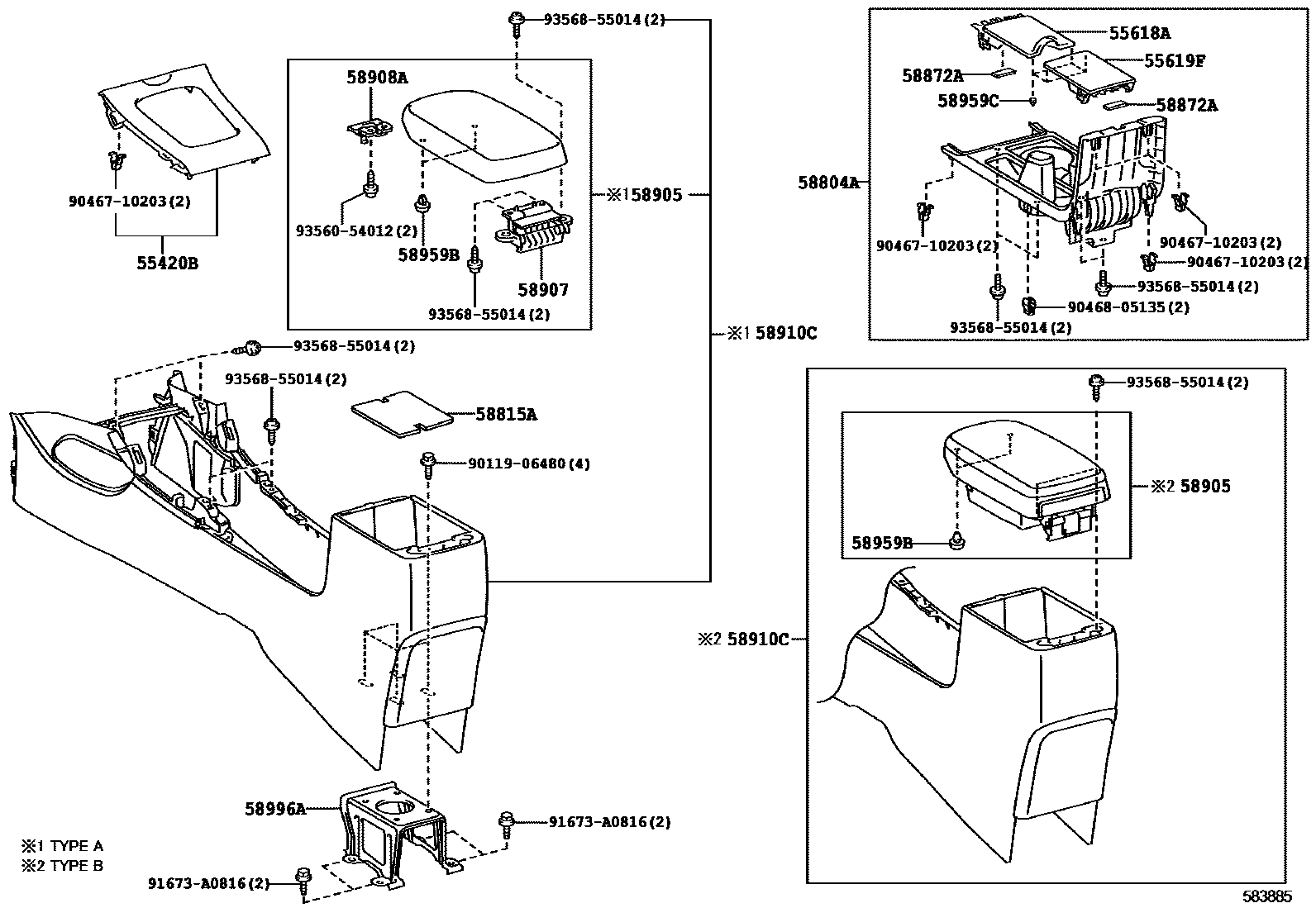

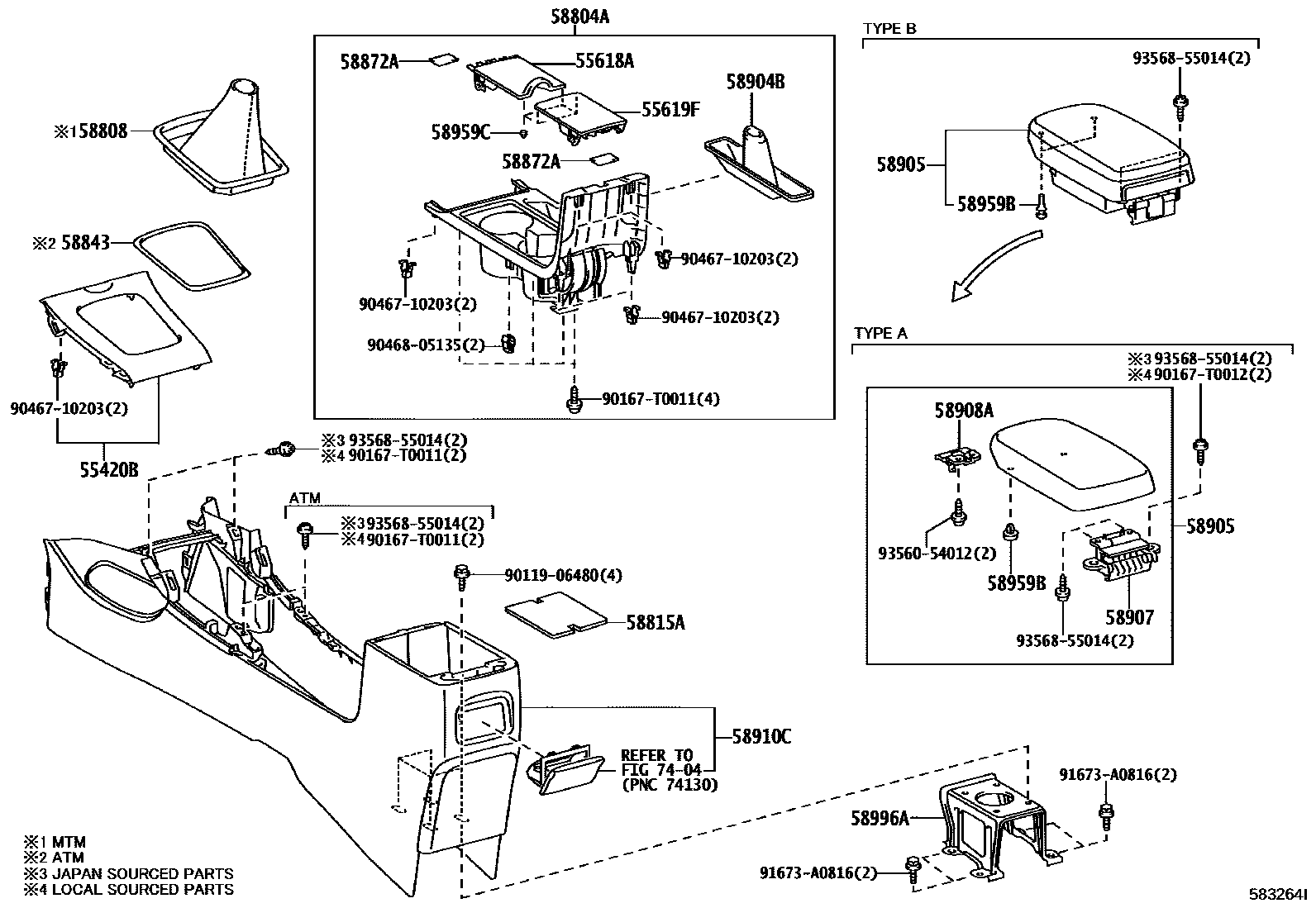

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55420B | Center instrument cluster No. 1 decorative panel assembly | 55420-02450 · 55420-02460 · 55420-02470 · 55420-02480 · 55420-02490 · 55420-02500 · 55420-02510 · 55420-02520 · 55420-02550 · 55420-02620 · 55420-02630 · 55420-02640 · 55420-02650 · 55420-02660 · 55420-02670 · 55420-02680 · 55420-02700 · 55420-02710 |
| 55618A | Armrest box cup holder | 55618-02110 |
| 55619F | Cup holder No. 2 in armrest box | 55619-02120 |
| 58804A | Armrest box upper panel sub-assembly | 58804-02090 |
| 58815A | Armrest box felt pad | 58815-02140 · 58815-02150 · 58815-02160 · 58815-02170 |
| 58843 | shift hole frame | 58843-02160 · 58843-02170 |
| 58872A | Armrest Box No. 2 Cushion Pad | 58872-02040 · 58872-02050 · 58872-02080 · 58872-12040 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-02110 · 58907-02120 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58959B | Armrest box cover cushion | 58959-60060 · 90541-04079 |
| 58959C | Armrest box cover cushion | 58959-12040 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-02080 · 58996-02090 |
