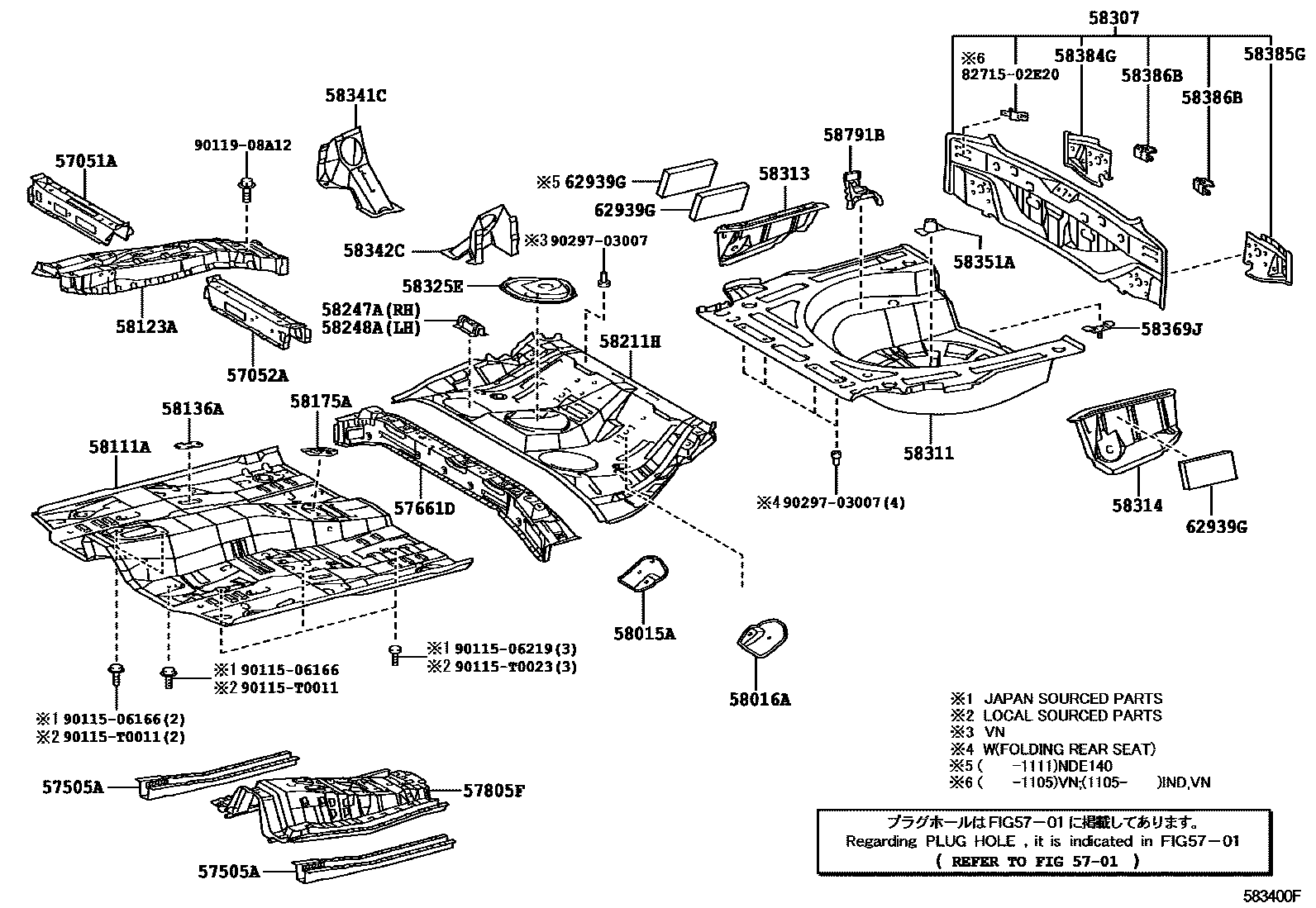

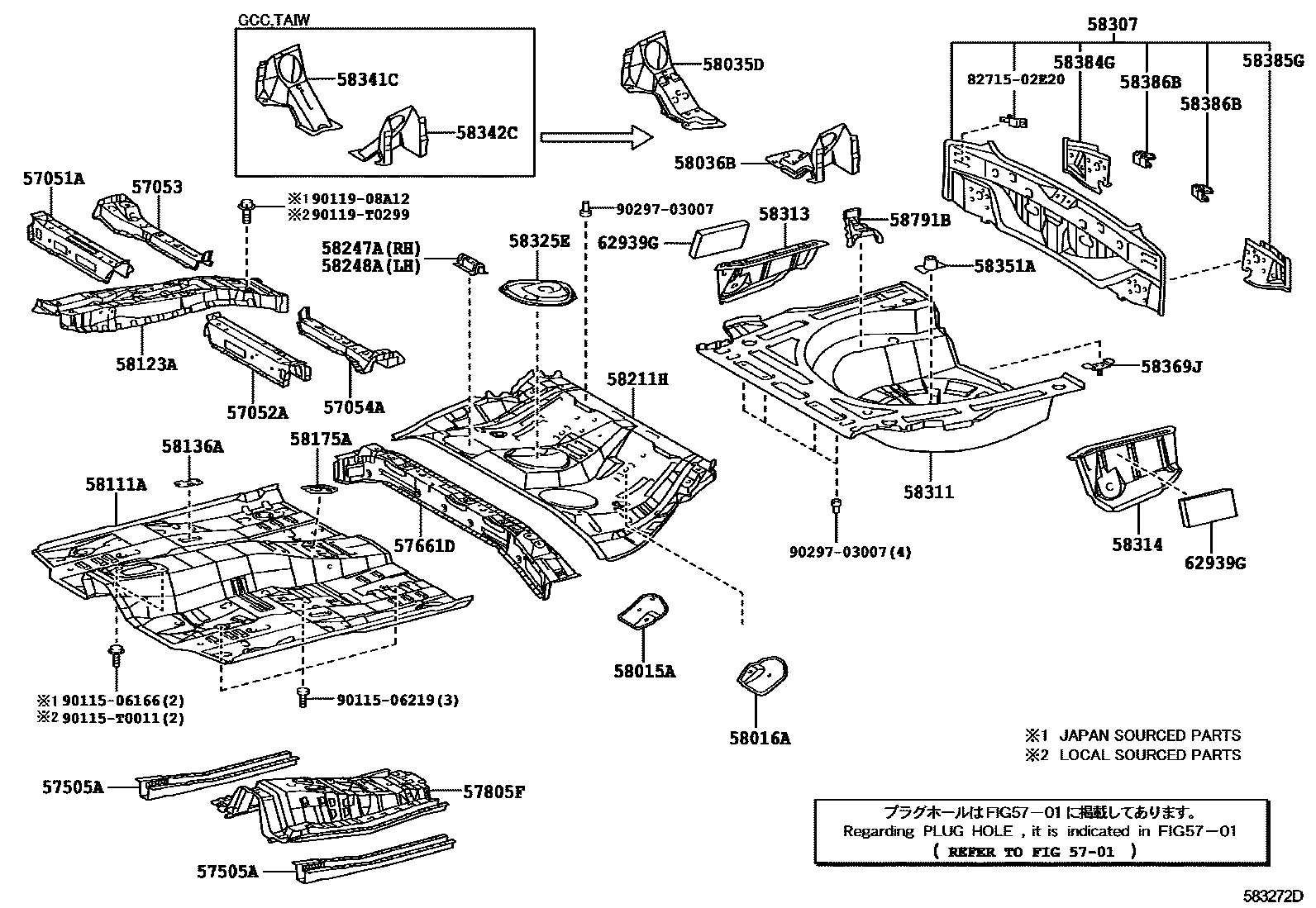

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57051A | Front floor right cross member sub-assembly | 57051-02060 · 57051-02070 |
| 57052A | Front floor left cross member sub-assembly | 57052-02050 · 57052-02060 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-02060 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-02040 |
| 57505A | Front underfloor reinforcement sub-assembly | 57417-02120 · 57505-02030 |
| 57661D | rear floor front cross member | 57407-02140 · 57661-02130 |
| 57805F | No. 1 seat belt anchor reinforcement sub-assembly | 57805-02070 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-02090 · 58015-02100 · 58015-02150 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-02100 · 58016-02130 |
| 58035D | Rear floor right side panel extension sub-assembly | 58035-02020 |
| 58036B | Rear floor left side panel extension sub-assembly | 58036-02020 |
| 58111A | Front floor right bottom panel | 58111-02922 · 58111-02926 |
| 58123A | shift lever bracket | 58013-02150 |
| 58136A | Front floor access hole cover | 58136-02050 · 58136-33010 |
| 58175A | No. 1 parking brake base reinforcement | 58176-02040 |
| 58211H | central floor base | 58211-02280 · 58211-02290 · 58211-02340 · 58211-02350 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-02080 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-02080 |
| 58307 | Body lower back panel sub-assembly | 58307-02210 · 58307-02230 · 58307-02240 · 58307-02250 · 58307-02260 · 58307-02300 |
| 58311 | rear floor pan | 58311-02190 · 58311-12270 |
| 58313 | Rear floor right panel | 58313-12300 |
| 58314 | rear floor left panel | 58314-12300 |
| 58325E | Rear floor access hole cover | 58325-02130 |
| 58341C | No. 1 right rear shock absorber mounting bracket | 58341-12020 |
| 58342C | No. 1 left rear shock absorber mounting bracket | 58342-02010 · 58342-12020 |
| 58351A | Spare tire rack bracket | 58351-33010 |
| 58369J | rear floor bracket | 58369-12020 |
| 58384G | Body lower back panel upper right corner panel | 58384-02110 · 58384-02140 |
| 58385G | Body lower back panel upper left corner panel | 58385-02100 · 58385-02120 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-02040 |
| 58791B | jack bracket | 58791-12200 |
| 62939G | Side ventilation silencers | 62939-02050 |
