Toyota COROLLA 前围板和挡风玻璃 — Figure 5503

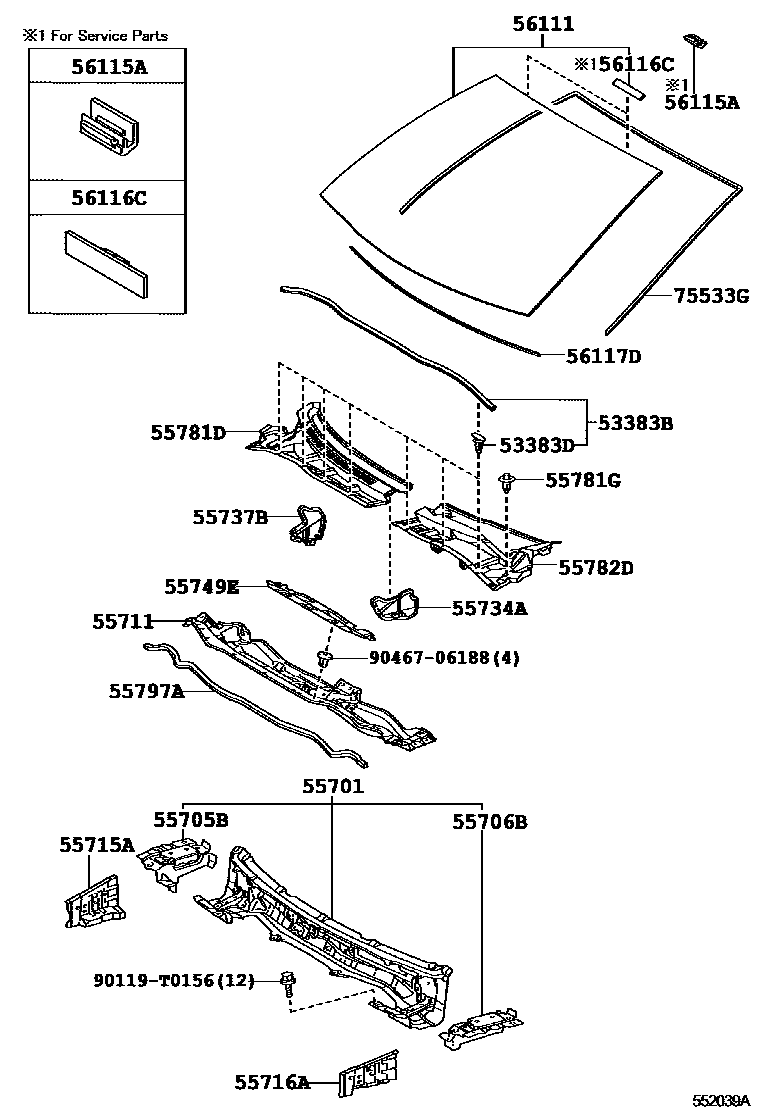

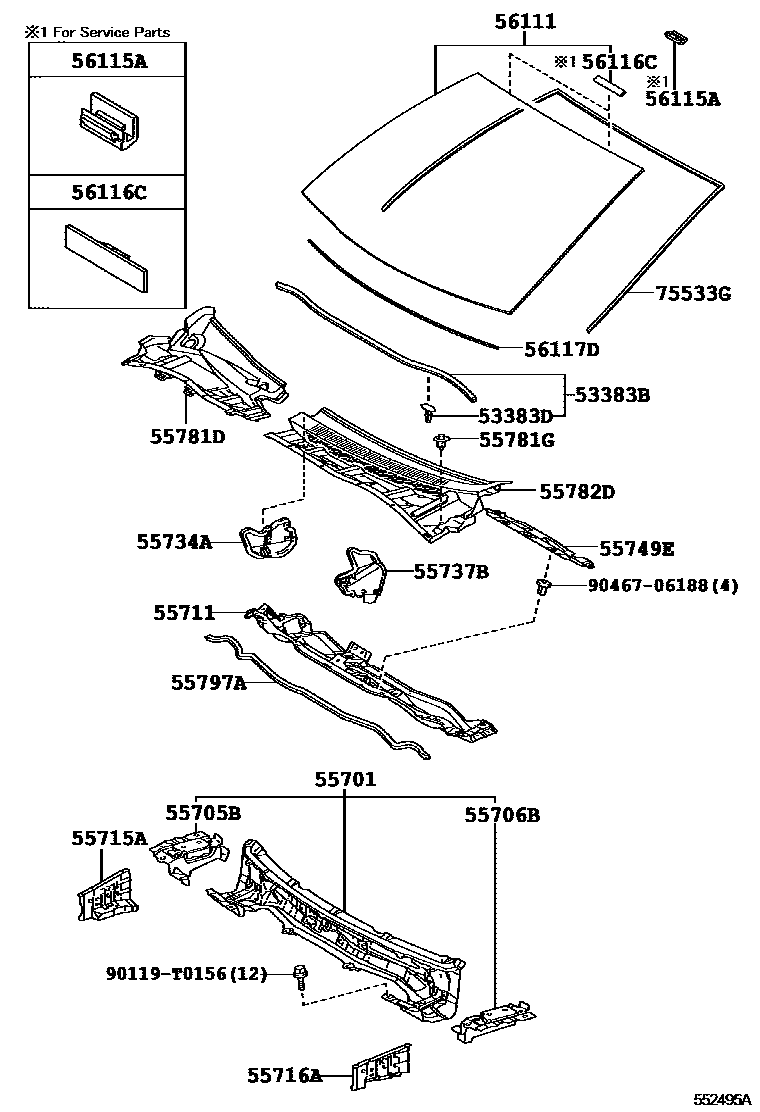

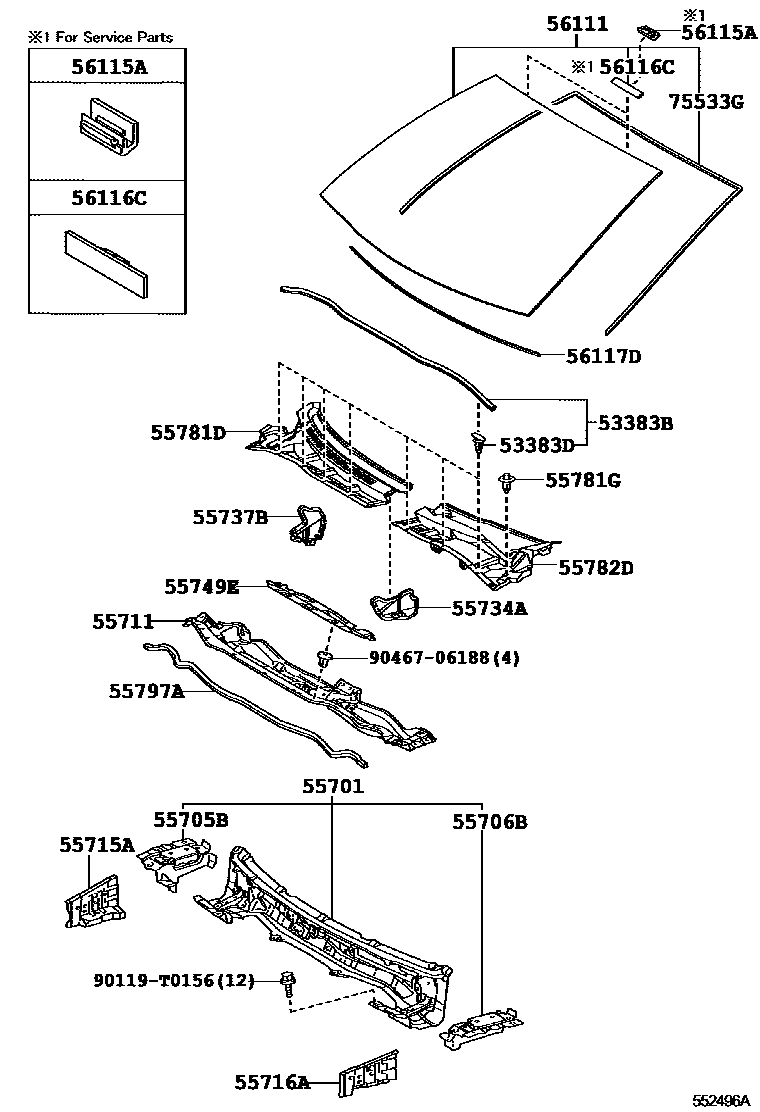

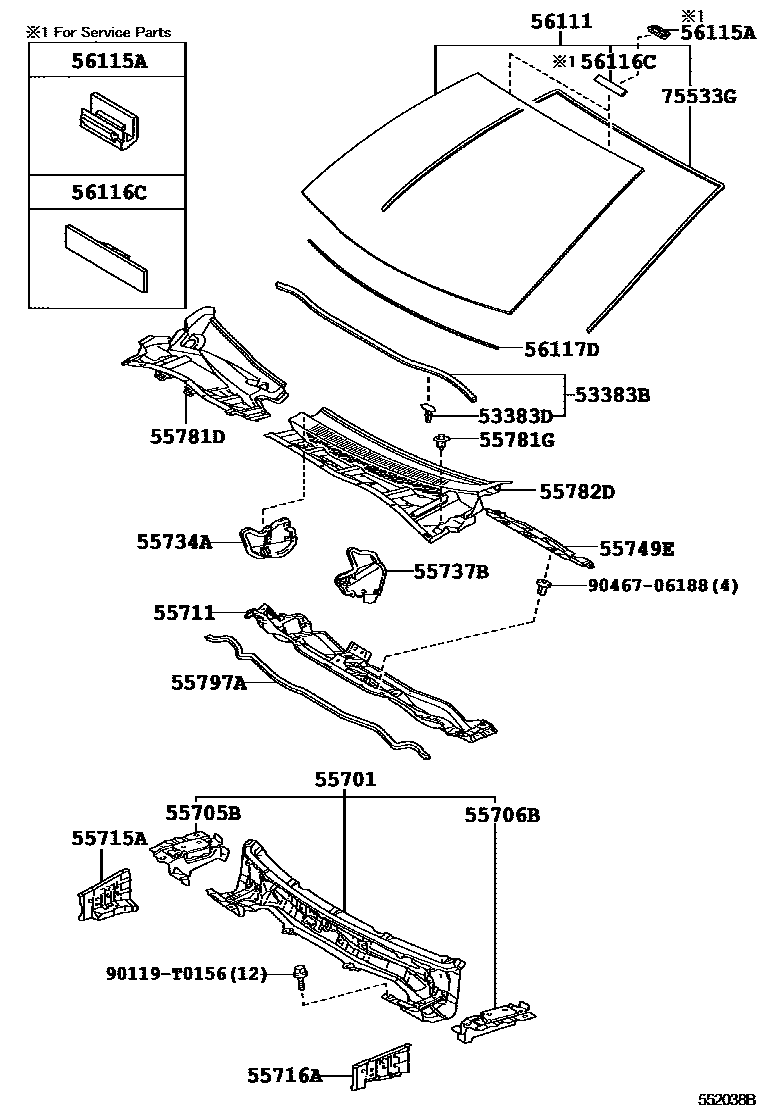

Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-02150 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-0D070 · 67867-12150 |
| 55701 | Front apron sub-assembly | 55700-02430 · 55700-02440 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-02090 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-02090 |
| 55711 | Front outer panel | 55701-02270 · 55701-02271 · 55701-02280 |
| 55715A | From cowl upper cover to fender right stay | 55715-02040 |
| 55716A | From cowl upper cover to fender left stay | 55716-02040 |
| 55734A | Right waterproof cover | 55734-02120 · 55734-02130 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-02070 · 55737-02080 |
| 55749E | Front wall upper cover No. 2 heat insulation panel | 55749-02060 · 55749-02080 · 55749-02090 |
| 55781D | Ventilation grille on right front apron | 55708-02450 · 55708-02460 |
| 55782D | Ventilation grille on left front apron | 55709-02330 · 55709-02340 |
| 55797A | Front wall pumping device seal | 55797-02070 |
| 56111 | windshield | 56101-02530 · 56101-02531 · 56101-02660 · 56101-02661 · 56101-02801 · 56101-02890 · 56101-02912 · 56101-02913 · 56101-02914 · 56101-02915 · 56101-02916 · 56101-02917 · 56101-02918 · 56101-02925 · 56101-02929 · 56101-02930 · 56101-02931 · 56101-02932 · 56101-02933 · 56101-02947 · 56101-02948 · 56101-02949 · 56101-12422 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-02020 |
| 56117D | windshield adhesive seal | 56117-12300 |
| 75533G | Windshield outer protective strip | 75531-02160 · 75531-02180 · 75531-02190 |
