Toyota COROLLA 仪表板和手套箱 — Figure 5501

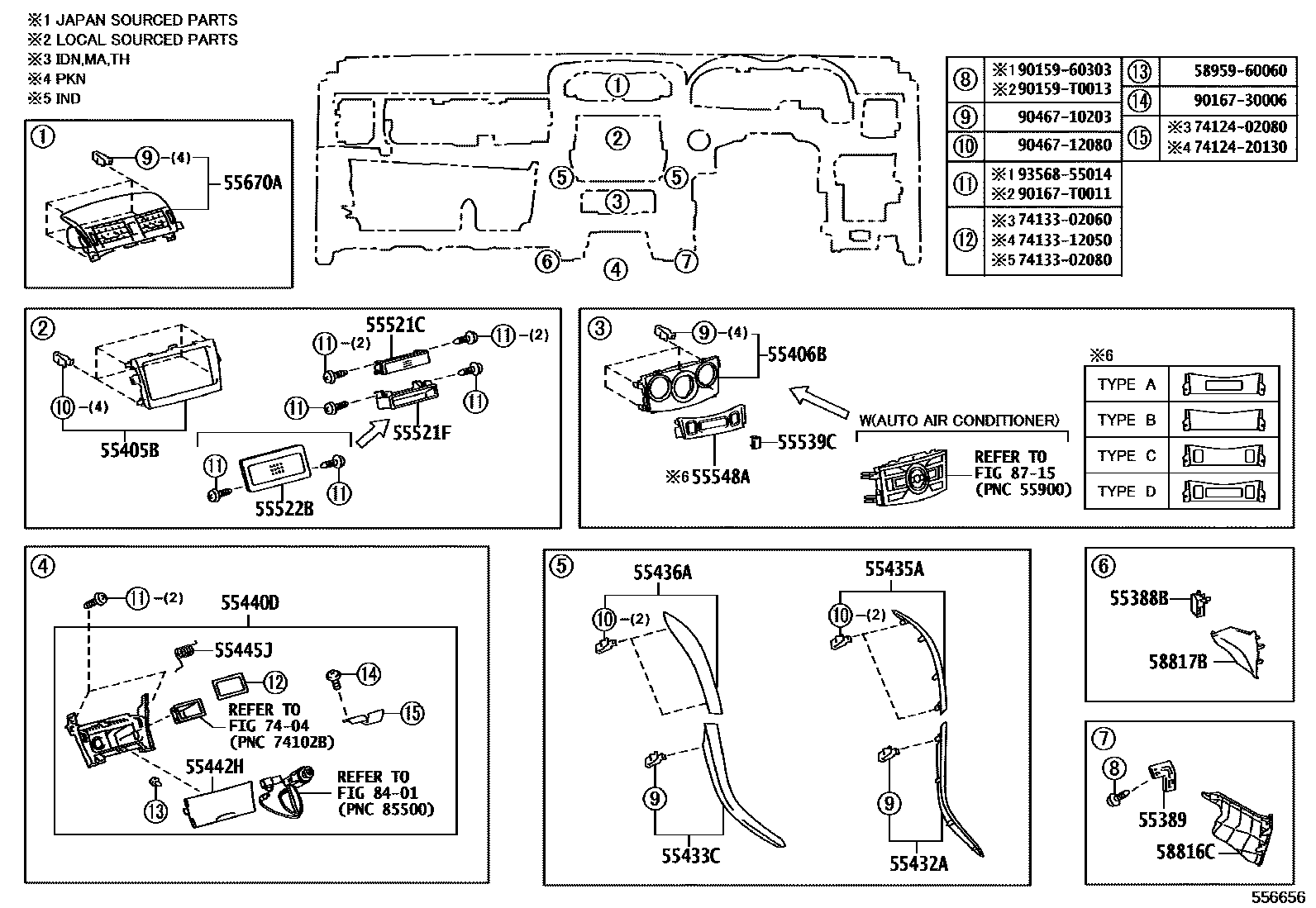

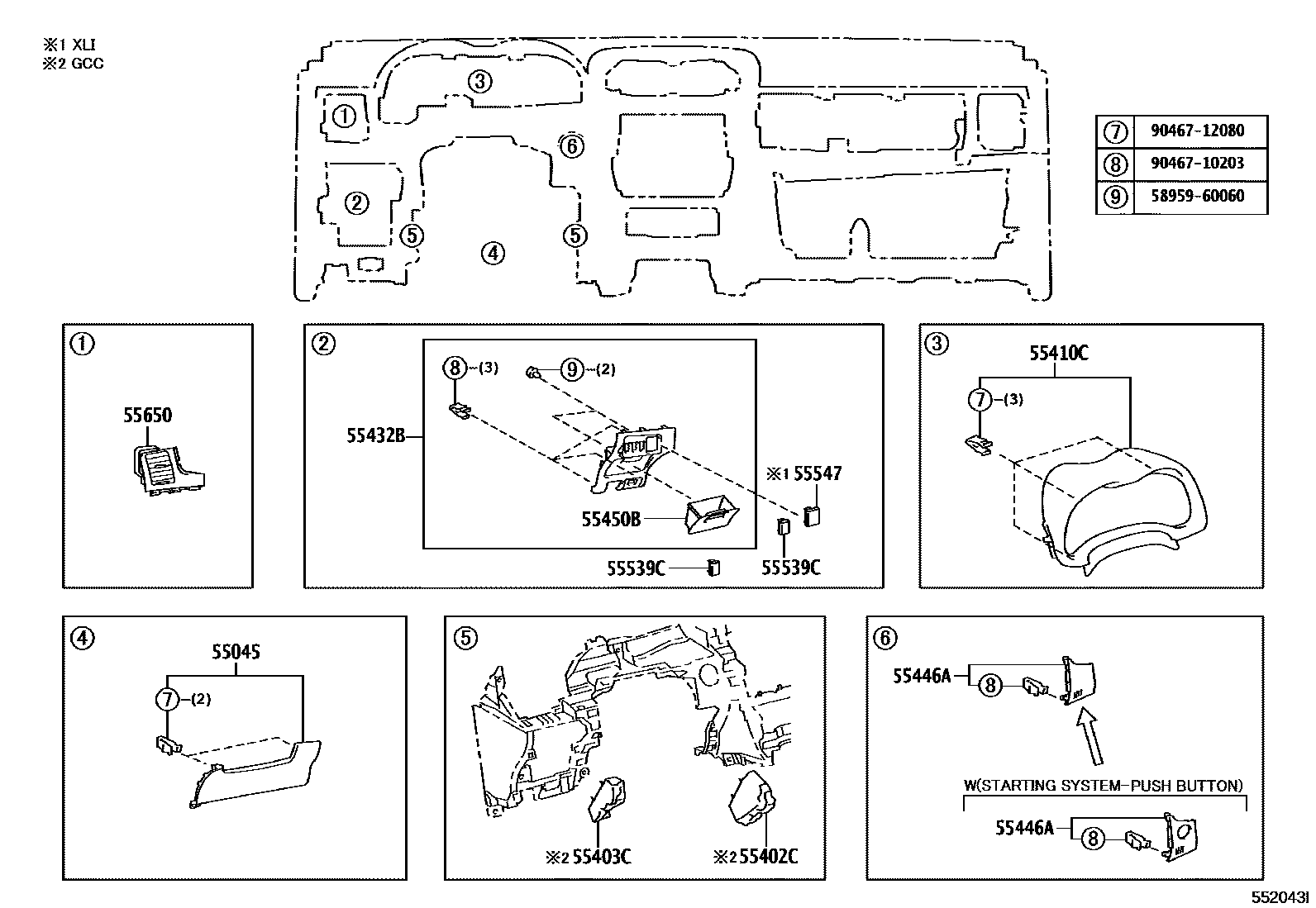

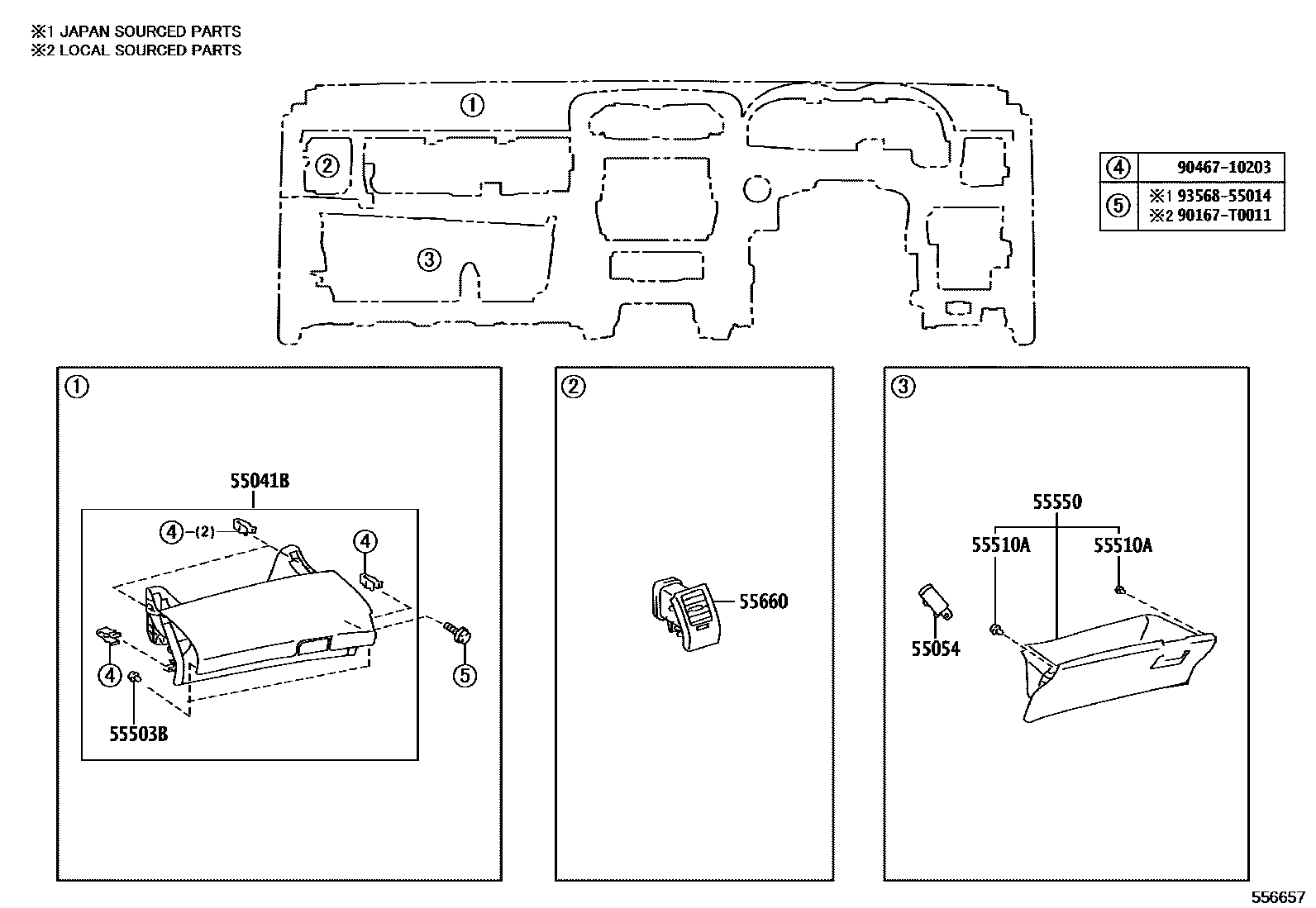

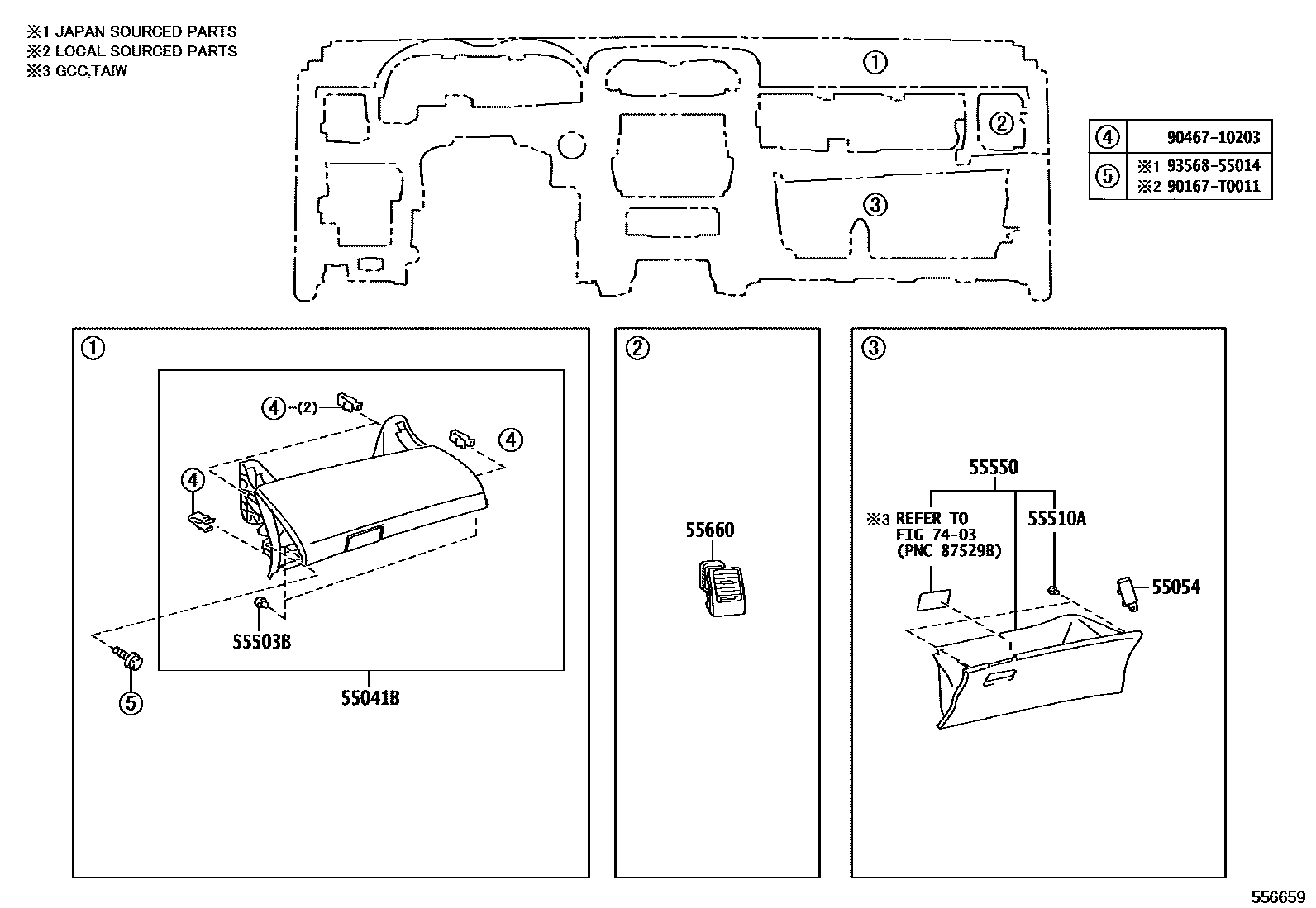

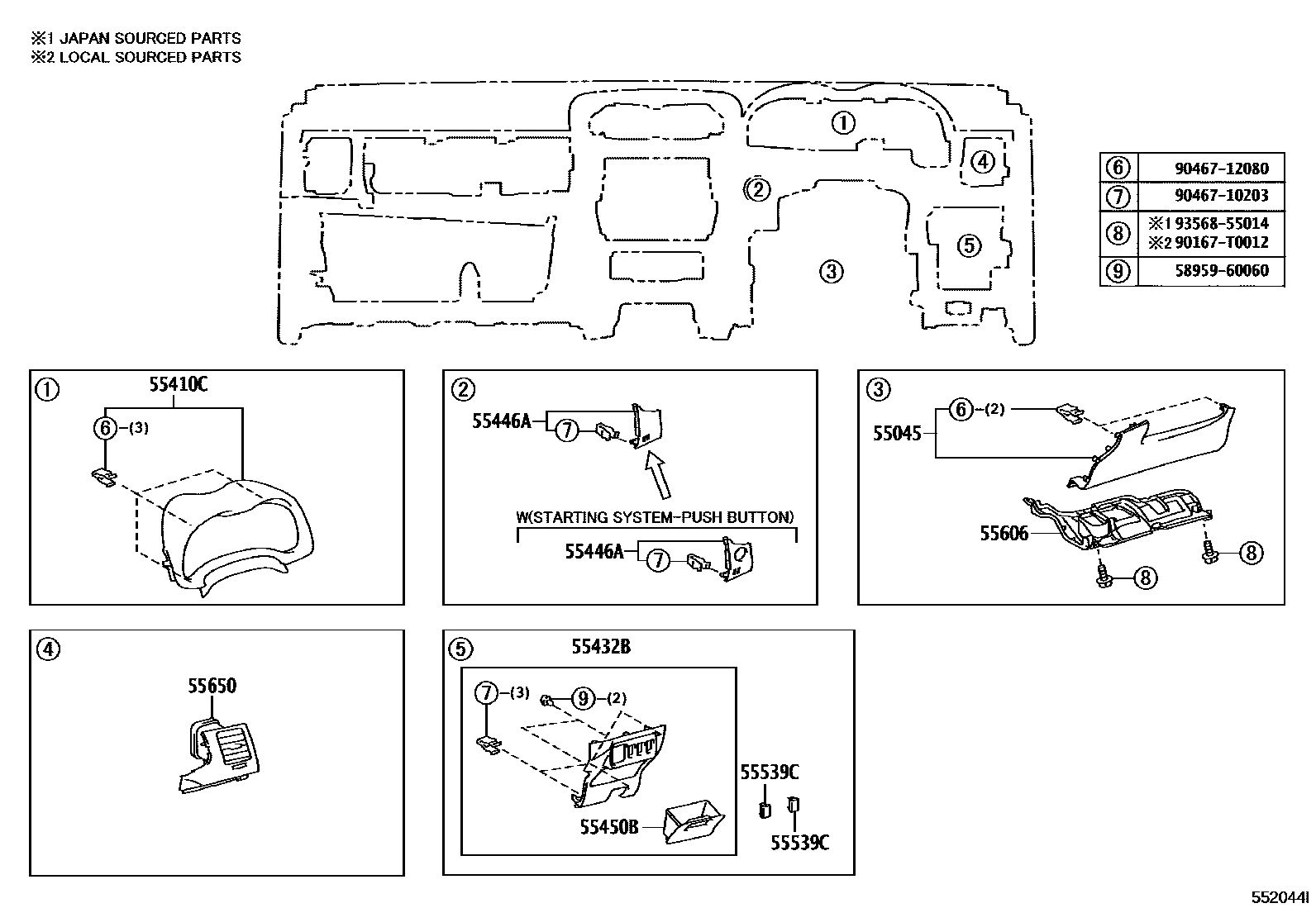

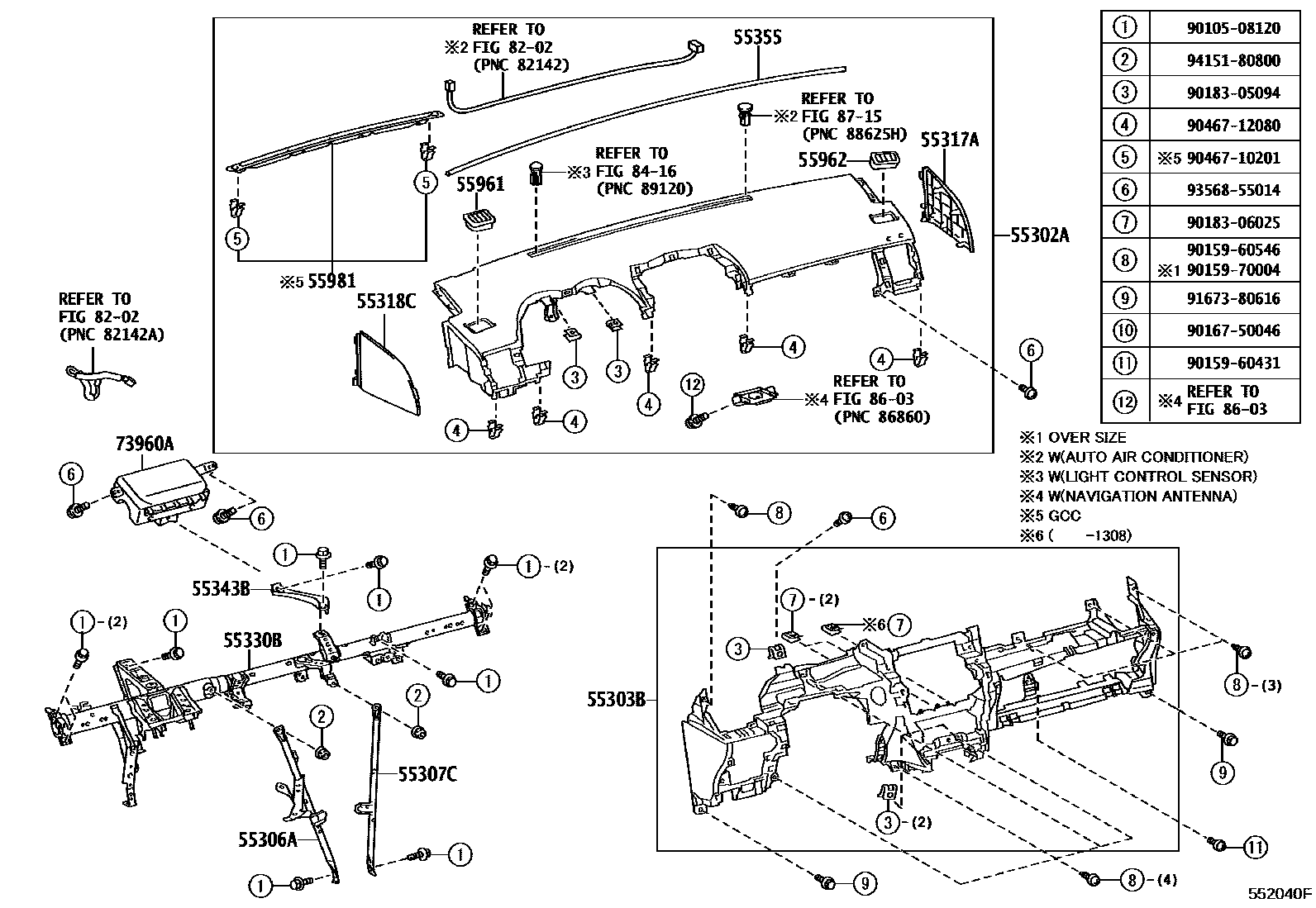

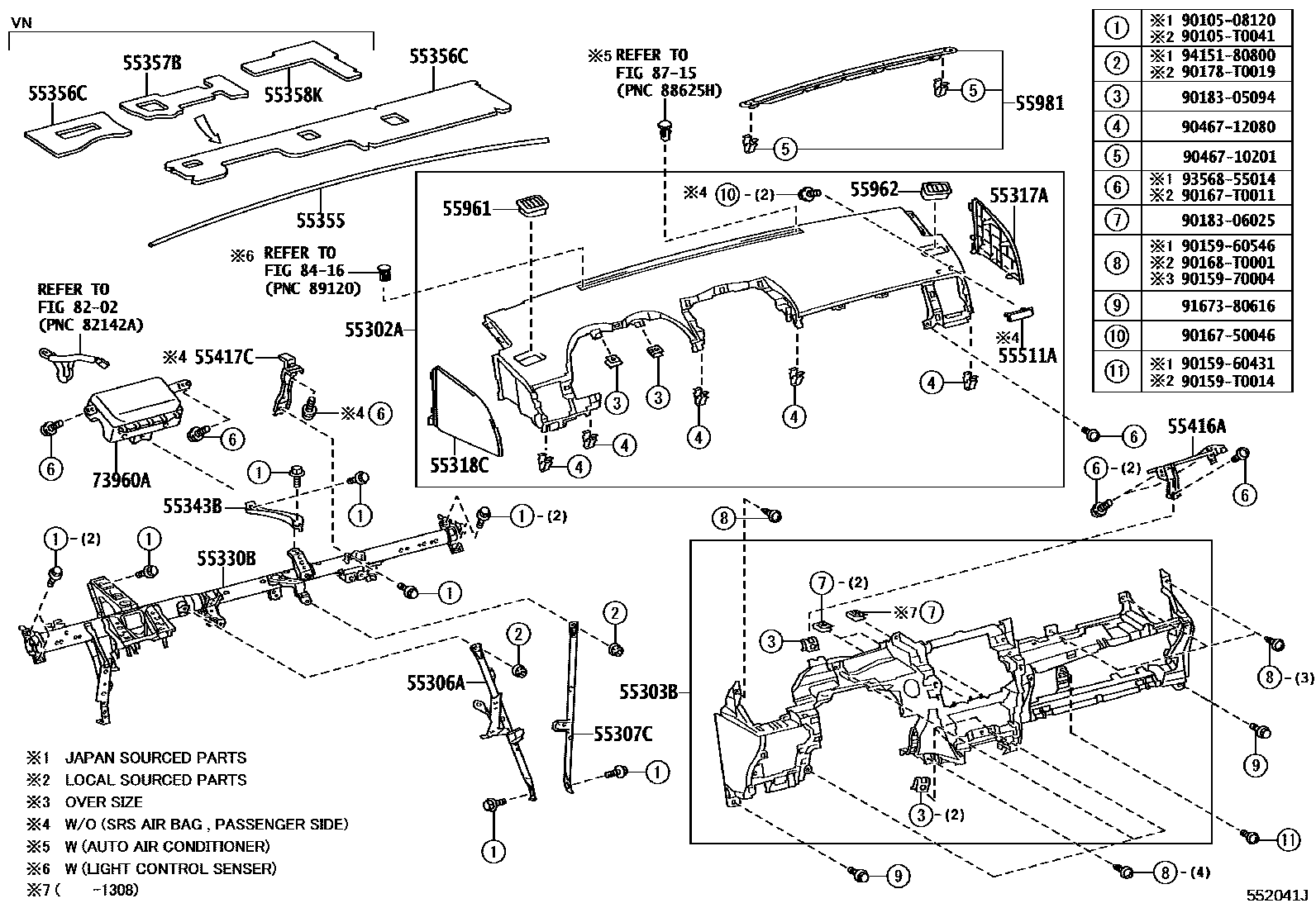

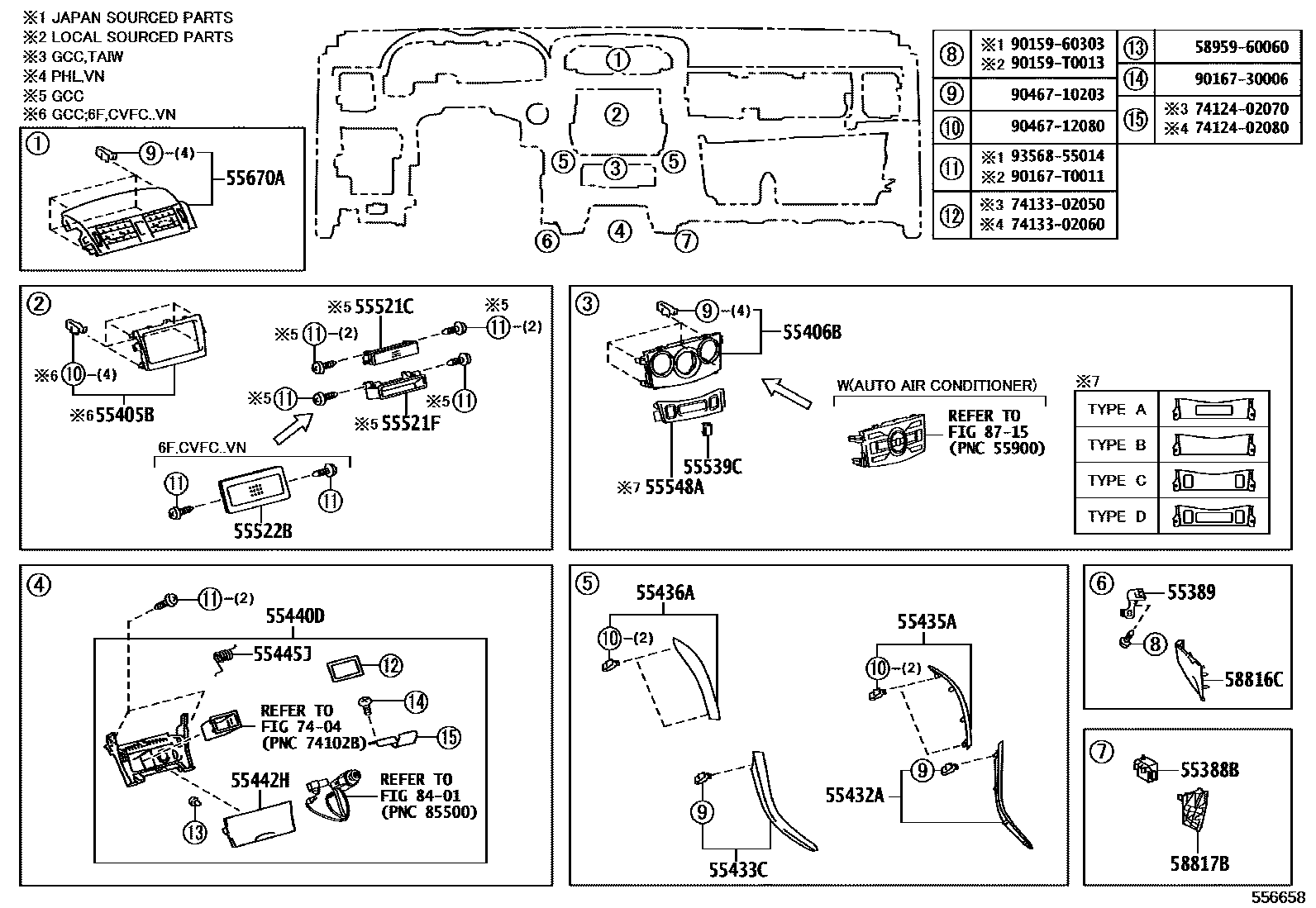

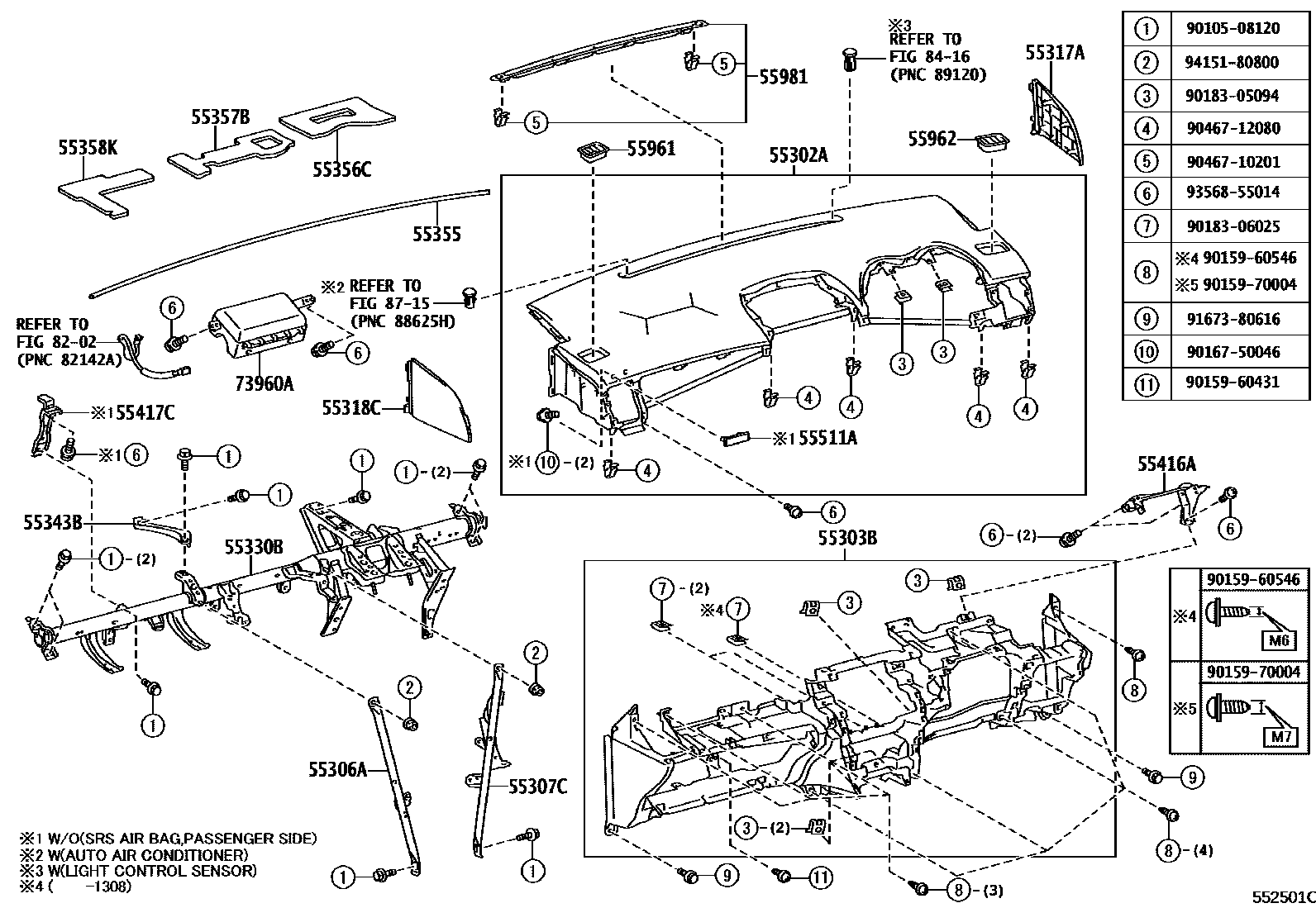

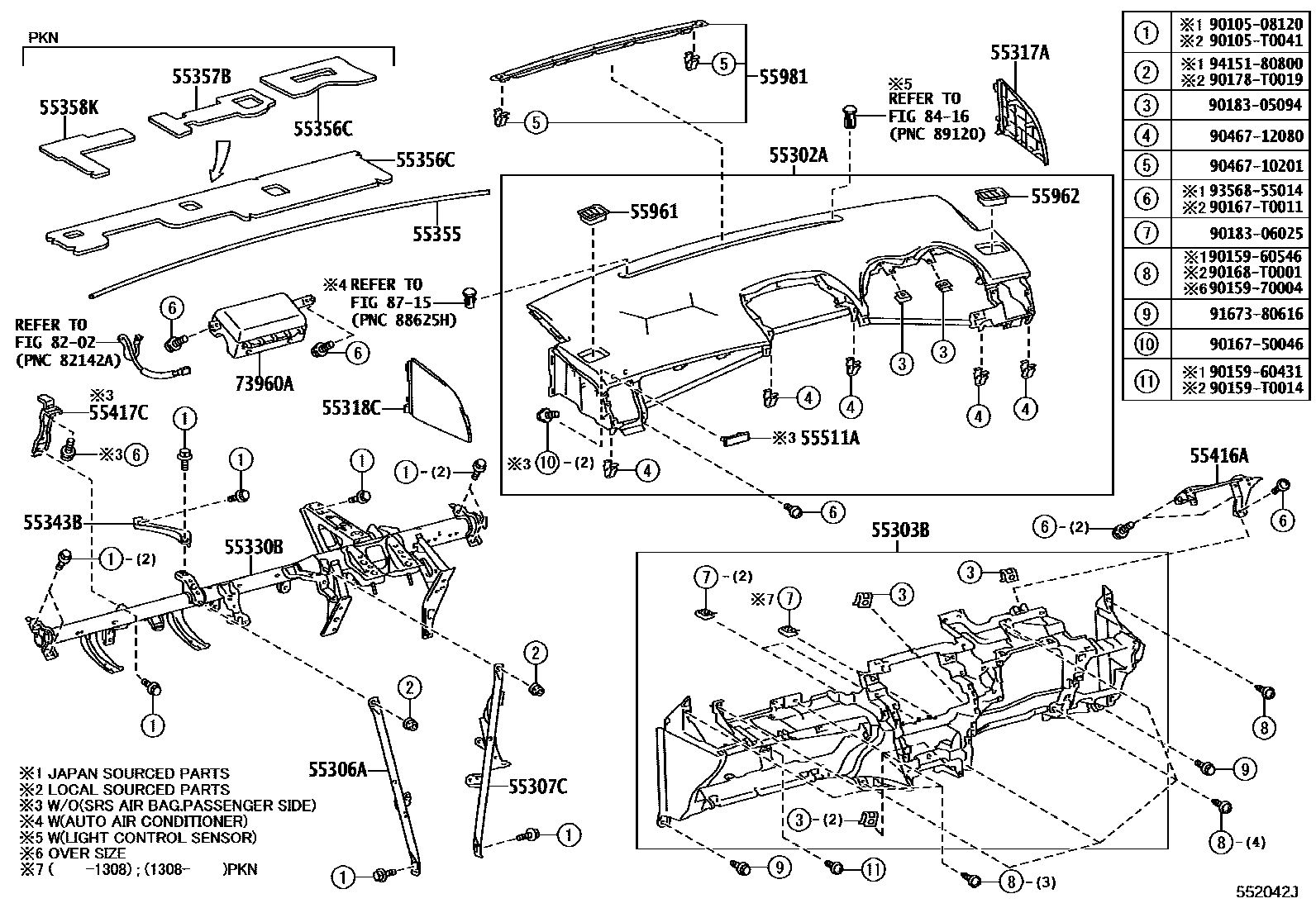

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 10 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-02040 · 55054-12030 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02320 · 55306-02330 · 55306-02340 · 55306-02350 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-02190 · 55307-02200 · 55307-02210 · 55307-02220 |
| 55330B | Instrument panel reinforcement assembly | 55330-02270 · 55330-02520 · 55330-02530 · 55330-02540 · 55330-02550 · 55330-02610 |
| 55343B | Center bracket (dashboard to cowl) | 55343-02140 · 55343-02150 · 55343-02160 · 55343-02170 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-02160 · 55355-02170 · 55355-02180 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-02150 · 55356-02160 · 55356-12150 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-02150 · 55357-12090 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-02110 · 55358-12080 |
| 55388B | Mounting bracket on the right side of the console | 55388-02070 · 55388-02080 |
| 55389 | Console left side mounting bracket | 55389-02050 · 55389-02060 |
| 55402C | Dashboard lower right pad sub-assembly | 55402-12030 |
| 55403C | Instrument panel lower left pad sub-assembly | 55403-12080 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-02120 · 55405-02220 · 55405-02230 · 55405-02240 · 55405-02310 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-02290 · 55406-02300 · 55406-02380 · 55406-02390 |
| 55416A | Instrument cover No. 1 fixing piece | 55416-02120 · 55416-02130 |
| 55417C | Instrument panel pad No. 3 bracket | 55417-02010 |
| 55432A | Dashboard lower right decorative panel | 55432-02240 · 55432-02250 · 55432-02260 · 55432-02270 · 55432-02410 · 55432-02420 · 55432-02430 · 55432-02440 |
| 55433C | Instrument panel lower left decorative panel | 55433-02150 · 55433-02160 · 55433-02170 · 55433-02180 · 55433-02270 · 55433-02280 · 55433-02290 · 55433-02300 |
| 55435A | Dashboard right end decorative panel | 55435-02230 · 55435-02240 · 55435-02250 · 55435-02260 · 55435-02330 · 55435-02340 · 55435-02350 · 55435-02360 |
| 55436A | Instrument panel left end decorative panel | 55436-02190 · 55436-02200 · 55436-02210 · 55436-02220 · 55436-02290 · 55436-02300 · 55436-02310 · 55436-02320 |
| 55440D | Dashboard storage box assembly | 55440-02140 · 55440-02150 · 55440-02160 · 55440-02170 · 55440-02180 · 55440-02190 · 55440-02200 · 55440-02210 · 55440-02260 · 55440-02270 · 55440-02300 · 55440-02410 · 55440-02530 · 55440-02540 · 55440-02550 · 55440-02560 · 55440-02570 · 55440-02580 · 55440-02590 · 55440-02600 · 55440-02660 · 55440-02670 |
| 55442H | Dashboard storage box cover | 55442-02200 · 55442-02210 · 55442-02220 · 55442-02230 · 55442-02240 · 55442-02250 · 55442-02260 · 55442-02270 · 55442-02360 · 55442-02370 · 55442-02380 · 55442-02490 · 55442-02630 · 55442-02640 · 55442-02650 · 55442-02660 · 55442-02670 · 55442-02680 · 55442-02690 · 55442-02700 · 55442-02760 · 55442-02770 |
| 55445J | Dashboard storage box spring | 55445-02160 · 55445-02170 · 55445-02190 · 55445-02220 |
| 55503B | Cushion pad (for glove box) | 58959-60060 |
| 55510A | Cushion (for glovebox lid) | 55557-53030 |
| 55521C | stereo system hole cover | 55521-02130 · 55521-12190 · 55521-20150 |
| 55521F | Stereo system hole cover No. 2 | 55521-02140 · 55521-0A010 · 55521-16030 · 55521-52020 |
| 55522B | Radio tuner opening cover | 55522-0K010 · 55522-52020 |
| 55548A | Dashboard hole cover | 55548-02140 · 55548-02180 · 55548-02190 · 55548-02200 · 55548-02210 · 55548-02240 · 55548-02250 · 55548-02280 · 55548-02290 · 55548-02300 · 55548-02310 · 55548-02320 · 55548-02330 · 55548-02410 · 55548-02420 · 55548-02430 · 55548-02440 · 55548-02450 · 55548-02470 · 55548-02480 · 55548-02510 · 55548-02520 · 55548-02530 · 55548-02540 · 55548-02550 · 55548-02560 · 55548-02570 · 55548-02620 · 55548-02650 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-02110 · 55606-02120 · 55606-02130 |
| 55670A | Instrument panel central air register assembly | 55670-02220 · 55670-02221 · 55670-02230 · 55670-02231 · 55670-12390 · 55670-12391 · 55670-12400 · 55670-12401 · 55670-12440 · 55670-12441 · 55670-12450 · 55670-12451 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-02160 · 55981-02170 · 55981-02180 · 55981-02190 · 55981-02260 · 55981-02270 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02160 |
