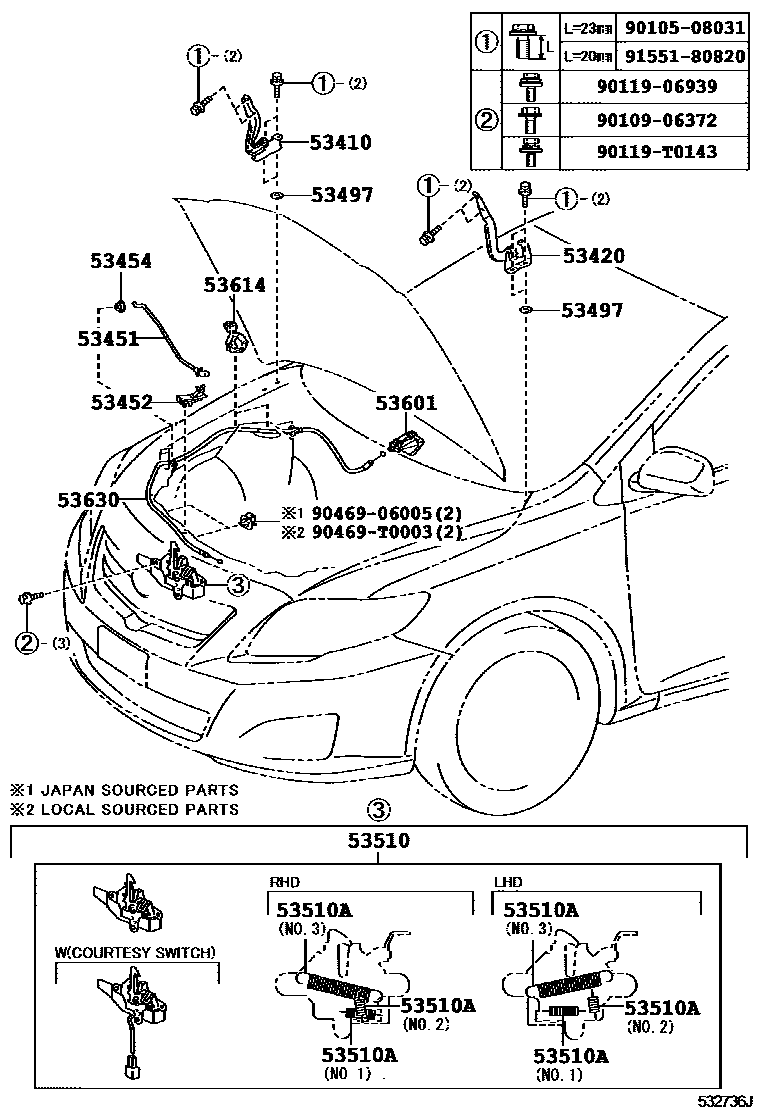

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-02060 |
| 53420 | Engine cover left hinge assembly | 53420-02060 |
| 53451 | Engine cover support rod | 53440-02120 · 53440-02140 |
| 53452 | Engine cover stay rod fixing | 53452-02100 |
| 53454 | Engine cover support rod clip | 53454-12040 |
| 53497 | No. 1 engine cover hinge gasket | 53497-20070 · 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-02350 · 53510-02351 · 53510-02353 · 53510-02360 · 53510-02361 · 53510-02370 · 53510-02371 · 53510-02373 · 53510-02380 · 53510-02381 · 53510-02410 · 53510-02411 · 53510-02412 · 53510-02413 · 53510-02440 · 53510-02441 · 53510-12A90 · 53510-12A91 · 53510-12A92 · 53510-12B10 |
| 53510A | Tension spring (for hood lock) | 72725-0K040 · 72725-0K050 · 72725-0K060 · 90506-09055 · 90506-12063 · 90506-18067 · 90506-T0003 · 90506-T0004 · 90506-T0005 |
| 53614 | Engine hood lock control cable clip | 53614-12040 |
| 53630 | Engine hood lock control cable assembly | 53630-02210 · 53630-02230 · 53630-02240 |
