Toyota COROLLA 发动机盖和前翼子板 — Figure 5302

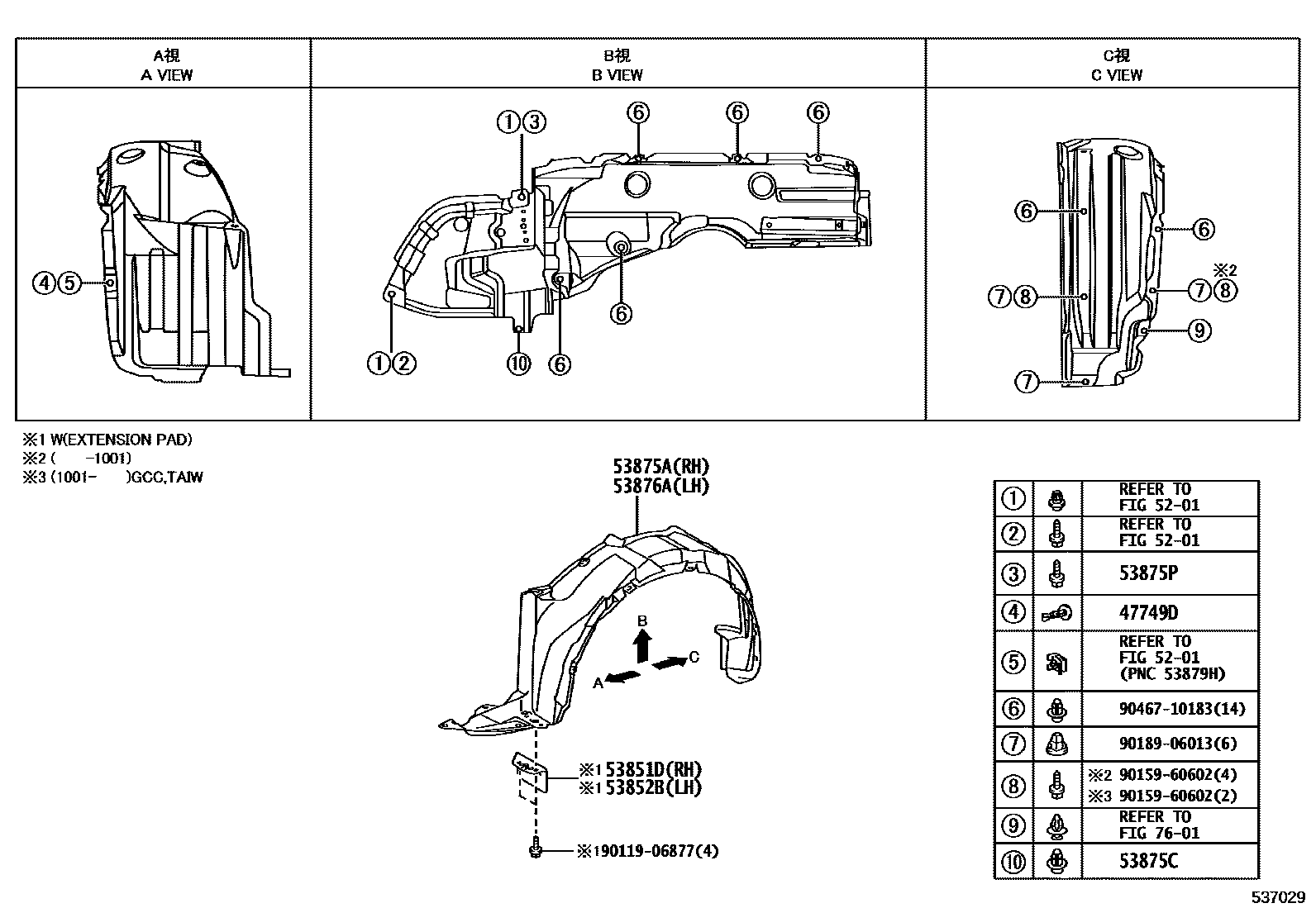

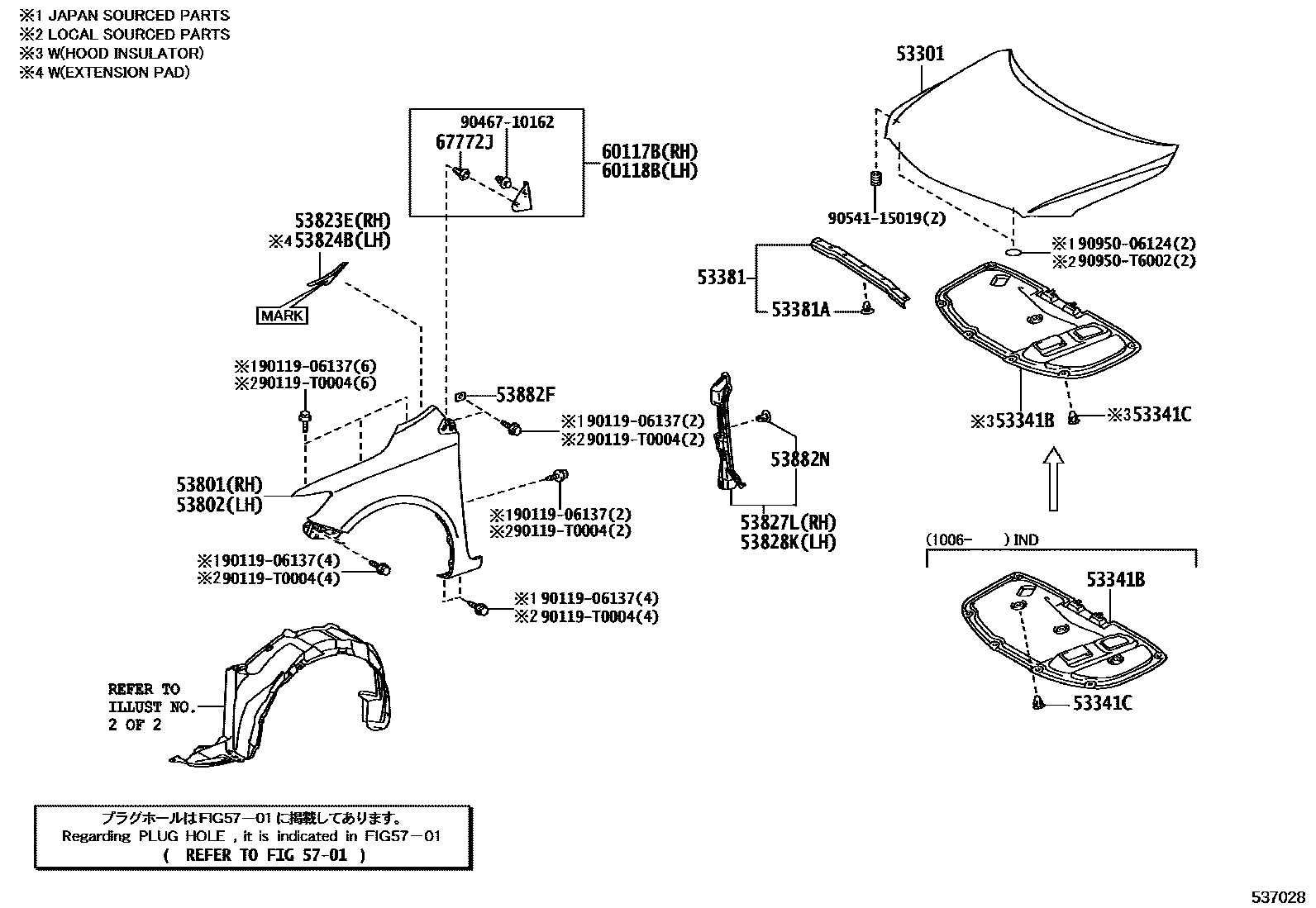

Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749D | pin fixing clip | 47749-58010 |
| 53301 | Engine cover sub-assembly | 53301-02230 · 53301-02360 |
| 53341B | engine cover gasket | 53341-02190 · 53341-02240 · 53341-02241 · 53341-12290 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-T0014 |
| 53381 | Engine cover to radiator bracket seal | 53381-02140 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 · 90467-T0013 |
| 53801 | Right front fender sub-assembly | 53811-02250 · 53811-02290 |
| 53802 | Left front fender sub-assembly | 53812-02250 · 53812-02290 |
| 53823E | No. 2 right front side panel protector | 53823-02040 · 53823-02060 |
| 53824B | No. 2 left front side panel protector | 53824-02040 · 53824-02060 |
| 53827L | Right front fender side panel protector | 53827-02120 |
| 53828K | Left front fender side panel protector | 53828-02120 |
| 53851D | Right front fender outer panel pad | 53851-02090 |
| 53852B | Left front fender exterior panel pad | 53852-02060 |
| 53875A | Right front fender lining | 53875-02270 · 53875-02280 · 53875-02300 · 53875-02420 · 53875-02430 · 53875-02440 |
| 53875C | Front fender lining clip | 90467-07201 · 90467-10183 |
| 53875P | Screw No. 1 | 90159-60488 · 90159-T0033 |
| 53876A | Left front fender lining | 53876-02270 · 53876-02280 · 53876-02300 · 53876-02400 · 53876-02420 · 53876-02430 · 53876-02440 · 53876-02450 |
| 53882F | front fender seal | 53882-0D010 |
| 60117B | Right front pillar upper cover sub-assembly | 60117-02080 |
| 60118B | Left front pillar upper cover sub-assembly | 60118-02080 |
| 67772J | Front pillar cover fixing cover | 67772-95J03 |
