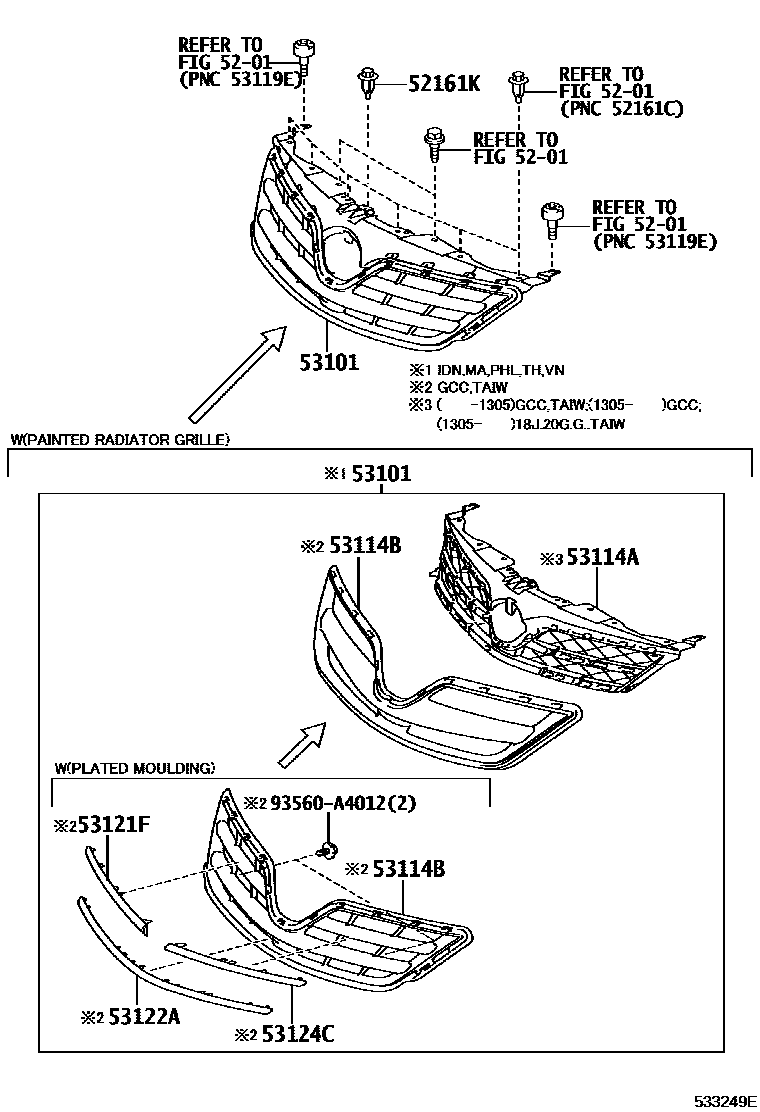

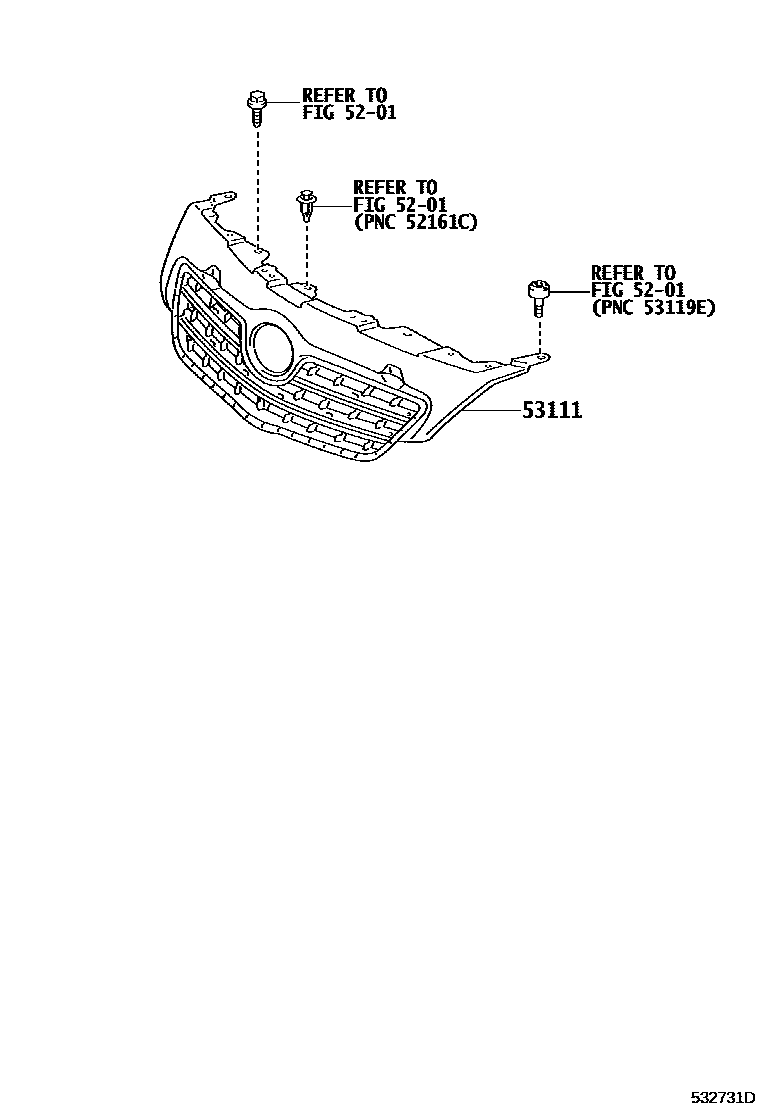

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161K | front bumper insert | 52161-0K040 · 52161-16010 |
| 53101 | Radiator grille sub-assembly | 53100-02460 · 53100-02490 · 53100-02770 · 53100-02904 · 53100-02905 · 53100-02906 |
| 53111 | radiator grille | 53100-02140 · 53100-02290 · 53100-02310 · 53100-02350 · 53111-12B30 |
| 53114A | inner radiator grille | 53114-02230 · 53114-02240 |
| 53114B | Upper radiator grille | 53111-02870 · 53111-02904 · 53111-02905 |
| 53121F | Radiator grille upper right protective strip | 53121-02120 |
| 53122A | Radiator grille lower protective strip | 53122-02110 |
| 53124C | Radiator grille upper left protective strip | 53124-02110 |
