Toyota COROLLA 后保险杠及附件 — Figure 5202

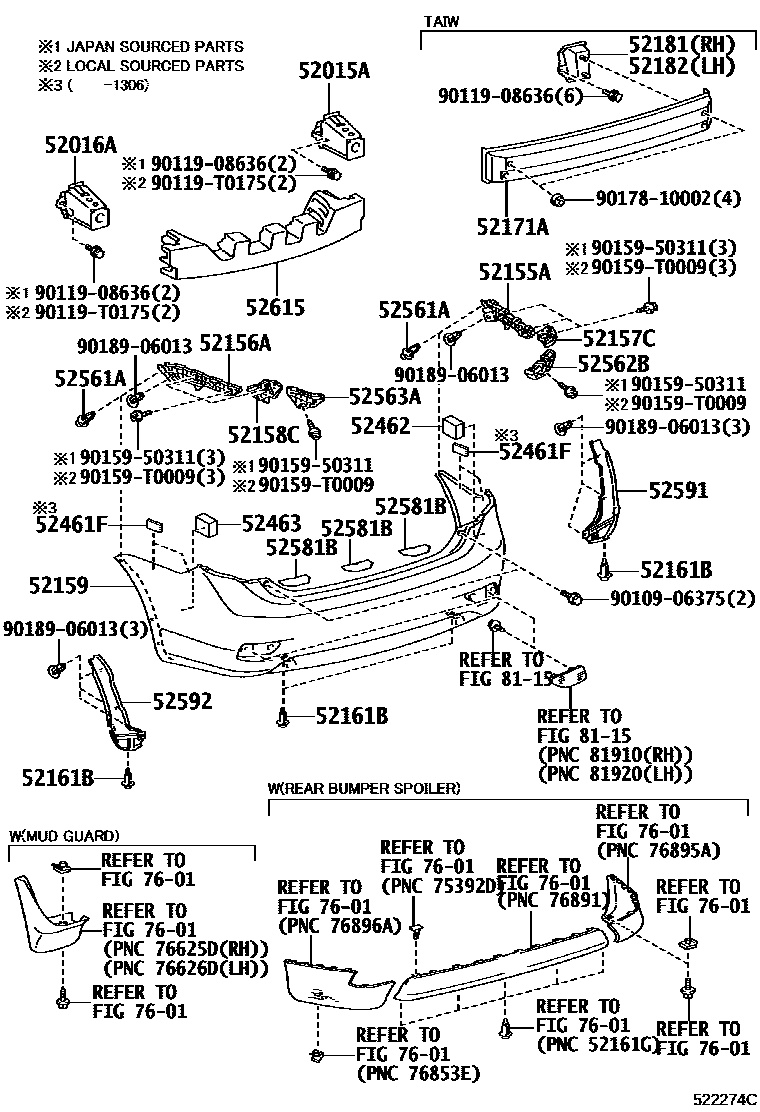

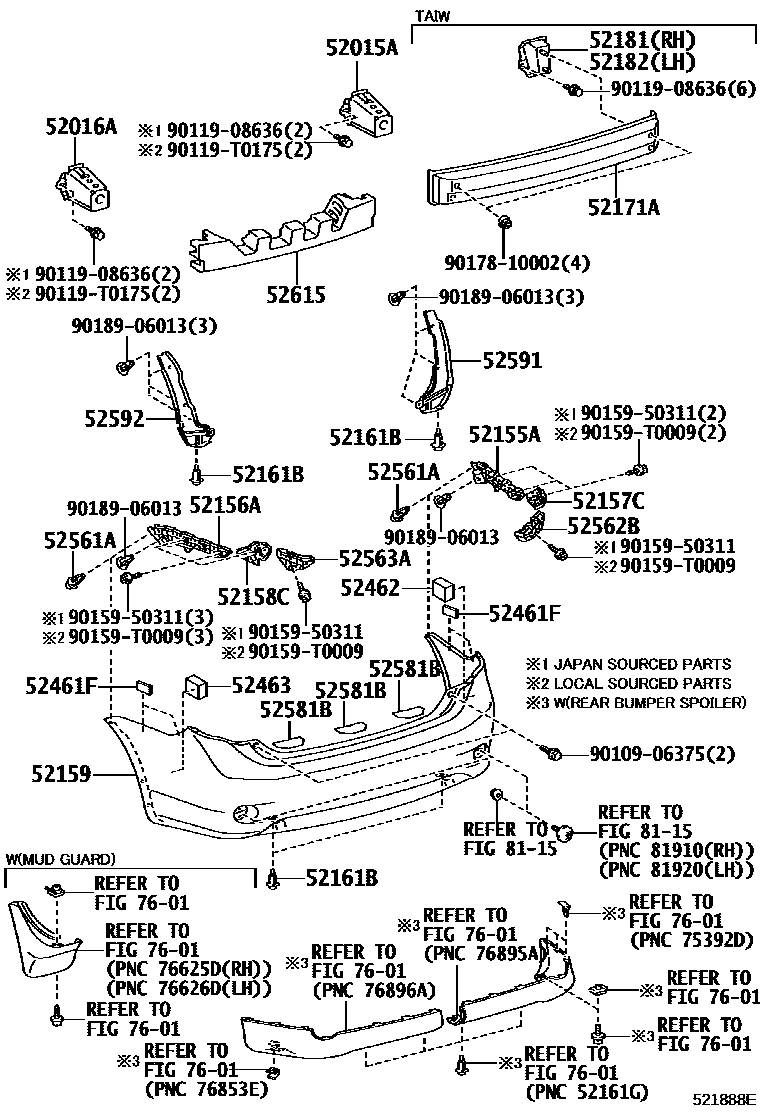

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-02090 |
| 52016A | Rear bumper left arm sub-assembly | 52015-02090 |
| 52155A | Rear bumper right side bracket | 52155-02120 |
| 52156A | Rear bumper left bracket | 52156-02110 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-02050 |
| 52158C | Rear bumper No. 2 left side bracket | 52158-02040 |
| 52159 | rear bumper cover | 52159-02540 · 52159-02710 · 52159-02958 · 52159-02960 · 52159-02962 · 52159-02970 · 52159-02984 · 52159-02986 · 52159-02987 · 52159-02988 · 52159-02992 |
| 52161B | Rear bumper insert | 52161-0K040 · 52161-16010 |
| 52171A | Rear bumper reinforcement No. 1 | 52023-02160 |
| 52181 | Rear bumper right arm | 52181-02040 |
| 52182 | Rear bumper left arm | 52182-02030 |
| 52461F | rear bumper lining | 52461-02030 |
| 52462 | Rear bumper right side lining | 52462-02090 · 52462-02130 |
| 52463 | Rear bumper left lining | 52462-02090 · 52462-02130 |
| 52561A | Clip (for rear bumper mount) | 90467-05170 |
| 52562B | Rear bumper upper right fixing bracket | 52562-02100 · 52562-02120 |
| 52563A | Rear bumper upper left fixing bracket | 52563-02070 · 52563-02100 |
| 52581B | rear bumper protector | 52581-02060 |
| 52591 | Rear bumper right seal | 52591-02190 |
| 52592 | Rear bumper left seal | 52592-02180 |
| 52615 | Rear bumper energy absorber | 52615-02110 · 52615-02140 |
