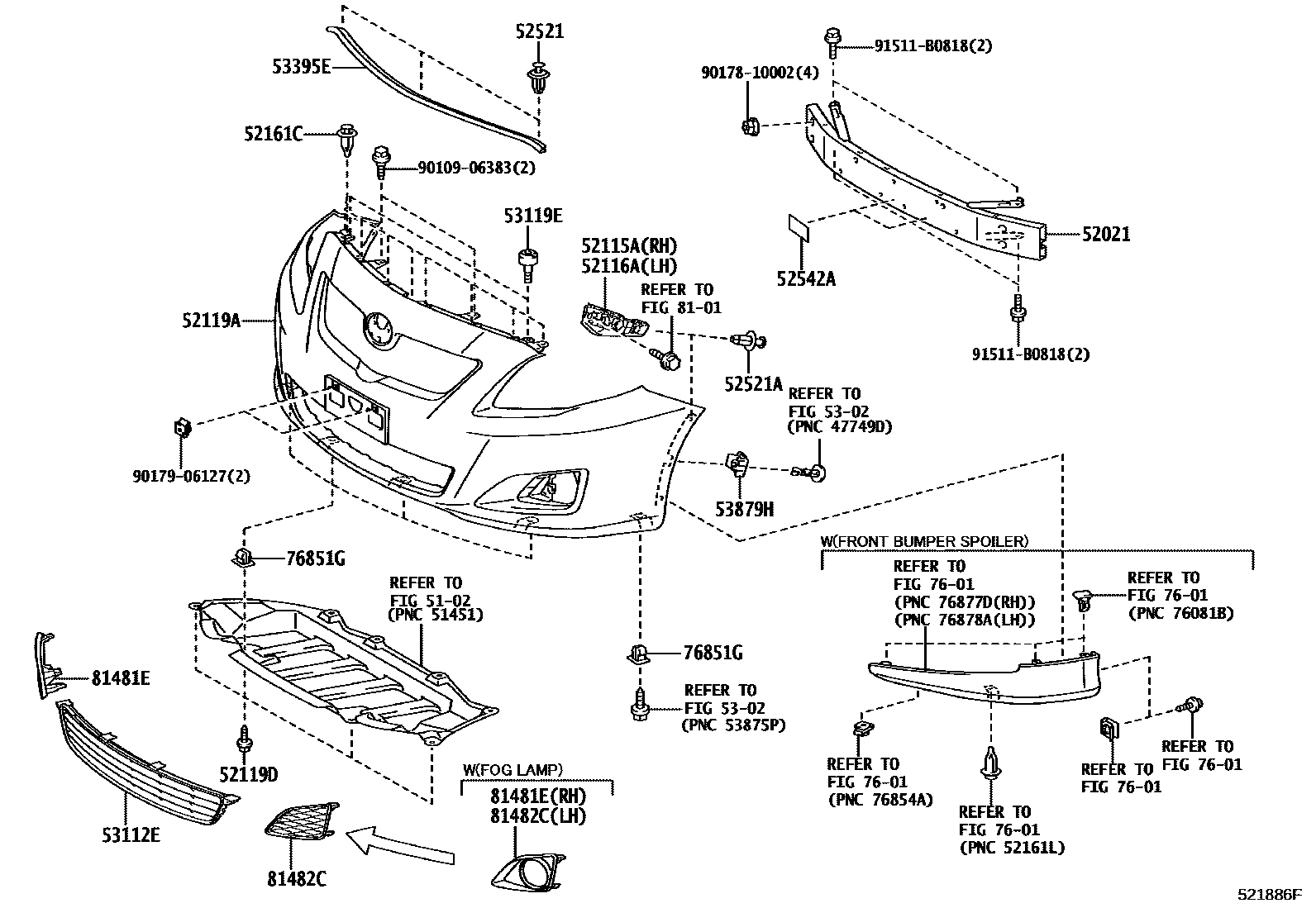

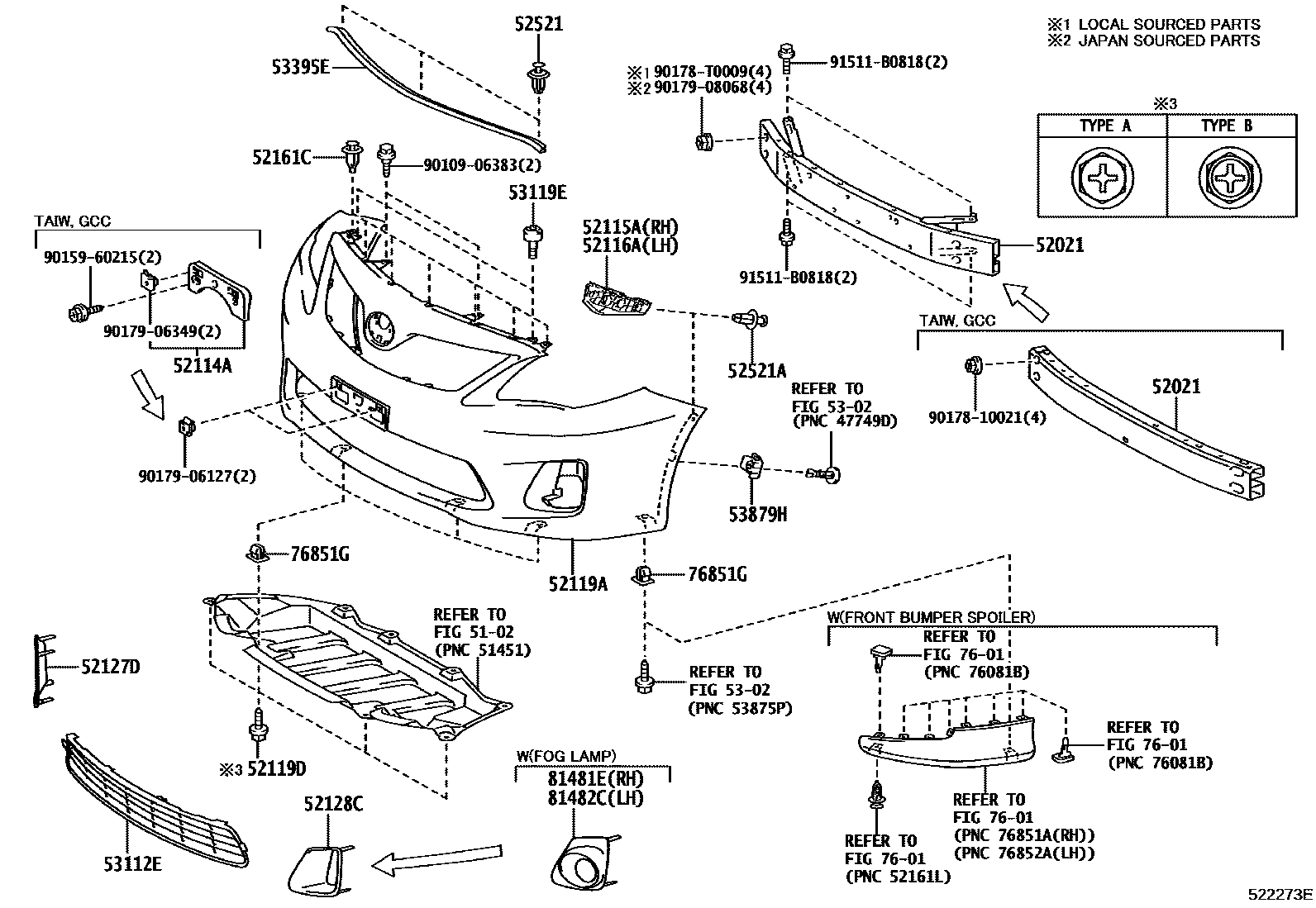

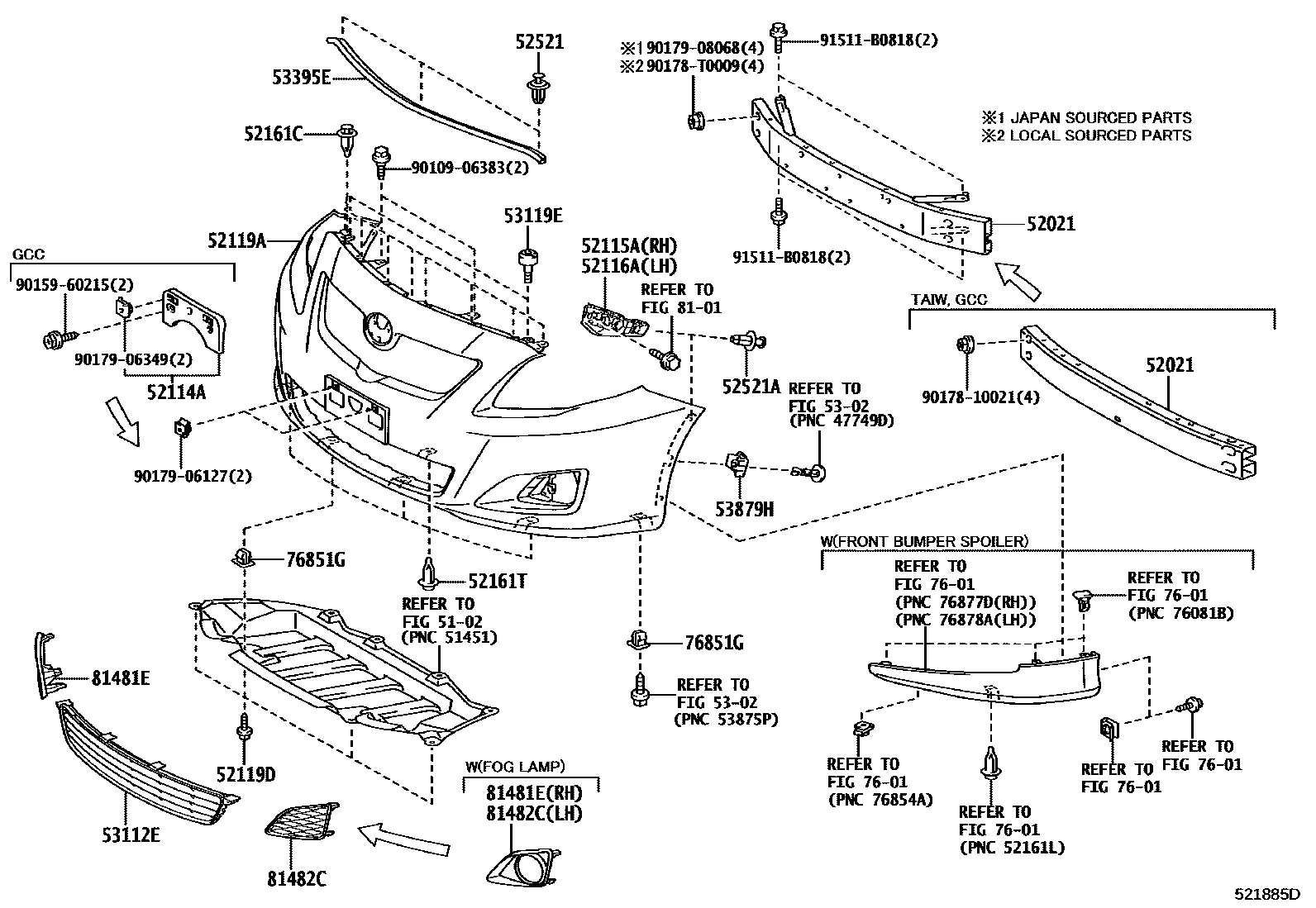

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-02101 · 52021-02190 · 52021-12300 · 52131-12290 |
| 52114A | Front bumper extension mounting bracket | 52114-02050 · 52114-02070 |
| 52115A | Front bumper right side bracket | 52115-02140 · 52115-02160 · 52115-02220 · 52115-02340 |
| 52116A | Front bumper left bracket | 52116-02140 · 52116-02160 · 52116-02220 · 52116-02340 |
| 52119A | front bumper cover | 52119-02850 · 52119-02983 · 52119-02985 · 52119-02986 · 52119-02987 · 52119-02997 · 52119-02999 · 52119-02C80 · 52119-0Z916 · 52119-0Z917 · 52119-0Z918 · 52119-0Z919 · 52119-0Z920 · 52119-0Z934 · 52119-0Z935 · 52119-0Z936 · 52119-0Z937 |
| 52119D | Screw No. 1 | 90159-60488 · 90159-T0033 |
| 52127D | Front bumper right hole cover | 81481-02230 |
| 52128C | Front bumper left hole cover | 81482-02220 |
| 52161C | front bumper insert | 52161-0K040 · 52161-16010 |
| 52161T | front bumper insert | 52161-0K040 · 52161-16010 |
| 52521A | Clip (for front bumper mount) | 90467-05170 |
| 52542A | Front bumper No. 2 protective part | 52542-02010 |
| 53112E | No. 1 radiator lower grille | 53112-02190 · 53112-02240 · 53112-02330 · 53112-12131 |
| 53119E | Radiator grille protector | 53119-42020 |
| 53395E | Engine cover to front end plate seal | 53395-02050 |
| 53879H | Front fender lining fixing parts | 53879-0K010 · 53879-58010 |
| 76851G | No. 1 screw seal | 90189-06193 · 90189-06237 |
| 81481E | Right fog light cover | 81481-02110 · 81481-02120 · 81481-02240 |
| 81482C | Left fog light cover | 81482-02100 · 81482-02110 · 81482-02230 |
