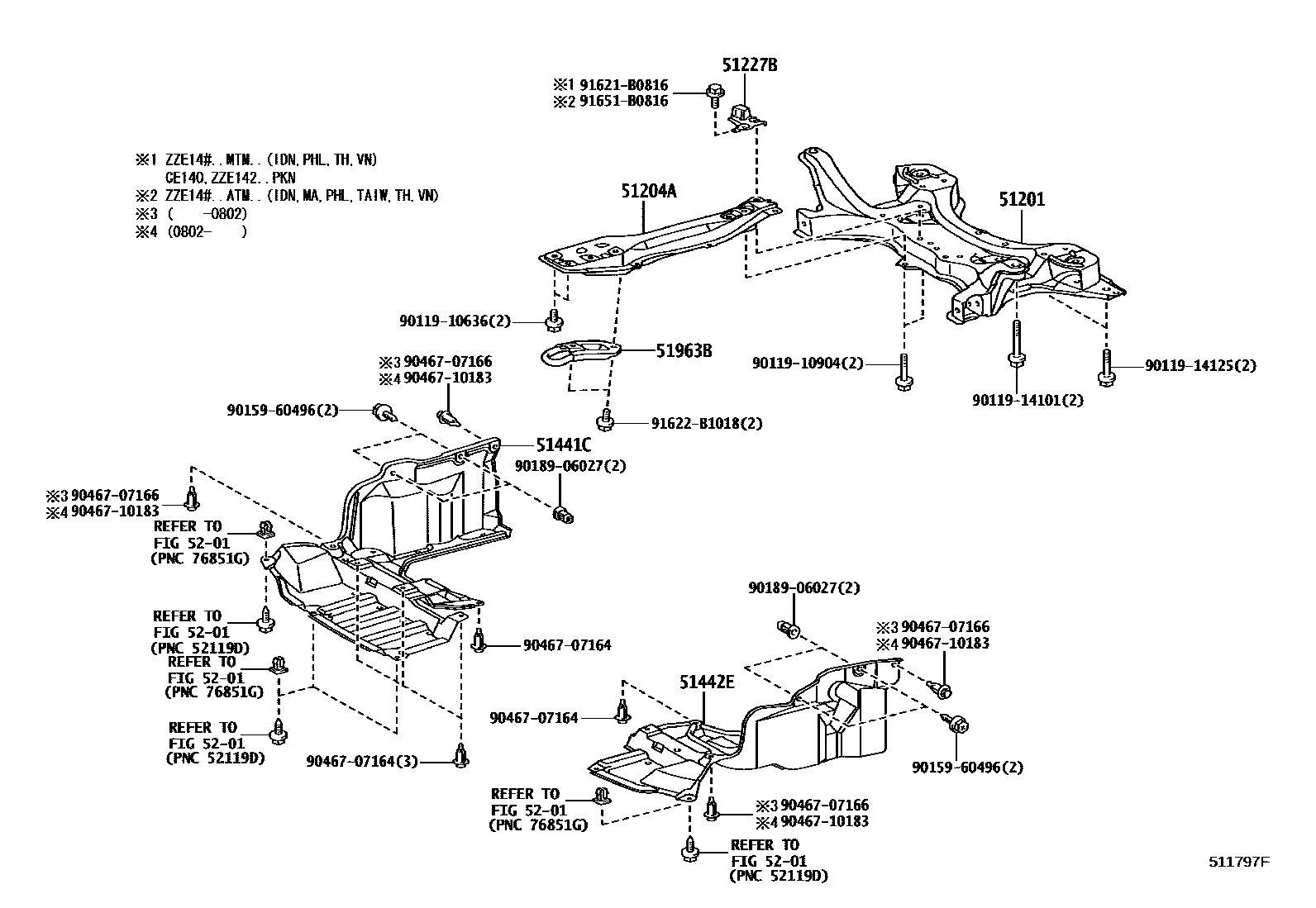

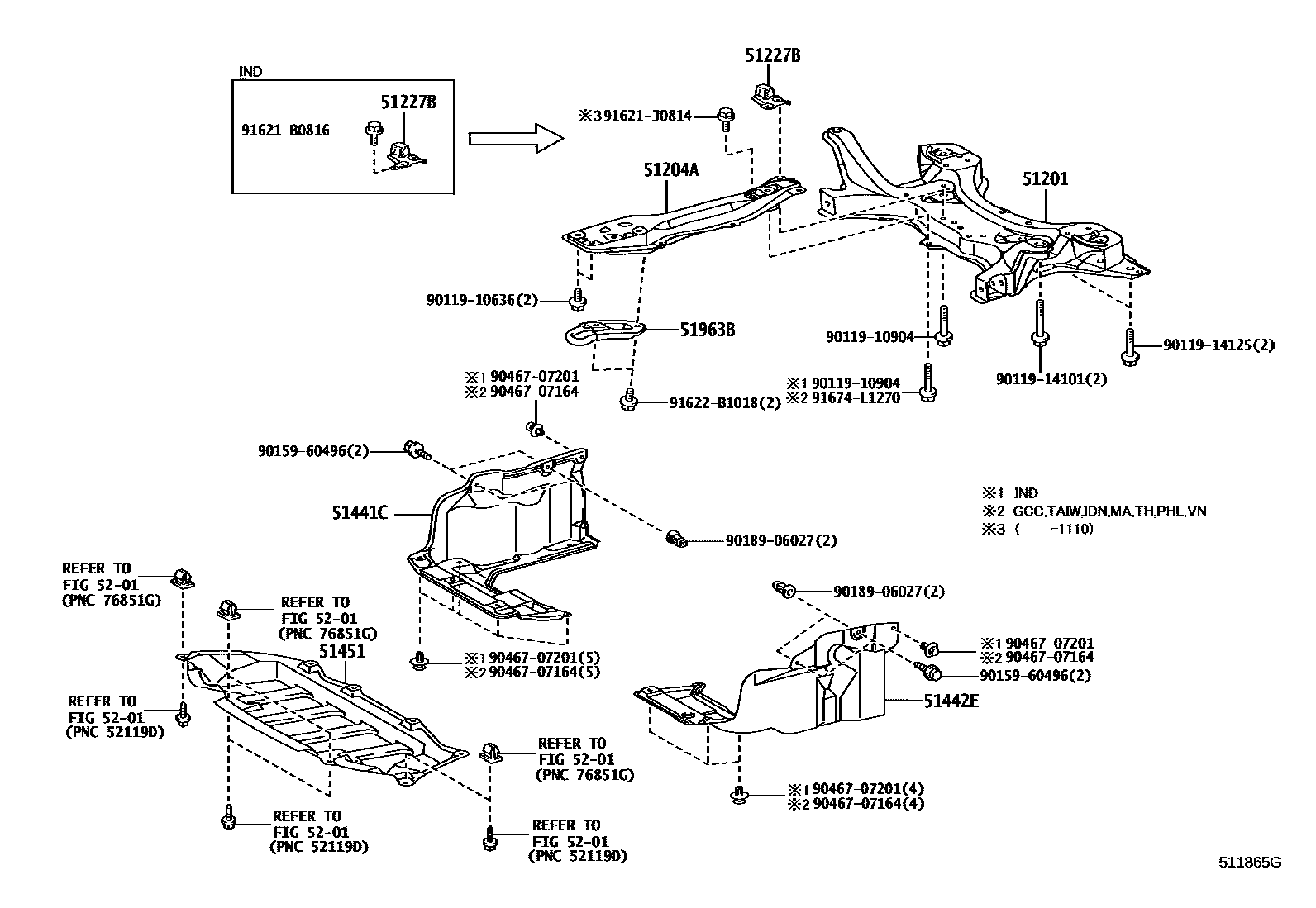

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-02170 · 51201-12431 |
| 51204A | Engine center mount beam sub-assembly | 51204-02090 · 51204-02091 · 51204-02120 · 51204-12130 · 51204-12150 |
| 51227B | Front suspension beam dynamic damper | 51227-02080 · 51227-02090 · 51227-12070 · 51227-12081 · 51227-12110 |
| 51441C | Engine right bottom cover | 51441-02280 · 51441-02360 · 51441-12240 · 51441-12280 |
| 51442E | No. 2 engine bottom cover | 51442-02360 · 51442-02370 · 51442-02410 · 51442-02420 · 51442-12220 · 51442-12230 · 51442-12260 · 51442-12261 |
| 51451 | Engine No. 4 right side bottom cover | 51451-02100 · 51451-12110 |
| 51963B | Right front transport hook | 51960-02110 |
