Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

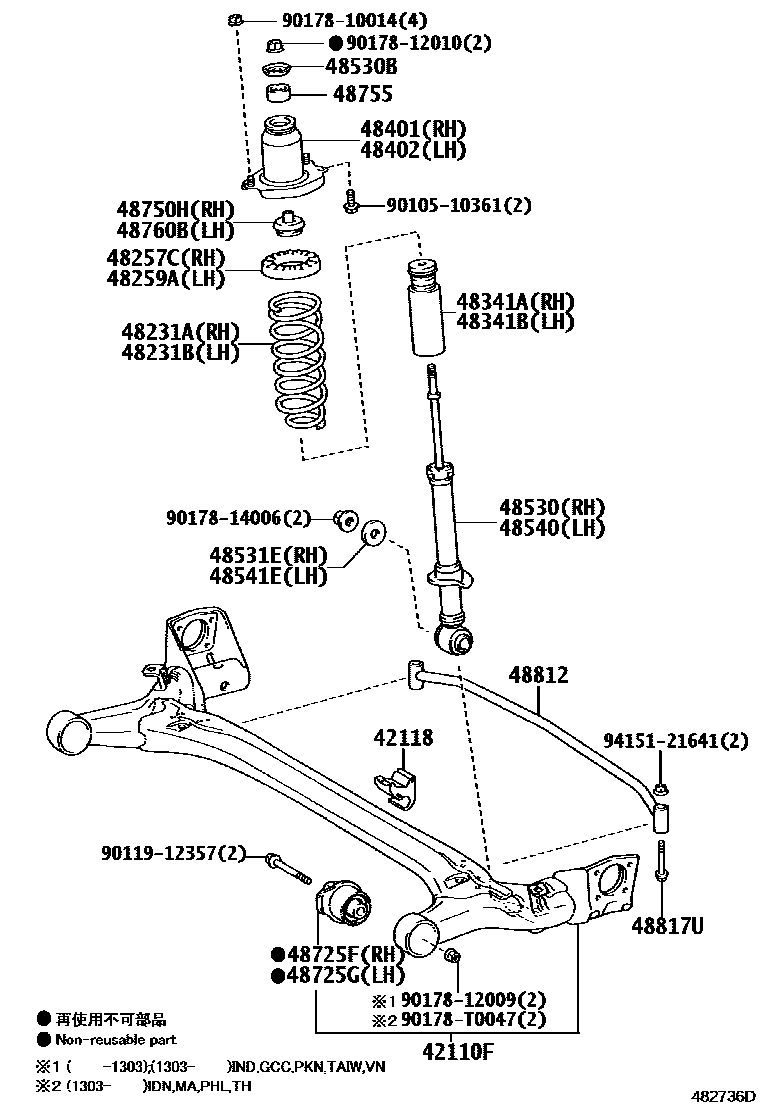

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-02340 · 42110-02350 · 42110-02360 · 42110-02370 · 42110-02400 · 42110-02430 · 42110-02440 · 42110-02670 · 42110-02680 · 42110-02690 |
| 42118 | Rear axle damper | 42118-02020 · 42118-02030 · 42118-12020 |
| 48231A | Right rear coil spring | 48231-02800 · 48231-02810 · 48231-02820 · 48231-02830 · 48231-02A20 · 48231-02A30 · 48231-02A40 · 48231-02A50 · 48231-02B50 · 48231-12B80 |
| 48231B | Left rear coil spring | 48231-02800 · 48231-02810 · 48231-02820 · 48231-02830 · 48231-02A20 · 48231-02A30 · 48231-02A40 · 48231-02A50 · 48231-02B50 · 48231-12B80 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-02010 · 48257-02020 · 48257-02080 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-02010 · 48257-02020 · 48257-02080 |
| 48341A | No. 1 right rear spring buffer block | 48341-12230 |
| 48341B | No. 1 left rear spring buffer block | 48341-12230 |
| 48401 | Rear spring right front bracket sub-assembly | 48401-02060 · 48401-02070 |
| 48402 | Rear spring left front bracket sub-assembly | 48403-02050 · 48403-02060 |
| 48530 | Right rear shock absorber assembly | 48530-02660 · 48530-02670 · 48530-02680 · 48530-02690 · 48530-02700 · 48530-02790 · 48530-02800 · 48530-02810 · 48530-02820 · 48530-02880 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03021 |
| 48531E | No. 1 buffer pad block (for right rear shock absorber) | 90201-14034 |
| 48540 | Left rear shock absorber assembly | 48530-02660 · 48530-02670 · 48530-02680 · 48530-02690 · 48530-02700 · 48530-02790 · 48530-02800 · 48530-02810 · 48530-02820 · 48530-02880 |
| 48541E | No. 1 cushion block (for left rear shock absorber) | 90201-14034 |
| 48725F | Right rear axle bracket bushing | 48725-02300 · 48725-02310 · 48725-12630 |
| 48725G | Left rear axle bracket bushing | 48725-02300 · 48725-02310 · 48725-12630 |
| 48750H | Right rear suspension support assembly | 48750-02020 · 48750-02030 |
| 48755 | rear suspension mount | 48755-02020 · 48755-02030 |
| 48760B | Left rear suspension support assembly | 48750-02020 · 48750-02030 |
| 48812 | rear stabilizer bar | 48812-02260 · 48812-02270 · 48812-02280 |
| 48817U | Bolt (for rear stabilizer bar) | 90105-16085 |
