Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

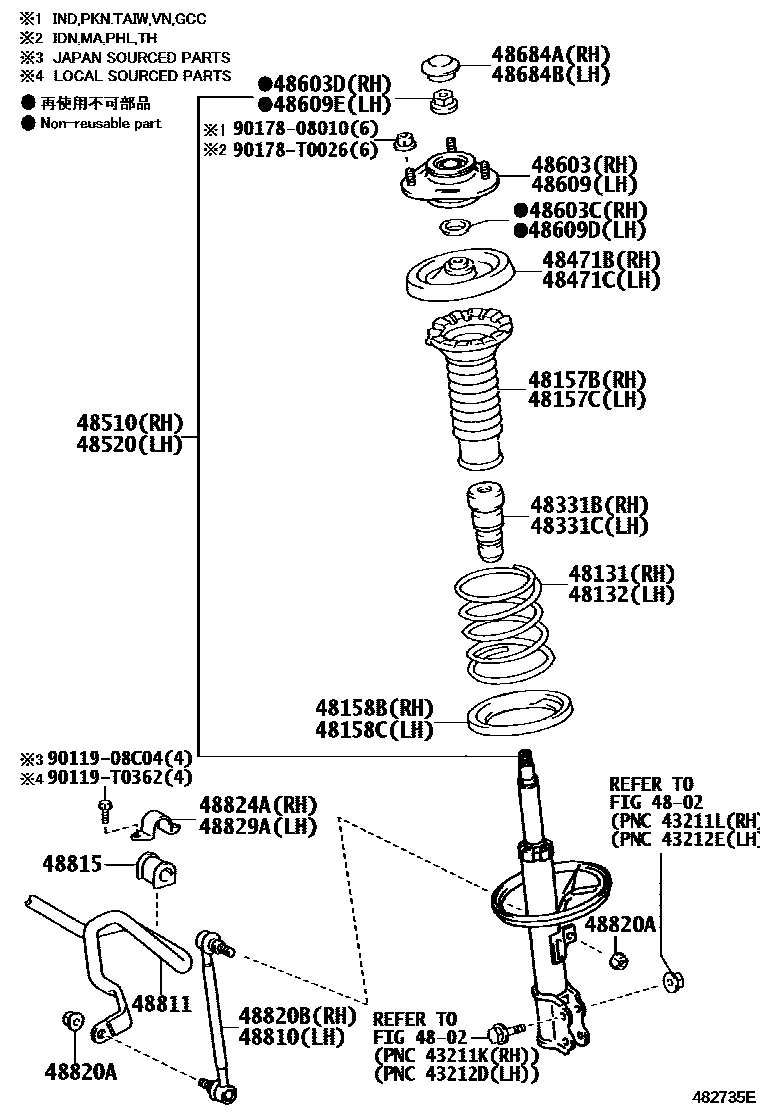

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-02F90 · 48131-02G00 · 48131-02G10 · 48131-02G20 · 48131-02G30 · 48131-02G31 · 48131-02G40 · 48131-02G41 · 48131-02G50 · 48131-02G80 · 48131-02G90 · 48131-02J00 · 48131-02J10 · 48131-02K40 · 48131-02K50 · 48131-02K60 · 48131-02K70 · 48131-12C50 · 48131-12C51 · 48131-12C60 · 48131-12C61 · 48131-12C70 · 48131-12C71 · 48131-12D10 |
| 48132 | Left front coil spring | 48131-02F90 · 48131-02G00 · 48131-02G10 · 48131-02G20 · 48131-02G30 · 48131-02G31 · 48131-02G40 · 48131-02G41 · 48131-02G50 · 48131-02G80 · 48131-02G90 · 48131-02J00 · 48131-02J10 · 48131-02K40 · 48131-02K50 · 48131-02K60 · 48131-02K70 · 48131-12C50 · 48131-12C51 · 48131-12C60 · 48131-12C61 · 48131-12C70 · 48131-12C71 · 48131-12D10 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-02020 · 48157-02050 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-02020 · 48157-02050 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-02030 · 48158-02040 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-02030 · 48158-02040 |
| 48331B | Right front spring buffer block | 48331-12210 |
| 48331C | Left front spring buffer block | 48331-12210 |
| 48471B | Front coil spring upper right seat | 48044-02140 · 48044-02150 · 48044-02160 |
| 48471C | Front coil spring upper left seat | 48044-02140 · 48044-02150 · 48044-02160 |
| 48510 | Right front shock absorber assembly | 48510-09T20 · 48510-09T30 · 48510-09T40 · 48510-09T50 · 48510-09T60 · 48510-09V90 · 48510-09W00 · 48510-09W10 · 48510-09W20 · 48510-09X40 · 48510-8Z003 |
| 48520 | Left front shock absorber assembly | 48520-09L50 · 48520-09L60 · 48520-09L70 · 48520-09L80 · 48520-09L90 · 48520-09N90 · 48520-09P00 · 48520-09P10 · 48520-09P20 · 48520-09Q40 · 48520-09T20 |
| 48603 | Right front suspension bearing sub-assembly | 48609-02200 · 48609-02210 · 48609-02220 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22002 |
| 48603D | Nut (for front mount to right front shock absorber) | 90179-14015 |
| 48609 | Left front suspension bearing sub-assembly | 48609-02200 · 48609-02210 · 48609-02220 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22002 |
| 48609E | Nut (for front mount to left front shock absorber) | 90179-14015 |
| 48684A | Right front suspension support dust cover | 48684-02030 · 48684-02040 |
| 48684B | Left front suspension support dust cover | 48684-02030 · 48684-02040 |
| 48810 | Left front stabilizer bar link assembly | 48820-02090 · 48820-02091 · 48820-02100 · 48820-47010 |
| 48811 | front stabilizer bar | 48811-02260 · 48811-02270 · 48811-02280 · 48811-02290 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-02230 · 48815-02240 · 48815-02250 · 48815-12360 |
| 48820A | Nut (for front stabilizer bar link) | 90179-12151 |
| 48820B | Right front stabilizer bar link assembly | 48820-02090 · 48820-02091 · 48820-02100 · 48820-47010 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-02070 · 48824-02080 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-02070 · 48824-02080 |
