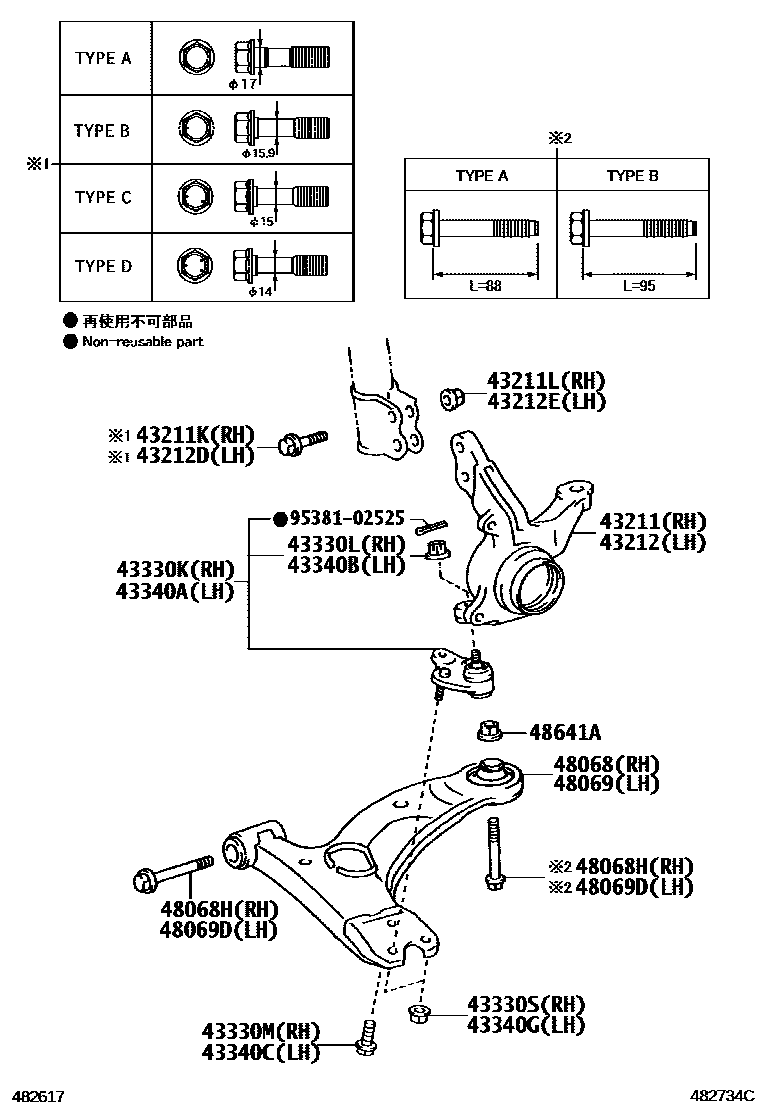

Toyota COROLLA 前桥控制臂和转向节 — Figure 4802
Toyota COROLLA EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-02240 · 43211-02250 · 43211-02261 · 43211-02270 · 43211-02280 · 43211-02291 · 43211-02300 · 43211-02330 · 43211-02340 |
| 43211K | Bolt (for right steering knuckle) | 90105-17008 · 90105-17009 · 90105-17010 · 90105-17011 |
| 43211L | Nut (for right steering knuckle) | 90178-17002 |
| 43212 | left steering knuckle | 43212-02240 · 43212-02250 · 43212-02261 · 43212-02270 · 43212-02280 · 43212-02291 · 43212-02300 · 43212-02330 · 43212-02340 |
| 43212D | Bolt (for left steering knuckle) | 90105-17008 · 90105-17009 · 90105-17010 · 90105-17011 |
| 43212E | Nut (for left steering knuckle) | 90178-17002 |
| 43330K | Right front lower ball joint assembly | 43330-09680 · 43330-09690 |
| 43330L | Castle nut (for right front lower ball joint) | 90171-14003 |
| 43330M | Bolt (for right front lower ball joint) | 90105-12336 |
| 43330S | Nut (for right front lower ball joint) | 90178-12015 |
| 43340A | Left front lower ball joint assembly | 43330-09680 · 43330-09690 |
| 43340B | Castle nut (for left front lower ball joint) | 90171-14003 |
| 43340C | Bolt (for left front lower ball joint) | 90105-12336 |
| 43340G | Nut (for left front lower ball joint) | 90178-12015 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-02210 · 48068-02220 · 48068-02250 |
| 48068H | Bolt (for right front suspension No. 1 lower arm) | 90119-14086 · 90119-T0353 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-02210 · 48069-02220 · 48069-02250 |
| 48069D | Bolt (for left front suspension No. 1 lower arm) | 90119-14086 · 90119-T0353 |
| 48641A | Nut (for suspension lower arm shaft) | 90178-T0048 · 90179-14068 |
